Antenas de RF
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Família/Padrão de RF | Frequência Grupo | Frequência (Centro/Banda) | Faixa de frequência | Tipo de Antena | Número de Bandas | VSWR | Perda de retorno | Ganho | Potência - Máx. | Recursos | Terminação | Proteção de entrada | Grau | Qualificação | Tipo de montagem | Altura (máx.) | Aplicações |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

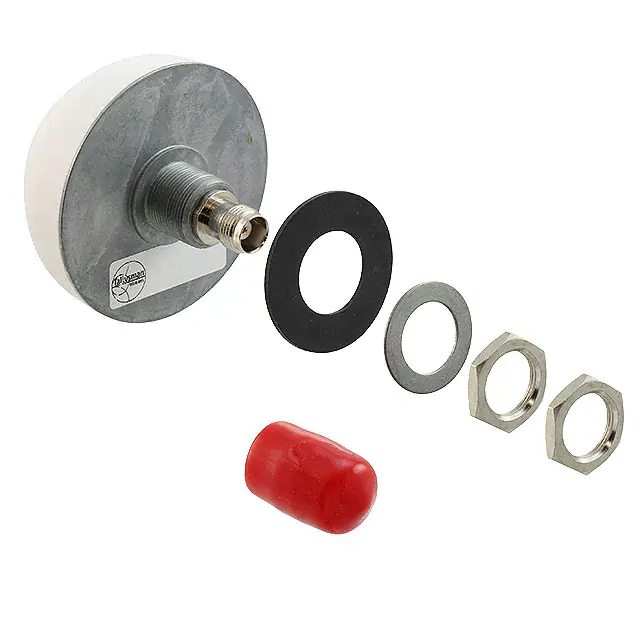

33-3040-01-01RF ANT 1.575GHZ DOME TNC FEMALE |
29 |
|
Ficha técnica |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.570GHz ~ 1.580GHz | Dome | 1 | 1.5 | - | 40dB | - | LNA, Filter | TNC Female | IP67 | - | - | Panel Mount | 0.827" (21.00mm) | GPS |
|
MA145.A.LBC.0013IN1 GNSS, LTE & WIFI ANT 2.4GHZ |
71 |
|
- |
Olympian II | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.575GHz, 1.602GHz, 1.955GHz, 2.45GHz, 2.495GHz, 3.75GHz, 5.5GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 5.15GHz ~ 5.85GHz | Dome | 11 | 2 | - | -0.2dBi, 1.3dBi, 0.4dBi, 3.6dBi, -1.98dBi, -1.67dBi, 3.8dBi, 3.5dBi, 2.7dBi, 3.1dBi, 3.6dBi | 10 W | Cable - 1m, LNA, Filter | RP-SMA Male, SMA Male | IP67 | - | - | Panel Mount | 1.909" (48.50mm) | 3G, 4G, 5G, Beidou, Galileo, GLONASS, GNSS, GPS, HSPA, HSPA+, LTE, WCDMA, Wi-Fi |
|
CFSA69383P1-30NFANT OMNI DBAND 30CM NF HOLES |
51 |
|
Ficha técnica |
- | Bulk | Active | Cellular, WiFi | Wide Band | 752MHz, 859MHz, 920MHz, 1.45GHz, 1.785GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.6GHz, 3.55GHz, 3.9GHz | 698MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 4GHz | Flat Panel | 11 | 1.5, 1.8, 2 | - | 3.2dBi, 2.6dBi, 3.4dBi, 4.2dBi, 4dBi, 4.4dBi, 4.2dBi, 4.3dBi, 5.4dBi, 2.4dBi, 3dBi | 50 W | Cable - 300mm | N Type Female | - | - | - | Panel Mount | 0.300" (7.62mm) | AWS, GSM, DCS, LTE, UMTS, WiMax™ |
|
ANT-DB1-LP-RM-01-NRF ANT 892MHZ/1.94GHZ LOG PERIOD |
45 |
|
Ficha técnica |
- | Bulk | Active | - | Wide Band | 892MHz, 1.94GHz, 2.45GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.48GHz | Log Periodic | 3 | 1.5 | - | 8.5dBi, 9dBi, 9dBi | 100 W | Cable - 165mm | N Type Female | - | - | - | Bracket Mount | 15.551" (395.00mm) | - |
|
OMB.242.08F21RF ANT 2.4GHZ WHIP STR N FEM |
74 |
|
Ficha técnica |
Barracuda | Tube | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 1.3 | - | 8dBi | 50 W | - | N Type Female | - | - | - | Bracket Mount | 20.591" (523.00mm) | Bluetooth, WLAN |
|
8111D-HRRF ANT GNSS 26DB 5M SMA MAGNET |
283 |
|
Ficha técnica |
GPS Magnetic | Bulk | Active | PNT | UHF (1GHz ~ 2GHz) | 1.5845GHz | 1.561GHz ~ 1.608GHz | Module | 1 | 1.5 | - | 26dBi | - | Cable - 5m, LNA, Filter | SMA Male | IP67 | - | - | Magnetic | 0.472" (12.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
TRAB24-49003PRF ANT 2.4GHZ/4.9GHZ DOME N FEM |
176 |
|
Ficha técnica |
Phantom® | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 4.9GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz | Dome | 2 | 2, 3 | - | 0.7dBi, 0.6dBi | 100 W | - | N Type Female | - | - | - | Panel Mount | 2.299" (58.40mm) | WLAN |
|
OSCAR18/X/NF/S/S/22RF ANT 850MHZ/900MHZ YAGI N FEM |
121 |
|
Ficha técnica |
OSCAR 18 | Bulk | Active | 802.15.4, Bluetooth, Cellular, WiFi | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz | - | Yagi | 6 | 1.5 | - | 10dBi | - | - | N Type Female | - | - | - | Bracket Mount | 2.559" (65.00mm) | Bluetooth, GPRS, GSM, UMTS, WLAN, Zigbee™ |
|
|
60011253IN1 PANEL ANTENNA - 2XLTE, GNSS |
37 |
|
Ficha técnica |
AirLink® - Accessory | Box | Active | Cellular, Navigation | UHF (2GHz ~ 3GHz) | 2.249GHz | 698MHz ~ 3.8GHz | Panel | 1 | - | - | - | - | Cable - 3m | - | - | - | - | Panel Mount | - | GNSS, LTE |
|
60012113IN1 PANEL ANTENNA - 2XLTE, GNSS |
35 |
|
Ficha técnica |
AirLink® - Accessory | Box | Active | Cellular, Navigation | UHF (2GHz ~ 3GHz) | 2.249GHz | 698MHz ~ 3.8GHz | Panel | 1 | - | - | - | - | Cable - 1m | - | - | - | - | Panel Mount | - | GNSS, LTE |
|

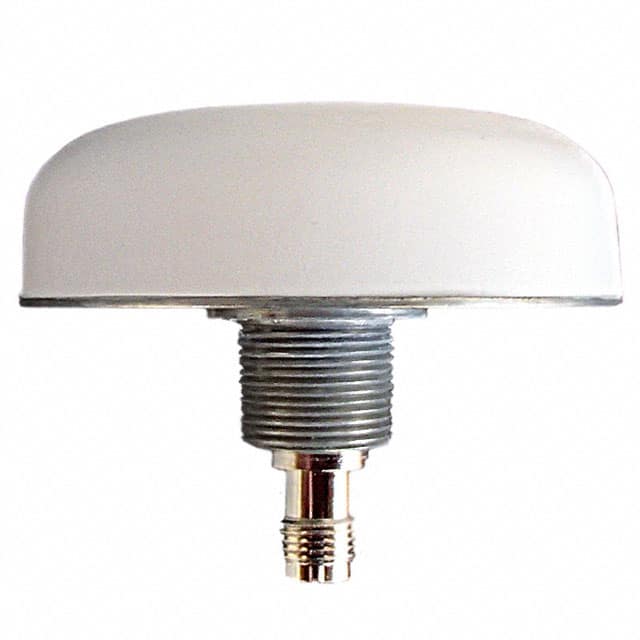

33-3600-01-11RF ANT 1.621GHZ DOME TNC FEMALE |
29 |
|
Ficha técnica |
Accutenna® | Bulk | Active | - | UHF (1GHz ~ 2GHz) | 1.621GHz | 1.616GHz ~ 1.626GHz | Dome | 1 | 1.5 | -10dB | 4.25dBic | - | - | TNC Female | IP67 | - | - | Panel Mount | 0.827" (21.00mm) | Iridium™ |
|
AEACBK110053-MLWGGPS/GLON/LTE/WIFI MIMO COMB ANT |
231 |
|
Ficha técnica |
AEAC | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.5925GHz, 2.2GHz, 2.442GHz, 5.3625GHz | 698MHz ~ 960MHz, 1.575GHz ~ 1.61GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.484GHz, 4.9GHz ~ 5.825GHz | Dome | 5 | 2, 2.5, 3 | - | 2dBi, 3dBi | - | Cable - 3m, LNA | SMA Male | IP67 | - | - | Screw Mount | 2.087" (53.00mm) | 2G, 3G, 4G, GLONASS, GSM, GPS, GNSS, LTE, Wi-Fi |
|
|
ANN-MB2-00MULTI-BAND (L1, L5) ACTIVE GNSS |
88 |
|
Ficha técnica |
ANN-MB | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.225GHz, 1.568GHz | 1.166GHz ~ 1.285GHz, 1.535GHz ~ 1.602GHz | Ceramic Patch | 2 | - | - | 5dBic, 5.4dBic | - | Cable - 5m, LNA, Filter | SMA | IP67 | - | - | Screw Mount | 0.972" (24.70mm) | GNSS |
|
|
YEMN016AA5G COMBO ANTENNA |
114 |
|
Ficha técnica |
- | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 650MHz, 755MHz, 890MHz, 1.47GHz, 1.935GHz, 2.35GHz, 2.45GHz, 2.595GHz, 3.75GHz, 4.7GHz, 5.5GHz | 600MHz ~ 700MHz, 700MHz ~ 810MHz, 820MHz ~ 960MHz, 1.164GHz ~ 1.189GHz, 1.217GHz ~ 1.238GHz, 1.42GHz ~ 1.52GHz, 1.559GHz ~ 1.606GHz, 1.7GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.69GH | Dome | 14 | 2.7, 3.1, 8.4 | -2.1dB , -5.8dB , -6.8dB | 0.2dBi, -1.2dBi, 1.3dBi, 1.8dBi, 1.9dBi, -2dBi, 4dBi, 4dBi, 4.1dBi, 4.1dBi, 4.9dBi, 5.1dBi, 5.3dBi | - | Cable - 300mm, LNA | SMA Male | IP67, IP69K | - | - | Screw | 1.220" (31.00mm) | 4G, 5G, BeiDou, Galileo, GLONASS, GNSS, GPRS, GPS, GSM, HSPA, HSPA+, LTE, WCDMA, Wi-Fi |
|
33-2410-00-5000RF ANT 1.575/1.602GHZ DOME SMA |
92 |
|
Ficha técnica |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.574GHz ~ 1.606GHz | Dome | 1 | 1.5 | - | 4.25dBic | - | LNA, Filter | SMA Male | IP67 | - | - | Magnetic, Chassis Mount | 0.591" (15.00mm) | GLONASS, GPS |
|
33-2412-00-5000GPS L1+GLONASS L1 , PRE-FILTERED |
70 |
|
Ficha técnica |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.59GHz | 1.574GHz ~ 1.606GHz | Dome | 1 | 1.8 | - | 4.25dBi | - | Cable - 5m, LNA | SMA Male | IP67 | - | - | Magnetic | 0.591" (15.00mm) | GLONASS, GPS |
|
|
33-2412-07GPS L1+GLONASS L1 , PRE-FILTERED |
57 |
|
Ficha técnica |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.59GHz | 1.574GHz ~ 1.606GHz | Dome | 1 | 1.8 | - | 4.25dBi | - | LNA | SMA Female | IP67 | - | - | Magnetic | 0.591" (15.00mm) | GLONASS, GPS |
|
OD9-5RF ANT 920MHZ WHIP STR N FEM |
47 |
|
Ficha técnica |
- | Bulk | Active | WiFi | UHF (300MHz ~ 1GHz) | 920MHz | 890MHz ~ 950MHz | Whip, Straight | 1 | 1.5 | - | 5dBi | 100 W | - | N Type Female | - | - | - | Bracket Mount | 24.016" (610.00mm) | WiMax™ |
|
IAA.01.121111RF ANT 1.6GHZ MODULE SMA ML MAG |
448 |
|
Ficha técnica |
- | Bag | Active | - | UHF (1GHz ~ 2GHz) | 1.6GHz | 1.616GHz ~ 1.626GHz | Module | 1 | 1.5 | - | - | - | - | SMA Male | IP67 | - | - | Magnetic | 0.484" (12.30mm) | Iridium® |
|
MA170.A.BI.001MONSOON 3M LTE MIMO(1&2) SMA(M)S |
304 |
|
- |
- | Tray | Active | Cellular | Wide Band | 750.5MHz, 859MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz, 3.45GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz | Dome | 8 | 5 | - | 1.47dBi, 2.28dBi, 2.36dBi, 2.74dBi, 3.28dBi, 4.43dBi, 5.93dBi | - | - | SMA Male | - | - | - | Base Mount | 1.218" (30.93mm) | 2G, 3G, 4G, LTE |
