Relés de Sinal, Até 2 A
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de montagem | Tensão da bobina | Forma de contato | Classificação de contato (corrente) | Tensão de comutação | Carga - Comutação Máxima | Corrente da bobina | Tipo de bobina | Recursos | Estilo de Terminação | Classificação de Vedação | Isolamento da Bobina | Tensão de operação obrigatória | Tensão de liberação obrigatória | Tempo de operação | Tempo de liberação | Temperatura operacional | Material de Contato | Agência de Aprovação | Tipo de Relé | Grau | Qualificação |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AGN20006RELAY TELECOM DPDT 1A 6V |
52 |
|
Ficha técnica |
AGN | Tube | Active | Through Hole | 6VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 23.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | BSI, cURus | Telecom | - | - |
|
AGQ210A1HRELAY TELECOM DPDT 2A 1.5V |
100 |
|
Ficha técnica |
AGQ | Tube | Active | Surface Mount | 1.5VDC | DPDT (2 Form C) | 2 A | 125VAC, 110VDC - Max | 125VA, 110W | 66.7 mA | Latching, Single Coil | - | Gull Wing | - | - | 1.13 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | BSI, cURus | Telecom | - | - |
|
AGQ20T06RELAY GENERAL PURPOSE DPDT 2A 6V |
50 |
|
Ficha técnica |
AGQ TH | Tube | Active | Through Hole | 6VDC | DPDT (2 Form C) | 2 A | 125VAC, 110VDC - Max | 250VA, 220W | 23.3 mA | Non Latching | - | PC Pin | - | - | 4.5 VDC | 0.6 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | BSI, cURus | General Purpose | - | - |
|
TXS2-LT-3VRELAY GENERAL PURPOSE DPDT 1A 3V |
78 |
|
Ficha técnica |
TX-S | Tube | Active | Through Hole | 3VDC | DPDT (2 Form C) | 1 A | 110VDC - Max | 110W | 23.3 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 2.4 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | BSI, cURus | General Purpose | - | - |
|
DS1E-S-DC9VRELAY GENERAL PURPOSE SPDT 2A 9V |
50 |
|
- |
DS | Box | Active | Through Hole | 9VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 22.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 7.2 VDC | 0.9 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | CSA, UR | General Purpose | - | - |
|
|
DS1E-SL2-DC5VRELAY GENERAL PURPOSE SPDT 2A 5V |
50 |
|
- |
DS | Box | Active | Through Hole | 5VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 36 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 4 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | CSA, UR | General Purpose | - | - |
|
2903329RELAY GEN PURPOSE DPDT 50MA 24V |
7 |
|
Ficha técnica |
RIF | Bulk | Active | DIN Rail | 24VAC | DPDT (2 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 33 mA | Non Latching | Lighted Indicator, Socket Included, Varistor | Spring Terminal | - | - | - | - | 12 ms | 20 ms | -40°C ~ 50°C | Silver Nickel (AgNi), Gold (Au) | - | General Purpose | - | - |
|
2903327RELAY GEN PURPOSE DPDT 50MA 230V |
9 |
|
Ficha técnica |
RIF | Bulk | Active | DIN Rail | 230VAC | DPDT (2 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 6 mA | Non Latching | Lighted Indicator, Socket Included, Varistor | Spring Terminal | - | - | - | - | 12 ms | 20 ms | -40°C ~ 50°C | Silver Nickel (AgNi), Gold (Au) | - | General Purpose | - | - |
|

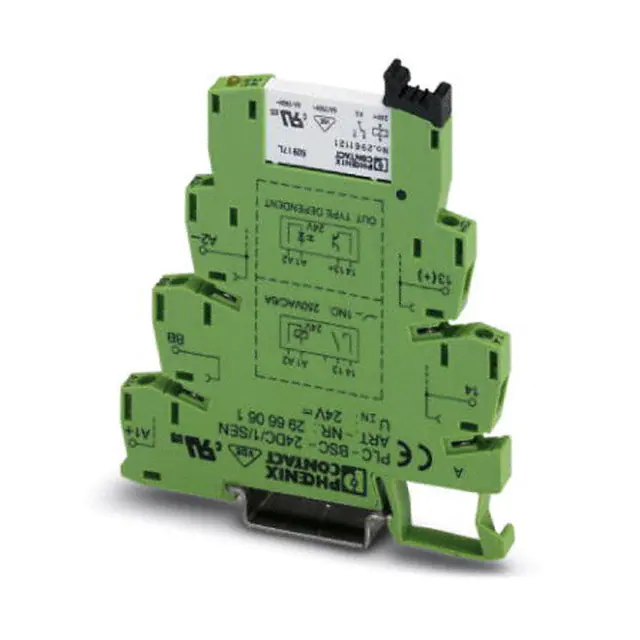

2966317RELAY GEN PURPOSE SPST 50MA 24V |
20 |
|
Ficha técnica |
PLC-RSC | Bulk | Active | DIN Rail | 24VDC | SPST-NO (1 Form A) | 50 mA | 30VAC, 36VDC - Max | - | 9 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 5 ms | 8 ms | -25°C ~ 60°C | Silver Tin Oxide (AgSnO), Gold (Au) | cULus, DNV, EAC, UL | General Purpose | - | - |
|
2900313RELAY GEN PURPOSE SPST 50MA 24V |
6 |
|
Ficha técnica |
PLC-RPT | Bulk | Active | DIN Rail | 24VDC | SPST-NO (1 Form A) | 50 mA | 30VAC, 36VDC - Max | - | 9 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 5 ms | 8 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO), Gold (Au) | cULus, DNV, EAC, UL | General Purpose | - | - |
|
G2RV-ST700-AP AC/DC24RELAY GEN PURPOSE SPDT 50MA 24V |
25 |
|
Ficha técnica |
G2RV-ST | Box | Active | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 14.9 mA | Non Latching | Socket Included | Screw Terminal | - | - | 19.2 VAC/DC | 2.4 VAC/DC | 20 ms | 40 ms | -40°C ~ 55°C | Silver Alloy, Gold Alloy | CE, cULus, TUV | General Purpose | - | - |
|

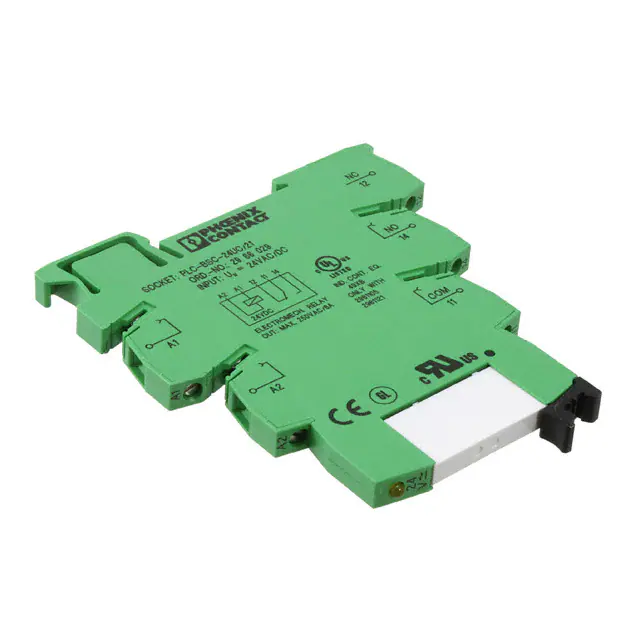

2966278RELAY GEN PURPOSE SPDT 50MA 24V |
16 |
|
Ficha técnica |
PLC-RSC | Bulk | Active | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 11 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 6 ms | 15 ms | -25°C ~ 60°C | Silver (Ag), Gold (Au) | cULus, DNV, EAC, UL | General Purpose | - | - |
|
2966294RELAY GEN PURPOSE SPDT 50MA 230V |
7 |
|
Ficha técnica |
PLC-RSC | Bulk | Active | DIN Rail | 230VAC/DC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 3.2 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 7 ms | 15 ms | -25°C ~ 55°C | Silver (Ag), Gold (Au) | cULus, DNV, EAC, UL | General Purpose | - | - |
|
2900339RELAY GEN PURPOSE DPDT 50MA 24V |
10 |
|
Ficha técnica |
PLC-RPT | Bulk | Active | DIN Rail | 24VAC/DC | DPDT (2 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 17.5 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 8 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi), Gold (Au) | cULus, DNV, EAC, UL | General Purpose | - | - |
|
HFW1230K06MRELAY GEN PURPOSE DPDT 2A 26.5V |
6 |
|
Ficha técnica |
HFW, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 37.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | - | General Purpose | Military | MIL-R-39016/6 |
|

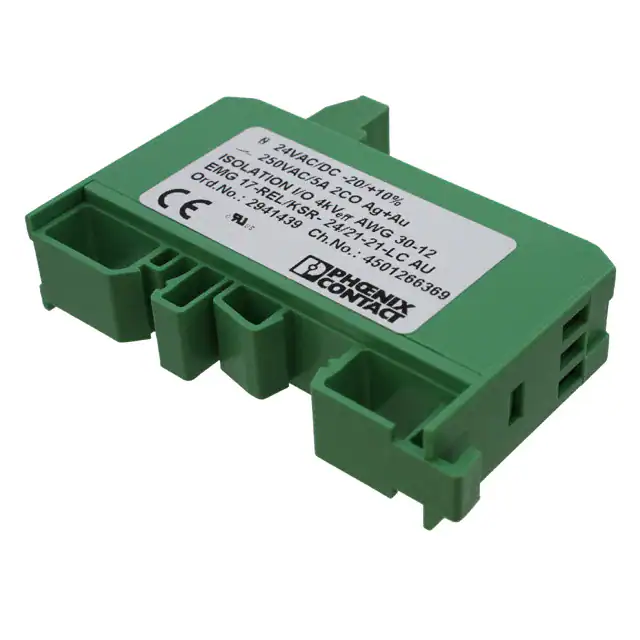

2941439RELAY GEN PURPOSE DPDT 50MA 24V |
2 |
|
Ficha técnica |
- | Bulk | Active | DIN Rail | 24VAC/DC | DPDT (2 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 18 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 8 ms | 10 ms | -20°C ~ 40°C | Silver Nickel (AgNi), Gold (Au) | cURus, EAC, UR | General Purpose | - | - |
|

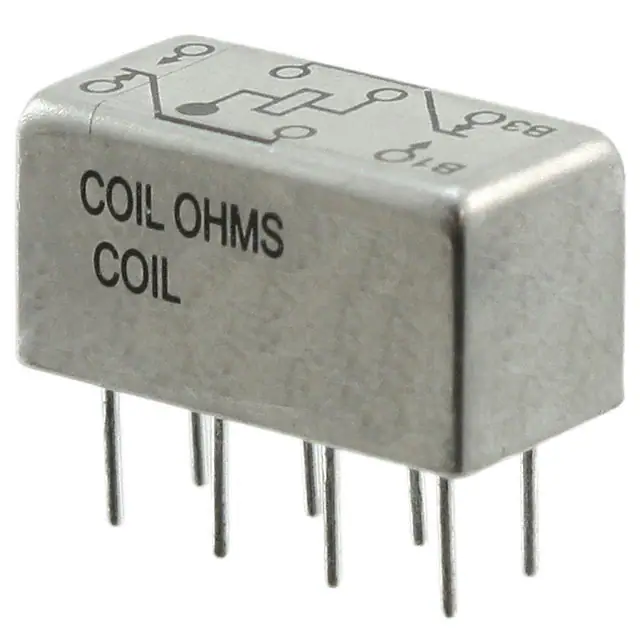

3SBC2022A2RELAY GEN PURPOSE DPDT 2A 18V |
5 |
|
Ficha técnica |
3SBC, CII | Bulk | Active | Through Hole | 18VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 27.7 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 9.5 VDC | 1 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | - | General Purpose | Military | MIL-R-39016/13 |
|
EE2-12SNURELAY GEN PURPOSE DPDT 2A 12V |
32 |
|
Ficha técnica |
EE2 | Tube | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 8.3 mA | Latching, Single Coil | - | Gull Wing | - | - | 9 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | CSA, TUV, UL | General Purpose | - | - |
|
TQ2SS-1.5VRELAY TELECOM DPDT 2A 1.5V |
48 |
|
Ficha técnica |
TQ-SMD | Tube | Active | Surface Mount | 1.5VDC | DPDT (2 Form C) | 2 A | 125VAC, 220VDC - Max | 250VA, 440W | 93.8 mA | Non Latching | - | Gull Wing | - | - | 1.13 VDC | 0.15 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | cURus | Telecom | - | - |
|
AGQ21TA2HXRELAY GEN PURPOSE DPDT 2A 2.4V |
54 |
|
Ficha técnica |
AGQ TH | Tape & Reel (TR) | Active | Surface Mount | 2.4VDC | DPDT (2 Form C) | 2 A | 125VAC, 110VDC - Max | 250VA, 220W | 41.7 mA | Latching, Single Coil | - | Gull Wing | - | - | 1.8 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | BSI, cURus | General Purpose | - | - |
