Relés de Sinal, Até 2 A
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de montagem | Tensão da bobina | Forma de contato | Classificação de contato (corrente) | Tensão de comutação | Carga - Comutação Máxima | Corrente da bobina | Tipo de bobina | Recursos | Estilo de Terminação | Classificação de Vedação | Isolamento da Bobina | Tensão de operação obrigatória | Tensão de liberação obrigatória | Tempo de operação | Tempo de liberação | Temperatura operacional | Material de Contato | Agência de Aprovação | Tipo de Relé | Grau | Qualificação |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

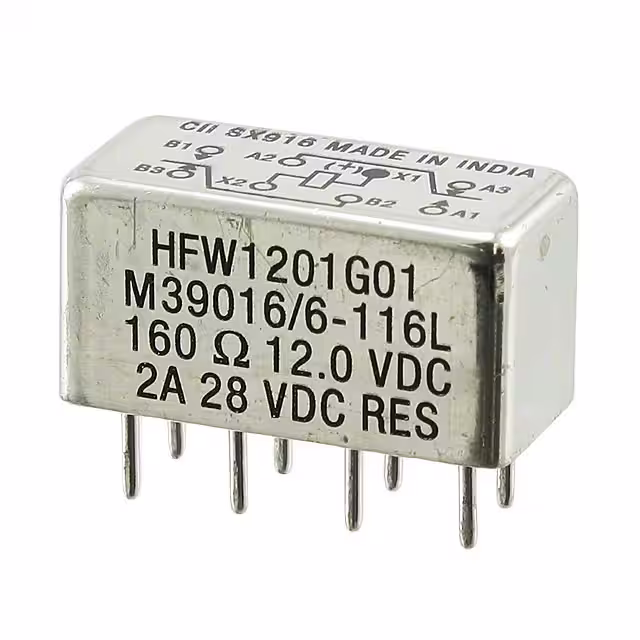

HFW1201G01RELAY GEN PURPOSE DPDT 2A 12V |
0 |
|
Ficha técnica |
HFW, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 75 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 6.4 VDC | 0.7 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | - | General Purpose | Military | MIL-R-39016/6 |
|

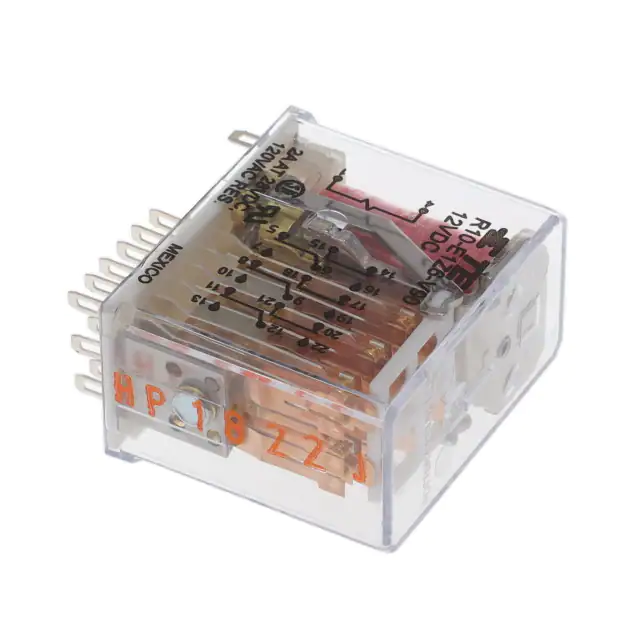

R10-E1Z6-V90RELAY GEN PURPOSE 6PDT 2A 12V |
1 |
|
Ficha técnica |
R10 | Bulk | Active | Socketable | 12VDC | 6PDT (6 Form C) | 2 A | 120VAC, 30VDC - Max | 240VA, 60W | - | Non Latching | - | Plug In | - | - | 9 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
JMGSCD-26MWRELAY GEN PURPOSE DPDT 1A 26.5V |
0 |
|
Ficha técnica |
MGSD, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 8.3 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14 VDC | 1.4 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | Military | MIL-R-39016/42 |
|
5-1617032-8RELAY GEN PURPOSE DPDT 2A 26.5V |
0 |
|
Ficha técnica |
HFW, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 30VDC - Nom | - | 37.9 mA | Non Latching | - | PC Pin | - | - | 13.5 VDC | 1.5 VDC | 4 ms | 2 ms | -65°C ~ 125°C | - | - | General Purpose | - | - |
|
LSAW-2C-12BRELAY GEN PURPOSE DPDT 2A 12V |
0 |
|
Ficha técnica |
LS, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 47.2 mA | Latching, Dual Coil | - | PC Pin | Sealed - Hermetically | - | 6.5 VDC | - | 5 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
UA2-4.5SNURELAY GEN PURPOSE DPDT 1A 4.5V |
0 |
|
Ficha técnica |
UA2 | Tube | Active | Through Hole | 4.5VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 22.2 mA | Latching, Single Coil | - | PC Pin | - | - | 3.38 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | CSA, TUV, UL | General Purpose | - | - |
|
|
UA2-12SNURELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
Ficha técnica |
UA2 | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 8.3 mA | Latching, Single Coil | - | PC Pin | - | - | 9 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | CSA, TUV, UL | General Purpose | - | - |
|
TQ2SL-L-12VRELAY TELECOM DPDT 2A 12V |
0 |
|
Ficha técnica |
TQ-SMD | Tube | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 2 A | 125VAC, 220VDC - Max | 250VA, 440W | 5.8 mA | Latching, Single Coil | - | Gull Wing | - | - | 9 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | cURus | Telecom | - | - |
|
TX2-9V-THRELAY GENERAL PURPOSE DPDT 2A 9V |
0 |
|
Ficha técnica |
TX-TH | Tube | Active | Through Hole | 9VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 15.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | BSI, cURus | General Purpose | - | - |
|
|
TX2-LT-1.5V-THRELAY GEN PURPOSE DPDT 2A 1.5V |
24 |
|
Ficha técnica |
TX-TH | Tube | Active | Through Hole | 1.5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 93.8 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 1.13 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | BSI, cURus | General Purpose | - | - |
|
TX2SS-4.5VRELAY TELECOM DPDT 2A 4.5V |
0 |
|
Ficha técnica |
TX | Tube | Active | Surface Mount | 4.5VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 31 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 3.38 VDC | 0.45 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | BSI, cURus | Telecom | - | - |
|
TX2-L2-4.5VRELAY TELECOM DPDT 2A 4.5V |
0 |
|
Ficha técnica |
TX | Tube | Active | Through Hole | 4.5VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 44.5 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 3.38 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | BSI, cURus | Telecom | - | - |
|
|
TX2-L2-9VRELAY TELECOM DPDT 2A 9V |
0 |
|
Ficha técnica |
TX | Tube | Active | Through Hole | 9VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 22.2 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 6.75 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | BSI, cURus | Telecom | - | - |
|
TQ2SA-1.5V-ZRELAY TELECOM DPDT 2A 1.5V |
0 |
|
Ficha técnica |
TQ-SMD | Tape & Reel (TR) | Active | Surface Mount | 1.5VDC | DPDT (2 Form C) | 2 A | 125VAC, 220VDC - Max | 250VA, 440W | 93.8 mA | Non Latching | - | Gull Wing | - | - | 1.13 VDC | 0.15 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | cURus | Telecom | - | - |
|
TXD2-L-12VRELAY GEN PURPOSE DPDT 2A 12V |
16 |
|
Ficha técnica |
TX-D | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440W | 12.5 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 9 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | BSI, cURus | General Purpose | - | - |
|
G6S-2G-TR DC9RELAY TELECOM DPDT 2A 9V |
13 |
|
Ficha técnica |
G6S | Tape & Reel (TR) | Active | Surface Mount | 9VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 15.6 mA | Non Latching | - | J Lead | - | - | 6.75 VDC | 0.9 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | CSA, UR | Telecom | - | - |
|
AGN200A09ZRELAY TELECOM DPDT 1A 9V |
8 |
|
Ficha técnica |
AGN | Tape & Reel (TR) | Active | Surface Mount | 9VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 15.5 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | BSI, cURus | Telecom | - | - |
|
|
TX2-LT-2.4V-THRELAY GEN PURPOSE DPDT 2A 2.4V |
0 |
|
Ficha técnica |
TX-TH | Tube | Active | Through Hole | 2.4VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 58.3 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 1.8 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | BSI, cURus | General Purpose | - | - |
|
|
TXD2-1.5VRELAY GEN PURPOSE DPDT 2A 1.5V |
3 |
|
Ficha técnica |
TX-D | Tube | Active | Through Hole | 1.5VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440W | 133 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 1.13 VDC | 0.15 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | BSI, cURus | General Purpose | - | - |
|
DS1E-M-DC6VRELAY GENERAL PURPOSE SPDT 2A 6V |
0 |
|
- |
DS | Box | Active | Through Hole | 6VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.2 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | CSA, UR | General Purpose | - | - |
