Estênceis de solda, gabaritos
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo | Número de posições | Passo | Dimensão externa | Dimensão interna | Almofada Central Térmica | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA0185-STO-263-5 STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage PA | Bulk | Active | TO/DDPAK | 5 | 0.067" (1.70mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.400" L x 0.390" W (10.16mm x 9.91mm) | 0.433" L x 0.394" W (11.00mm x 10.00mm) | Stainless Steel |
|

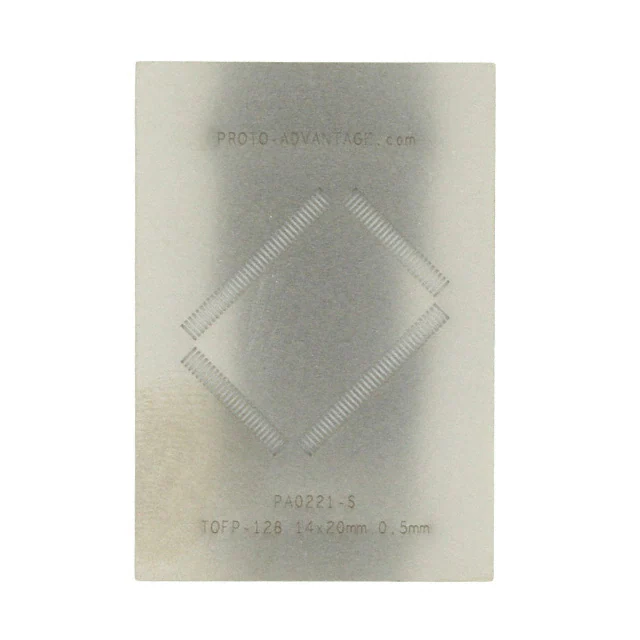

PA0221-STQFP-128 STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage PA | Bulk | Active | TQFP | 128 | 0.020" (0.50mm) | 1.950" L x 1.350" W (49.53mm x 34.29mm) | 0.787" L x 0.551" W (20.00mm x 14.00mm) | - | Stainless Steel |
|
PA0217-STSOP-44 II STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage PA | Bulk | Active | TSOP | 44 | 0.031" (0.80mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
PA0210-STSOP-54 II STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage PA | Bulk | Active | TSOP | 54 | 0.031" (0.80mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

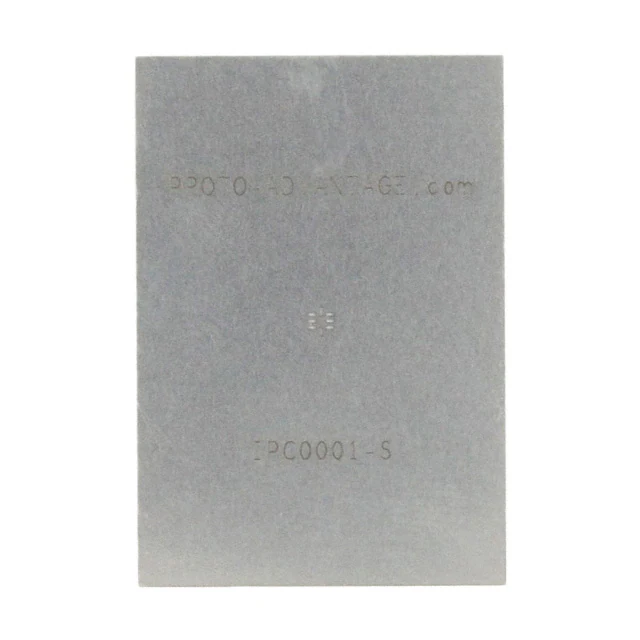

IPC0001-SQFN-8 STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 8 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.055" L x 0.047" W (1.40mm x 1.20mm) | - | Stainless Steel |
|

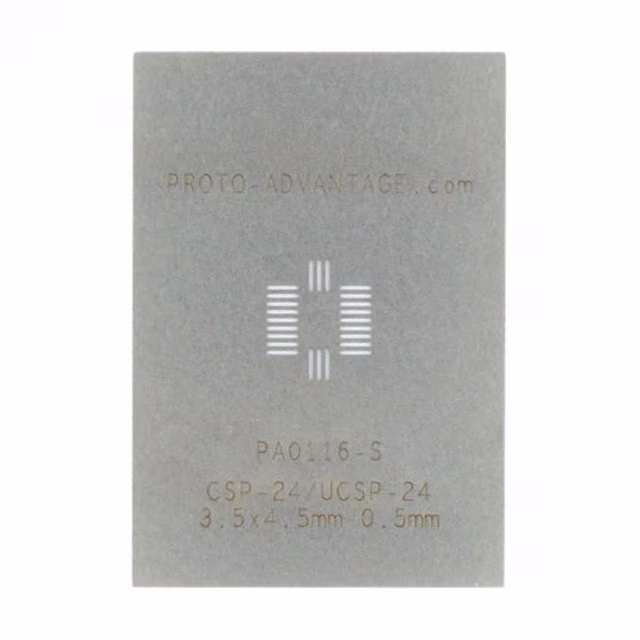

PA0116-SCSP-24/UCSP-24 STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage PA | Bulk | Active | CSP | 24 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.177" L x 0.138" W (4.50mm x 3.50mm) | - | Stainless Steel |
|
PA0118-SCSP-48 STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage PA | Bulk | Active | CSP | 48 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | Stainless Steel |
|

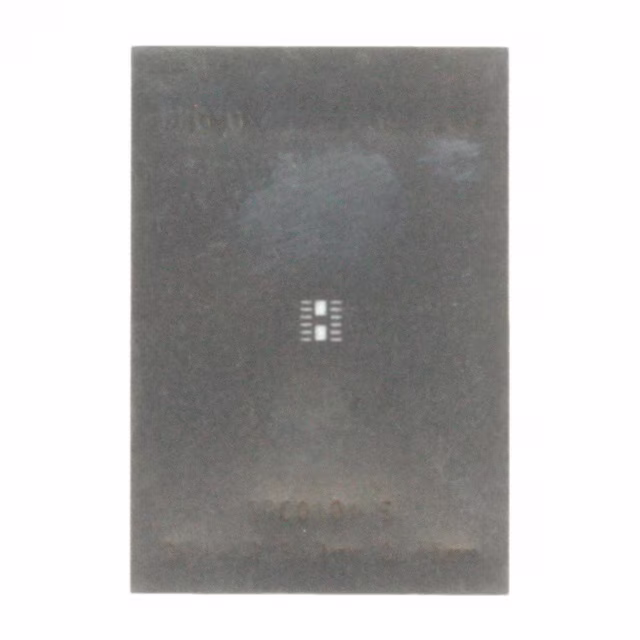

IPC0104-SDFN-12 STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage IPC | Bulk | Active | DFN | 12 | 0.018" (0.45mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.079" W (3.00mm x 2.00mm) | 0.094" L x 0.025" W (2.39mm x 0.64mm) | Stainless Steel |
|

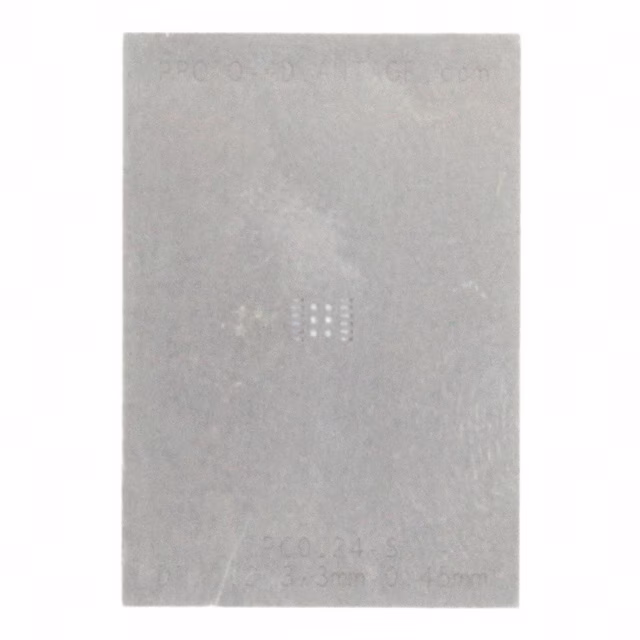

IPC0124-SDFN-12 STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage IPC | Bulk | Active | DFN | 12 | 0.018" (0.45mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.094" L x 0.065" W (2.38mm x 1.65mm) | Stainless Steel |
|
IPC0084-SDFN-14 STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage IPC | Bulk | Active | DFN | 14 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.091" L x 0.059" W (2.30mm x 1.50mm) | Stainless Steel |
|

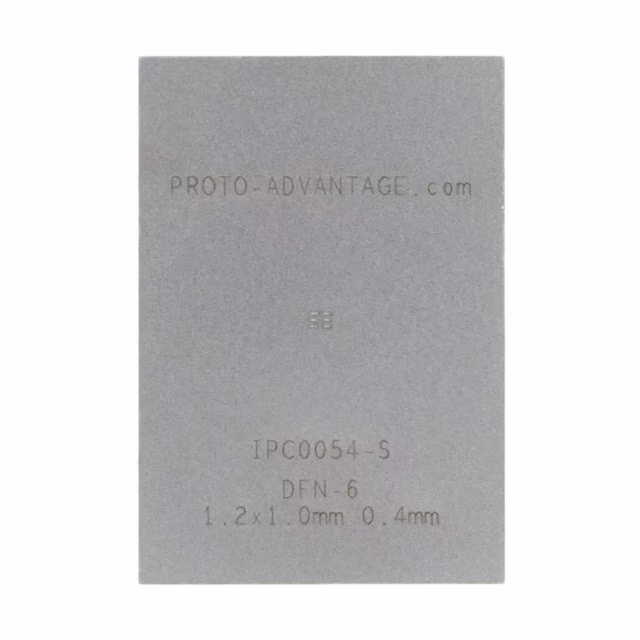

IPC0054-SDFN-6 STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage IPC | Bulk | Active | DFN | 6 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.047" L x 0.039" W (1.20mm x 1.00mm) | - | Stainless Steel |
|

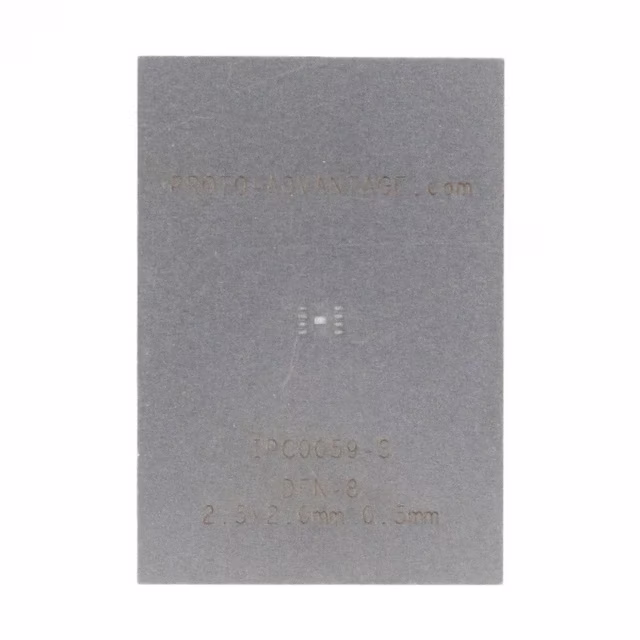

IPC0059-SDFN-8 STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage IPC | Bulk | Active | DFN | 8 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.051" L x 0.039" W (1.30mm x 1.00mm) | Stainless Steel |
|

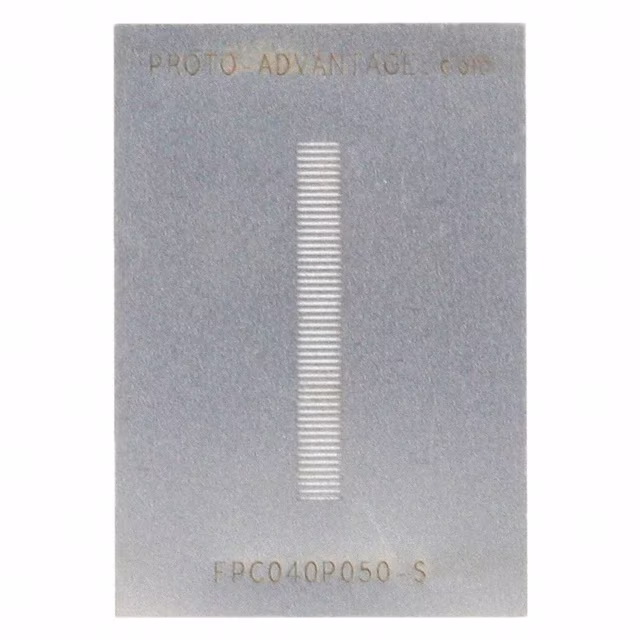

FPC040P050-SFPC/FFC SMT CONN STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 50 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | 1.016" L x 0.157" W (25.80mm x 4.00mm) | Stainless Steel |
|

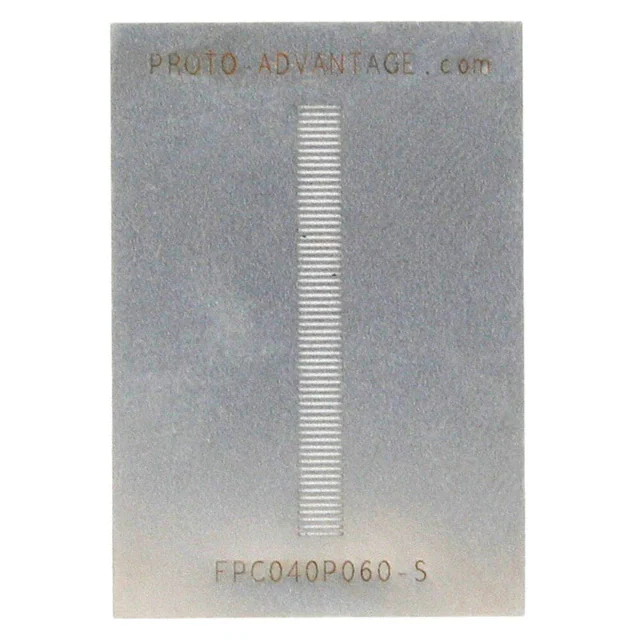

FPC040P060-SFPC/FFC SMT CONN STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 60 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | 1.173" L x 0.157" W (29.80mm x 4.00mm) | Stainless Steel |
|

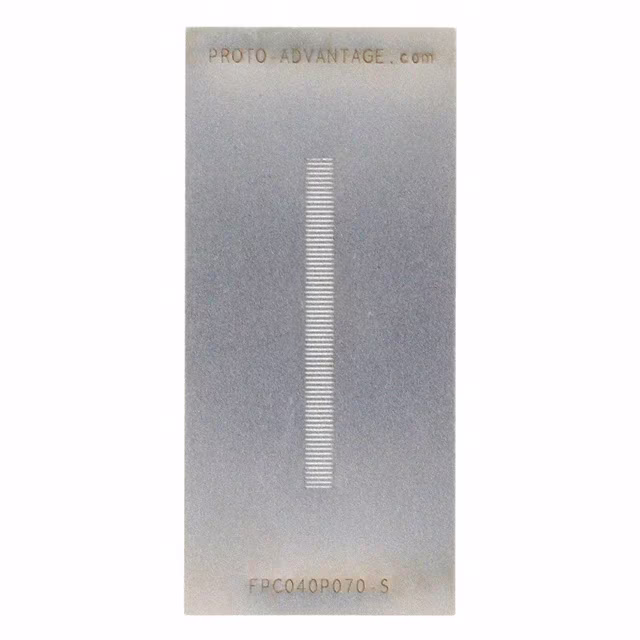

FPC040P070-SFPC/FFC SMT CONN STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 70 | 0.016" (0.40mm) | 1.950" L x 0.900" W (49.53mm x 22.86mm) | - | 1.331" L x 0.157" W (33.80mm x 4.00mm) | Stainless Steel |
|

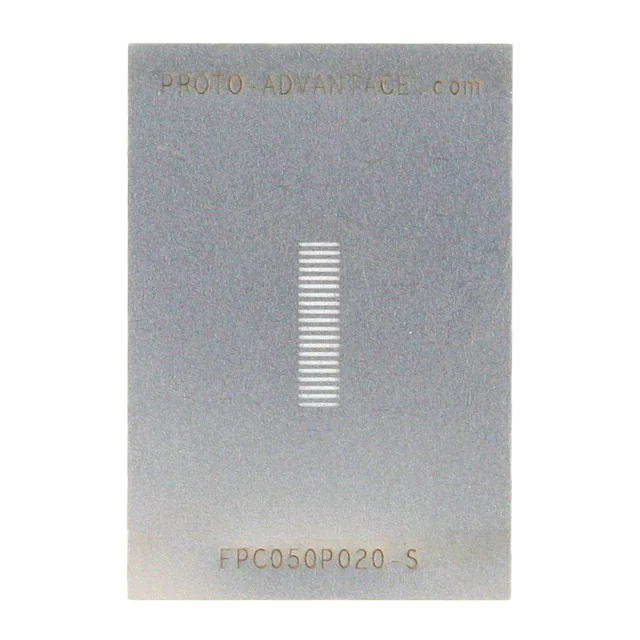

FPC050P020-SFPC/FFC SMT CONN STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 20 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | 0.701" L x 0.157" W (17.80mm x 4.00mm) | Stainless Steel |
|

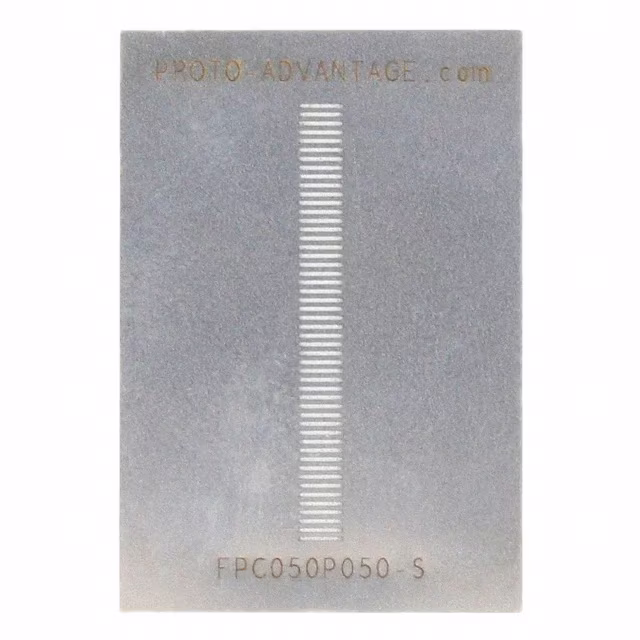

FPC050P050-SFPC/FFC SMT CONN STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 50 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | 1.291" L x 0.157" W (32.80mm x 4.00mm) | Stainless Steel |
|

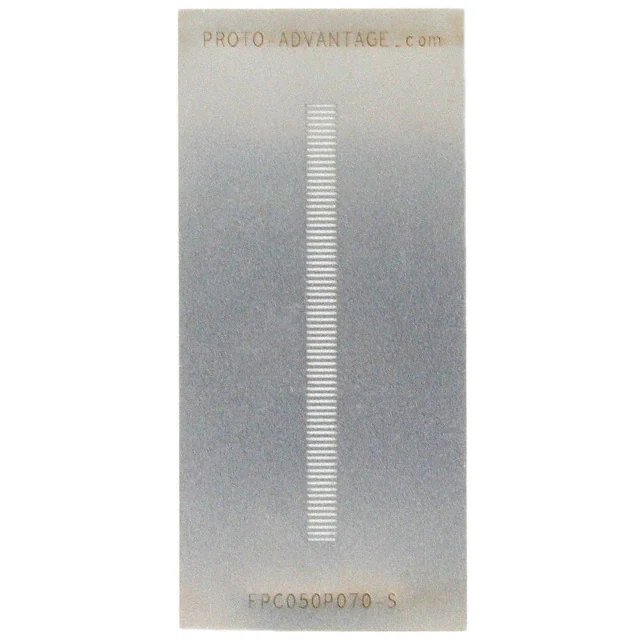

FPC050P070-SFPC/FFC SMT CONN STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 70 | 0.020" (0.50mm) | 1.950" L x 0.900" W (49.53mm x 22.86mm) | - | 1.685" L x 0.157" W (42.80mm x 4.00mm) | Stainless Steel |
|

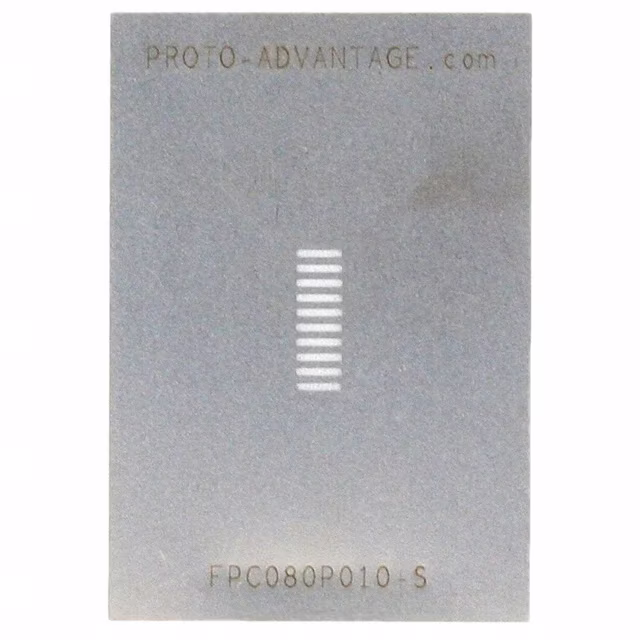

FPC080P010-SFPC/FFC SMT CONN STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 10 | 0.031" (0.80mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | 0.618" L x 0.157" W (15.70mm x 4.00mm) | Stainless Steel |
|

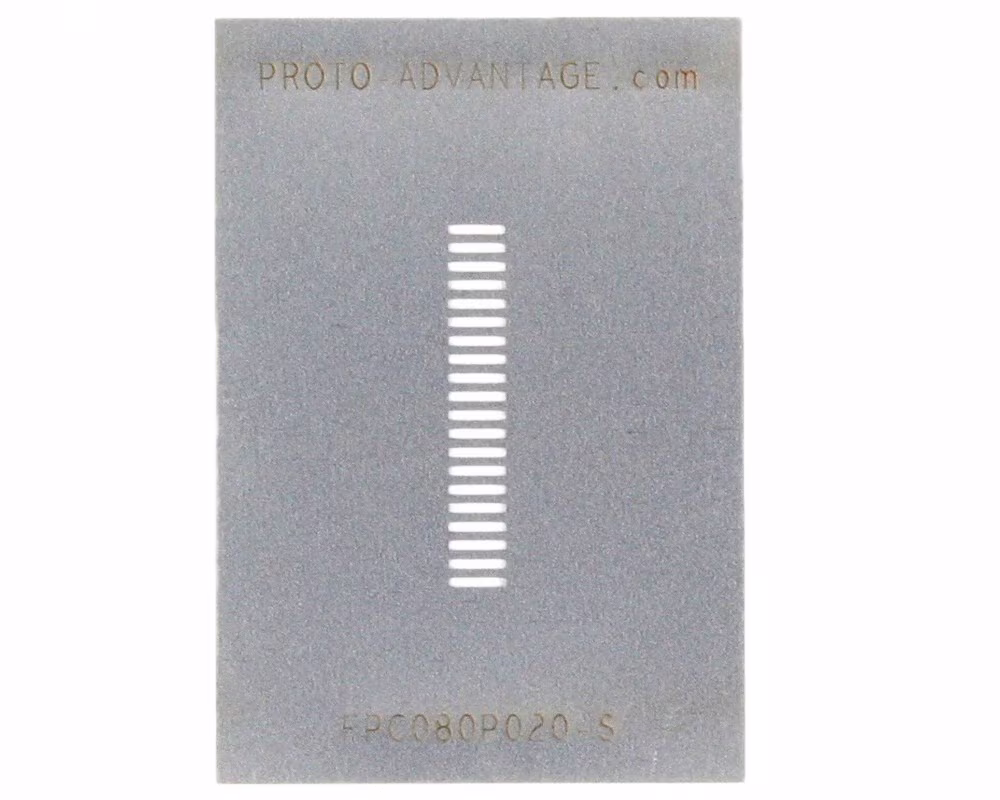

FPC080P020-SFPC/FFC SMT CONN STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 20 | 0.031" (0.80mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | 0.933" L x 0.157" W (23.70mm x 4.00mm) | Stainless Steel |
