Estênceis de solda, gabaritos
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo | Número de posições | Passo | Dimensão externa | Dimensão interna | Almofada Central Térmica | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

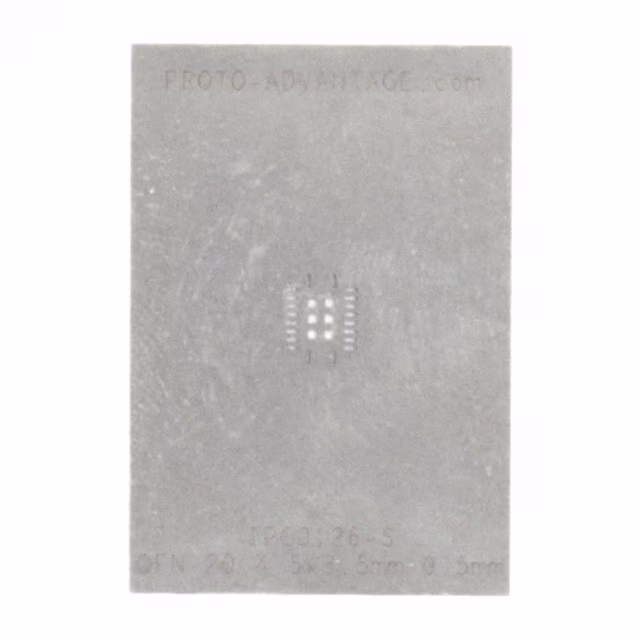

IPC0126-SQFN-20 STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 20 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.177" L x 0.138" W (4.50mm x 3.50mm) | 0.120" L x 0.081" W (3.05mm x 2.05mm) | Stainless Steel |
|

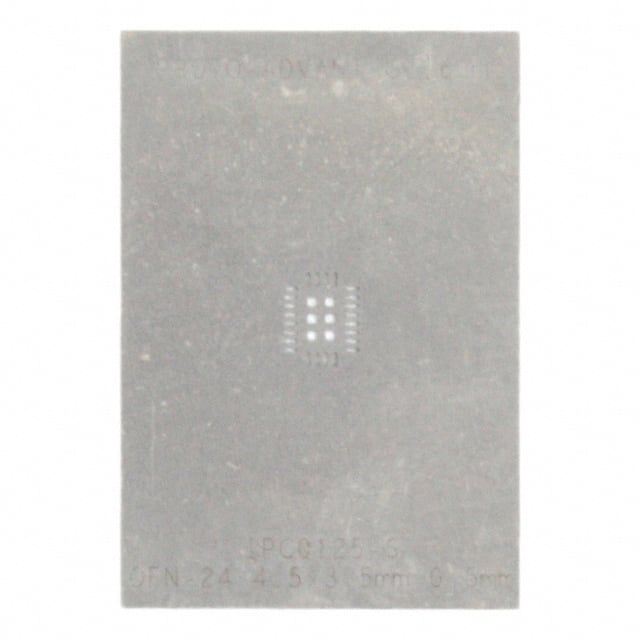

IPC0125-SQFN-24 STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 24 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.177" L x 0.138" W (4.50mm x 3.50mm) | 0.120" L x 0.081" W (3.05mm x 2.05mm) | Stainless Steel |
|

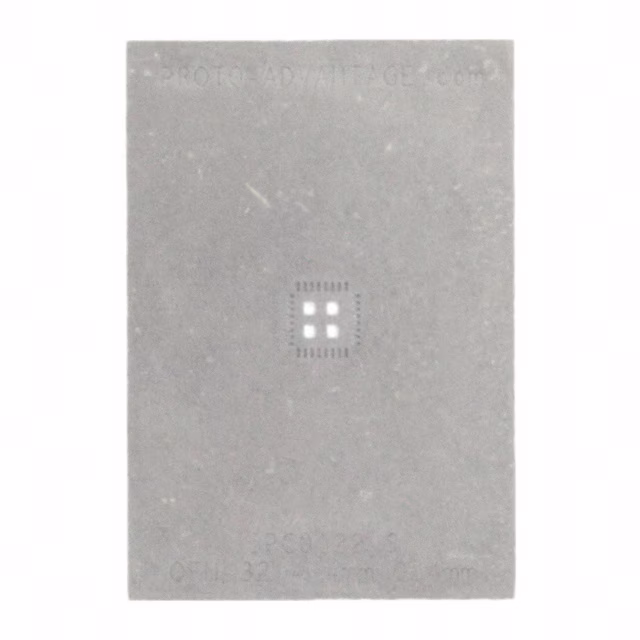

IPC0122-SQFN-32 STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 32 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.110" L x 0.110" W (2.80mm x 2.80mm) | Stainless Steel |
|

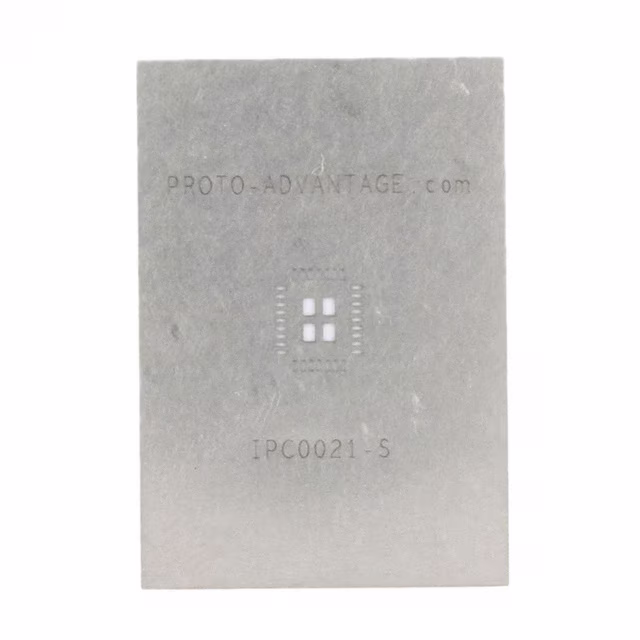

IPC0021-SQFN-32 STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 32 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.134" L x 0.098" W (3.40mm x 2.50mm) | Stainless Steel |
|

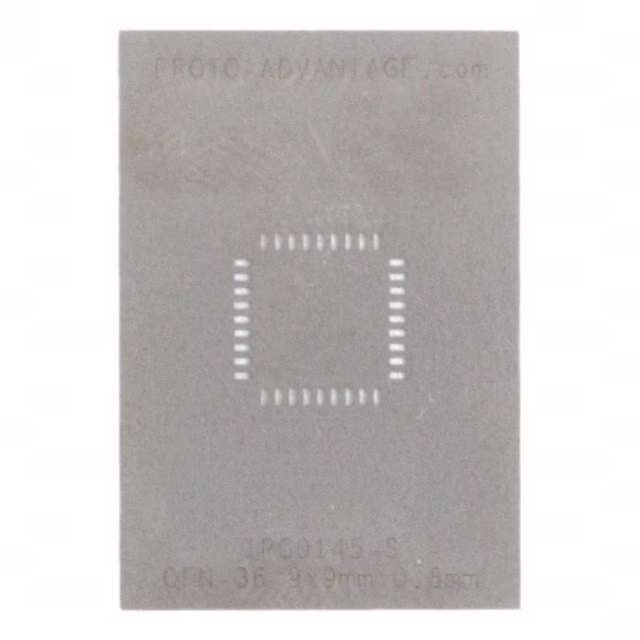

IPC0145-SQFN-36 STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 36 | 0.031" (0.80mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.354" L x 0.354" W (9.00mm x 9.00mm) | - | Stainless Steel |
|

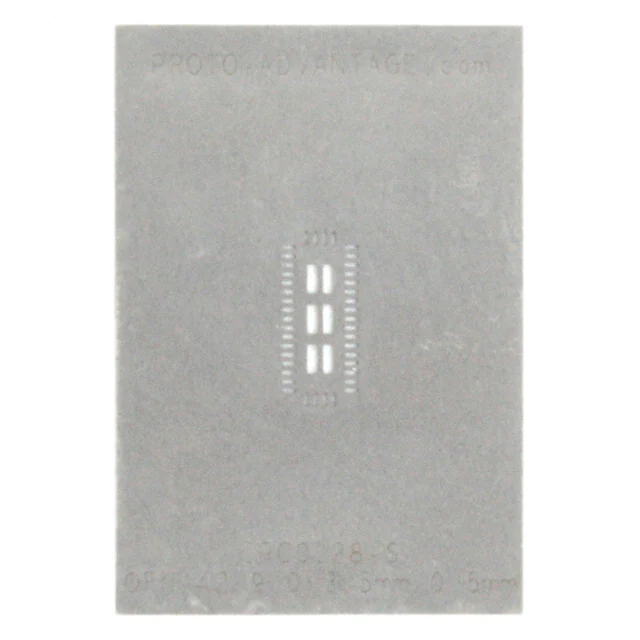

IPC0128-SQFN-42 STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 42 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.354" L x 0.138" W (9.00mm x 3.50mm) | 0.297" L x 0.081" W (7.55mm x 2.05mm) | Stainless Steel |
|

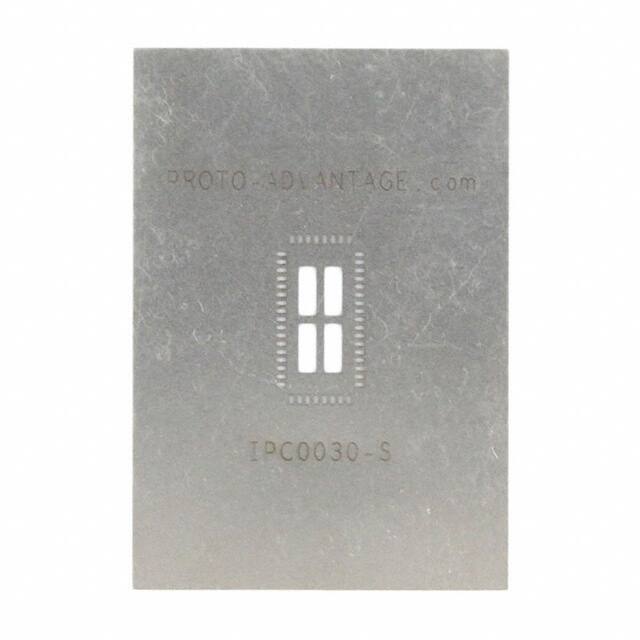

IPC0030-SQFN-50 STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 50 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.319" L x 0.130" W (8.10mm x 3.30mm) | Stainless Steel |
|

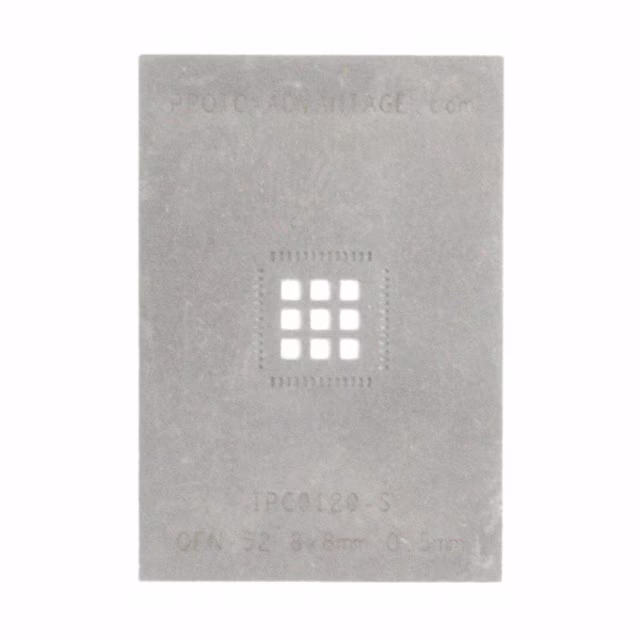

IPC0120-SQFN-52 STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 52 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.244" L x 0.244" W (6.20mm x 6.20mm) | Stainless Steel |
|

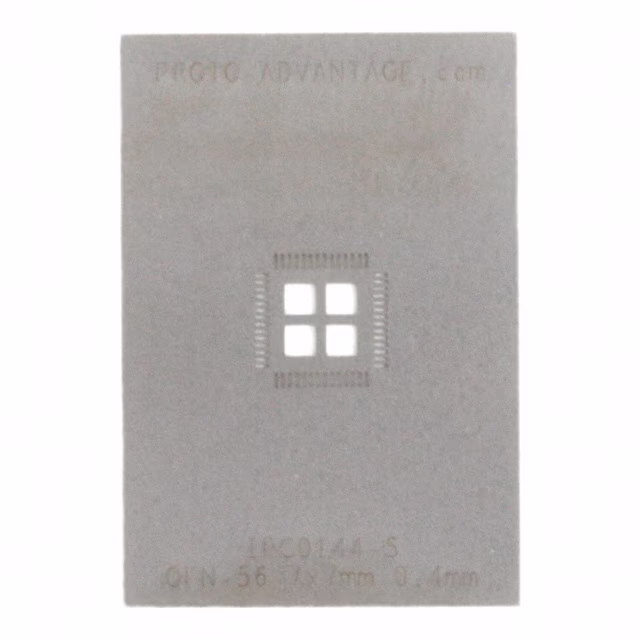

IPC0144-SQFN-56 STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 56 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.204" L x 0.204" W (5.18mm x 5.18mm) | Stainless Steel |
|

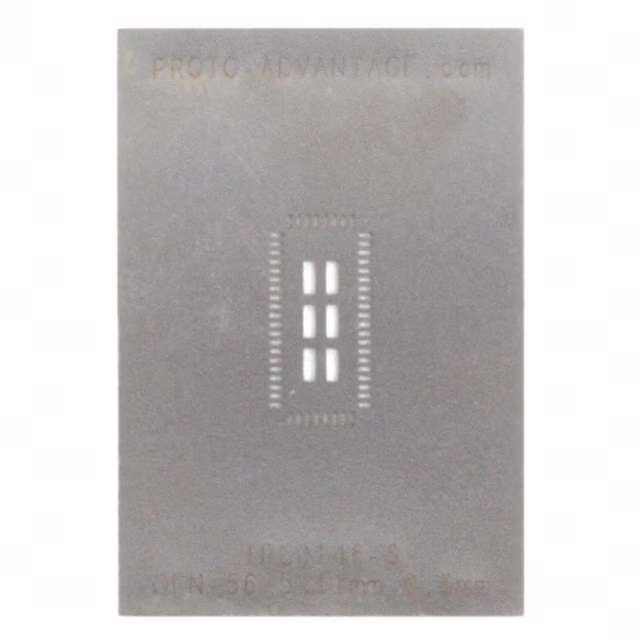

IPC0146-SQFN-56 STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 56 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.433" L x 0.197" W (11.00mm x 5.00mm) | 0.330" L x 0.096" W (8.38mm x 2.45mm) | Stainless Steel |
|

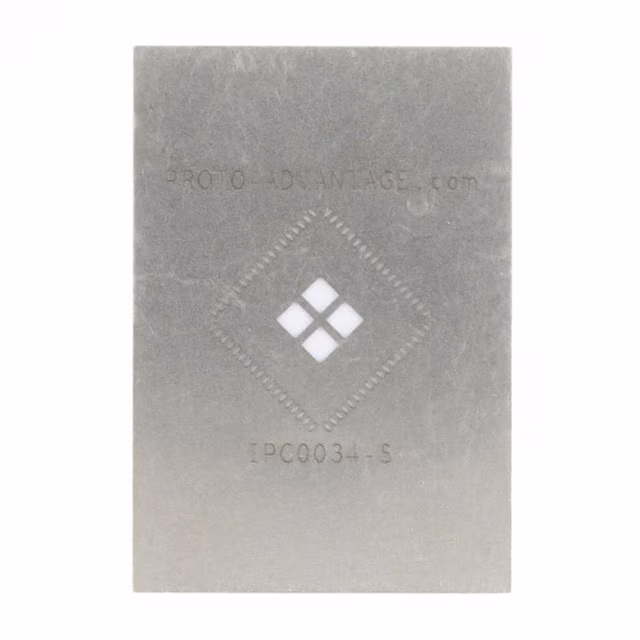

IPC0034-SQFN-72 STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 72 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.185" L x 0.185" W (4.70mm x 4.70mm) | Stainless Steel |
|

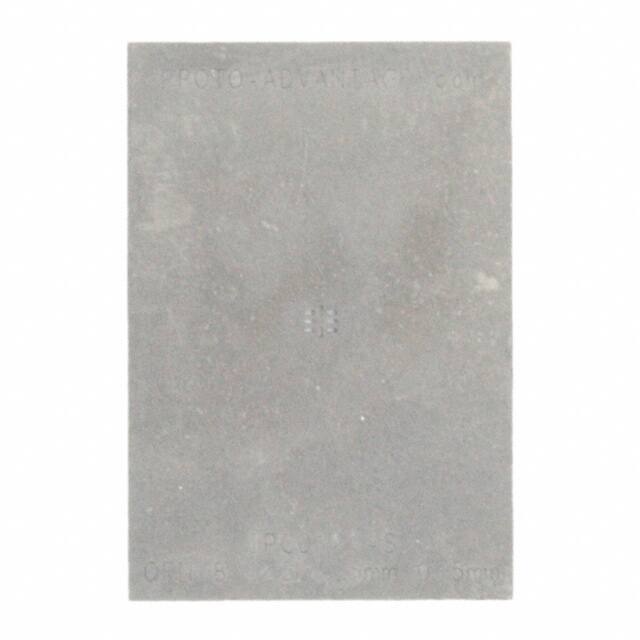

IPC0121-SQFN-8 STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 8 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.059" L x 0.059" W (1.50mm x 1.50mm) | - | Stainless Steel |
|
PA0237-SSOIC-36 STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage PA | Bulk | Active | SOIC | 36 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

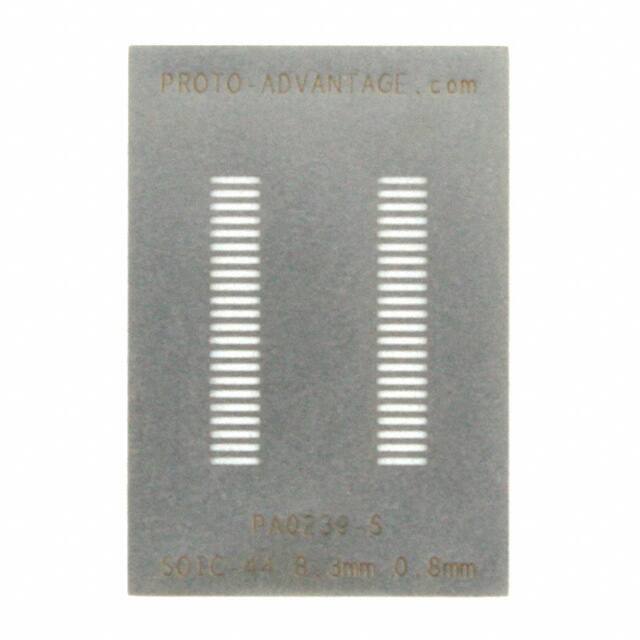

PA0239-SSOIC-44 STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage PA | Bulk | Active | SOIC | 44 | 0.031" (0.80mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
PA0014-SSOIC-54 STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage PA | Bulk | Active | SOIC | 54 | 0.050" (1.27mm) | 1.950" L x 0.900" W (49.53mm x 22.86mm) | - | - | Stainless Steel |
|
PA0177-SSOT-523F STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage PA | Bulk | Active | SOT/SC | 3 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.059" L x 0.039" W (1.50mm x 1.00mm) | - | Stainless Steel |
|

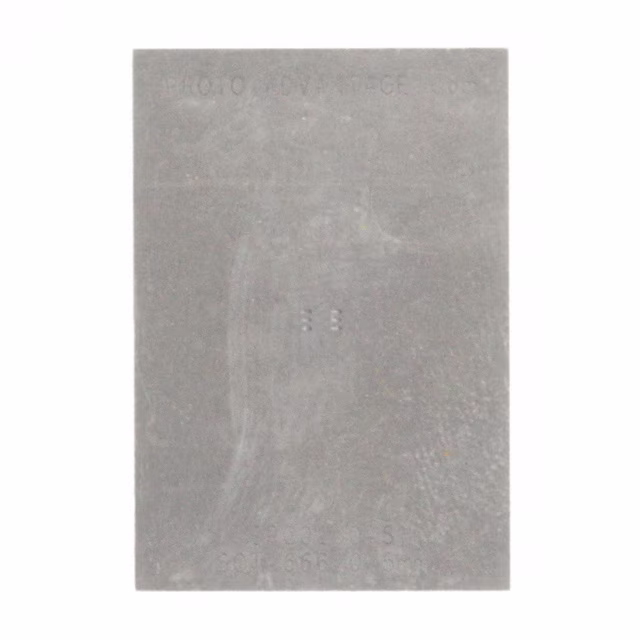

IPC0130-SSOT-666 STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage IPC | Bulk | Active | SOT/SC | 6 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.063" L x 0.047" W (1.60mm x 1.20mm) | - | Stainless Steel |
|

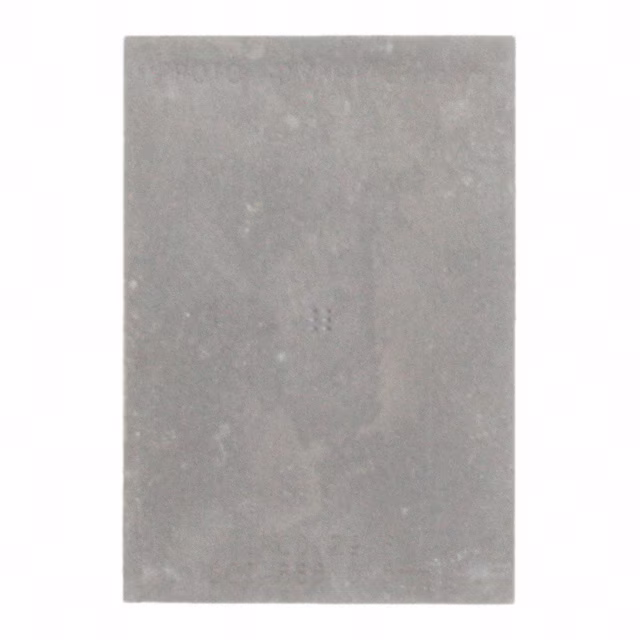

IPC0129-SSOT-886 STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage IPC | Bulk | Active | SOT/SC | 6 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.053" L x 0.039" W (1.35mm x 1.00mm) | - | Stainless Steel |
|

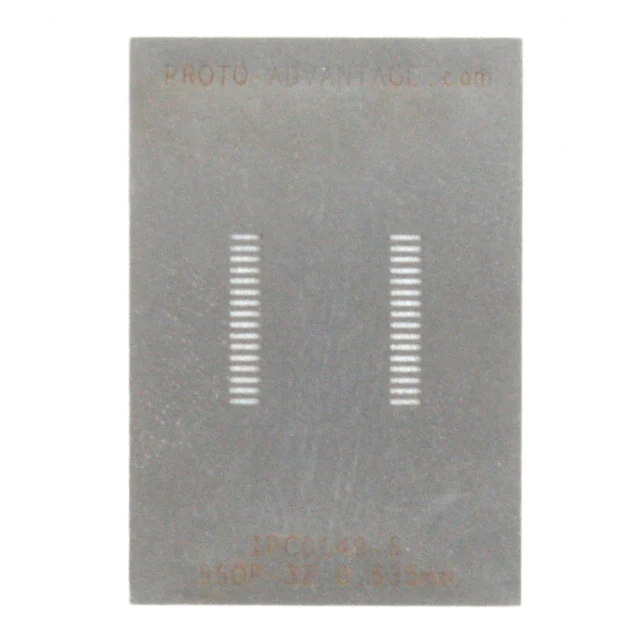

IPC0149-SSSOP-32 STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage IPC | Bulk | Active | SSOP | 32 | 0.025" (0.64mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.406" L x 0.295" W (10.30mm x 7.50mm) | - | Stainless Steel |
|

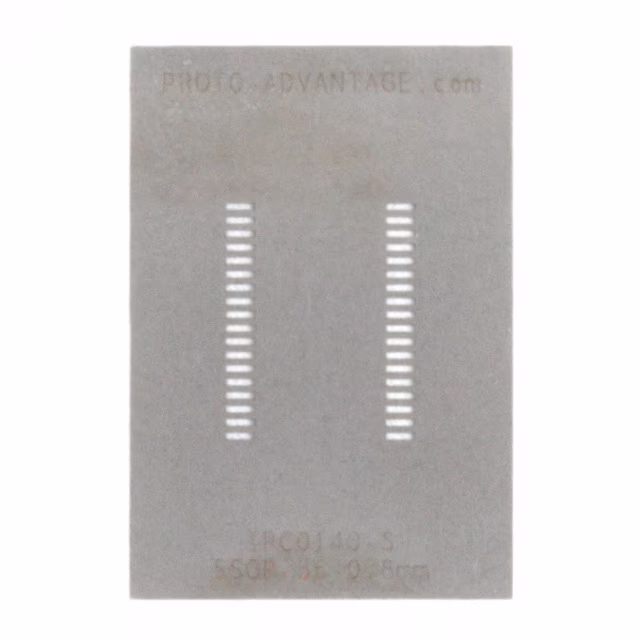

IPC0140-SSSOP-36 STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage IPC | Bulk | Active | SSOP | 36 | 0.031" (0.80mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.606" L x 0.295" W (15.40mm x 7.50mm) | - | Stainless Steel |
