Relés de estado sólido (SSR)
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de montagem | Circuito | Tipo de saída | Voltagem - Entrada | Tensão - Carga | Corrente de Carga | Resistência no estado ligado (máx.) | Estilo de Terminação | Temperatura operacional | Pacote do dispositivo do fornecedor | Agência de Aprovação | Grau | Qualificação |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AQY221R2SSSR RELAY SPST-NO 250MA 0-40V |
3,227 |
|
Ficha técnica |
PhotoMOS™ AQY | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC (RF) | 1.14VDC | 0 V ~ 40 V | 250 mA | 1.25 Ohms | Gull Wing | -40°C ~ 85°C | 4-SOP | BSI, cURus | - | - |
|
AQW212ASSR RELAY SPST-NO 500MA 0-60V |
2,838 |
|
Ficha técnica |
PhotoMOS™ AQW | Tube | Active | Surface Mount | SPST-NO (1 Form A) x 2 | AC, DC | 1.14VDC | 0 V ~ 60 V | 500 mA | 2.5 Ohms | Gull Wing | -40°C ~ 85°C | 8-SMD | UR, VDE | - | - |
|
LCA710SSSR RELAY SPST-NO 1A 0-60V |
595 |
|
Ficha técnica |
LCA, OptoMOS® | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.2VDC | 0 V ~ 60 V | 1 A | 500 mOhms | Gull Wing | -40°C ~ 85°C | 6-SMD | CSA, EN, UL | - | - |
|
LCA710SSR RELAY SPST-NO 1A 0-60V |
4,515 |
|
Ficha técnica |
LCA, OptoMOS® | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.2VDC | 0 V ~ 60 V | 1 A | 500 mOhms | PC Pin | -40°C ~ 85°C | 6-DIP | CSA, EN, UL | - | - |
|

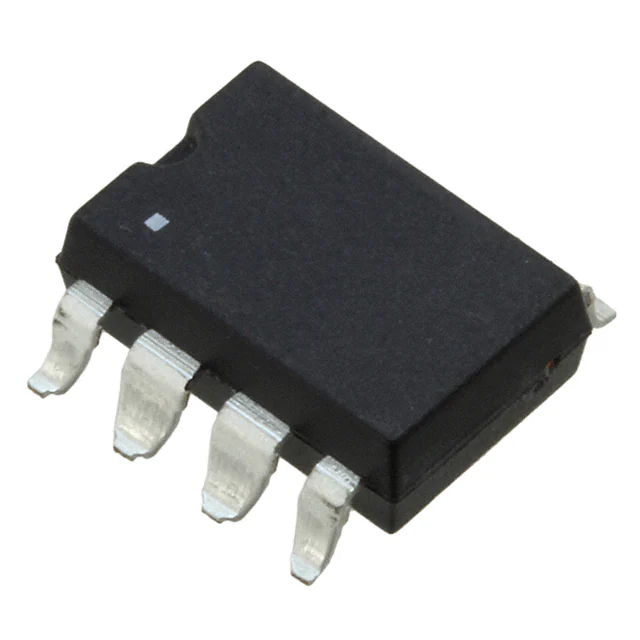

LH1502BACTRRELAY SPST-NO/NC 150MA 0-350V |
3,279 |
|
Ficha técnica |
LH1502 | Tape & Reel (TR) | Active | Surface Mount | SPST-NO + SPST-NC (1 Form A and B) | AC, DC | 1.26VDC | 0 V ~ 350 V | 150 mA | 20 Ohms | Gull Wing | -40°C ~ 85°C | 8-SMD | CQC, FIMKO, UL, VDE | - | - |
|
G3VM-62J1SSR RELAY SPST-NO 400MA 0-60V |
3,254 |
|
Ficha técnica |
G3VM | Tube | Active | Surface Mount | SPST-NO (1 Form A) x 2 | AC, DC | 1.15VDC | 0 V ~ 60 V | 400 mA | 2 Ohms | Gull Wing | -40°C ~ 85°C | 8-SOP | - | - | - |
|

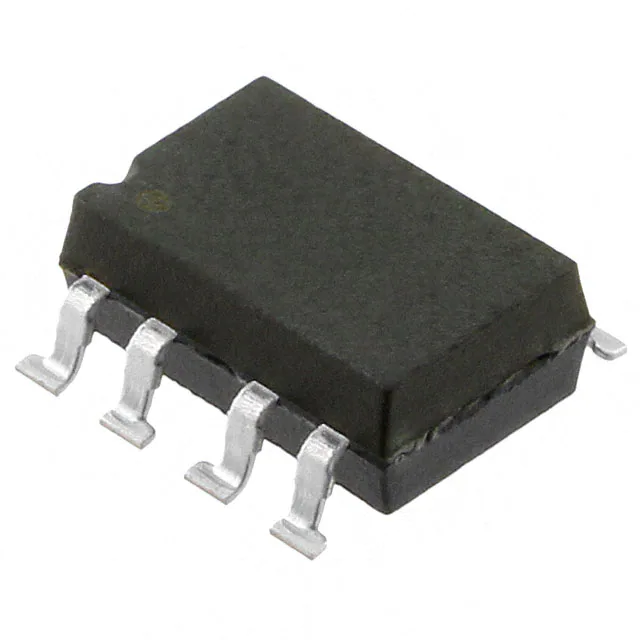

LH1522AACTRSSR RELAY SPST-NO 120MA 0-200V |
4,922 |
|
Ficha técnica |
LH1522 | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) x 2 | AC, DC | 1.26VDC | 0 V ~ 200 V | 120 mA | 10 Ohms | Gull Wing | -40°C ~ 85°C | 8-SMD | CSA, KIN, FIMKO, UL | - | - |
|
LH1520AACTRSSR RELAY SPST-NO 110MA 0-350V |
322 |
|
Ficha técnica |
LH1520 | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) x 2 | AC, DC | 1.26VDC | 0 V ~ 350 V | 110 mA | 20 Ohms | Gull Wing | -40°C ~ 85°C | 8-SMD | BSI, CQC, cUL, DIN, FIMKO, UL | - | - |
|
|
AQY212G2SZSSR RELAY SPST-NO 1.25A 0-60V |
396 |
|
Ficha técnica |
PhotoMOS™ AQY | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.32VDC | 0 V ~ 60 V | 1.25 A | 500 mOhms | Gull Wing | -40°C ~ 85°C | 4-SOP | BSI, cURus | - | - |
|
AQV252G2SSSR RELAY SPST-NO 3A 0-50V |
54,212 |
|
Ficha técnica |
PhotoMOS™ AQV | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.14VDC | 0 V ~ 50 V | 3 A | 70 mOhms | Gull Wing | -40°C ~ 85°C | 6-SOP | UR | - | - |
|
|
AQY212G2SSSR RELAY SPST-NO 1.25A 0-60V |
11,438 |
|
Ficha técnica |
PhotoMOS™ AQY | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.32VDC | 0 V ~ 60 V | 1.25 A | 500 mOhms | Gull Wing | -40°C ~ 85°C | 4-SOP | BSI, cURus | - | - |
|
|
LCA701STRSSR RELAY SPST-NO 1.5A 0-100V |
2,298 |
|
Ficha técnica |
LCA, OptoMOS® | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.2VDC | 0 V ~ 100 V | 1.5 A | 300 mOhms | Gull Wing | -40°C ~ 85°C | 6-SMD | CSA, EN, UL | - | - |
|
|
AQY212G2SXSSR RELAY SPST-NO 1.25A 0-60V |
689 |
|
Ficha técnica |
PhotoMOS™ AQY | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.32VDC | 0 V ~ 60 V | 1.25 A | 500 mOhms | Gull Wing | -40°C ~ 85°C | 4-SOP | BSI, cURus | - | - |
|
|
AQY412SXSSR RELAY SPST-NC 500MA 0-60V |
12,823 |
|
Ficha técnica |
PhotoMOS™ AQY | Tape & Reel (TR) | Active | Surface Mount | SPST-NC (1 Form B) | AC, DC | 1.14VDC | 0 V ~ 60 V | 500 mA | 2.5 Ohms | Gull Wing | -40°C ~ 85°C | 4-SOP | BSI, cURus | - | - |
|

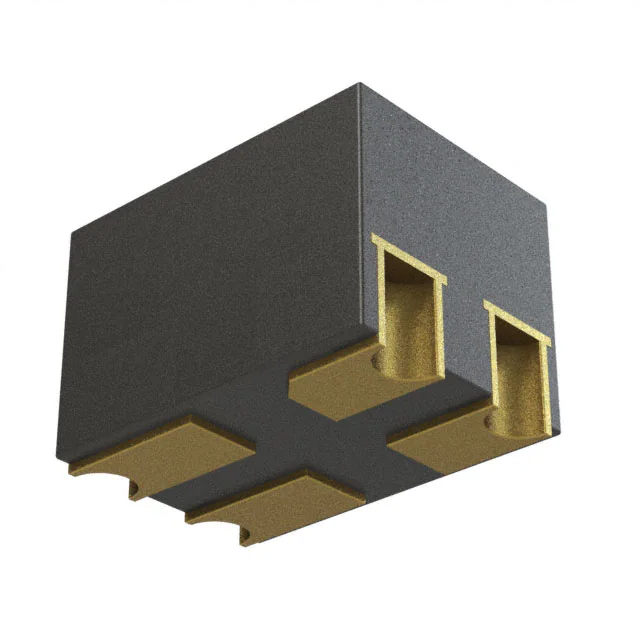

TLP3440S(TP,ESSR RELAY SPST-NO 120MA 0-40V |
3,839 |
|
Ficha técnica |
TLP3440S | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.22VDC | 0 V ~ 40 V | 120 mA | 14 Ohms | SMD (SMT) Tab | -40°C ~ 110°C | S-VSON4T (2x1.45) | - | - | - |
|
|
AQY412SSSR RELAY SPST-NC 500MA 0-60V |
3,000 |
|
Ficha técnica |
PhotoMOS™ AQY | Tube | Active | Surface Mount | SPST-NC (1 Form B) | AC, DC | 1.14VDC | 0 V ~ 60 V | 500 mA | 2.5 Ohms | Gull Wing | -40°C ~ 85°C | 4-SOP | BSI, cURus | - | - |
|
AQV257AXSSR RELAY SPST-NO 250MA 0-200V |
1,756 |
|
Ficha técnica |
PhotoMOS™ AQV | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.14VDC | 0 V ~ 200 V | 250 mA | 4 Ohms | Gull Wing | -40°C ~ 85°C | 6-SMD | UR | - | - |
|
|
LCA717SSSR RELAY SPST-NO 2A 0-30V |
1,124 |
|
Ficha técnica |
LCA, OptoMOS® | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.2VDC | 0 V ~ 30 V | 2 A | 150 mOhms | Gull Wing | -40°C ~ 85°C | 6-SMD | CSA, EN, UL | - | - |
|
AQG22105SSR RELAY SPST-NO 2A 75-264V |
1,314 |
|
Ficha técnica |
AQ-G | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 6VDC | 75 V ~ 264 V | 2 A | - | PC Pin | -30°C ~ 80°C | 4-SIP | cURus, VDE | - | - |
|
|
AQY211G2SXSSR RELAY SPST-NO 1.6A 0-40V |
1,878 |
|
Ficha técnica |
PhotoMOS™ AQY | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.32VDC | 0 V ~ 40 V | 1.6 A | 150 mOhms | Gull Wing | -40°C ~ 85°C | 4-SOP | BSI, cURus | - | - |
