Relés de estado sólido (SSR)
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de montagem | Circuito | Tipo de saída | Voltagem - Entrada | Tensão - Carga | Corrente de Carga | Resistência no estado ligado (máx.) | Estilo de Terminação | Temperatura operacional | Pacote do dispositivo do fornecedor | Agência de Aprovação | Grau | Qualificação |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLP4590A(D4,FSSR RELAY SPST-NC 1.2A 0-60V |
0 |
|
Ficha técnica |
TLP4590A | Tube | Active | Through Hole | SPST-NC (1 Form B) | AC, DC | 1.27VDC | 0 V ~ 60 V | 1.2 A | 600 mOhms | PC Pin | -40°C ~ 110°C | 6-DIP | cUL, UL, VDE | - | - |
|
|
TLP3146(FSSR RELAY SPST-NO 3.3A 0-30V |
20 |
|
Ficha técnica |
TLP3146 | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.65VDC | 0 V ~ 30 V | 3.3 A | 50 mOhms | Gull Wing | -40°C ~ 110°C | 4-SOP | CSA, cUL, UL | - | - |
.JPG)
|
TLP3545A(FSSR RELAY SPST-NO 4A 0-60V |
0 |
|
Ficha técnica |
TLP3545A | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.64VDC | 0 V ~ 60 V | 4 A | 60 mOhms | PC Pin | -40°C ~ 110°C | 6-DIP | CSA, cUL, UL, VDE | - | - |
|
|
TLP3109A(FSSR RELAY SPST-NO 3A 0-100V |
0 |
|
Ficha técnica |
TLP3109A | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.65VDC | 0 V ~ 100 V | 3 A | 65 mOhms | Gull Wing | -40°C ~ 110°C | 6-SOP | UL | - | - |
|
|
TLP3825F(LF4,FSSR RELAY SPST-NO 1.5A 0-200V |
22 |
|
Ficha técnica |
TLP3825F | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.64VDC | 0 V ~ 200 V | 1.5 A | 500 mOhms | Gull Wing | -40°C ~ 110°C | 8-SMD | CSA, cUL, UL | - | - |
|

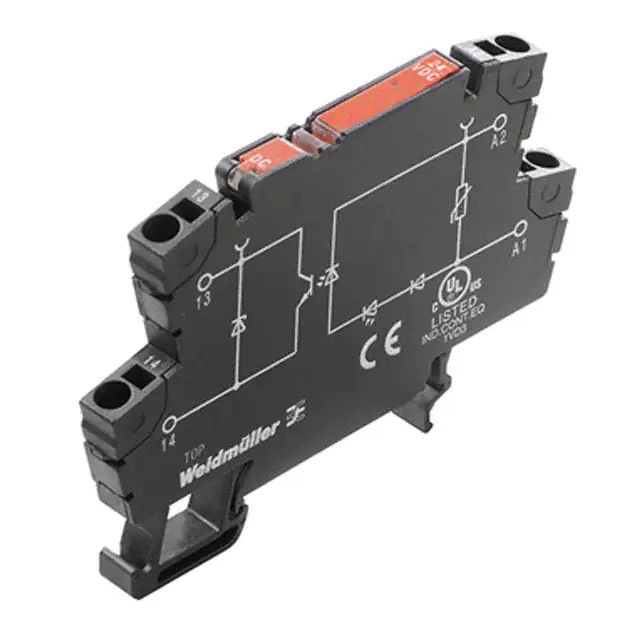

8950770000SSR RELAY SPST-NO 100MA 5-48V |
0 |
|
Ficha técnica |
TOP | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 12VDC | 5 V ~ 48 V | 100 mA | - | Spring Terminal | -20°C ~ 60°C | - | CE, cULus | - | - |
|
|
RSS-TD1A240ZPTRIAC OUTPUT SWITCHING DEVICE, D |
0 |
|
Ficha técnica |
RSS | Box | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 48 V ~ 480 V | 40 A | - | Screw Terminal | -30°C ~ 80°C | - | CE | - | - |
|

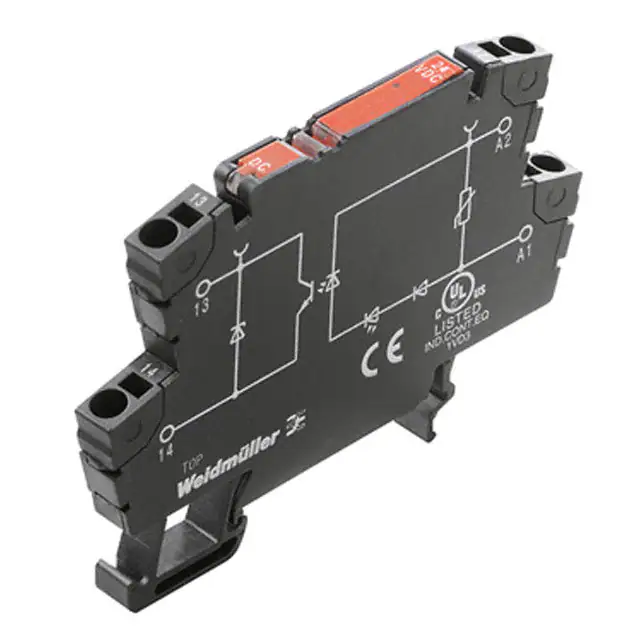

8950760000SSR RELAY SPST-NO 100MA 5-48V |
2 |
|
Ficha técnica |
TOP | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 5VDC | 5 V ~ 48 V | 100 mA | - | Spring Terminal | -20°C ~ 60°C | - | CE, cULus | - | - |
|
8950970000SSR RELAY SPST-NO 500MA 5-48V |
0 |
|
Ficha técnica |
TOP | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 12VDC | 5 V ~ 48 V | 500 mA | - | Spring Terminal | -20°C ~ 60°C | - | CE, cULus | - | - |
|
8950960000SSR RELAY SPST-NO 500MA 5-48V |
0 |
|
Ficha técnica |
TOP | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 5VDC | 5 V ~ 48 V | 500 mA | - | Spring Terminal | -20°C ~ 60°C | - | CE, cULus | - | - |
|
8951180000SSR RELAY SPST-NO 100MA 24-230V |
0 |
|
Ficha técnica |
TOP | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | AC | 24VDC | 24 V ~ 230 V | 100 mA | - | Spring Terminal | -20°C ~ 60°C | - | CE, cULus | - | - |
|
4061190000SSR RELAY SPST-NO 2A 3-33V |
1 |
|
Ficha técnica |
SSS | Bulk | Active | Through Hole | SPST-NO (1 Form A) | DC | 18 ~ 30VDC | 3 V ~ 33 V | 2 A | - | PC Pin | -20°C ~ 60°C | - | - | - | - |
|
4061180000SSR RELAY SPST-NO 100MA 3-48V |
0 |
|
Ficha técnica |
SSS | Bulk | Active | Through Hole | SPST-NO (1 Form A) | DC | 16 ~ 30VDC | 3 V ~ 48 V | 100 mA | - | PC Pin | -20°C ~ 60°C | - | - | - | - |
|
ED24D5RSSR RELAY SPST-NO 5A 24-280V |
5 |
|
Ficha técnica |
LifePlus ED | Bulk | Active | Socketable | SPST-NO (1 Form A) | AC | 3 ~ 15VDC | 24 V ~ 280 V | 5 A | - | Plug In, Quick Connect - 0.187" (4.7mm) | -30°C ~ 80°C | - | CE, cURus, IEC | - | - |
|
2618790000SSR RELAY SPST-NO 100MA 0-48V |
3 |
|
Ficha técnica |
TERMSERIES | Box | Active | DIN Rail | SPST-NO (1 Form A) | DC | 24VDC | 0 V ~ 48 V | 100 mA | - | Screw Terminal | -20°C ~ 60°C | - | CE, cULus, DNV, UKCA | - | - |
|
|
ED10D5SSR RELAY SPST-NO 5A 1-80V |
0 |
|
Ficha técnica |
LifePlus ED | Bulk | Active | Socketable | SPST-NO (1 Form A) | DC | 5 ~ 15VDC | 1 V ~ 80 V | 5 A | - | Plug In, Quick Connect - 0.187" (4.7mm) | -30°C ~ 80°C | - | CE, cURus, IEC | - | - |
|
|
2905294SSR RELAY SPST-NO 100MA 3-48V |
0 |
|
Ficha técnica |
PLC-OSC | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 19.2 ~ 28.8VDC | 3 V ~ 48 V | 100 mA | - | Spring Terminal | -20°C ~ 60°C | - | EN, IEC | - | - |
|
2900361SSR RELAY SPST-NO 100MA 3-48V |
5 |
|
Ficha técnica |
PLC-OPT | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 230VAC/DC | 3 V ~ 48 V | 100 mA | - | Spring Terminal | -25°C ~ 60°C | - | CE, DNV, UKCA | - | - |
|
SSP1A110M7TSSR RELAY SPST-NO 10A 24-300V |
0 |
|
Ficha técnica |
Harmony | Box | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 90 ~ 280VAC | 24 V ~ 300 V | 10 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, EAC, UL | - | - |
|
8937830000SSR RELAY SPST-NO 1A 12-300V |
2 |
|
Ficha técnica |
MOS | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 24VDC | 12 V ~ 300 V | 1 A | - | Screw Terminal | -25°C ~ 50°C | - | cULus | - | - |
