Relés de estado sólido (SSR)
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de montagem | Circuito | Tipo de saída | Voltagem - Entrada | Tensão - Carga | Corrente de Carga | Resistência no estado ligado (máx.) | Estilo de Terminação | Temperatura operacional | Pacote do dispositivo do fornecedor | Agência de Aprovação | Grau | Qualificação |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EL240A30-05NPSSR RELAY SPST-NO 30A 24-280V |
0 |
|
Ficha técnica |
EL | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 8VDC | 24 V ~ 280 V | 30 A | - | Quick Connect - 0.187"/0.250" | -30°C ~ 80°C | - | CE, cURus, TUV | - | - |
|
SO96546HSSR RELAY SPST-NO 50A 24-600V |
0 |
|
Ficha técnica |
- | Box | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 3.5 ~ 32VDC | 24 V ~ 600 V | 50 A | - | Screw Terminal | -55°C ~ 100°C | - | CE, cURus, VDE | - | - |
|
70S201A03VSSR RELAY SPST-NO 3A 3-60V |
0 |
|
Ficha técnica |
Legacy | Box | Obsolete | Through Hole | SPST-NO (1 Form A) | DC | 3 ~ 15VDC | 3 V ~ 60 V | 3 A | - | PC Pin | -40°C ~ 100°C | 4-SIP | CSA, cURus | - | - |
|
CWD4810SSSR RELAY SPST-NO 10A 48-660V |
0 |
|
Ficha técnica |
CW | Bulk | Obsolete | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 48 V ~ 660 V | 10 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, cURus, TUV | - | - |
|
GNDB10D1ESSR 10A OUT 36VDC IN 4-10VDC NON |
0 |
|
Ficha técnica |
GND | Bulk | Active | Through Hole | SPST-NO (1 Form A) | DC | 4 ~ 10VDC | 7 V ~ 36 V | 10 A | - | PC Pin | -25°C ~ 90°C | 4-SIP | CE, cURus | - | - |
|
CSW2410SSR RELAY SPST-NO 10A 24-280V |
0 |
|
Ficha técnica |
CSW | Bulk | Obsolete | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 3 ~ 32VDC | 24 V ~ 280 V | 10 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, cURus, TUV | - | - |
|
|
EL240A30-12NSSR RELAY SPST-NO 30A 24-280V |
0 |
|
Ficha técnica |
EL | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 10 ~ 14VDC | 24 V ~ 280 V | 30 A | - | Quick Connect - 0.187"/0.250" | -30°C ~ 80°C | - | CE, cURus, TUV | - | - |
|
SKL10240SSR RELAY SPST-NO 25A 24-600V |
0 |
|
Ficha técnica |
- | Box | Active | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | 12VDC | 24 V ~ 600 V | 25 A | - | PC Pin | -40°C ~ 80°C | 4-SIP | cURus, UL | - | - |
|
|
77.25.9.024.8650SSR RELAY SPST-NO 25A 43.2-660V |
0 |
|
Ficha técnica |
77 | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 24VDC | 43.2 V ~ 660 V | 25 A | - | Screw Terminal | -30°C ~ 80°C | - | CE, cULus, EAC | - | - |
|
|
SKL20241SSR RELAY SPST-NO 25A 24-600V |
0 |
|
Ficha técnica |
- | Box | Active | Through Hole | SPST-NO (1 Form A) | AC | 24VDC | 24 V ~ 600 V | 25 A | - | PC Pin | -40°C ~ 85°C | 4-SIP | cURus, UL | - | - |
|
|
RSSAN-25ASOLID STATE RELAY 25A |
0 |
|
- |
RSS | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 90 ~ 280VAC | 48 V ~ 660 V | 25 A | - | Screw Terminal | -20°C ~ 80°C | - | CE, CSA, cURus, TUV | - | - |
|
ASR-SN480D100ZW-LPUSSR RELAY SPST-NO 100A 24-530V |
0 |
|
Ficha técnica |
SN | Box | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 3 ~ 32VDC | 24 V ~ 530 V | 100 A | - | Screw Terminal | -30°C ~ 80°C | - | CE, cURus | - | - |
|
CKRD4830EPSSR RELAY SPST-NO 30A 48-530V |
0 |
|
Ficha técnica |
CKR | Bulk | Obsolete | DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 15 ~ 32VDC | 48 V ~ 530 V | 30 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, TUV, UR | - | - |
|
SSM1A312BDSSR RELAY SPST-NO 12A 48-600V |
0 |
|
Ficha técnica |
Harmony | Box | Active | DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 48 V ~ 600 V | 12 A | - | Screw Terminal | -30°C ~ 80°C | - | CSA, UL | - | - |
|
DR24D03XRSSR RELAY SPST-NO 3A 24-280V |
0 |
|
Ficha técnica |
DR | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | AC | 4 ~ 32VDC | 24 V ~ 280 V | 3 A | - | Screw Terminal | -20°C ~ 40°C | - | CE, cULus | - | - |
|

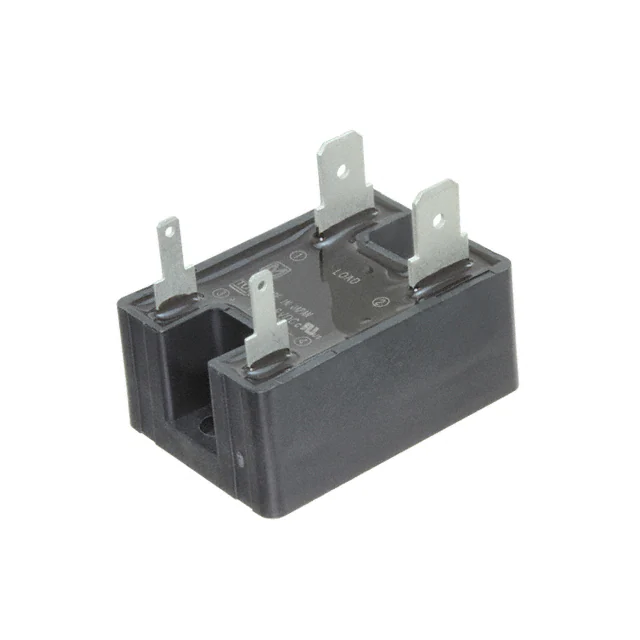

AQJ119VYSSR RELAY SPST-NO 10A 75-264V |
0 |
|
Ficha técnica |
AQ-J | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 10 ~ 18VDC | 75 V ~ 264 V | 10 A | - | Quick Connect - 0.110"/0.250" | -30°C ~ 80°C | - | cURus, VDE | - | - |
|
SRH1-2430SSR RELAY SPST-NO 30A 48-480V |
1 |
|
Ficha técnica |
SRH1 | Box | Active | Chassis Mount, DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 24VAC | 48 V ~ 480 V | 30 A | - | Screw Terminal | - | Module | - | - | - |
|
|
CKRA4820EPSSR RELAY SPST-NO 20A 48-530V |
0 |
|
Ficha técnica |
CKR | Bulk | Obsolete | DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 18 ~ 36VAC | 48 V ~ 530 V | 20 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, TUV, UR | - | - |
|
|
H10WD4850SSR RELAY SPST-NO 50A 48-660V |
0 |
|
Ficha técnica |
H10WD | Bulk | Obsolete | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 48 V ~ 660 V | 50 A | - | Screw Terminal | - | - | - | - | - |
|
2900374SSR RELAY SPST-NO 750MA 24-253V |
0 |
|
Ficha técnica |
PLC-OPT | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | AC | 230VAC/DC | 24 V ~ 253 V | 750 mA | - | Spring Terminal | -25°C ~ 60°C | - | CE, DNV, UKCA | - | - |
