Relés de estado sólido (SSR)
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de montagem | Circuito | Tipo de saída | Voltagem - Entrada | Tensão - Carga | Corrente de Carga | Resistência no estado ligado (máx.) | Estilo de Terminação | Temperatura operacional | Pacote do dispositivo do fornecedor | Agência de Aprovação | Grau | Qualificação |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AA36FSSR RELAY SPST-NO 2.5A 0-60V |
1,842 |
|
Ficha técnica |
36 | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.17VDC | 0 V ~ 60 V | 2.5 A | 140 mOhms | Gull Wing | -40°C ~ 85°C | 6-SMD | - | - | - |
|
AC37SSR RELAY SPST-NO 500MA 0-60V |
1,540 |
|
Ficha técnica |
37 | Tube | Active | Through Hole | SPST-NO (1 Form A) x 2 | AC, DC | 1.17VDC | 0 V ~ 60 V | 500 mA | 1.6 Ohms | PC Pin | -40°C ~ 85°C | 8-DIP | cURus, UL | - | - |
|
CPC1593GSTRSSR RELAY SPST-NO 120MA 0-600V |
1,723 |
|
Ficha técnica |
CPC, OptoMOS® | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.24VDC | 0 V ~ 600 V | 120 mA | 35 Ohms | Gull Wing | -40°C ~ 85°C | 6-SMD | CSA, TUV, UL | - | - |
.jpg)
|
G3VM-41DY1(TR05)SSR RELAY SPST-NO 2A 0-40V |
225 |
|
Ficha técnica |
G3VM | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.27VDC | 0 V ~ 40 V | 2 A | 150 mOhms | Gull Wing | -40°C ~ 85°C | 4-SMD | - | - | - |
|
AQY211EHAXSSR RELAY SPST-NO 1A 0-30V |
20,861 |
|
Ficha técnica |
PhotoMOS™ AQY | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.14VDC | 0 V ~ 30 V | 1 A | 500 mOhms | Gull Wing | -40°C ~ 85°C | 4-SMD | BSI, cURus | - | - |
|

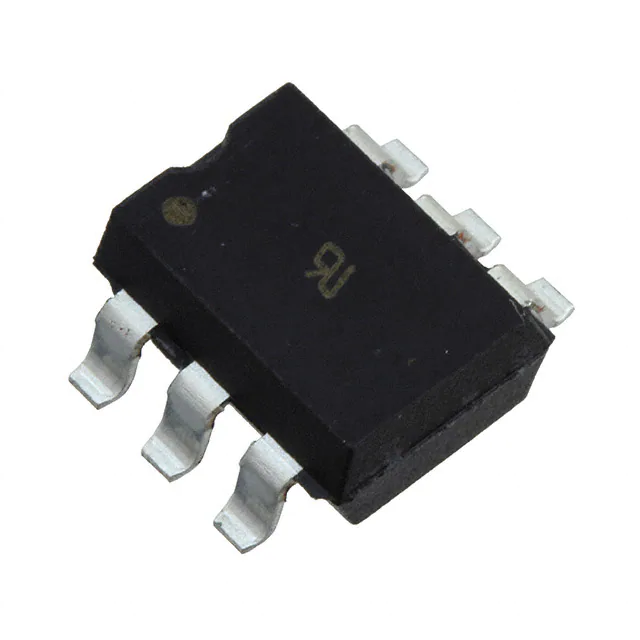

CPC1510GSTRSSR RELAY SPST-NO 200MA 0-250V |
3,114 |
|
Ficha técnica |
CPC, OptoMOS® | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.37VDC | 0 V ~ 250 V | 200 mA | 15 Ohms | Gull Wing | -40°C ~ 85°C | 6-SMD | CSA, TUV, UL | - | - |
|
AQY410EHAXSSR RELAY SPST-NC 130MA 0-350V |
1,410 |
|
Ficha técnica |
PhotoMOS™ AQY | Tape & Reel (TR) | Active | Surface Mount | SPST-NC (1 Form B) | AC, DC | 1.14VDC | 0 V ~ 350 V | 130 mA | 25 Ohms | Gull Wing | -40°C ~ 85°C | 4-SMD | BSI, cURus | - | - |
|
CPC1020NSSR RELAY SPST-NO 1.2A 0-30V |
6,155 |
|
Ficha técnica |
CPC, OptoMOS® | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.2VDC | 0 V ~ 30 V | 1.2 A | 250 mOhms | Gull Wing | -40°C ~ 85°C | 4-SOP | CSA, TUV, UL | - | - |
|
|
AQY414EHAXSSR RELAY SPST-NC 120MA 0-400V |
256 |
|
Ficha técnica |
PhotoMOS™ AQY | Tape & Reel (TR) | Active | Surface Mount | SPST-NC (1 Form B) | AC, DC | 1.14VDC | 0 V ~ 400 V | 120 mA | 35 Ohms | Gull Wing | -40°C ~ 85°C | 4-SMD | BSI, cURus | - | - |
|
C226SSSR RELAY SPST-NO 2A 0-40V |
34,740 |
|
Ficha técnica |
COTOMOS™ | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.37VDC | 0 V ~ 40 V | 2 A | 85 mOhms | Gull Wing | -40°C ~ 85°C | 4-SOP | - | - | - |
|

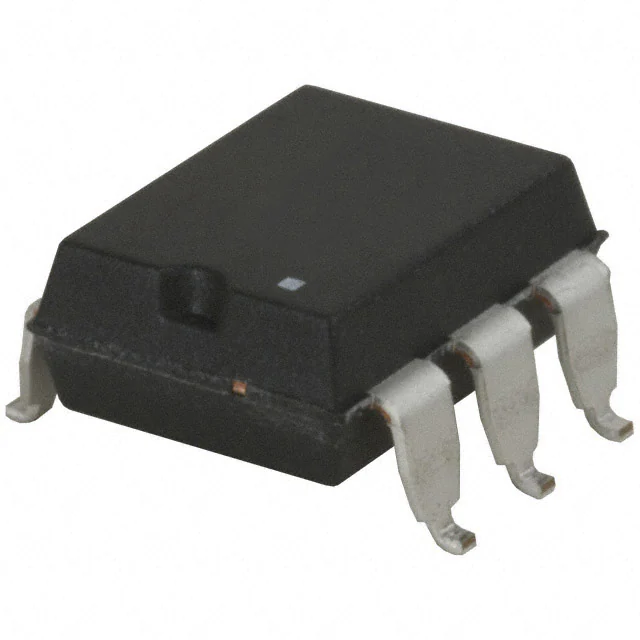

PLA170STRSSR RELAY SPST-NO 100MA 0-800V |
12,087 |
|
Ficha técnica |
PLA, OptoMOS® | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.2VDC | 0 V ~ 800 V | 100 mA | 50 Ohms | Gull Wing | -40°C ~ 85°C | 6-SMD | CSA, EN, UL | - | - |
|
|
AQY221R2SZSSR RELAY SPST-NO 250MA 0-40V |
18,595 |
|
Ficha técnica |
PhotoMOS™ AQY | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC (RF) | 1.14VDC | 0 V ~ 40 V | 250 mA | 1.25 Ohms | Gull Wing | -40°C ~ 85°C | 4-SOP | BSI, cURus | - | - |
|
AQW210SSSR RELAY SPST-NO 100MA 0-350V |
3,064 |
|
Ficha técnica |
PhotoMOS™ AQW | Tube | Active | Surface Mount | SPST-NO (1 Form A) x 2 | AC, DC | 1.14VDC | 0 V ~ 350 V | 100 mA | 35 Ohms | Gull Wing | -40°C ~ 85°C | 8-SOP | UR, VDE | - | - |
|
TLP4590A(TP1,FSSR RELAY SPST-NC 1.2A 0-60V |
1,742 |
|
Ficha técnica |
- | Tape & Reel (TR) | Active | Surface Mount | SPST-NC (1 Form B) | AC, DC | 1.27VDC | 0 V ~ 60 V | 1.2 A | 600 mOhms | Gull Wing | -40°C ~ 110°C | - | - | - | - |
|
TLP3317(TP15,FSSR RELAY SPST-NO 120MA 0-80V |
4,247 |
|
Ficha técnica |
TLP3317 | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.15VDC | 0 V ~ 80 V | 120 mA | 12 Ohms | Gull Wing | -40°C ~ 85°C | 4-USOP | UL | - | - |
|
|
AQY232SZSSR RELAY SPST-NO 500MA 0-60V |
7,229 |
|
Ficha técnica |
PhotoMOS™ AQY | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.25VDC | 0 V ~ 60 V | 500 mA | 2.5 Ohms | Gull Wing | -40°C ~ 85°C | 4-SOP | BSI, cURus | - | - |
|
|
ASSR-4110-003ESSR RELAY SPST-NO 120MA 0-400V |
2,440 |
|
Ficha técnica |
ASSR | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.3VDC | 0 V ~ 400 V | 120 mA | 25 Ohms | Gull Wing | -40°C ~ 85°C | 4-SOP (2.54mm) | CSA, UL | - | - |
|
AQV212SZSSR RELAY SPST-NO 500MA 0-60V |
2,177 |
|
Ficha técnica |
PhotoMOS™ AQV | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.14VDC | 0 V ~ 60 V | 500 mA | 2.5 Ohms | Gull Wing | -40°C ~ 85°C | 6-SOP | UR | - | - |
|
|
AQW210SXSSR RELAY SPST-NO 100MA 0-350V |
8,641 |
|
Ficha técnica |
PhotoMOS™ AQW | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) x 2 | AC, DC | 1.14VDC | 0 V ~ 350 V | 100 mA | 35 Ohms | Gull Wing | -40°C ~ 85°C | 8-SOP | UR, VDE | - | - |
|

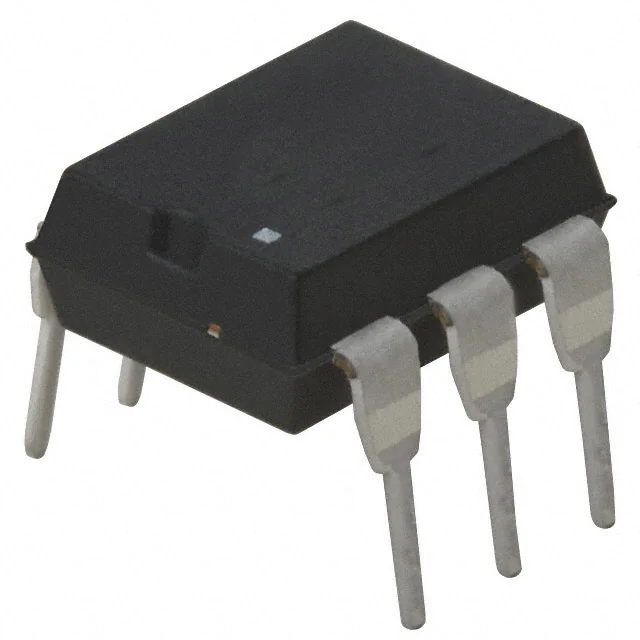

PLA192SSR RELAY SPST-NO 150MA 0-600V |
7,145 |
|
Ficha técnica |
PLA, OptoMOS® | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.2VDC | 0 V ~ 600 V | 150 mA | 22 Ohms | PC Pin | -40°C ~ 85°C | 6-DIP | TUV, UL | - | - |
