Interruptores táteis
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Circuito | Função do Interruptor | Classificação de Contato @ Voltagem | Tipo de Atuador | Tipo de montagem | Altura do atuador fora do PCB, vertical | Comprimento do atuador, ângulo reto | Orientação do atuador | Estilo de Terminação | Esboço | Iluminação | Tipo de Iluminação, Cor | Tensão de Iluminação (Nominal) | Força operacional | Proteção de entrada | Recursos | Temperatura operacional |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLE1105LF160QSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Ficha técnica |
TL1105 | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 17.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | Grounding Pin | -20°C ~ 70°C |
|
|
TLE1105PF100QSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Ficha técnica |
TL1105 | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 8.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | Grounding Pin | -20°C ~ 70°C |
|
|
TLE1105SPF160R1DBLKSWITCH TACTILE SPST-NO 0.05A 50V |
0 |
|
- |
TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Square Button | Through Hole | 13.40mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | Black Cap | -20°C ~ 70°C |
|
|
TLE1105SPF160R1DREDSWITCH TACTILE SPST-NO 0.05A 50V |
0 |
|
Ficha técnica |
TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Square Button | Through Hole | 13.40mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | Red Cap | -20°C ~ 70°C |
|
|
TLE1105TF160QSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Ficha técnica |
TL1105 | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | 7.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | Grounding Pin | -20°C ~ 70°C |
|
B3F-6005-ASWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Ficha técnica |
B3F | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -25°C ~ 70°C |
|
B3F-6055SWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Ficha técnica |
B3F | Tape & Box (TB) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -25°C ~ 70°C |
|
B3FS-1002P-SUSSWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Ficha técnica |
B3FS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | Gull Wing | 6.30mm x 6.00mm | Non-Illuminated | - | - | 150gf | - | - | -25°C ~ 70°C |
|
|
TL1240WQSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Ficha técnica |
TL1240 | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | 7.20mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | LED, White | 3.7 VDC | 160gf | - | - | -20°C ~ 70°C |
|
|
3FTL624SWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Ficha técnica |
Multimec® 3 | Tube | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 10.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Illuminated | LED, Green | 2 VDC | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 115°C |
|
|
3FTL689SWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Ficha técnica |
Multimec® 3 | Tube | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 10.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Illuminated | LED, Red | 2 VDC | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 115°C |
|
3ATL6SWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Ficha técnica |
Multimec® 3 | Tube | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 6.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 115°C |
|
3ATL620SWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Ficha técnica |
Multimec® 3 | Tube | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 6.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Illuminated | LED, Green | 2.1 VDC | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 115°C |
|

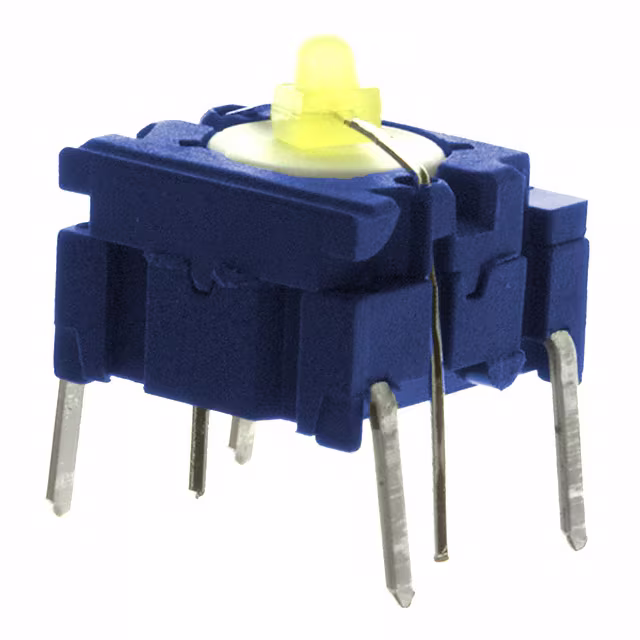

3ATL640SWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Ficha técnica |
Multimec® 3 | Tube | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 6.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Illuminated | LED, Yellow | 2.1 VDC | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 115°C |
|

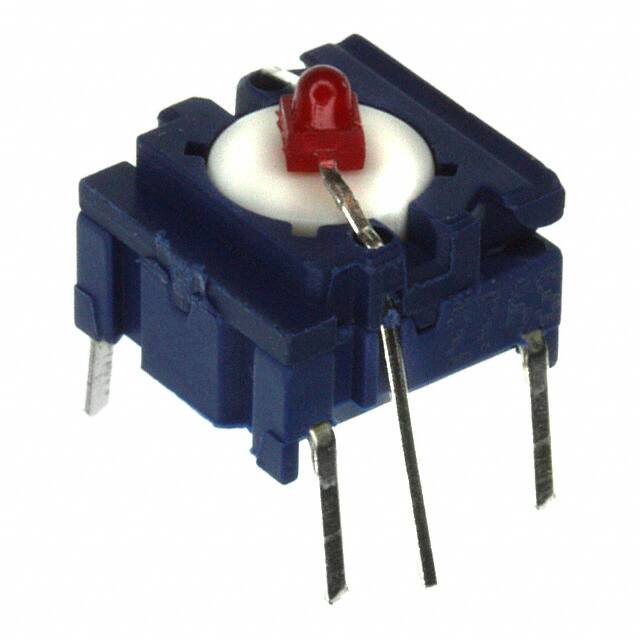

3ATL680SWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Ficha técnica |
Multimec® 3 | Tube | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 6.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Illuminated | LED, Red | 2 VDC | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 115°C |
|
3CTL6SWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Ficha técnica |
Multimec® 3 | Tube | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 6.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 115°C |
|

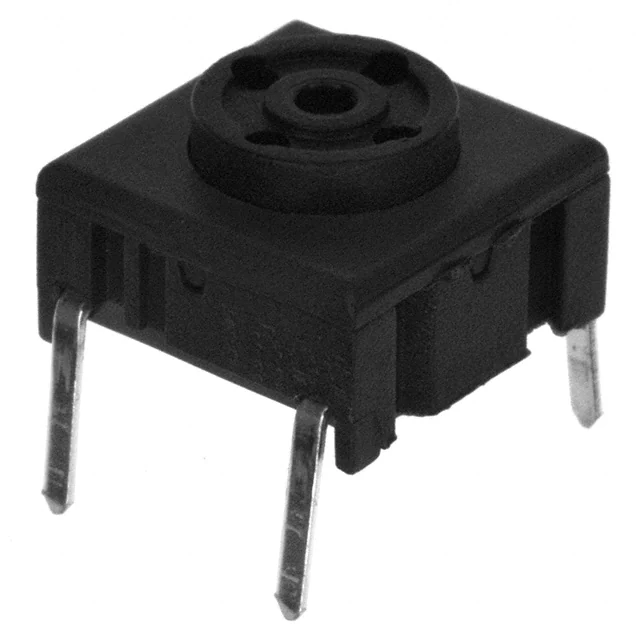

3ETL9SWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Ficha técnica |
Multimec® 3 | Tube | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | - | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 115°C |
|

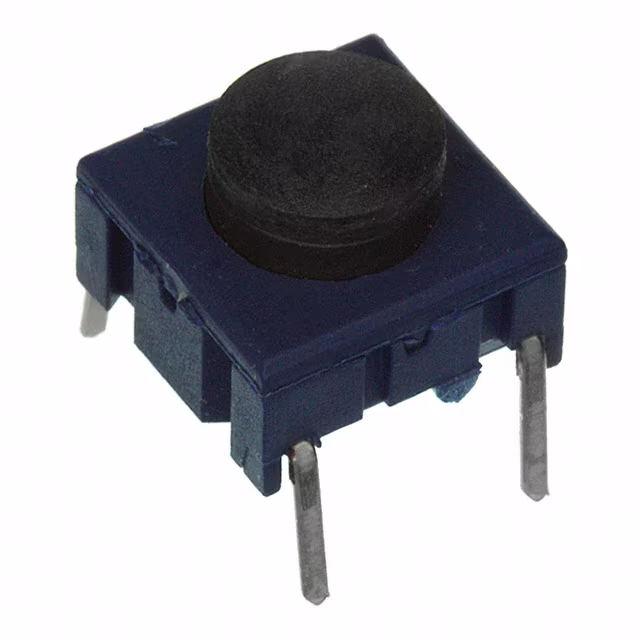

3ETL9-08.0SWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Ficha técnica |
Multimec® 3 | Tube | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 8.00mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 115°C |
|

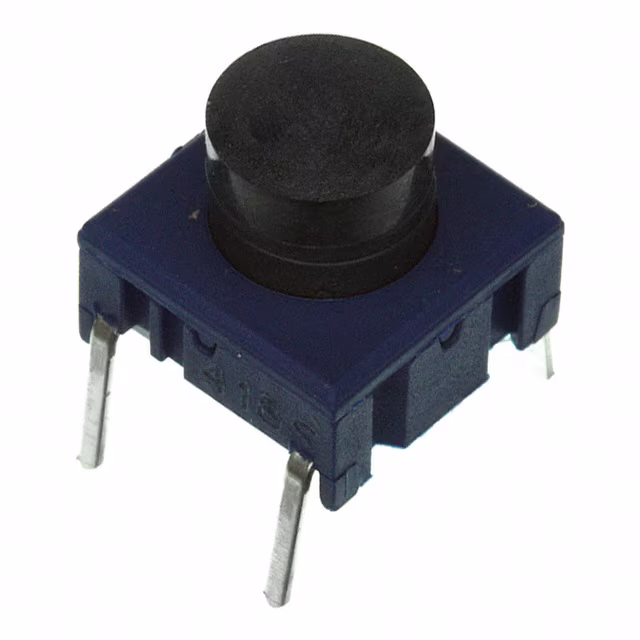

3ETL9-09.5SWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Ficha técnica |
Multimec® 3 | Tube | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 115°C |
|
3ETL9-10.4SWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Ficha técnica |
Multimec® 3 | Tube | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 10.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 115°C |
