SCRs - Módulos
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Pacote/Caixa | Embalagem | Status do produto | Estrutura | Número de SCRs, diodos | Voltagem - Estado desligado | Corrente - Estado Ligado (It (AV)) (Máx.) | Corrente - Estado Ligado (It (RMS)) (Máx.) | Tensão - Disparo de Porta (Vgt) (Máx.) | Corrente - Disparo de Porta (Igt) (Máx.) | Corrente - Não rep. Surto 50, 60 Hz (Itsm) | Corrente - Retenção (Ih) (Máx.) | Temperatura operacional | Grau | Qualificação | Tipo de montagem |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCC700-12IO1WSCR THY PHASE LEG 1200V WC-500 |
4,620 |
|
Ficha técnica |
- | WC-500 | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 700 A | 1331 A | - | - | 18200 @ 50MHz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCD700-12IO1WSCR THRYRISTOR 1200V WC-500 |
5,208 |
|
Ficha técnica |
- | WC-500 | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 700 A | 1331 A | - | - | 18200 @ 50MHz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCD700-16IO1WSCR THRYRISTOR 1600V WC-500 |
2,180 |
|
Ficha técnica |
- | WC-500 | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 700 A | 1331 A | - | - | 18200 @ 50MHz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCK700-12IO1WSCR THYRISTOR CA 1200V WC-500 |
9,277 |
|
Ficha técnica |
- | WC-500 | Tray | Active | Common Cathode - All SCRs | 2 SCRs | 1.2 kV | 700 A | 1331 A | - | - | 18200 @ 50MHz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCK700-16IO1WSCR THYRISTOR CA 1600V WC-500 |
5,845 |
|
Ficha técnica |
- | WC-500 | Tray | Active | Common Cathode - All SCRs | 2 SCRs | 1.6 kV | 700 A | 1331 A | - | - | 18200 @ 50MHz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
T512F-YEBMODULE POWER |
7,395 |
|
Ficha técnica |
- | Module | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

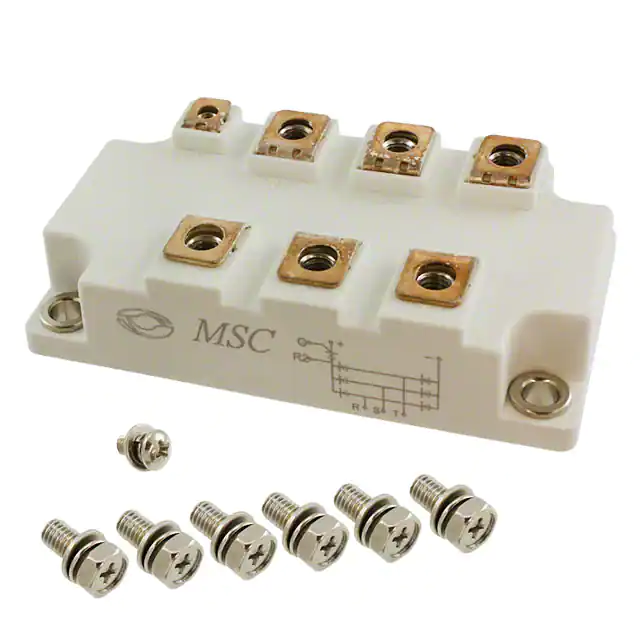

MSDT150-16POWER MOD BRIDGE THY 3PH M5 |
9,439 |
|
- |
- | M5 Module | Bulk | Obsolete | Bridge, 3-Phase - SCRs/Diodes | 1 SCR, 6 Diodes | 1.6 kV | 150 A | - | 3 V | 150 mA | 1500A @ 50Hz | - | - | - | - | Chassis Mount |
|
MSFC110-16POWER MOD THYRISTOR/DIODE F1 |
7,011 |
|
- |
- | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 110 A | - | 3 V | 150 mA | 2250A @ 50Hz | 250 mA | -40°C ~ 125°C (TJ) | - | - | Screw Mount |
|
MSFC160-16POWER MOD THYRISTOR/DIODE F2 |
4,738 |
|
- |
- | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 160 A | - | 3 V | 150 mA | 5400A @ 50Hz | 400 mA | -40°C ~ 125°C (TJ) | - | - | Screw Mount |
|
MSTC110-16POWER MOD THYRISTOR/DIODE T1 |
8,657 |
|
Ficha técnica |
- | Module | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 110 A | - | 3 V | 150 mA | 2250A @ 50Hz | 250 mA | -40°C ~ 130°C (TJ) | - | - | Screw Mount |
|

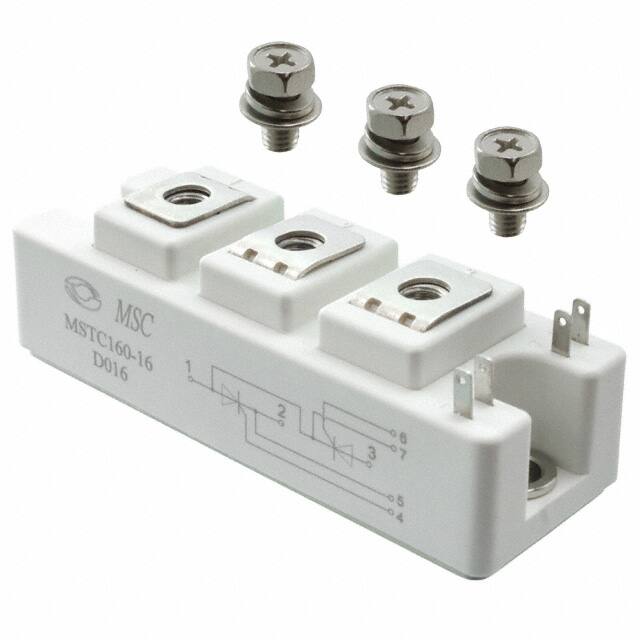

MSTC160-16POWER MOD THYRISTOR/DIODE T2 |
3,072 |
|
Ficha técnica |
- | Module | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 160 A | - | 3 V | 150 mA | 5400A @ 50Hz | 400 mA | -40°C ~ 130°C (TJ) | - | - | Screw Mount |
|
|
MSFC60-08MOD THYRISTOR DIODE DBLR 60A SF1 |
3,391 |
|
- |
- | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 800 V | 60 A | - | 3 V | 150 mA | 1500A @ 50Hz | 250 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
MSDT100-16PWR MOD THYRISTOR 1600V 100V SM4 |
5,740 |
|
- |
- | M4 Module | Bulk | Obsolete | Bridge, 3-Phase - SCRs/Diodes | 1 SCR, 6 Diodes | 1.6 kV | 100 A | - | 3 V | 150 mA | 1200A @ 50Hz | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount |
|
|
MSDT200-16PWR MOD THYRISTOR 1600V 200V SM4 |
8,529 |
|
- |
- | M5 Module | Bulk | Obsolete | Bridge, 3-Phase - SCRs/Diodes | 1 SCR, 6 Diodes | 1.6 kV | 200 A | - | 3 V | 150 mA | 1900A @ 50Hz | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount |
|
|
MSFC130-08MOD THYRISTOR DIODE DBLR 130A D1 |
7,422 |
|
- |
- | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 800 V | 130 A | - | 3 V | 150 mA | 4700A @ 50Hz | 400 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MSFC130-12MOD THYRISTOR DIODE DBLR 130A D1 |
9,523 |
|
- |
- | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 130 A | - | 3 V | 150 mA | 4700A @ 50Hz | 400 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MSFC130-16MOD THYRISTOR DIODE DBLR 130A D1 |
7,352 |
|
- |
- | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 130 A | - | 3 V | 150 mA | 4700A @ 50Hz | 400 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MSFC160-08MOD THYRISTOR DIODE DBLR 160A D1 |
6,191 |
|
- |
- | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 800 V | 160 A | - | 3 V | 150 mA | 5400A @ 50Hz | 400 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MSFC160-12MOD THYRISTOR DIODE DBLR 160A D1 |
6,898 |
|
- |
- | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 160 A | - | 3 V | 150 mA | 5400A @ 50Hz | 400 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MSFC25-08MOD THYRISTOR DIODE DBLR 25A SF1 |
5,920 |
|
- |
- | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 800 V | 25 A | - | 2.5 V | 150 mA | 550A @ 50Hz | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
