Alarmes, Campainhas e Sirenes
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Circuito do driver | Tipo de entrada | Voltagem - Nominal | Faixa de tensão | Frequência | Tecnologia | Modo operacional | Duração | Nível de pressão sonora (SPL) | Corrente - Alimentação | Localização da porta | Temperatura operacional | Agência de Aprovação | Classificações | Proteção de entrada | Tipo de montagem | Terminação | Tamanho/dimensão | Altura - Assentado (Máx.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STA40802BUZZER PIEZO184X100MMW PNL MNT |
0 |
|
Ficha técnica |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 12 ~ 24V | 1.25kHz | Piezo | Single Tone | - | 112dB @ 12V, 122cm | 1A | Side | -40°C ~ 85°C | CE, SAE, UL | - | - | Panel Mount | Screw Terminals | 7.244" L x 3.937" W (184.00mm x 100.00mm) | 3.268" (83.00mm) |
|
AT-1810-T-LW50-RBUZZER PIEZO 3V 17.7MM CUSTOM |
0 |
|
Ficha técnica |
AT | Bulk | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 1 ~ 10V | - | Piezo | Single Tone | - | 103dB @ 1V, 1cm | 3mA | Top | -20°C ~ 60°C | - | - | - | Custom | Wire Leads | 0.697" Dia (17.70mm) | 0.098" (2.50mm) |
|
|
AI-1223-TWT-5V-3-RBUZZER PIEZO 5V 12MM TH |
0 |
|
Ficha técnica |
AI | Tray | Obsolete | Indicator, Internally Driven | DC | 5 V | 4 ~ 7V | 2.3kHz | Piezo | Single Tone | - | 85dB @ 5V, 10cm | 30mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.394" (10.00mm) |
|
|
SC616N-6BUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Ficha técnica |
- | Bulk | Obsolete | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Single Tone | - | 90dB @ 6V, 61cm | 6 ~ 22mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminals | 1.687" Dia (42.85mm) | 1.399" (35.54mm) |
|
|
SC616NP-10BUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Ficha técnica |
- | Bulk | Obsolete | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Pulse, Fast | - | 80dB @ 6V, 61cm | 6 ~ 18mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminals | 1.687" Dia (42.85mm) | 1.946" (49.43mm) |
|
|
SC628D-1RBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Ficha técnica |
- | Bulk | Obsolete | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2kHz | Piezo | Single Tone | - | 60dB @ 6V, 61cm | 5 ~ 18mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminals | 1.687" Dia (42.85mm) | 1.399" (35.54mm) |
|
|
SC628P-2BUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Ficha técnica |
- | Bulk | Obsolete | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pulse, Fast | - | 68dB @ 6V, 61cm | 4 ~ 16mA | Top | -40°C ~ 85°C | - | - | - | Panel Mount | Screw Terminals | 1.687" Dia (42.85mm) | 1.946" (49.43mm) |
|
|
M-40177-BPBUZZER KIT ENGINE WARNING |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SC616JURBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Ficha técnica |
SC | Bulk | Obsolete | Indicator, Internally Driven | DC | - | 6 ~ 16 V | 2.9kHz | Piezo | Pin Selectable | - | 68dB @ 6V, 61cm | 12mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.809" (45.96mm) |
|
ZT028LDMT2RBUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Ficha técnica |
ZT | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 3.9kHz | Piezo | Pin Selectable, Visual Indicator | Variable | 85dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
|
ZT028LDMT6RBUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Ficha técnica |
ZT | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 3.9kHz | Piezo | Pin Selectable, Visual Indicator | Variable | 85dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
|
1.30249.0210000BUZZER 24V 22.3MM PNL MNT |
0 |
|
- |
RAFIX 22 QR | Bulk | Obsolete | - | DC | 24 V | - | 2.75kHz | - | Pulse | - | 70dB @ 24V, 100cm | 25mA | Side | - | - | - | IP65 | Panel Mount | Solder Pads | 0.878" Dia (22.30mm) | 0.949" (24.10mm) |
|
|
40151-03BUZZER ALARM UNIV 24VDC |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PB-1420PL-03BMQBUZZER MAGNETIC 1-4V 14MM TH |
0 |
|
Ficha técnica |
PB | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | - | 1 ~ 4V | 2.048kHz | Magnetic | Single Tone | - | 90dB @ 3V, 10cm | 35mA | Top | - | - | - | - | Through Hole | PC Pins | 0.551" Dia (14.00mm) | 0.197" (5.00mm) |
|
|
BRP4535S-12-CBUZZER PIEZO 12V 43.5MM PNL MNT |
0 |
|
Ficha técnica |
- | Tray | Active | Transducer, Externally Driven | DC | 12 V | 1 ~ 15V | 2.9kHz | Piezo | Continuous | - | 100dB @ 12V, 30cm | 30mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount | Screw Terminals | 1.713" Dia (43.50mm) | 1.358" (34.50mm) |
|
BRT1209P-06-CBUZZER MAGNETIC 5V 12MM TH |
0 |
|
Ficha técnica |
- | Tray | Active | Transducer, Externally Driven | DC | 5 V | 4 ~ 7V | 2.3kHz | Magnetic | Continuous | - | 85dB @ 5V, 10cm | 30mA | Top | -20°C ~ 60°C | - | Washable | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.299" (7.60mm) |
|

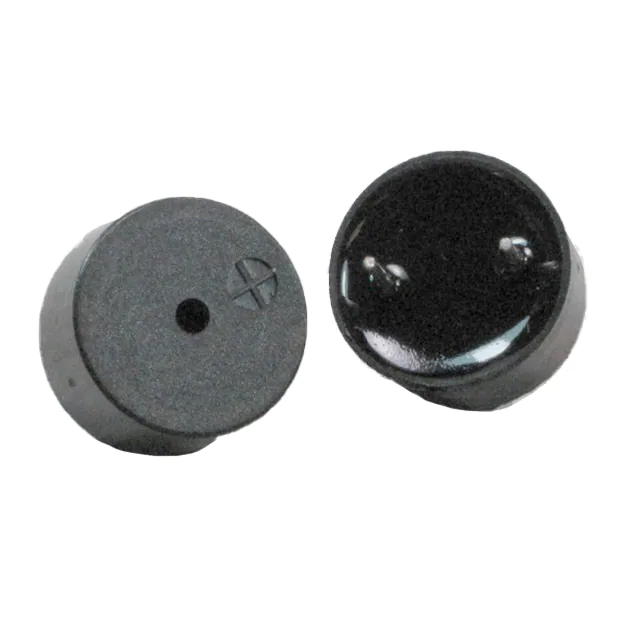

BRP1408P-12-CSBUZZER PIEZO 12V 13.8MM TH |
0 |
|
Ficha técnica |
- | Tray | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 16V | 4kHz | Piezo | Continuous | - | 80dB @ 10V, 10cm | 7mA | Top | -40°C ~ 85°C | - | - | - | Through Hole | PC Pins | 0.543" Dia (13.80mm) | 0.299" (7.60mm) |
|
|
M-100BUZZER PIEZO 26.16MM TH |
0 |
|
Ficha técnica |
M-80/M-100 | Bulk | Active | Indicator, Internally Driven | DC | - | 3 ~ 6V | 2.9kHz | Piezo | Single Tone | - | 102dB @ 6V, 61cm | 10 ~ 60mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Through Hole | PC Pins | 1.030" Dia (26.16mm) | 0.880" (22.35mm) |
.jpg)
|
TUHCH-V88Y-930-Q(S)BUZZER 35.81MM PNL MNT |
0 |
|
Ficha técnica |
Twin Turbo | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 30V | 3kHz | - | Chime | - | 103dB @ 30V, 61cm | 65 ~ 125mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) | 1.250" (31.75mm) |
|
BS2620PH-06-CBUZZER MAGN 6V 26X26MM TH |
0 |
|
Ficha técnica |
BS2620PH-06-C | Tray | Active | Indicator, Internally Driven | DC | 6 V | 4 ~ 8V | 400Hz | Magnetic | Single Tone | - | 75dB @ 6V, 100cm | 50mA | Top | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 1.024" L x 1.024" W (26.00mm x 26.00mm) | 0.795" (20.20mm) |
