Alarmes, Campainhas e Sirenes
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Circuito do driver | Tipo de entrada | Voltagem - Nominal | Faixa de tensão | Frequência | Tecnologia | Modo operacional | Duração | Nível de pressão sonora (SPL) | Corrente - Alimentação | Localização da porta | Temperatura operacional | Agência de Aprovação | Classificações | Proteção de entrada | Tipo de montagem | Terminação | Tamanho/dimensão | Altura - Assentado (Máx.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BRP4549S-110-CBUZZER PIEZO 110V 43.5MM PNL MNT |
0 |
|
Ficha técnica |
BRP4549S-110-C | Tray | Active | Indicator, Internally Driven | AC | 110 V | 30 ~ 120V | 2.9kHz | Piezo | Single Tone | - | 90dB @ 110V, 30cm | 30mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.248" (6.30mm) | 1.713" Dia (43.50mm) | 1.969" (50.00mm) |
|

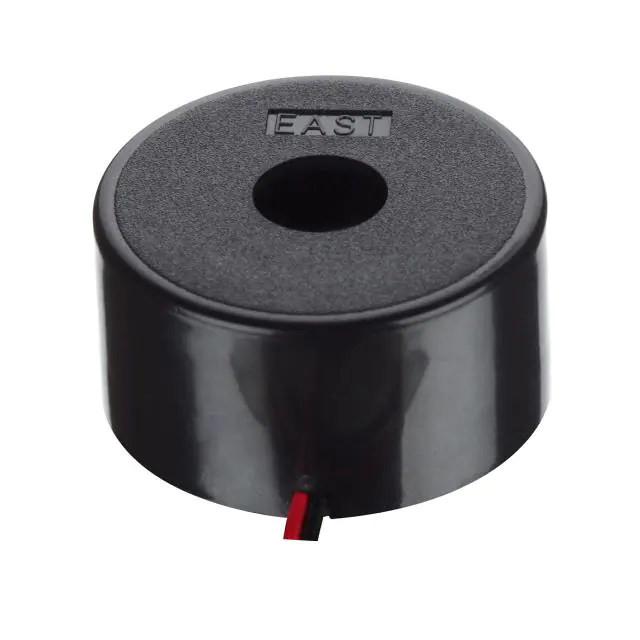

EFM-620LABUZZER PIEZO 9V 40MM TH |
0 |
|
Ficha técnica |
EFM | Box | Active | Indicator, Internally Driven | DC | 9 V | 7 ~ 20V | 3.2kHz | Piezo | Single Tone | - | 110.46dB @ 9V, 30cm | 50mA | Top | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 1.575" Dia (40.00mm) | 0.787" (20.00mm) |
|
SFM-1240-03BUZZER PIEZO 3V 12X12MM SMD |
0 |
|
Ficha técnica |
SFM | Box | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 30V | 4kHz | Piezo | Single Tone | - | 66.5dB @ 3V, 30cm | 3mA | Side | -40°C ~ 120°C | - | - | - | Surface Mount | Solder Pads | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.118" (3.00mm) |
|
TFM-36BUZZER 12V 39MM TH |
0 |
|
Ficha técnica |
- | Tray | Active | - | - | 12 V | 3 ~ 18V | 3.2kHz | - | Continuous | - | 106dB @ 12V, 10cm | 15mA | - | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 1.535" Dia (39.00mm) | 0.866" (22.00mm) |
|
EFM-320SABUZZER 12V 45MM WIRE |
0 |
|
Ficha técnica |
- | Tray | Active | - | - | 12 V | 3 ~ 16V | 2.9kHz | - | Continuous | - | 105dB @ 12V, 30cm | 35mA | - | -20°C ~ 70°C | - | - | - | Wire Lead | Wire Leads | 1.772" Dia (45.00mm) | 1.024" (26.00mm) |
|
SMT-0952-T-5V-2-RAUDIO PIEZO TRANSDUCER 1-25V SMD |
0 |
|
Ficha técnica |
* | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BPS6055L-12-CBUZZER PIEZO 12V 85X60MM BRACKET |
0 |
|
Ficha técnica |
BPS6055L-12-C | Box | Active | Indicator, Internally Driven | DC | 12 V | 6 ~ 12V | 2.5kHz ~ 3kHz | Piezo | Siren | - | 115dB @ 12V, 100cm | 350mA | User Defined | -20°C ~ 70°C | - | - | - | Bracket Mount | Wire Leads | 3.346" L x 2.362" W (85.00mm x 60.00mm) | 2.165" (55.00mm) |
|
BS2620PH-12-CBUZZER MAGN 12V 26X26MM TH |
0 |
|
Ficha técnica |
BS2620PH-12-C | Tray | Active | Indicator, Internally Driven | DC | 12 V | 8 ~ 16V | 400Hz | Magnetic | - | - | 75dB @ 12V, 100cm | 50mA | Top | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 1.024" L x 1.024" W (26.00mm x 26.00mm) | 0.795" (20.20mm) |
|
BRT1209P-01-50BUZZER MAGNETIC 1.5V 12MM TH |
0 |
|
Ficha técnica |
BRT1209-01-50 | Tray | Active | Transducer, Externally Driven | DC | 1.5 V | 1 ~ 2V | 2.048kHz | Magnetic | Single Tone | - | 80dB @ 1.5V, 10cm | 10mA | Top | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.335" (8.50mm) |
|
BS2316P-06-C-BBUZZER MAGN 6V 22.5X16MM TH |
0 |
|
Ficha técnica |
BS2316P-06-C-B | Tray | Active | Indicator, Internally Driven | DC | 6 V | 3 ~ 8V | 400Hz | Magnetic | - | - | 70dB @ 6V, 30cm | 23mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.886" L x 0.630" W (22.50mm x 16.00mm) | 0.594" (15.10mm) |
|
BRT1207P-01-SEHBBUZZER MAGNETIC 1.5V 12MM TH |
0 |
|
Ficha técnica |
BRT1207P | Tray | Active | Transducer, Externally Driven | DC | 1.5 V | 1 ~ 2V | 2.731kHz | Magnetic | Single Tone | - | 85dB @ 1.5V, 10cm | 70mA | Top | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.295" (7.50mm) |
|
3SU12506KB101AA0BUZZER 24V 22.3MM PNL MNT |
0 |
|
Ficha técnica |
3SU1 | Box | Active | - | AC, DC | 24 V | - | 2.4kHz | - | Single Tone | - | 80dB @ 24V, 10cm | 28mA | Side | -25°C ~ 70°C | - | - | IP20, IP40 | Panel Mount | Screw Terminals | 0.878" Dia (22.30mm) | 0.449" (11.40mm) |
|
BRP4016L-12-CPBUZZER PIEZO 12V 40MM FLANGE |
0 |
|
Ficha técnica |
- | Tray | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 24V | 2.8kHz | Piezo | Pulse | - | 100dB @ 12V, 100cm | 18mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.575" Dia (40.00mm) | 0.630" (16.00mm) |
|
BPS9234S-24-CBUZZER PIEZO 24V 92X92MM PNL MNT |
0 |
|
Ficha técnica |
- | Box | Active | - | DC | 24 V | 6 ~ 28V | 2.8kHz | Piezo | Siren, Single Tone, Pulse | - | 115dB @ 24V, 100cm | 150mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount | Screw Terminals | 3.622" L x 3.622" W (92.00mm x 92.00mm) | 1.346" (34.20mm) |
|
BRP3018L-12-CBUZZER PIEZO 12V 30MM FLANGE |
0 |
|
Ficha técnica |
- | Tray | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 15V | 2kHz | Piezo | Single Tone | - | 90dB @ 12V, 30cm | 10mA | Top | -10°C ~ 60°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.181" Dia (30.00mm) | 0.787" (20.00mm) |
|
BS2416L-12-BBUZZER MAGN 12V 32X17 FLANG |
0 |
|
Ficha técnica |
- | Tray | Active | - | DC | 12 V | 9 ~ 15V | 400Hz | Magnetic | Single Tone | - | 75dB @ 12V, 20cm | 25mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.319" L x 0.669" W (33.50mm x 17.00mm) | 0.630" (16.00mm) |
|
BRP4535S-12-CPBUZZER PIEZO 12V 43.5MM PNL MNT |
0 |
|
Ficha técnica |
- | Tray | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 15V | 2.9kHz | Piezo | Pulse | - | 90dB @ 12V, 30cm | 20mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount | Screw Terminals | 1.713" Dia (43.50mm) | 1.378" (35.00mm) |
|
|
SMT-1027-S-4-RBUZZER MAGN 3.6V 10X10MMW SMD |
0 |
|
Ficha técnica |
- | Tape & Reel (TR) | Active | - | Zero-Peak Signal | 3.6 V | 2.5 ~ 4.5V | 2.7kHz | Magnetic | - | - | 85dB @ 3.6V, 10cm | 80mA | Top | -20°C ~ 60°C | - | - | - | Surface Mount | Solder Pads | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.138" (3.50mm) |
|
|
SD161216BUZZER MAGNETIC |
0 |
|
- |
- | Bulk | Last Time Buy | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B2PB-B1DBUZZER PIEZO 12-24V 22MM GREEN |
0 |
|
Ficha técnica |
B2PB | Bulk | Active | Indicator, Internally Driven | DC | 24 V | 12 ~ 24V | 2.5kHz | Piezo | Dual Tone | Variable | 87dB @ 24V, 10cm | 25mA | Top | -15°C ~ 55°C | CE | - | IP65 | Panel Mount | Screw Terminals | 0.866" Dia (22.00mm) | 1.213" (30.80mm) |
