Prendedores de cabos e fios
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Pacote/Caixa | Tipo | Diâmetro do cabo externo (mín.) | Diâmetro do cabo externo (máx.) | Tamanho da rosca | Comprimento da rosca | Tamanho do cubo do conduíte | Tamanho do furo do painel | Material | Inclui | Cor | Proteção de entrada | Temperatura operacional |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S1507CABLE GLAND 3.5-7MM M12 POLYAMID |
358 |
|
Ficha técnica |
Cable Gland | 0.138" (3.50mm) | 0.276" (7.00mm) | M12x1.5 | 0.315" (8.00mm) | - | - | Polyamide (PA), Nylon | Locknut, O-Ring | Gray | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
1411160CABLE GLAND 3-6.5MM M12 BRASS |
741 |
|
Ficha técnica |
Cable Gland | 0.118" (3.00mm) | 0.256" (6.50mm) | M12 | 0.236" (6.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 4X | -40°C ~ 100°C | |
|

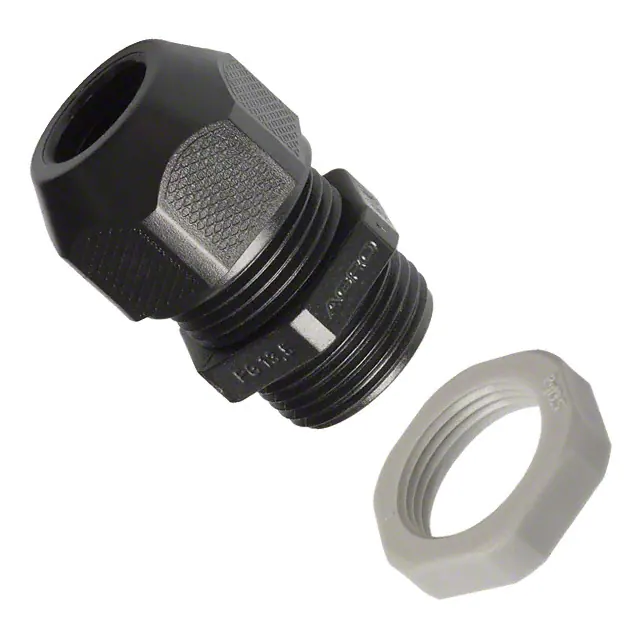

A1545.13.12CABLE GLAND 5.5-12MM PG13 |
404 |
|
Ficha técnica |
Cable Gland | 0.217" (5.50mm) | 0.472" (12.00mm) | PG13 | 0.354" (9.00mm) | - | - | Polyamide (PA), Nylon | Sealing Ring | Black | IP68 - Dust Tight, Waterproof | -30°C ~ 100°C | |
|
M3234GBCCABLE GRIP 3/4" NPT POLYAMIDE |
1,365 |
|
Ficha técnica |
Cable Grip, Multi-Hole | - | - | 3/4" NPT | 0.620" (15.75mm) | - | 1.040" (26.4mm) | Polyamide (PA66), Nylon 6/6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 112°C | |
|

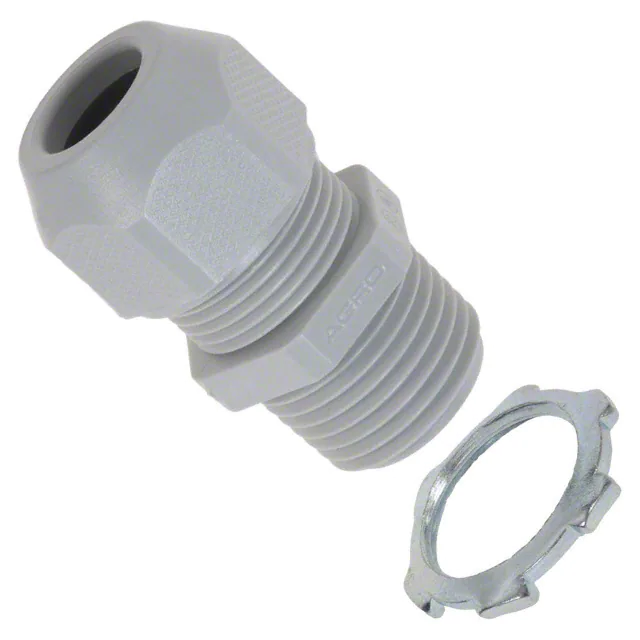

A1555.N0500.12CABLE GLAND 5.5-12MM 1/2" NPT |
559 |
|
Ficha técnica |
Cable Gland | 0.217" (5.50mm) | 0.472" (12.00mm) | 1/2" NPT | 0.591" (15.00mm) | - | - | Polyamide (PA), Nylon | Sealing Ring | Light Gray | IP54/IP68 - Dust Protected, Dust Tight, Waterproof, Water Resistant | -30°C ~ 100°C | |
|
M4342CABLE GRIP 6.35-12.45MM M25 |
492 |
|
Ficha técnica |
Cable Grip | 0.250" (6.35mm) | 0.490" (12.45mm) | M25 | 0.520" (13.21mm) | - | 0.984" (25.0mm) | Polyamide (PA66), Nylon 6/6 | Locknut | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
3222CABLE GRIP 11.43-18.01MM PG21 |
2,758 |
|
Ficha técnica |
Cable Grip | 0.450" (11.43mm) | 0.709" (18.01mm) | PG21 | 0.520" (13.21mm) | - | 1.114" (28.3mm) | Polyamide (PA66), Nylon 6/6 | Locknut | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
|
M3198GBHCABLE GRIP 5.33-8.48MM M20 |
3,256 |
|
Ficha técnica |
Cable Grip - Split | 0.210" (5.33mm) | 0.334" (8.48mm) | M20 | 0.410" (10.41mm) | - | 0.787" (20.0mm) | Polyamide (PA66), Nylon 6/6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
S2111CABLE GLAND 4-10MM PG11 POLYAMID |
600 |
|
Ficha técnica |
Cable Gland | 0.157" (4.00mm) | 0.394" (10.00mm) | PG11 | 0.315" (8.00mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
M3200GAHCABLE GRIP 1/2" NPT POLYAMIDE |
558 |
|
Ficha técnica |
Cable Grip, Multi-Hole | - | - | 1/2" NPT | 0.440" (11.18mm) | - | 0.875" (22.2mm), 7/8" | Polyamide (PA66), Nylon 6/6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 112°C | |
|

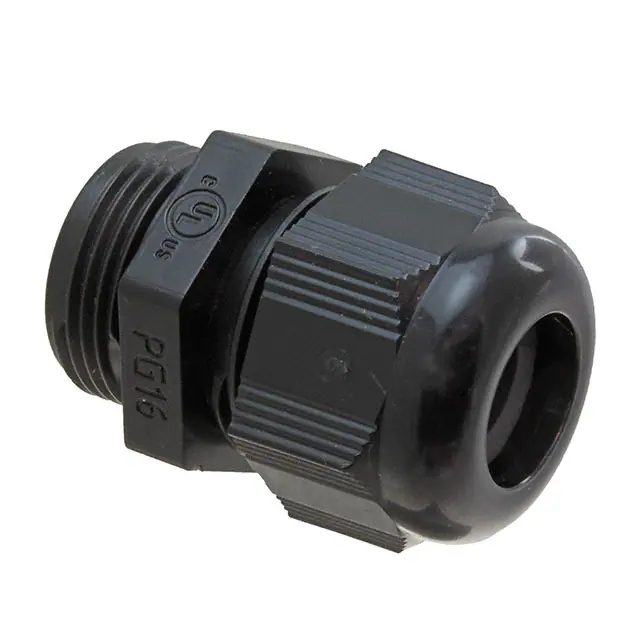

5309 216CABLE GLAND 5-12MM PG16 POLYAMID |
202 |
|
Ficha técnica |
Cable Gland | 0.197" (5.00mm) | 0.472" (12.00mm) | PG16 | 0.394" (10.00mm) | - | 0.886" (22.5mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
CG-M-M25C-1.5CABLE GLAND 13-18.01MM M25 BRASS |
196 |
|
Ficha técnica |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | M25x1.5 | 0.354" (9.00mm) | - | 0.984" (25.0mm) | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
S1212CABLE GLAND 4-9MM 1/2" NPT |
587 |
|
Ficha técnica |
Cable Gland | 0.157" (4.00mm) | 0.354" (9.00mm) | 1/2" NPT | 0.591" (15.00mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|

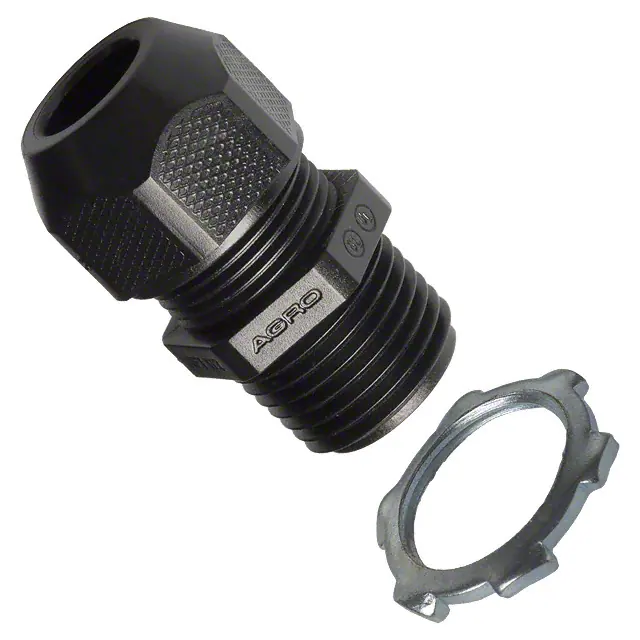

A1545.N0500.07CABLE GLAND 3-7MM 1/2" NPT |
439 |
|
Ficha técnica |
Cable Gland | 0.118" (3.00mm) | 0.276" (7.00mm) | 1/2" NPT | 0.591" (15.00mm) | - | - | Polyamide (PA), Nylon | Sealing Ring | Black | IP54/IP68 - Dust Protected, Dust Tight, Waterproof, Water Resistant | -30°C ~ 100°C | |
|
3460CABLE GRIP 6.35-12.32MM 3/4" NPT |
784 |
|
Ficha técnica |
Cable Grip | 0.250" (6.35mm) | 0.485" (12.32mm) | 3/4" NPT | 0.630" (16.00mm) | - | 0.107" (2.7mm) | Polyamide (PA66), Nylon 6/6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
S2609CABLE GLAND 3.5-7MM M16 POLYAMID |
577 |
|
Ficha técnica |
Cable Gland | 0.138" (3.50mm) | 0.276" (7.00mm) | M16x1.5 | 0.315" (8.00mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|

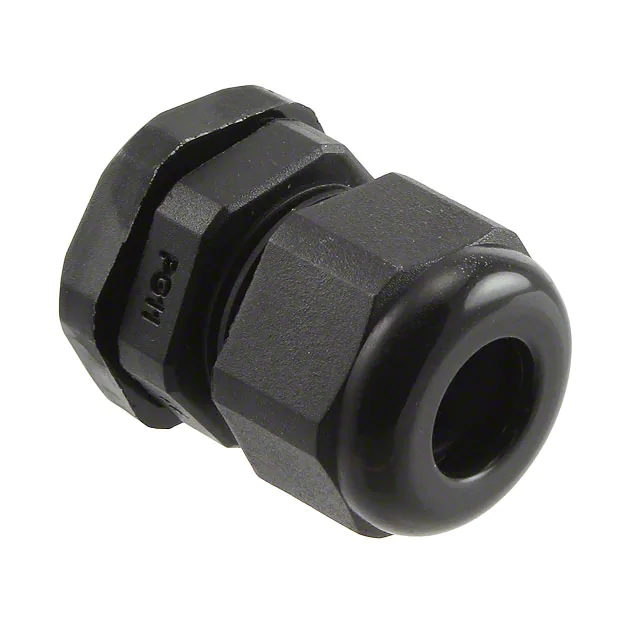

AIO-CSPG11CABLE GLAND 5-10MM PG11 POLYAMID |
1,195 |
|
Ficha técnica |
Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | PG11 | 0.315" (8.00mm) | - | - | Polyamide (PA), Nylon | Panel Nut, Sealing Nut | Black, Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
M4344CABLE GRIP 11.05-17.91MM M25 |
1,038 |
|
Ficha técnica |
Cable Grip | 0.435" (11.05mm) | 0.705" (17.91mm) | M25 | 0.520" (13.21mm) | - | 0.984" (25.0mm) | Polyamide (PA66), Nylon 6/6 | Locknut | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
PPC9 BK080CABLE GLAND 4-8MM PG9 POLYAMIDE |
1,307 |
|
Ficha técnica |
Cable Gland | 0.157" (4.00mm) | 0.315" (8.00mm) | PG9 | 0.315" (8.00mm) | - | 0.598" (15.2mm) | Polyamide (PA), Nylon | Locknut | Black | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
PPC9 SL080CABLE GLAND 4-8MM PG9 POLYAMIDE |
240 |
|
Ficha técnica |
Cable Gland | 0.157" (4.00mm) | 0.315" (8.00mm) | PG9 | 0.315" (8.00mm) | - | 0.598" (15.2mm) | Polyamide (PA), Nylon | Locknut | Gray | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C |
