Prendedores de cabos e fios
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Pacote/Caixa | Tipo | Diâmetro do cabo externo (mín.) | Diâmetro do cabo externo (máx.) | Tamanho da rosca | Comprimento da rosca | Tamanho do cubo do conduíte | Tamanho do furo do painel | Material | Inclui | Cor | Proteção de entrada | Temperatura operacional |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

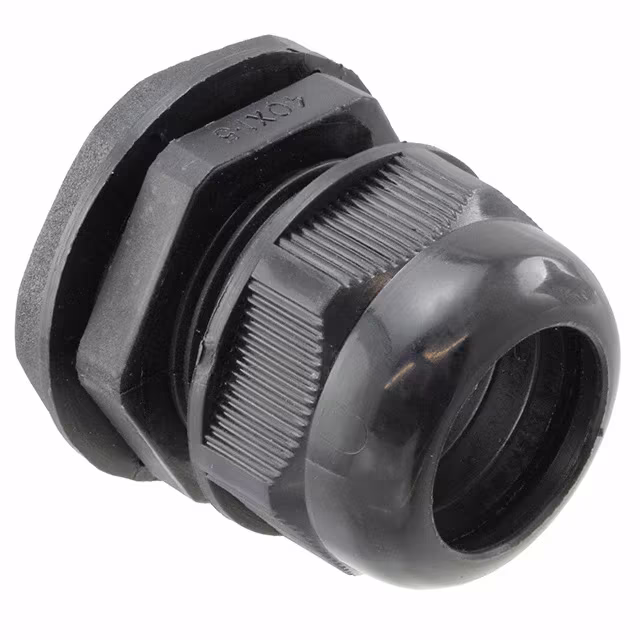

GC1000-FCABLE GLAND 14-25MM M40 POLYAMID |
380 |
|
Ficha técnica |
Cable Gland | 0.551" (14.00mm) | 0.984" (25.00mm) | M40x1.5 | 0.394" (10.00mm) | - | 1.614" (41.0mm) | Polyamide (PA), Nylon | Locknut, O-Ring, Seal | Black | IP67 - Dust Tight, Waterproof | -30°C ~ 120°C | |
|
PMC16 BK080CABLE GLAND 5-10MM M16 POLYAMIDE |
101 |
|
Ficha técnica |
Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | M16x1.5 | 0.394" (10.00mm) | - | 0.630" (16.0mm) | Polyamide (PA), Nylon | Locknut | Black | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
S2613CABLE GLAND 4-10MM M20 POLYAMIDE |
482 |
|
Ficha técnica |
Cable Gland | 0.157" (4.00mm) | 0.394" (10.00mm) | M20x1.5 | 0.354" (8.99mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|

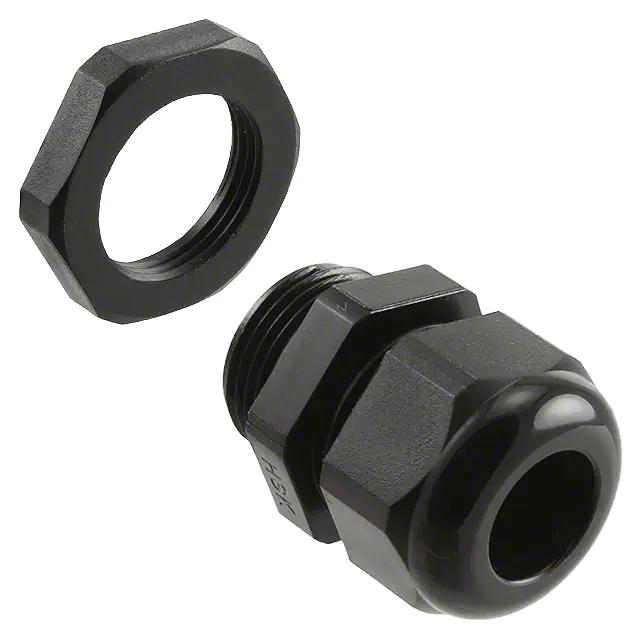

AIO-CSM22CABLE GLAND 10-14MM M22 POLYAMID |
189 |
|
Ficha técnica |
Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | M22x1.5 | 0.394" (10.00mm) | - | - | Polyamide (PA), Nylon | Panel Nut, Sealing Nut | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
1411162CABLE GLAND 5-10MM M16 BRASS |
4,017 |
|
Ficha técnica |
Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | M16 | 0.276" (7.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 4X | -40°C ~ 100°C | |
|
|
PPC13 BK080CABLE GLAND 6-12MM PG13.5 |
1,288 |
|
Ficha técnica |
Cable Gland | 0.236" (6.00mm) | 0.472" (12.00mm) | PG13.5 | 0.394" (10.00mm) | - | 0.803" (20.4mm) | Polyamide (PA), Nylon | Locknut | Black | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
50.021 PABSSWCABLE GLAND 13-18.01MM PG21 |
105 |
|
Ficha técnica |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | PG21 | 0.433" (11.00mm) | - | - | Polyamide (PA6), Nylon 6 | Strain Relief | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
S1513CABLE GLAND 6-13MM M20 POLYAMIDE |
303 |
|
Ficha técnica |
Cable Gland | 0.236" (6.00mm) | 0.512" (13.00mm) | M20x1.5 | 0.354" (9.00mm) | - | - | Polyamide (PA), Nylon | Locknut, O-Ring | Gray | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|

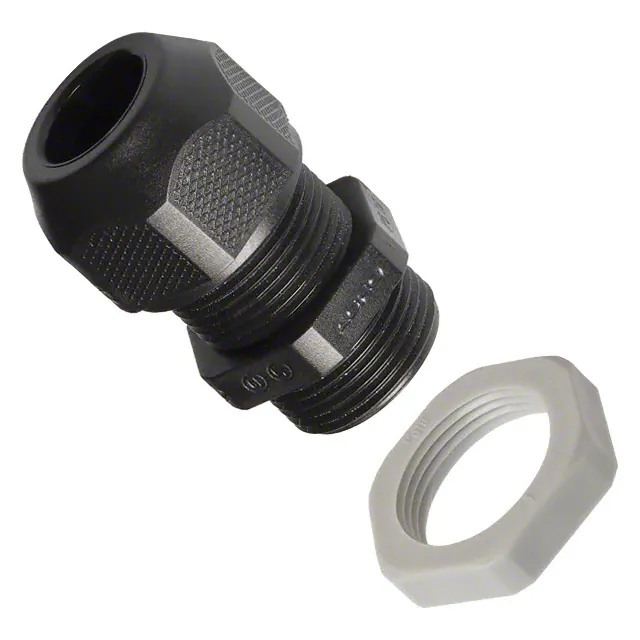

A1545.16.11CABLE GLAND 5-11MM PG16 POLYAMID |
117 |
|
Ficha técnica |
Cable Gland | 0.197" (5.00mm) | 0.433" (11.00mm) | PG16 | 0.394" (10.00mm) | - | 0.886" (22.5mm) | Polyamide (PA), Nylon | Sealing Ring | Black | IP68 - Dust Tight, Waterproof | -30°C ~ 100°C | |
|
5308 926CABLE GLAND 7-16MM 3/4" NPT |
437 |
|
Ficha técnica |
Cable Gland | 0.276" (7.00mm) | 0.630" (16.00mm) | 3/4" NPT | 0.591" (15.00mm) | - | 1.050" (26.7mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
53112923CABLE GLAND 4.5-7MM M12 POLYAMID |
255 |
|
Ficha técnica |
Cable Gland | 0.177" (4.50mm) | 0.276" (7.00mm) | M12 | 0.315" (8.00mm) | - | 0.484" (12.3mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
A1555.N0500.07CABLE GLAND 3-7MM 1/2" NPT |
204 |
|
Ficha técnica |
Cable Gland | 0.118" (3.00mm) | 0.276" (7.00mm) | 1/2" NPT | 0.591" (15.00mm) | - | - | Polyamide (PA), Nylon | Sealing Ring | Light Gray | IP54/IP68 - Dust Protected, Dust Tight, Waterproof, Water Resistant | -30°C ~ 100°C | |
|
M3234GAGCABLE GRIP 3/4" NPT POLYAMIDE |
516 |
|
Ficha técnica |
Cable Grip, Multi-Hole | - | - | 3/4" NPT | 0.620" (15.75mm) | - | 1.040" (26.4mm) | Polyamide (PA66), Nylon 6/6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 112°C | |
|
|
M3234GAFCABLE GRIP 3/4" NPT POLYAMIDE |
466 |
|
Ficha técnica |
Cable Grip, Multi-Hole | - | - | 3/4" NPT | 0.620" (15.75mm) | - | 1.040" (26.4mm) | Polyamide (PA66), Nylon 6/6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 112°C | |
|
S1613CABLE GLAND 4-10MM M20 POLYAMIDE |
1,421 |
|
Ficha técnica |
Cable Gland | 0.157" (4.00mm) | 0.394" (10.00mm) | M20x1.5 | 0.354" (8.99mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|

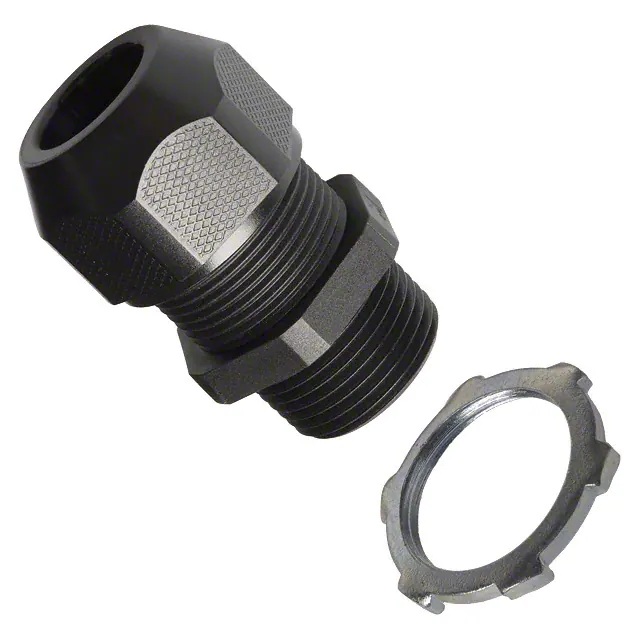

A1545.N0750.18CABLE GLAND 11-18.01MM 3/4" NPT |
209 |
|
Ficha técnica |
Cable Gland | 0.433" (11.00mm) | 0.709" (18.01mm) | 3/4" NPT | 0.591" (15.00mm) | - | - | Polyamide (PA), Nylon | Sealing Ring | Black | IP54/IP68 - Dust Protected, Dust Tight, Waterproof, Water Resistant | -30°C ~ 100°C | |
|
M4850CABLE GRIP 12.45-19.94MM |
141 |
|
Ficha técnica |
Cable Grip | 0.490" (12.45mm) | 0.785" (19.94mm) | - | - | - | 1.375" (34.9mm), 1 3/8" | Polyamide (PA66), Nylon 6/6 | Strain Relief | Black | - | -18°C ~ 105°C | |
|
PMC20 SL080CABLE GLAND 6-12MM M20 POLYAMIDE |
2,315 |
|
Ficha técnica |
Cable Gland | 0.236" (6.00mm) | 0.472" (12.00mm) | M20x1.5 | 0.394" (10.00mm) | - | 0.787" (20.0mm) | Polyamide (PA), Nylon | Locknut | Gray | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
|
PNC1/2 BK080CABLE GLAND 6-12MM 1/2" NPT |
175 |
|
Ficha técnica |
Cable Gland | 0.236" (6.00mm) | 0.472" (12.00mm) | 1/2" NPT | 0.591" (15.00mm) | - | 0.840" (21.3mm) | Polyamide (PA), Nylon | Locknut | Black | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
53112883CABLE GLAND 7-13MM M20 POLYAMIDE |
3,510 |
|
Ficha técnica |
Cable Gland | 0.276" (7.00mm) | 0.512" (13.00mm) | M20 | 0.315" (8.00mm) | - | 0.800" (20.3mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C |
