Prendedores de cabos e fios
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Pacote/Caixa | Tipo | Diâmetro do cabo externo (mín.) | Diâmetro do cabo externo (máx.) | Tamanho da rosca | Comprimento da rosca | Tamanho do cubo do conduíte | Tamanho do furo do painel | Material | Inclui | Cor | Proteção de entrada | Temperatura operacional |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
14504CABLE GRIP 3.5-5MM M8 BRASS |
300 |
|
Ficha técnica |
Cable Grip | 0.138" (3.50mm) | 0.197" (5.00mm) | M8x1.25 | 0.200" (5.08mm) | - | 0.315" (8.0mm) | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | 0°C ~ 200°C | |
|
96570.6CABLE FEEDTHROUGH 5.08-7.62MM |
118 |
|
Ficha técnica |
Cable Feedthrough | 0.200" (5.08mm) | 0.300" (7.62mm) | M12x1.5 | 0.200" (5.08mm) | - | 0.470" (11.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|

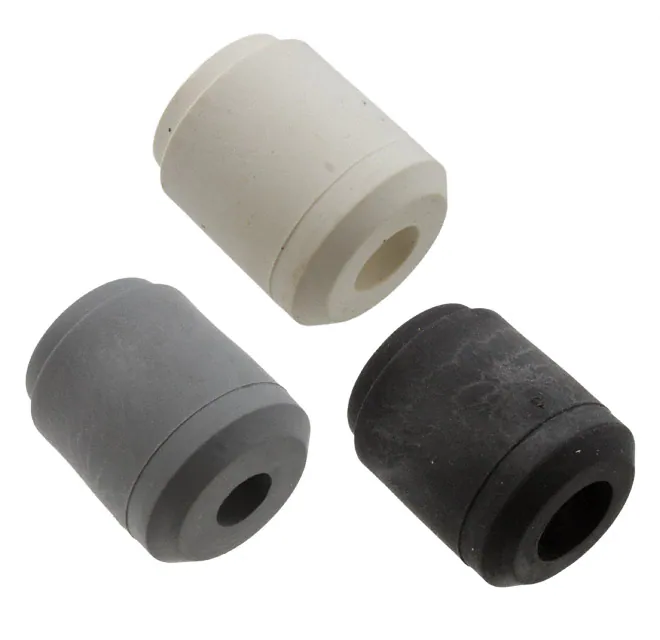

PX0980CABLE GLAND 7-15MM SILICONE |
984 |
|
Ficha técnica |
Cable Gland | 0.276" (7.00mm) | 0.591" (15.00mm) | - | - | - | - | Silicone | - | Multiple | IP68 - Dust Tight, Waterproof | - | |
|

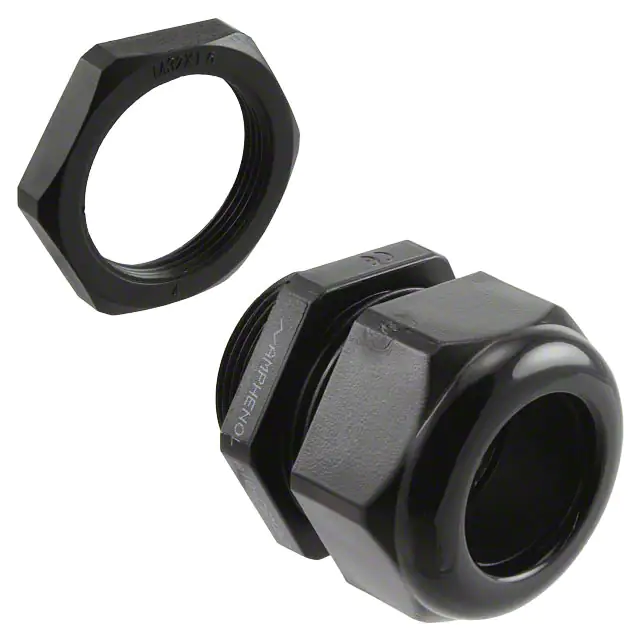

AIO-CSM32CABLE GLAND 18.01-25MM M32 |
492 |
|
Ficha técnica |
Cable Gland | 0.709" (18.01mm) | 0.984" (25.00mm) | M32x1.5 | 0.433" (11.00mm) | - | - | Polyamide (PA), Nylon | Panel Nut, Sealing Nut | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
AIO-CSM25CABLE GLAND 13-18.01MM M25 |
335 |
|
Ficha técnica |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | M25x1.5 | 0.394" (10.00mm) | - | - | Polyamide (PA), Nylon | Panel Nut, Sealing Nut | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
5308 903CABLE GLAND 14-25MM 1" NPT |
131 |
|
Ficha técnica |
Cable Gland | 0.551" (14.00mm) | 0.984" (25.00mm) | 1" NPT | 0.709" (18.01mm) | - | 1.311" (33.3mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
5309 229CABLE GLAND 11-21MM PG29 |
258 |
|
Ficha técnica |
Cable Gland | 0.433" (11.00mm) | 0.827" (21.00mm) | PG29 | 0.433" (11.00mm) | - | 1.457" (37.0mm) | Polyamide (PA6), Nylon 6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

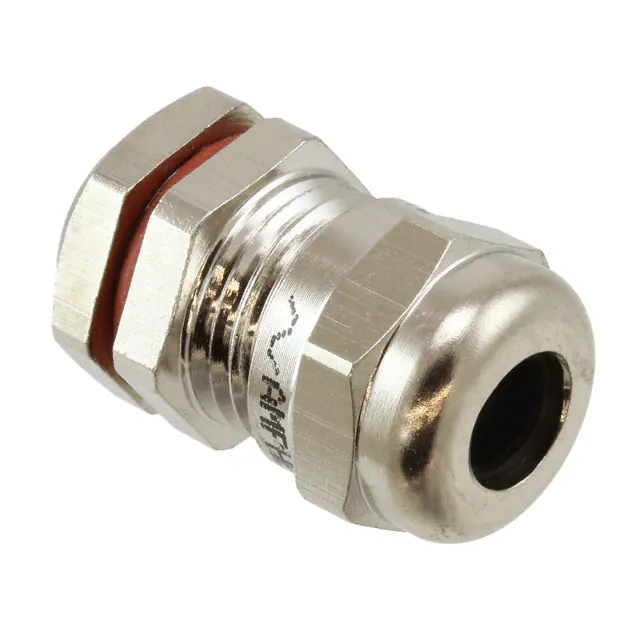

AIO-CSJM12CABLE GLAND 3-6.5MM M12 BRASS |
714 |
|
Ficha técnica |
Cable Gland | 0.118" (3.00mm) | 0.256" (6.50mm) | M12x1.5 | 0.244" (6.20mm) | - | - | Brass | Panel Nut, Sealing Nut | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
S1616CABLE GLAND 5-13MM M25 POLYAMIDE |
2,647 |
|
Ficha técnica |
Cable Gland | 0.197" (5.00mm) | 0.512" (13.00mm) | M25x1.5 | 0.394" (10.00mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|

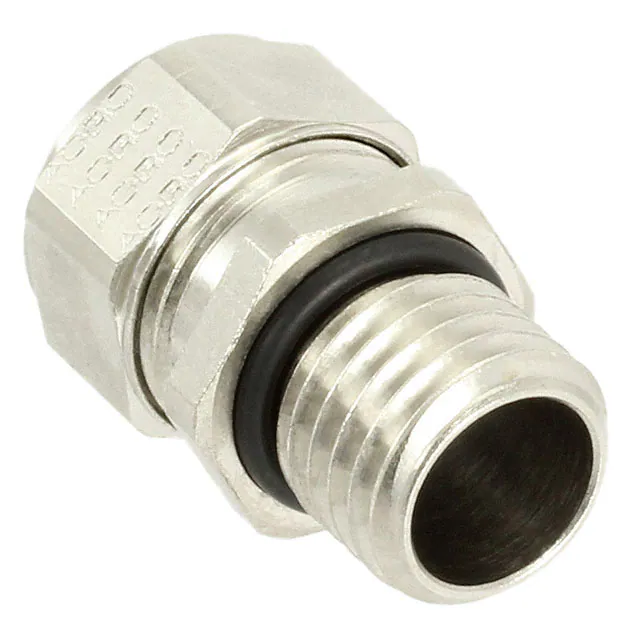

A1100.12.050CABLE GLAND 3.5-5MM M12 BRASS |
156 |
|
Ficha técnica |
Cable Gland | 0.138" (3.50mm) | 0.197" (5.00mm) | M12x1.5 | 0.394" (10.00mm) | - | 0.472" (12.0mm) | Brass, Nickel Plated | O-Ring, Seal, Strain Relief | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
|
S1516CABLE GLAND 8-16.99MM M25 |
132 |
|
Ficha técnica |
Cable Gland | 0.315" (8.00mm) | 0.669" (16.99mm) | M25x1.5 | 0.394" (10.00mm) | - | - | Polyamide (PA), Nylon | Locknut, O-Ring | Gray | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
53112010CABLE GLAND 4.5-10MM M16 BRASS |
5,835 |
|
Ficha técnica |
Cable Gland | 0.177" (4.50mm) | 0.394" (10.00mm) | M16x1.5 | 0.276" (7.00mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 4, 6, 12 | -40°C ~ 100°C | |
|
52015740CABLE GLAND 8-14MM PG16 BRASS |
2,085 |
|
Ficha técnica |
Cable Gland | 0.315" (8.00mm) | 0.551" (14.00mm) | PG16 | 0.256" (6.50mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof; Nema 6P | -40°C ~ 100°C | |
|
|
M8437GBT-SMCABLE GRIP 1" NPT POLYAMIDE |
187 |
|
Ficha técnica |
Cable Grip, Multi-Hole | - | - | 1" NPT | 0.760" (19.30mm) | - | 1.327" (33.7mm) | Polyamide (PA66), Nylon 6/6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 112°C | |
|
|
9764CABLE GRIP 13.97-16.5MM 1/2" NPT |
1,804 |
|
Ficha técnica |
Cable Grip | 0.550" (13.97mm) | 0.650" (16.50mm) | 1/2" NPT | - | - | 0.875" (22.2mm), 7/8" | Zinc, Steel Plated | - | Brown | - | 0°C ~ 105°C | |
|
|
4504CABLE GRIP 3.5-5MM M8 BRASS |
9,805 |
|
Ficha técnica |
Cable Grip | 0.138" (3.50mm) | 0.197" (5.00mm) | M8x1.25 | 0.390" (9.91mm) | - | 0.315" (8.0mm) | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | 0°C ~ 200°C | |
|
|
S1521CABLE GLAND 9-21MM M32 POLYAMIDE |
297 |
|
Ficha técnica |
Cable Gland | 0.354" (9.00mm) | 0.827" (21.00mm) | M32x1.5 | 0.394" (10.00mm) | - | - | Polyamide (PA), Nylon | Locknut, O-Ring | Gray | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
S2621CABLE GLAND 6-15MM M32 POLYAMIDE |
152 |
|
Ficha técnica |
Cable Gland | 0.236" (6.00mm) | 0.591" (15.00mm) | M32x1.5 | 0.394" (10.00mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
|
M4352CABLE GRIP 21.97-32MM M40 |
547 |
|
Ficha técnica |
Cable Grip | 0.865" (21.97mm) | 1.260" (32.00mm) | M40 | 0.470" (11.94mm) | - | 1.575" (40.0mm) | Polyamide (PA66), Nylon 6/6 | Locknut | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
|
S1621CABLE GLAND 6-15MM M32 POLYAMIDE |
109 |
|
Ficha técnica |
Cable Gland | 0.236" (6.00mm) | 0.591" (15.00mm) | M32x1.5 | 0.394" (10.00mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 12 | -40°C ~ 100°C |
