Prendedores de cabos e fios
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Pacote/Caixa | Tipo | Diâmetro do cabo externo (mín.) | Diâmetro do cabo externo (máx.) | Tamanho da rosca | Comprimento da rosca | Tamanho do cubo do conduíte | Tamanho do furo do painel | Material | Inclui | Cor | Proteção de entrada | Temperatura operacional |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1411188CABLE GLAND 5-9MM M16 BRASS |
156 |
|
Ficha técnica |
Cable Gland | 0.197" (5.00mm) | 0.354" (9.00mm) | M16 | 0.197" (5.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

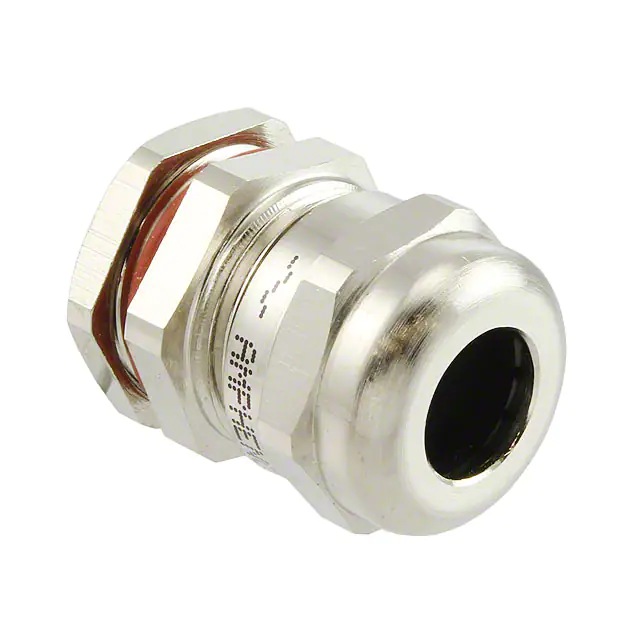

AIO-CSJM18CABLE GLAND 5-10MM M18 BRASS |
131 |
|
Ficha técnica |
Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | M18x1.5 | 0.276" (7.00mm) | - | - | Brass | Panel Nut, Sealing Nut | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

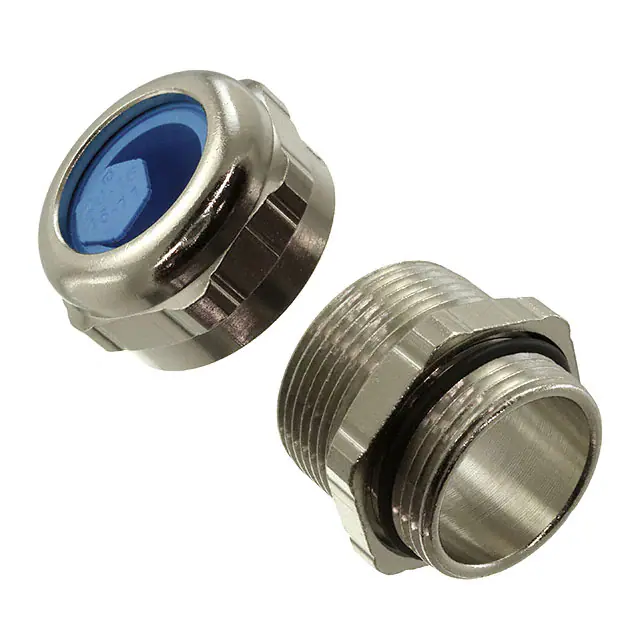

96573.6CABLE FEEDTHROUGH 16-20.07MM M25 |
173 |
|
Ficha técnica |
Cable Feedthrough | 0.630" (16.00mm) | 0.790" (20.07mm) | M25x1.5 | 0.300" (7.62mm) | - | 0.980" (24.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
CG-M32-1-BKCABLE GLAND 11.94-21.08MM M32 |
282 |
|
Ficha técnica |
Cable Gland | 0.470" (11.94mm) | 0.830" (21.08mm) | M32 | 0.394" (10.00mm) | - | 1.268" (32.2mm) | Polyamide (PA), Nylon | Inner and Outer Sealing Gland, Sealing Nut, Sealing Washer | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|

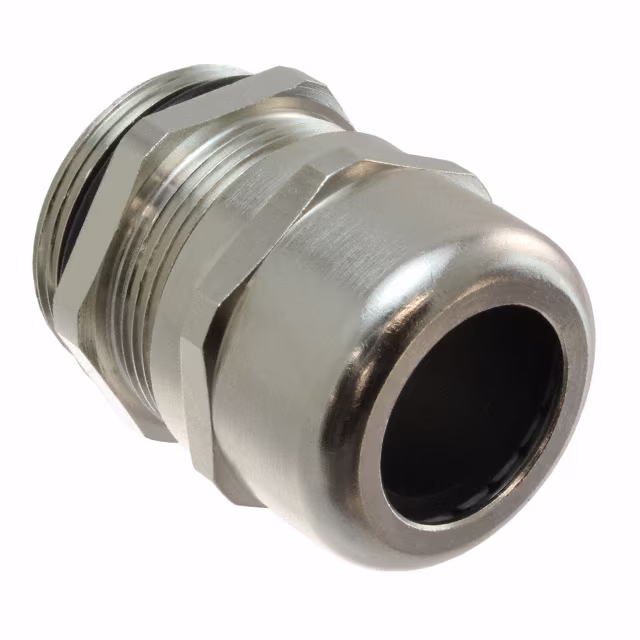

1411166CABLE GLAND 15-21MM M32 BRASS |
157 |
|
Ficha técnica |
Cable Gland | 0.591" (15.00mm) | 0.827" (21.00mm) | M32 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 4X | -40°C ~ 100°C | |
|

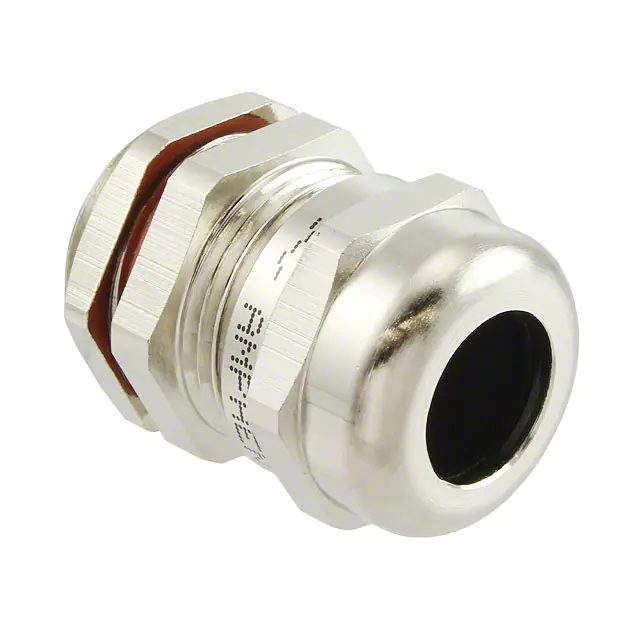

AIO-CSJM20CABLE GLAND 6-12MM M20 BRASS |
720 |
|
Ficha técnica |
Cable Gland | 0.236" (6.00mm) | 0.472" (12.00mm) | M20x1.5 | 0.327" (8.30mm) | - | - | Brass | Panel Nut, Sealing Nut | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
52015720CABLE GLAND 4-10MM PG11 BRASS |
2,801 |
|
Ficha técnica |
Cable Gland | 0.157" (4.00mm) | 0.394" (10.00mm) | PG11 | 0.236" (6.00mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof; Nema 6P | -40°C ~ 100°C | |
|
53112110CABLE GLAND 1.98-7MM M16 BRASS |
277 |
|
Ficha técnica |
Cable Gland | 0.078" (1.98mm) | 0.276" (7.00mm) | M16x1.5 | 0.276" (7.00mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 4, 6, 12 | -40°C ~ 100°C | |
|
S1129CABLE GLAND 14-25MM PG29 |
969 |
|
Ficha técnica |
Cable Gland | 0.551" (14.00mm) | 0.984" (25.00mm) | PG29 | 0.433" (11.00mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
50.625M/EMV/LCABLE GLAND 11-16MM M25 BRASS |
250 |
|
Ficha técnica |
Cable Gland | 0.433" (11.00mm) | 0.630" (16.00mm) | M25x1.5 | 0.433" (11.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

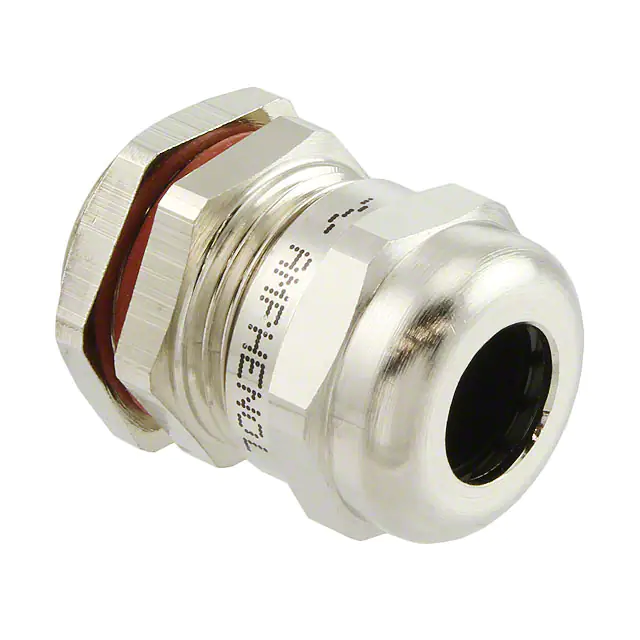

AIO-CSJPG11CABLE GLAND 5-10MM PG11 BRASS |
373 |
|
Ficha técnica |
Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | PG11 | 0.276" (7.00mm) | - | - | Brass | Panel Nut, Sealing Nut | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
09000005047CABLE GLAND 6.5-9.5MM PG16 THERM |
104 |
|
Ficha técnica |
Cable Gland | 0.256" (6.50mm) | 0.374" (9.50mm) | PG16 | - | - | - | Thermoplastic | - | - | IP65 - Dust Tight, Water Resistant | -40°C ~ 100°C | |
|

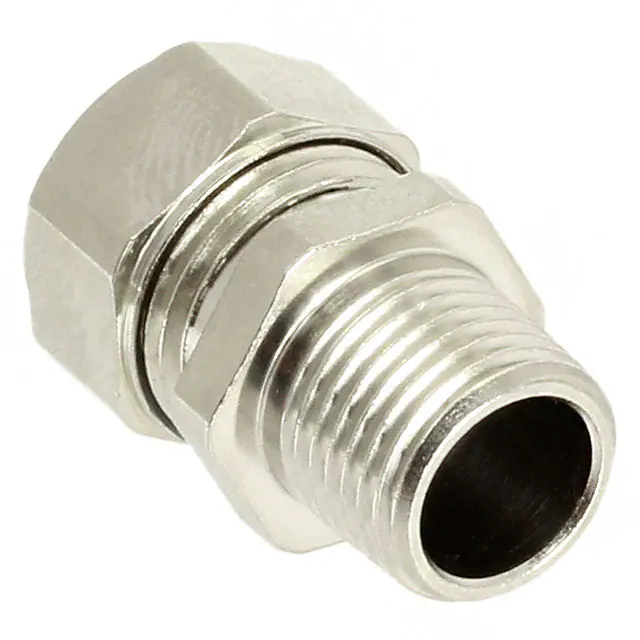

A1000.1/8NPT.060CABLE GLAND 4-6MM 1/8" NPT BRASS |
117 |
|
Ficha técnica |
Cable Gland | 0.157" (4.00mm) | 0.236" (6.00mm) | 1/8" NPT | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
|
52015750CABLE GLND 11-18.01MM PG21 BRASS |
355 |
|
Ficha técnica |
Cable Gland | 0.433" (11.00mm) | 0.709" (18.01mm) | PG21 | 0.276" (7.00mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof; Nema 6P | -40°C ~ 100°C | |
|

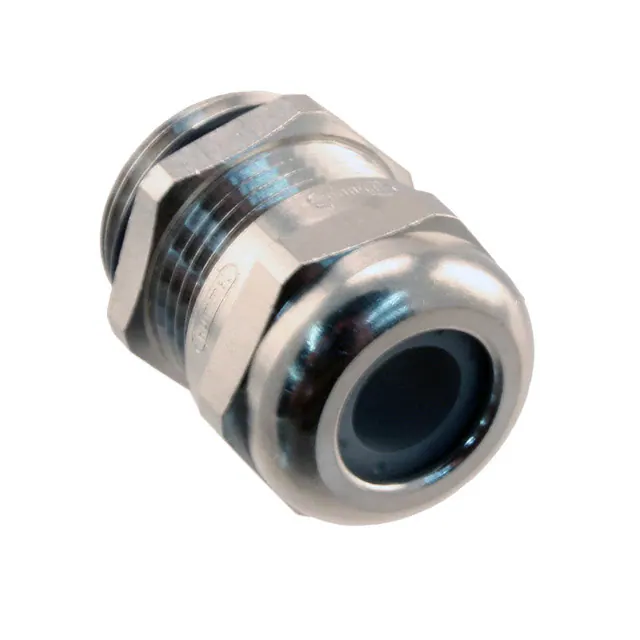

19000005080CABLE GLAND 5-9MM M20 BRASS |
219 |
|
Ficha técnica |
Cable Gland | 0.197" (5.00mm) | 0.354" (9.00mm) | M20 | - | - | - | Brass | Clamping Ring | - | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
M4524GBW-SMCABLE GRIP 1 1/4" NPT POLYAMIDE |
117 |
|
Ficha técnica |
Cable Grip, Multi-Hole | - | - | 1 1/4" NPT | 0.780" (19.81mm) | - | 1.680" (42.7mm) | Polyamide (PA66), Nylon 6/6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 112°C | |
|
|
CG-P-M75-2.0CABLE GLAND 56-66MM M75 POLYAMID |
109 |
|
Ficha técnica |
Cable Gland | 2.205" (56.00mm) | 2.598" (66.00mm) | M75 | 0.984" (25.00mm) | - | 2.965" (75.3mm) | Polyamide (PA66), Nylon 6/6 | Locknut, Seal | - | IP68 - Dust Tight, Waterproof | - | |
|
53112610CABLE GLAND 3.48-7MM M12 BRASS |
148 |
|
Ficha técnica |
Cable Gland | 0.137" (3.48mm) | 0.276" (7.00mm) | M12x1.5 | 0.256" (6.50mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 4, 6, 12 | -25°C ~ 100°C | |
|
AIO-CSM40CABLE GLAND 22-32MM M40 POLYAMID |
156 |
|
Ficha técnica |
Cable Gland | 0.866" (22.00mm) | 1.260" (32.00mm) | M40x1.5 | 0.512" (13.00mm) | - | - | Polyamide (PA), Nylon | Panel Nut, Sealing Nut | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
53112620CABLE GLAND 4.5-9MM M16 BRASS |
3,491 |
|
Ficha técnica |
Cable Gland | 0.177" (4.50mm) | 0.354" (9.00mm) | M16x1.5 | 0.276" (7.00mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 4, 6, 12 | -40°C ~ 100°C |
