Prendedores de cabos e fios
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Pacote/Caixa | Tipo | Diâmetro do cabo externo (mín.) | Diâmetro do cabo externo (máx.) | Tamanho da rosca | Comprimento da rosca | Tamanho do cubo do conduíte | Tamanho do furo do painel | Material | Inclui | Cor | Proteção de entrada | Temperatura operacional |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
53112120CABLE GLAND 5-10MM M20 BRASS |
1,371 |
|
Ficha técnica |
Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | M20x1.5 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 4, 6, 12 | -40°C ~ 100°C | |
|
M3319CABLE GRP 25.4-31.5MM 1 1/2" NPT |
1,105 |
|
Ficha técnica |
Cable Grip | 1.000" (25.40mm) | 1.240" (31.50mm) | 1 1/2" NPT | 0.770" (19.56mm) | - | 1.920" (48.8mm) | Polyamide (PA66), Nylon 6/6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|

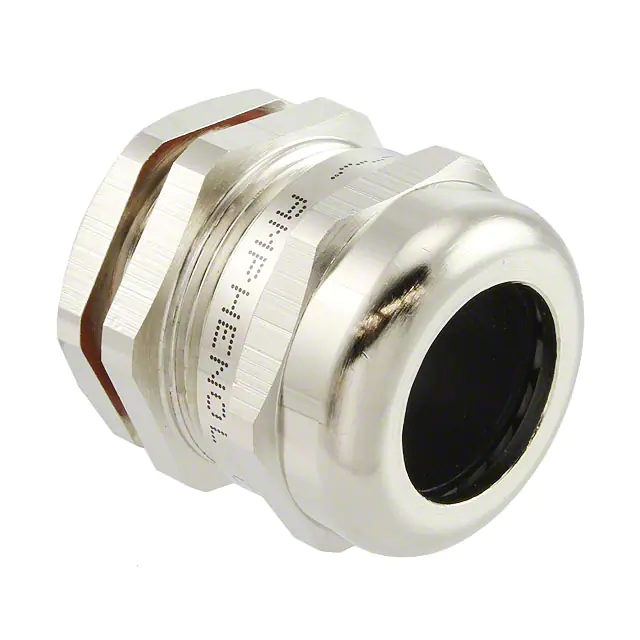

AIO-CSJM25CABLE GLAND 13-18.01MM M25 BRASS |
668 |
|
Ficha técnica |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | M25x1.5 | 0.307" (7.80mm) | - | - | Brass | Panel Nut, Sealing Nut | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
M3317CABLE GRP 31.24-39.62MM 1/2" NPT |
150 |
|
Ficha técnica |
Cable Grip | 1.230" (31.24mm) | 1.560" (39.62mm) | 1/2" NPT | 0.770" (19.56mm) | - | 1.920" (48.8mm) | Polyamide (PA66), Nylon 6/6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
50.625 M/EMVDCABLE GLAND 11-16MM M25 BRASS |
440 |
|
Ficha técnica |
Cable Gland | 0.433" (11.00mm) | 0.630" (16.00mm) | M25x1.5 | 0.276" (7.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
RT0S-14CG-NS1CABLE GRP 6.5-10MM 13/16-20 ZINC |
215 |
|
Ficha técnica |
Cable Grip | 0.256" (6.50mm) | 0.394" (10.00mm) | 13/16-20 | - | - | - | Zinc Alloy, Nickel Plated | O-Ring, Seal | Silver | - | - | |
|
53112014CABLE GLAND 4.5-9MM 3/8" NPT |
456 |
|
Ficha técnica |
Cable Gland | 0.177" (4.50mm) | 0.354" (9.00mm) | 3/8" NPT | 0.591" (15.00mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 1, 4X, 6, 12 | -40°C ~ 100°C | |
|
|
RT0L-10CG-NS2CABLE GRIP 5-8.5MM 9/16-24 ZINC |
141 |
|
Ficha técnica |
Cable Grip | 0.197" (5.00mm) | 0.335" (8.50mm) | 9/16-24 | - | - | - | Zinc Alloy, Nickel Plated | O-Ring, Seal | Silver | - | - | |
|
MB6CG-S1CABLE GRIP 7.5-11MM ZINC |
305 |
|
Ficha técnica |
Cable Grip | 0.295" (7.50mm) | 0.433" (11.00mm) | - | - | - | 0.945" (24.0mm) | Zinc, Nickel Plated | EMI Shielding Ring, Gasket, Nut, Seal | Gray | IP67 - Dust Tight, Waterproof | - | |
|
MB6CG-S2CABLE GRIP 11-14.5MM ZINC |
148 |
|
Ficha técnica |
Cable Grip | 0.433" (11.00mm) | 0.571" (14.50mm) | - | - | - | 0.945" (24.0mm) | Zinc, Nickel Plated | EMI Shielding Ring, Gasket, Nut, Seal | Gray | IP67 - Dust Tight, Waterproof | -20°C ~ 130°C | |
|
1411191CABLE GLAND 14-21MM M32 BRASS |
121 |
|
Ficha técnica |
Cable Gland | 0.551" (14.00mm) | 0.827" (21.00mm) | M32 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 100°C | |
|
|
M3321CABLE GRIP 36.83-43.94MM 2" NPT |
551 |
|
Ficha técnica |
Cable Grip | 1.450" (36.83mm) | 1.730" (43.94mm) | 2" NPT | 0.790" (20.07mm) | - | 2.400" (61.0mm) | Polyamide (PA66), Nylon 6/6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|

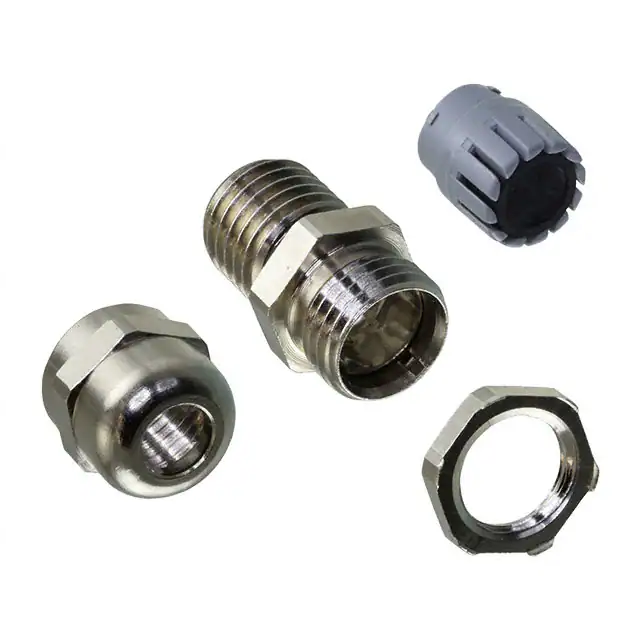

1478884-1CABLE GLAND 3-6.5MM M12 BRASS |
446 |
|
- |
Cable Gland | 0.118" (3.00mm) | 0.256" (6.50mm) | M12x1.5 | 0.472" (12.00mm) | - | 0.472" (12.0mm) | Brass, Nickel Plated | Locknut | Silver | IP68 - Dust Tight, Waterproof | - | |
|
53112040CABLE GLAND 11-21MM M32 BRASS |
204 |
|
Ficha técnica |
Cable Gland | 0.433" (11.00mm) | 0.827" (21.00mm) | M32x1.5 | 0.354" (9.00mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 4, 6, 12 | -40°C ~ 100°C | |
|
|
RT0L-12CG-NS2CABLE GRP 6-10.5MM 11/16-24 ZINC |
187 |
|
Ficha técnica |
Cable Grip | 0.236" (6.00mm) | 0.413" (10.50mm) | 11/16-24 | - | - | - | Zinc Alloy, Nickel Plated | O-Ring, Seal | Silver | - | - | |
|

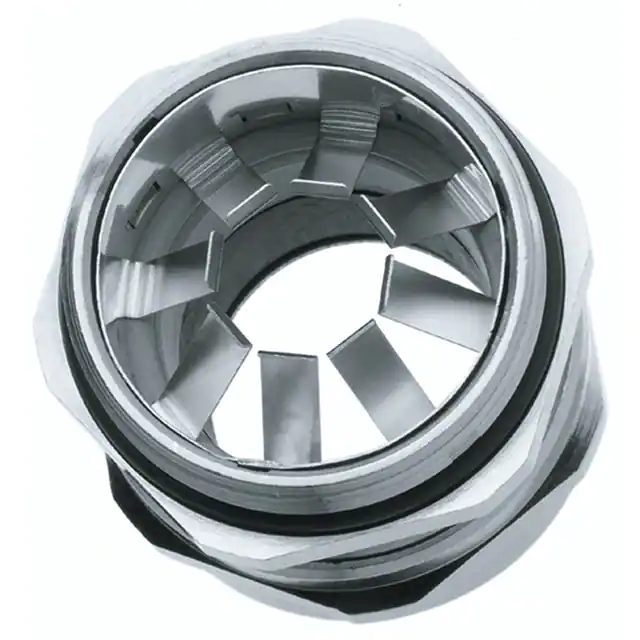

53112920CABLE GLND 7-13MM 1/2" NPT BRASS |
129 |
|
Ficha técnica |
Cable Gland | 0.276" (7.00mm) | 0.512" (13.00mm) | 1/2" NPT | 0.591" (15.00mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 4X, 6, 12 | -40°C ~ 100°C | |
|
1009860000CABLE GLAND 6-12MM M20 S STEEL |
51 |
|
Ficha técnica |
Cable Gland | 0.236" (6.00mm) | 0.472" (12.00mm) | M20 | 0.315" (8.00mm) | - | - | Stainless Steel | Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
|
RT0B-14CG-NS2CABLE GRP RA 9-12.5MM 13/16-20 |
269 |
|
Ficha técnica |
Cable Grip - 90° | 0.354" (9.00mm) | 0.492" (12.50mm) | 13/16-20 | - | - | - | Aluminum Alloy, Nickel Plated | O-Ring, Seal | Silver | - | - | |
|
|
M3317GBQ-SMCABLE GRIP 1 1/2" NPT POLYAMIDE |
137 |
|
Ficha técnica |
Cable Grip, Multi-Hole | - | - | 1 1/2" NPT | 0.760" (19.30mm) | - | 1.920" (48.8mm) | Polyamide (PA66), Nylon 6/6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 112°C | |
|
|
53112034CABLE GLAND 9-16.5MM 3/4" NPT |
155 |
|
Ficha técnica |
Cable Gland | 0.354" (9.00mm) | 0.650" (16.50mm) | 3/4" NPT | 0.591" (15.00mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 1, 4X, 6, 12 | -40°C ~ 100°C |
