Prendedores de cabos e fios
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Pacote/Caixa | Tipo | Diâmetro do cabo externo (mín.) | Diâmetro do cabo externo (máx.) | Tamanho da rosca | Comprimento da rosca | Tamanho do cubo do conduíte | Tamanho do furo do painel | Material | Inclui | Cor | Proteção de entrada | Temperatura operacional |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

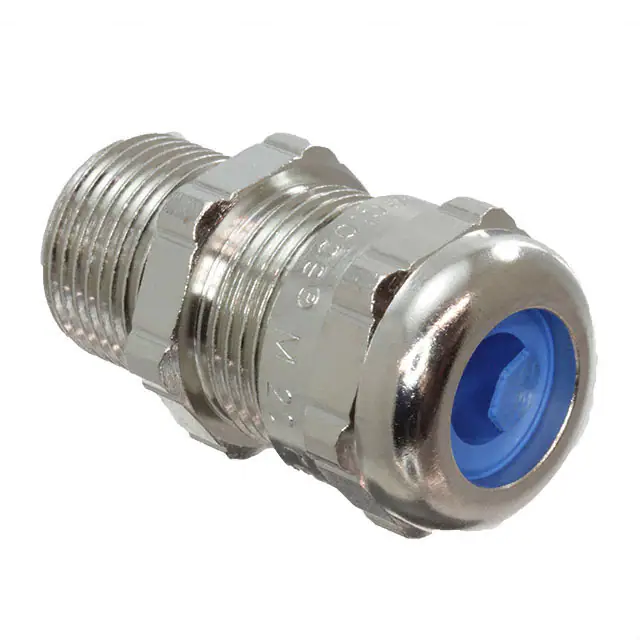

96572.6/15CABLE FEEDTHROUGH 8.89-13.97MM |
47 |
|
Ficha técnica |
Cable Feedthrough | 0.350" (8.89mm) | 0.550" (13.97mm) | M20x1.5 | - | - | 0.790" (20.1mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
1909920000CABLE GLAND 11-16.99MM M25 BRASS |
66 |
|
Ficha técnica |
Cable Gland | 0.433" (11.00mm) | 0.669" (16.99mm) | M25x1.5 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | Seal | Silver | IP54/IP66/IP67/IP68/IP69K - Dust Protected, Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
53112210CABLE GLAND 3-8MM PG9 BRASS |
65 |
|
Ficha técnica |
Cable Gland | 0.118" (3.00mm) | 0.315" (8.00mm) | PG9 | 0.236" (6.00mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 4, 6, 12 | -40°C ~ 100°C | |
|
S2529CABLE GLAND 16-28MM M40 POLYAMID |
52 |
|
Ficha técnica |
Cable Gland | 0.630" (16.00mm) | 1.102" (28.00mm) | M40x1.5 | 0.394" (10.00mm) | - | - | Polyamide (PA), Nylon | Locknut, O-Ring | Black | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
19000005081CABLE GLAND 5-12MM M20 BRASS |
46 |
|
Ficha técnica |
Cable Gland | 0.197" (5.00mm) | 0.472" (12.00mm) | M20 | - | - | - | Brass | Clamping Ring | - | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
19000005196CABLE GLAND 18.01-25MM M32 |
20 |
|
Ficha técnica |
Cable Gland | 0.709" (18.01mm) | 0.984" (25.00mm) | M32 | - | - | - | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
50.632M/EMV/LCABLE GLAND 14-20MM M32 BRASS |
92 |
|
Ficha técnica |
Cable Gland | 0.551" (14.00mm) | 0.787" (20.00mm) | M32x1.5 | 0.512" (13.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
52015820CABLE GLAND 8-16MM PG21 BRASS |
100 |
|
Ficha técnica |
Cable Gland | 0.315" (8.00mm) | 0.630" (16.00mm) | PG21 | 0.276" (7.00mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof; Nema 6P | -40°C ~ 100°C | |
|
18554.6CABLE GLND 5.08-7.87MM M12 BRASS |
85 |
|
Ficha técnica |
Cable Gland | 0.200" (5.08mm) | 0.310" (7.87mm) | M12x1.5 | 0.200" (5.08mm) | - | 0.470" (11.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
S1529CABLE GLAND 16-28MM M40 POLYAMID |
33 |
|
Ficha técnica |
Cable Gland | 0.630" (16.00mm) | 1.102" (28.00mm) | M40x1.5 | 0.394" (10.00mm) | - | - | Polyamide (PA), Nylon | Locknut, O-Ring | Gray | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
50.612 ESCABLE GLAND 3-6MM M12 S STEEL |
12 |
|
Ficha técnica |
Cable Gland | 0.118" (3.00mm) | 0.236" (6.00mm) | M12x1.5 | 0.197" (5.00mm) | - | - | Stainless Steel | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

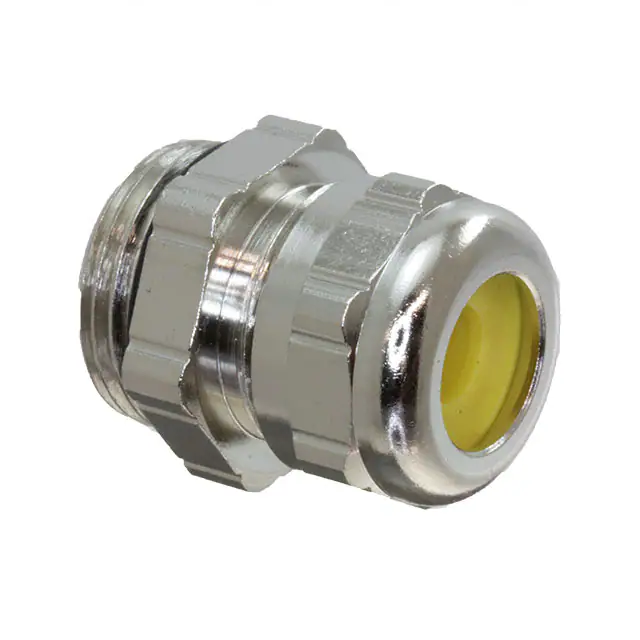

97133.6CABLE GLAND 4.06-6.6MM M20 BRASS |
15 |
|
Ficha técnica |
Cable Gland | 0.160" (4.06mm) | 0.260" (6.60mm) | M20x1.5 | 0.240" (6.10mm) | - | 0.790" (20.1mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
1424529CABLE GLAND 18.01-25MM M40 BRASS |
27 |
|
Ficha técnica |
Cable Gland | 0.709" (18.01mm) | 0.984" (25.00mm) | M40x1.5 | 0.354" (9.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 4X | -40°C ~ 100°C | |
|

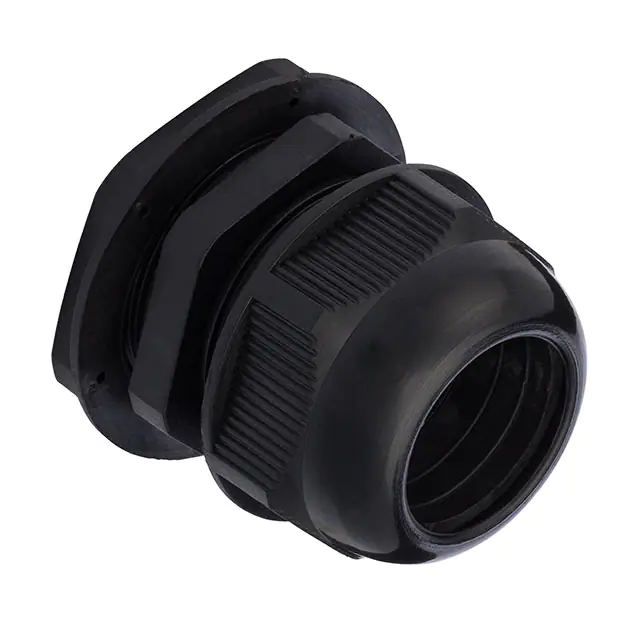

GC2000-LCABLE GLAND 40-50MM PG63 |
63 |
|
Ficha técnica |
Cable Gland | 1.575" (40.00mm) | 1.969" (50.00mm) | PG63 | 1.142" (29.00mm) | - | 2.795" (71.0mm) | Polyamide (PA), Nylon | Locknut, O-Ring, Seal | Black | IP67 - Dust Tight, Waterproof | - | |
|
|
RT0L-18CG-NS1CABLE GRP 10-14MM 1 1/16-18 ZINC |
18 |
|
Ficha técnica |
Cable Grip | 0.394" (10.00mm) | 0.551" (14.00mm) | 1 1/16-18 | - | - | - | Zinc Alloy, Nickel Plated | O-Ring, Seal | Silver | - | - | |
|
|
RT0S-16CG-NS1CABLE GRIP 10-14MM 15/16-20 ZINC |
28 |
|
Ficha técnica |
Cable Grip | 0.394" (10.00mm) | 0.551" (14.00mm) | 15/16-20 | - | - | - | Zinc Alloy, Nickel Plated | O-Ring, Seal | Silver | - | - | |
|
|
CG-M-M63-1.5CABLE GLAND 37-44MM M63 BRASS |
8 |
|
Ficha técnica |
Cable Gland | 1.457" (37.00mm) | 1.732" (44.00mm) | M63x1.5 | 0.512" (13.00mm) | - | 2.480" (63.0mm) | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

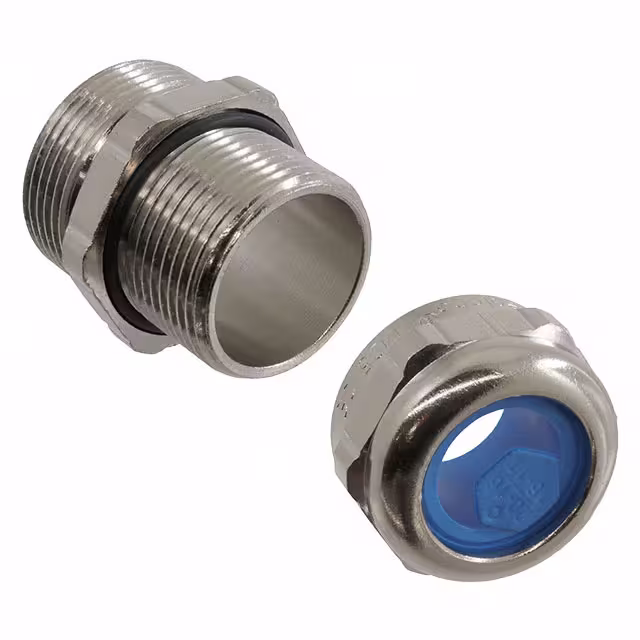

96573.6/15CABLE FEEDTHROUGH 16-20.07MM M25 |
26 |
|
Ficha técnica |
Cable Feedthrough | 0.630" (16.00mm) | 0.790" (20.07mm) | M25x1.5 | - | - | 0.980" (24.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
53112024CABLE GLAND 7-12.5MM 1/2" NPT |
12 |
|
Ficha técnica |
Cable Gland | 0.276" (7.00mm) | 0.492" (12.50mm) | 1/2" NPT | 0.591" (15.00mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 1, 4X, 6, 12 | -40°C ~ 100°C | |
|
|
50.616 ESCABLE GLAND 5-9MM M16 S STEEL |
94 |
|
Ficha técnica |
Cable Gland | 0.197" (5.00mm) | 0.354" (9.00mm) | M16x1.5 | 0.197" (5.00mm) | - | - | Stainless Steel | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C |
