Prendedores de cabos e fios
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Pacote/Caixa | Tipo | Diâmetro do cabo externo (mín.) | Diâmetro do cabo externo (máx.) | Tamanho da rosca | Comprimento da rosca | Tamanho do cubo do conduíte | Tamanho do furo do painel | Material | Inclui | Cor | Proteção de entrada | Temperatura operacional |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
50.620 Y/EMVCABLE GLAND 9-13MM M20 BRASS |
47 |
|
Ficha técnica |
Cable Gland | 0.354" (9.00mm) | 0.512" (13.00mm) | M20x1.5 | 0.236" (6.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
RT0L-12CG-NS1CABLE GRP 6.5-10MM 11/16-24 ZINC |
43 |
|
Ficha técnica |
Cable Grip | 0.256" (6.50mm) | 0.394" (10.00mm) | 11/16-24 | - | - | - | Zinc Alloy, Nickel Plated | O-Ring, Seal | Silver | - | - | |
|
|
RT0S-12CG-NS2CABLE GRP 6-10.5MM 11/16-24 ZINC |
11 |
|
Ficha técnica |
Cable Grip | 0.236" (6.00mm) | 0.413" (10.50mm) | 11/16-24 | - | - | - | Zinc Alloy, Nickel Plated | O-Ring, Seal | Silver | - | - | |
|
50.632 M/RCABLE GLAND 12-20MM M32 BRASS |
22 |
|
Ficha técnica |
Cable Gland | 0.472" (12.00mm) | 0.787" (20.00mm) | M32x1.5 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

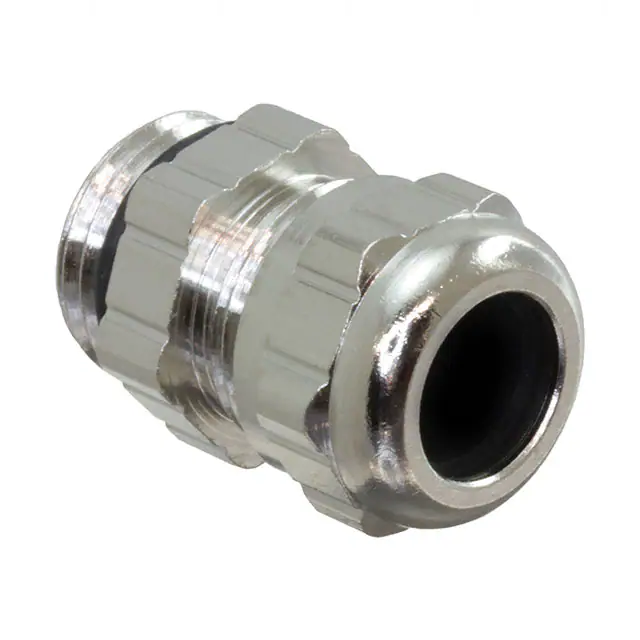

21651.6CABLE GLAND 6.6-9.4MM PG9 BRASS |
50 |
|
Ficha técnica |
Cable Gland | 0.260" (6.60mm) | 0.370" (9.40mm) | PG9 | 0.240" (6.10mm) | - | 0.600" (15.2mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
21501.6CABLE GLAND 6.1-9.4MM PG7 BRASS |
50 |
|
Ficha técnica |
Cable Gland | 0.240" (6.10mm) | 0.370" (9.40mm) | PG7 | - | - | 0.512" (13.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
21500.6CABLE GLAND 4.06-6.6MM PG7 BRASS |
37 |
|
Ficha técnica |
Cable Gland | 0.160" (4.06mm) | 0.260" (6.60mm) | PG7 | 0.200" (5.08mm) | - | 0.490" (12.4mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|

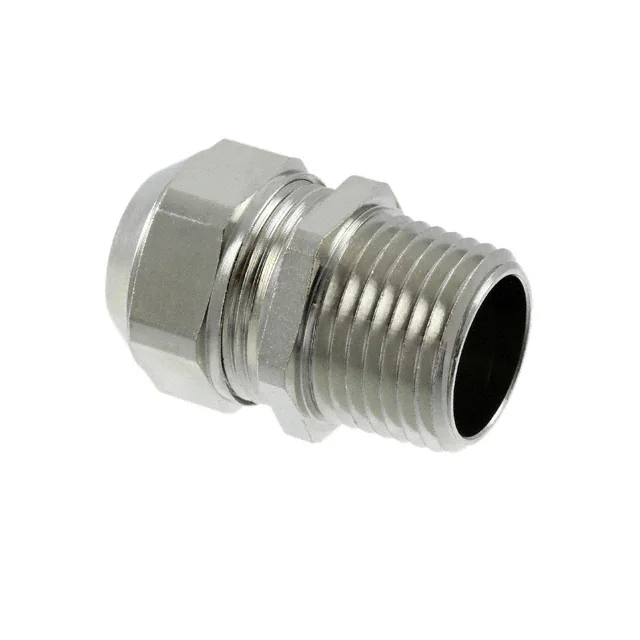

A1000.1/2NPT.150CABLE GLAND 11-15MM 1/2" NPT |
39 |
|
Ficha técnica |
Cable Gland | 0.433" (11.00mm) | 0.591" (15.00mm) | 1/2" NPT | 0.591" (15.00mm) | - | - | Brass, Nickel Plated | Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
1300980052CABLE GRIP 6.35-7.93MM 1/2" NPT |
8 |
|
Ficha técnica |
Cable Grip | 0.250" (6.35mm) | 0.312" (7.93mm) | 1/2" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|

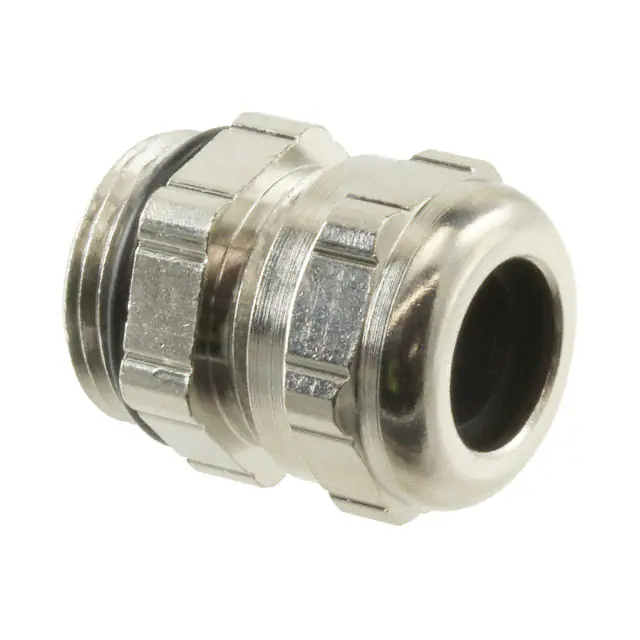

09000005081CABLE GLAND 6.5-9.5MM PG11 METAL |
9 |
|
Ficha técnica |
Cable Gland | 0.256" (6.50mm) | 0.374" (9.50mm) | PG11 | - | - | - | Metal | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 130°C | |
|
97131.6CABLE GLAND 4.06-6.6MM M16 BRASS |
46 |
|
Ficha técnica |
Cable Gland | 0.160" (4.06mm) | 0.260" (6.60mm) | M16x1.5 | 0.240" (6.10mm) | - | 0.630" (16.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|

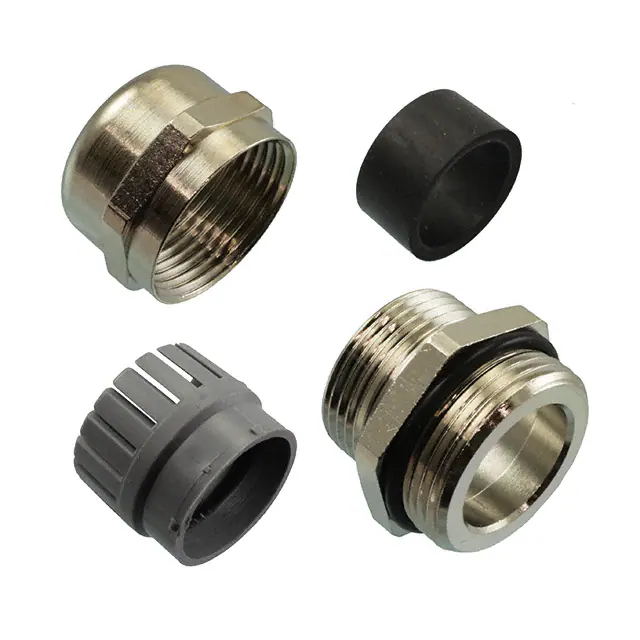

1772230000CABLE GLAND 10.92-14MM M25 BRASS |
13 |
|
Ficha técnica |
Cable Gland | 0.430" (10.92mm) | 0.551" (14.00mm) | M25x1.5 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | Seal | Silver | IP54/IP66/IP67/IP68/IP69K - Dust Protected, Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
A1000.1/4NPT.080CABLE GLAND 6.5-8MM 1/4" NPT |
8 |
|
Ficha técnica |
Cable Gland | 0.256" (6.50mm) | 0.315" (8.00mm) | 1/4" NPT | 0.472" (12.00mm) | - | - | Brass, Nickel Plated | Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
09000005104CABLE GLAND PG21 |
11 |
|
Ficha técnica |
Cable Gland | - | - | PG21 | 0.472" (12.00mm) | - | - | - | - | - | - | - | |
|
19000005194CABLE GLAND 13-18.01MM M32 |
10 |
|
Ficha técnica |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | M32 | - | - | - | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
21.620MCABLE GLAND RA M20 ZINC |
43 |
|
Ficha técnica |
Cable Gland - 90° | - | - | M20x1.5 | 0.630" (16.00mm) | - | 0.630" (16.0mm) | Zinc, Nickel Plated | Locknut, O-Ring | Silver | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
50.029CABLE GLND 18.01-25MM PG29 BRASS |
20 |
|
Ficha técnica |
Cable Gland | 0.709" (18.01mm) | 0.984" (25.00mm) | PG29 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
1300980082CABLE GRIP 12.7-14.28MM 1/2" NPT |
27 |
|
Ficha técnica |
Cable Grip | 0.500" (12.70mm) | 0.562" (14.28mm) | 1/2" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|

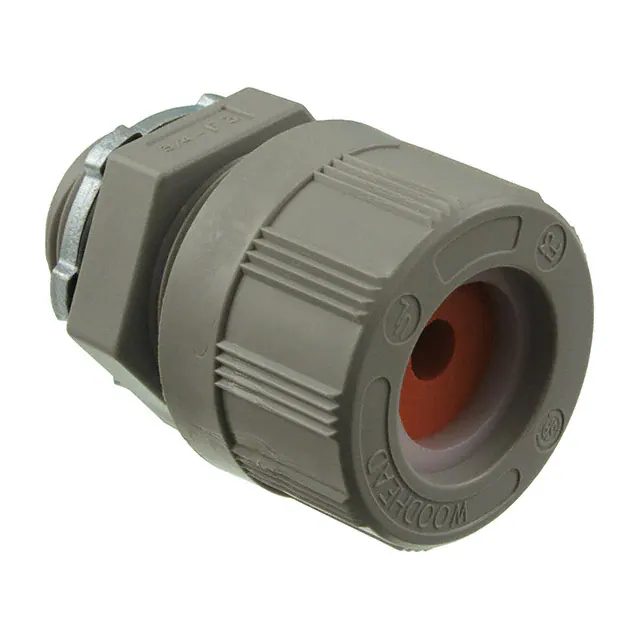

1300980215CABLE GRIP 4.75-6.35MM 3/4" NPT |
13 |
|
Ficha técnica |
Cable Grip | 0.187" (4.75mm) | 0.250" (6.35mm) | 3/4" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|

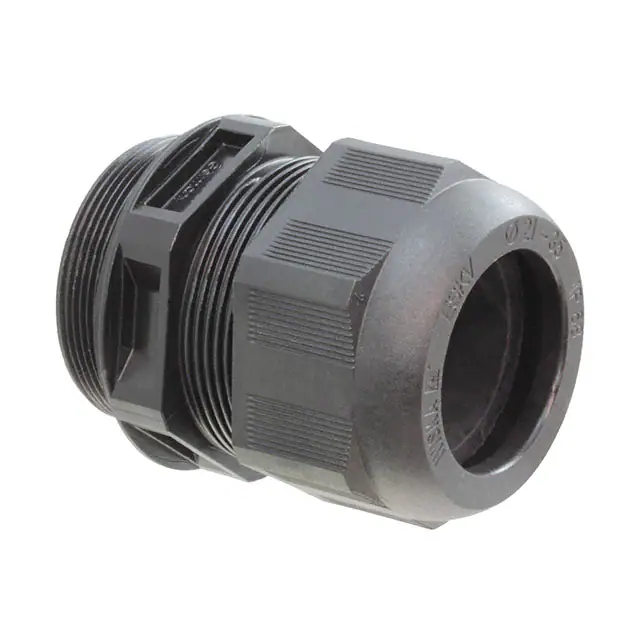

98133.1CABLE GLAND 21-35MM M50 POLYAMID |
21 |
|
Ficha técnica |
Cable Gland | 0.827" (21.00mm) | 1.378" (35.00mm) | M50x1.5 | 0.550" (13.97mm) | - | 1.969" (50.0mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | - |
