Prendedores de cabos e fios
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Pacote/Caixa | Tipo | Diâmetro do cabo externo (mín.) | Diâmetro do cabo externo (máx.) | Tamanho da rosca | Comprimento da rosca | Tamanho do cubo do conduíte | Tamanho do furo do painel | Material | Inclui | Cor | Proteção de entrada | Temperatura operacional |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DB-338CABLE GRIP 7.93-9.53MM ALUMINUM |
39 |
|
Ficha técnica |
Cable Grip | 0.312" (7.93mm) | 0.375" (9.53mm) | - | - | 1/2" (12.7mm) | 0.875" (22.2mm), 7/8" | Aluminum | Compression Nut, Strain Relief | Silver | - | - | |
|
52015760CABLE GLND 16-25.02MM PG29 BRASS |
19 |
|
Ficha técnica |
Cable Gland | 0.630" (16.00mm) | 0.985" (25.02mm) | PG29 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof; Nema 6P | -40°C ~ 100°C | |
|
50.640 MCABLE GLAND 19-27MM M40 BRASS |
12 |
|
Ficha técnica |
Cable Gland | 0.748" (19.00mm) | 1.063" (27.00mm) | M40x1.5 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
50.616 M/BSCABLE GLAND 5-9MM M16 BRASS |
9 |
|
Ficha técnica |
Cable Gland | 0.197" (5.00mm) | 0.354" (9.00mm) | M16x1.5 | 0.197" (5.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal, Strain Relief | Silver | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
53112910CABLE GLAND 4.5-10MM 3/8" NPT |
86 |
|
Ficha técnica |
Cable Gland | 0.177" (4.50mm) | 0.394" (10.00mm) | 3/8" NPT | 0.591" (15.00mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 4X, 6, 12 | -40°C ~ 100°C | |
|
|
M3317GBZ-SMCABLE GRIP 1 1/2" NPT POLYAMIDE |
18 |
|
Ficha técnica |
Cable Grip, Multi-Hole | - | - | 1 1/2" NPT | 0.760" (19.30mm) | - | 1.920" (48.8mm) | Polyamide (PA66), Nylon 6/6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 112°C | |
|
53112016CABLE GLAND 1.98-7MM 3/8" NPT |
83 |
|
Ficha técnica |
Cable Gland | 0.078" (1.98mm) | 0.276" (7.00mm) | 3/8" NPT | 0.591" (15.00mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 1, 4X, 6, 12 | -40°C ~ 100°C | |
|
21505.6CABLE GLAND 7.87-10.92MM PG11 |
30 |
|
Ficha técnica |
Cable Gland | 0.310" (7.87mm) | 0.430" (10.92mm) | PG11 | 0.390" (9.91mm) | - | 0.730" (18.5mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|

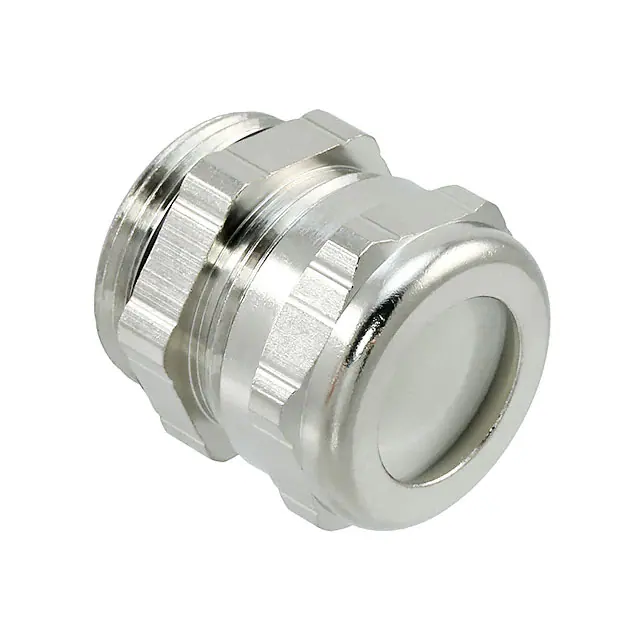

09000005092CABLE GLAND 11.5-15.5MM PG21 MET |
26 |
|
Ficha técnica |
Cable Gland | 0.453" (11.50mm) | 0.610" (15.50mm) | PG21 | - | - | - | Metal | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 130°C | |
|
|
DB-9CABLE GRIP 9.53-12.7MM ALUMINUM |
46 |
|
Ficha técnica |
Cable Grip | 0.375" (9.53mm) | 0.500" (12.70mm) | - | - | 1/2" (12.7mm) | 0.875" (22.2mm), 7/8" | Aluminum | Compression Nut, Strain Relief | Silver | - | - | |
|
50.620 M/BSCABLE GLAND 9-13MM M20 BRASS |
9 |
|
Ficha técnica |
Cable Gland | 0.354" (9.00mm) | 0.512" (13.00mm) | M20x1.5 | 0.236" (6.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal, Strain Relief | Silver | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
21687.6CABLE GLAND 13.97-18.03MM PG16 |
6 |
|
Ficha técnica |
Cable Gland | 0.550" (13.97mm) | 0.710" (18.03mm) | PG16 | 0.260" (6.60mm) | - | 0.890" (22.6mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
DB-10CABLE GRIP 12.7-15.88MM |
37 |
|
Ficha técnica |
Cable Grip | 0.500" (12.70mm) | 0.625" (15.88mm) | - | - | 1/2" (12.7mm) | 0.875" (22.2mm), 7/8" | Aluminum | Compression Nut, Strain Relief | Silver | - | - | |
|
S2136CABLE GLAND 24-32MM PG36 |
10 |
|
Ficha técnica |
Cable Gland | 0.945" (24.00mm) | 1.260" (32.00mm) | PG36 | 0.512" (13.00mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
21540.6CABLE GLAND 4.06-6.6MM M16 BRASS |
44 |
|
Ficha técnica |
Cable Gland | 0.160" (4.06mm) | 0.260" (6.60mm) | M16x1.5 | 0.390" (9.91mm) | - | 0.630" (16.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|

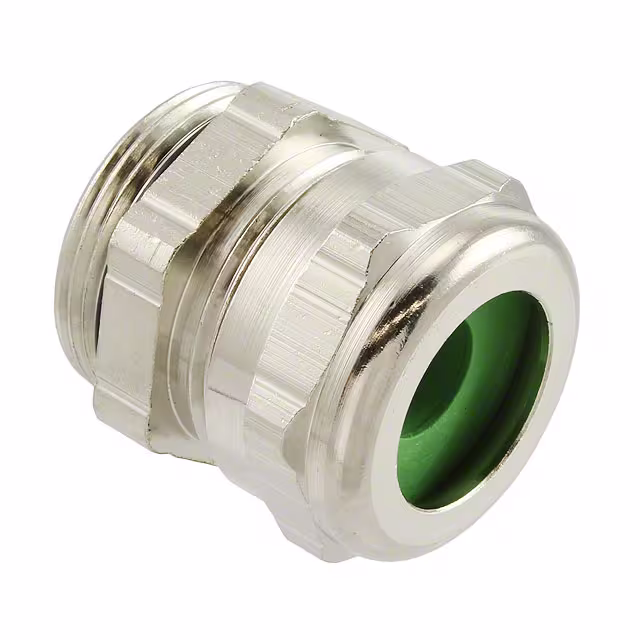

09000005090CABLE GLAND 7-10.5MM PG21 METAL |
12 |
|
Ficha técnica |
Cable Gland | 0.276" (7.00mm) | 0.413" (10.50mm) | PG21 | - | - | - | Metal | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 130°C | |
|
|
50.625 M/AVCABLE GLAND 11-16MM M25 BRASS |
16 |
|
Ficha técnica |
Cable Gland | 0.433" (11.00mm) | 0.630" (16.00mm) | M25x1.5 | 0.276" (7.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
50.632 Y/EMVCABLE GLAND 14-20MM M32 BRASS |
16 |
|
Ficha técnica |
Cable Gland | 0.551" (14.00mm) | 0.787" (20.00mm) | M32x1.5 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
MPG29 NC080CABLE GLND 18.01-25MM PG29 BRASS |
60 |
|
Ficha técnica |
Cable Gland | 0.709" (18.01mm) | 0.984" (25.00mm) | PG29 | 0.315" (8.00mm) | - | 1.457" (37.0mm) | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|

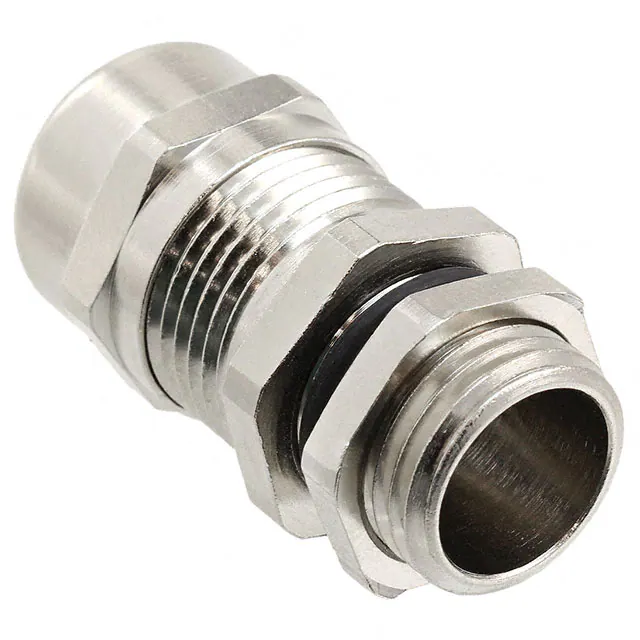

1478884-2CABLE GLAND 4-8MM M16 BRASS |
45 |
|
Ficha técnica |
Cable Gland | 0.157" (4.00mm) | 0.315" (8.00mm) | M16x1.5 | 0.472" (12.00mm) | - | 0.630" (16.0mm) | Brass, Nickel Plated | Locknut | Silver | IP68 - Dust Tight, Waterproof | - |
