Prendedores de cabos e fios
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Pacote/Caixa | Tipo | Diâmetro do cabo externo (mín.) | Diâmetro do cabo externo (máx.) | Tamanho da rosca | Comprimento da rosca | Tamanho do cubo do conduíte | Tamanho do furo do painel | Material | Inclui | Cor | Proteção de entrada | Temperatura operacional |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A1000.3/8NPT.080CABLE GLAND 6-8MM 3/8" NPT BRASS |
9 |
|
Ficha técnica |
Cable Gland | 0.236" (6.00mm) | 0.315" (8.00mm) | 3/8" NPT | 0.472" (12.00mm) | - | - | Brass, Nickel Plated | Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
21650.6CABLE GLAND 4.06-6.6MM PG9 BRASS |
49 |
|
Ficha técnica |
Cable Gland | 0.160" (4.06mm) | 0.260" (6.60mm) | PG9 | 0.240" (6.10mm) | - | 0.600" (15.2mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
09000005018CABLE GLAND 23-34MM PG36 |
14 |
|
Ficha técnica |
Cable Gland | 0.906" (23.00mm) | 1.339" (34.00mm) | PG36 | - | - | - | - | - | - | IP65 - Dust Tight, Water Resistant | - | |
|

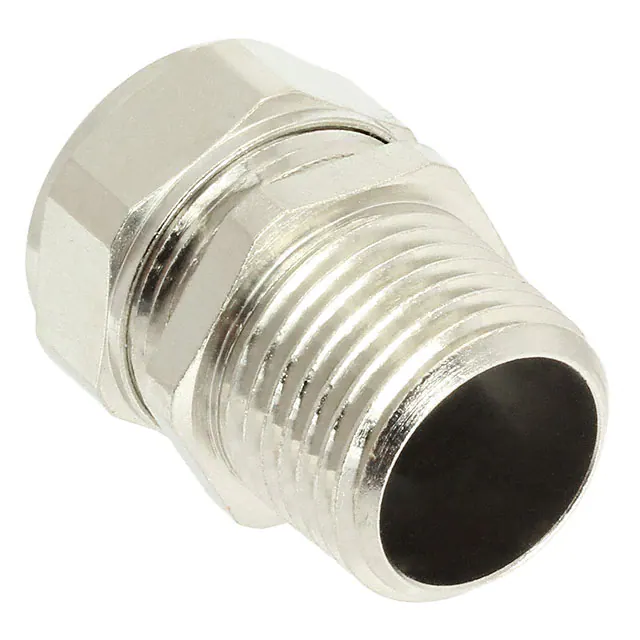

A1000.1/2NPT.080CABLE GLAND 6-8MM 1/2" NPT BRASS |
22 |
|
Ficha técnica |
Cable Gland | 0.236" (6.00mm) | 0.315" (8.00mm) | 1/2" NPT | 0.591" (15.00mm) | - | - | Brass, Nickel Plated | Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|

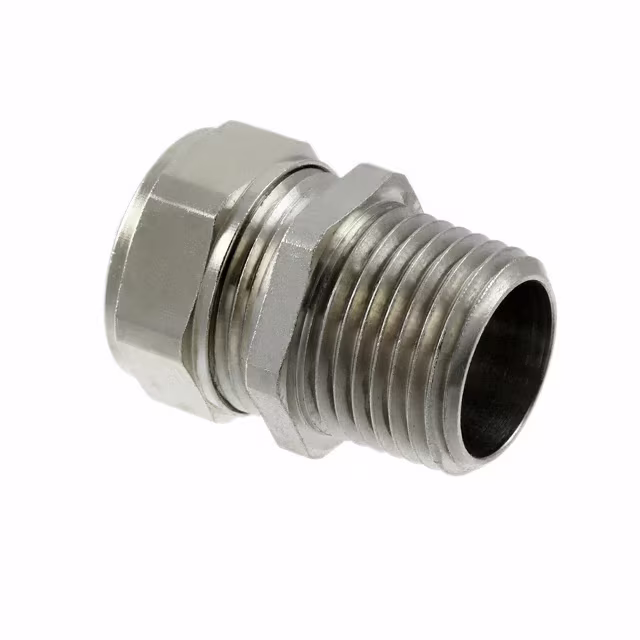

A1000.1/2NPT.110CABLE GLND 8-11MM 1/2" NPT BRASS |
11 |
|
Ficha técnica |
Cable Gland | 0.315" (8.00mm) | 0.433" (11.00mm) | 1/2" NPT | 0.591" (15.00mm) | - | - | Brass, Nickel Plated | Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
21653.6CABLE GLAND 6.6-9.4MM PG11 BRASS |
27 |
|
Ficha técnica |
Cable Gland | 0.260" (6.60mm) | 0.370" (9.40mm) | PG11 | 0.240" (6.10mm) | - | 0.730" (18.5mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
21503.6CABLE GLAND 6.86-10.41MM PG9 |
33 |
|
Ficha técnica |
Cable Gland | 0.270" (6.86mm) | 0.410" (10.41mm) | PG9 | 0.240" (6.10mm) | - | 0.600" (15.2mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
EM-SGL-M32-MET-GCABLE GLAND 15-21MM M32 BRASS |
10 |
|
Ficha técnica |
Cable Gland | 0.591" (15.00mm) | 0.827" (21.00mm) | M32x1.5 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | Locknut, Seal | Silver | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|

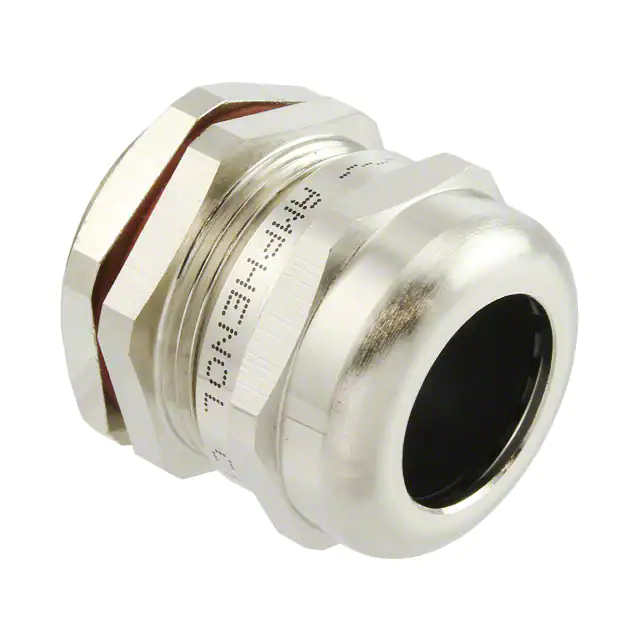

AIO-CSJM27CABLE GLAND 13-18.01MM M27 BRASS |
14 |
|
Ficha técnica |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | M27x2 | 0.315" (8.00mm) | - | - | Brass | Panel Nut, Sealing Nut | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
97270.6CABLE GLAND 4.06-6.6MM M12 BRASS |
15 |
|
Ficha técnica |
Cable Gland | 0.160" (4.06mm) | 0.260" (6.60mm) | M12x1.5 | 0.200" (5.08mm) | - | 0.470" (11.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP54 - Dust Protected, Water Resistant; NEMA 13 | -40°C ~ 300°C | |
|
97179.6CABLE GLND 5.08-7.87MM M20 BRASS |
50 |
|
Ficha técnica |
Cable Gland | 0.200" (5.08mm) | 0.310" (7.87mm) | M20x1.5 | 0.240" (6.10mm) | - | 0.790" (20.1mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
21658.6CABLE GLAND 8.89-12.95MM PG13.5 |
46 |
|
Ficha técnica |
Cable Gland | 0.350" (8.89mm) | 0.510" (12.95mm) | PG13.5 | - | - | 0.830" (21.1mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
RT0B-12CG-NS2CABLE GRP RA 9-12.5MM 11/16-24 |
14 |
|
Ficha técnica |
Cable Grip - 90° | 0.354" (9.00mm) | 0.492" (12.50mm) | 11/16-24 | - | - | - | Aluminum Alloy, Nickel Plated | O-Ring | Silver | - | - | |
|
CG-PG36-2-BKCABLE GLAND 22-32MM PG36 |
11 |
|
Ficha técnica |
Cable Gland | 0.866" (22.00mm) | 1.260" (32.00mm) | PG36 | 0.512" (13.00mm) | - | 1.870" (47.5mm) | Polyamide (PA), Nylon | O-Ring, Sealing Gland, Sealing Nut | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
|
21684.6CABLE GLAND 8.89-12.95MM PG11 |
30 |
|
Ficha técnica |
Cable Gland | 0.350" (8.89mm) | 0.510" (12.95mm) | PG11 | 0.240" (6.10mm) | - | 0.730" (18.5mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
RT0L-22CG-NS1CABLE GRP 13.5-18.01MM 1 5/16-18 |
49 |
|
Ficha técnica |
Cable Grip | 0.531" (13.50mm) | 0.709" (18.01mm) | 1 5/16-18 | - | - | - | Zinc, Nickel Plated | - | - | - | - | |
|
|
RT0L-22CG-NS2CABLE GRIP 18.01-24MM 1 5/16-18 |
35 |
|
Ficha técnica |
Cable Grip | 0.709" (18.01mm) | 0.945" (24.00mm) | 1 5/16-18 | - | - | - | Zinc, Nickel Plated | - | - | - | - | |
|

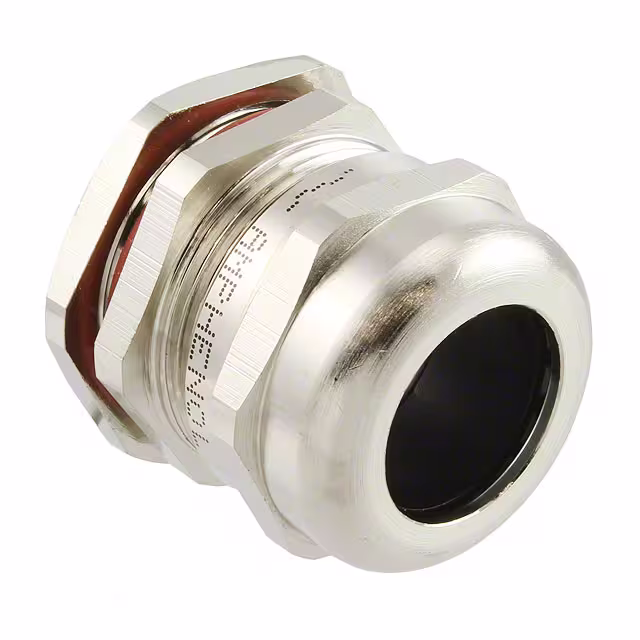

AIO-CSJPG21CABLE GLND 13-18.01MM PG21 BRASS |
7 |
|
Ficha técnica |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | PG21 | 0.315" (8.00mm) | - | - | Brass | Panel Nut, Sealing Nut | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
1300980049CABLE GRIP 4.75-6.35MM 1/2" NPT |
1 |
|
Ficha técnica |
Cable Grip | 0.187" (4.75mm) | 0.250" (6.35mm) | 1/2" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
50.650 PA/RSWCABLE GLAND 21-35MM M50 POLYAMID |
8 |
|
Ficha técnica |
Cable Gland | 0.827" (21.00mm) | 1.378" (35.00mm) | M50x1.5 | 0.472" (12.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C |
