Prendedores de cabos e fios
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Pacote/Caixa | Tipo | Diâmetro do cabo externo (mín.) | Diâmetro do cabo externo (máx.) | Tamanho da rosca | Comprimento da rosca | Tamanho do cubo do conduíte | Tamanho do furo do painel | Material | Inclui | Cor | Proteção de entrada | Temperatura operacional |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
50.663 ESCABLE GLAND 32-42MM M63 S STEEL |
16 |
|
Ficha técnica |
Cable Gland | 1.260" (32.00mm) | 1.654" (42.00mm) | M63x1.5 | 0.394" (10.00mm) | - | - | Stainless Steel | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
LEX263VA/316LHTSCABLE GLAND 44-56MM M63 S STEEL |
7 |
|
Ficha técnica |
Cable Gland | 1.732" (44.00mm) | 2.205" (56.00mm) | M63x1.5 | 0.630" (16.00mm) | - | 2.480" (63.0mm) | Stainless Steel | O-Ring | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -60°C ~ 130°C | |
|
96579.6CABLE FEEDTHROUGH 70.1-76.96MM |
4 |
|
Ficha técnica |
Cable Feedthrough | 2.760" (70.10mm) | 3.030" (76.96mm) | M85x2 | 0.590" (14.99mm) | - | 3.350" (85.1mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
EP-SGL-M16-BL-ICABLE GLAND 5-10MM M16 POLYAMIDE |
38 |
|
Ficha técnica |
Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | M16x1.5 | 0.394" (10.00mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
|
EP-SGL-M20-BL-HCABLE GLAND 10-14MM M20 POLYAMID |
50 |
|
Ficha técnica |
Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | M20x1.5 | 0.394" (10.00mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
5308 958CABLE GLAND 2.5-8MM M16 POLYAMID |
51 |
|
Ficha técnica |
Cable Gland | 0.098" (2.50mm) | 0.315" (8.00mm) | M16x1.5 | 0.394" (10.00mm) | - | 0.630" (16.0mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|
50.021 PA/SWCABLE GLAND 13-18.01MM PG21 |
52 |
|
Ficha técnica |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | PG21 | 0.433" (11.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
50016PABS7035CABLE GLAND 10-14MM PG16 |
43 |
|
Ficha técnica |
Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | PG16 | 0.394" (10.00mm) | - | - | Polyamide (PA6), Nylon 6 | Strain Relief | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
EP-SGL-NPT12-GR-ACABLE GLAND 5-9MM 1/2" NPT |
72 |
|
Ficha técnica |
Cable Gland | 0.197" (5.00mm) | 0.354" (9.00mm) | 1/2" NPT | 0.591" (15.00mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Gray | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|

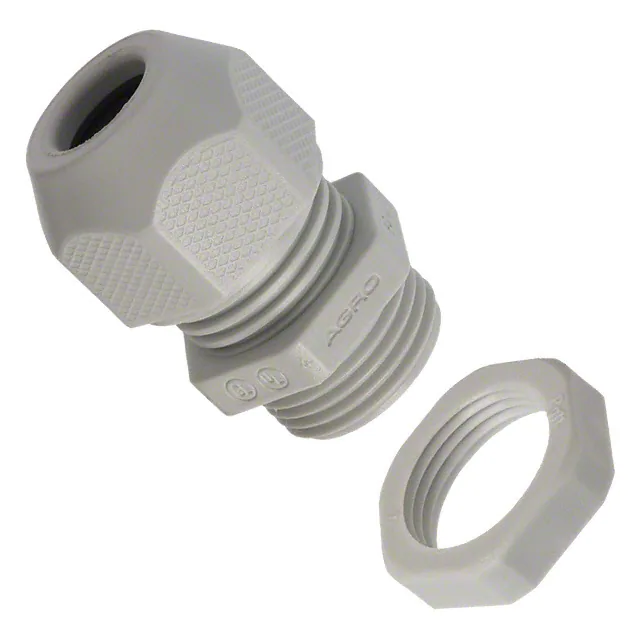

A1555.11.07CABLE GLAND 2-7MM PG11 POLYAMIDE |
37 |
|
Ficha técnica |
Cable Gland | 0.079" (2.00mm) | 0.276" (7.00mm) | PG11 | 0.315" (8.00mm) | - | 0.732" (18.6mm) | Polyamide (PA), Nylon | Sealing Ring | Light Gray | IP68 - Dust Tight, Waterproof | -30°C ~ 100°C | |
|
S1209CABLE GLAND 2-6MM PG9 POLYAMIDE |
90 |
|
Ficha técnica |
Cable Gland | 0.079" (2.00mm) | 0.236" (6.00mm) | PG9 | 0.315" (8.00mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
|
EP-SGL-PG11-GR-BCABLE GLAND 5-10MM PG11 POLYAMID |
93 |
|
Ficha técnica |
Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | PG11 | 0.315" (8.00mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Gray | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
|
50.029 PA/SWCABLE GLAND 18.01-25MM PG29 |
45 |
|
Ficha técnica |
Cable Gland | 0.709" (18.01mm) | 0.984" (25.00mm) | PG29 | 0.433" (11.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

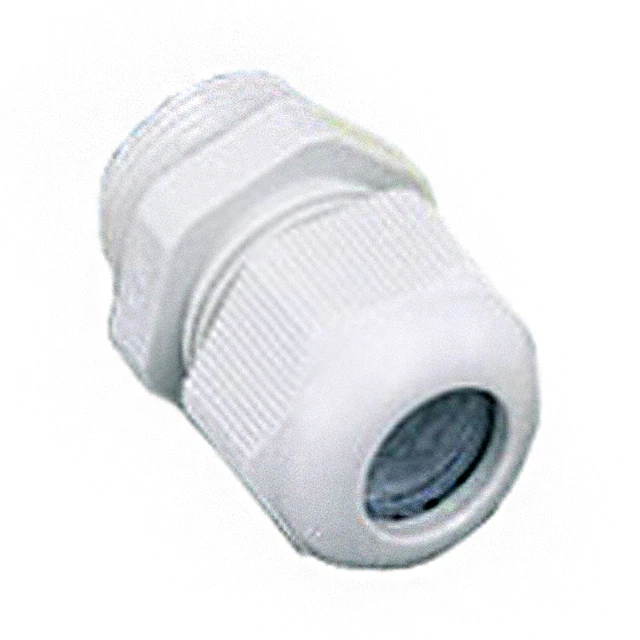

10000600CABLE GLAND 13-18.01MM PG21 |
49 |
|
Ficha técnica |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | PG21 | 0.433" (11.00mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
|
EP-SGL-PG135-GR-BCABLE GLAND 6-12MM PG13.5 |
75 |
|
Ficha técnica |
Cable Gland | 0.236" (6.00mm) | 0.472" (12.00mm) | PG13.5 | 0.394" (10.00mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Gray | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
|
EP-SGL-PG135-BL-BCABLE GLAND 6-12MM PG13.5 |
44 |
|
Ficha técnica |
Cable Gland | 0.236" (6.00mm) | 0.472" (12.00mm) | PG13.5 | 0.394" (10.00mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
CGM20N44CABLE GLAND 5.5-11.2MM M20 THERM |
71 |
|
- |
Cable Gland | 0.217" (5.50mm) | 0.441" (11.20mm) | M20x1.5 | 0.390" (9.91mm) | - | - | Thermoplastic | O-Ring, Seal | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
12052109CABLE GLAND 10-12MM PG13 |
91 |
|
Ficha técnica |
Cable Gland | 0.394" (10.00mm) | 0.472" (12.00mm) | PG13 | 0.354" (9.00mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP65 - Dust Tight, Water Resistant | -20°C ~ 100°C | |
|
|
EP-SGL-M20-GR-HCABLE GLAND 10-14MM M20 POLYAMID |
38 |
|
Ficha técnica |
Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | M20x1.5 | 0.394" (10.00mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Gray | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
GC1001-FCABLE GLAND 19-25MM M40 POLYAMID |
54 |
|
Ficha técnica |
Cable Gland | 0.748" (19.00mm) | 0.984" (25.00mm) | M40x1.5 | 0.394" (10.00mm) | - | 1.614" (41.0mm) | Polyamide (PA), Nylon | Locknut, O-Ring, Seal | Light Gray | IP67 - Dust Tight, Waterproof | - |
