Transformadores de detecção de corrente
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Faixa de frequência | Tipo | Classificação de Corrente (Amps) | Indutância | ET (Volt-Tempo) | Relação de espiras - Primário:Secundário | Relação de corrente | Resistência CC (DCR) | Classificações | Tipo de montagem | Tamanho/dimensão | Altura - Assentado (Máx.) | Estilo de Terminação |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CCT272440-80-10-00CURR SENSE XFMR 80A CHAS MNT |
215 |
|
Ficha técnica |
CCT | Bulk | Active | 50/60Hz | Non-Invasive (Split Core) | 80 A | - | - | - | 3000:1 | 352Ohm | - | Chassis Mount | 1.201" L x 1.083" W (30.50mm x 27.50mm) | 1.634" (41.50mm) | Wire Leads with Connector |
|
PA1005.070NLCURR SENSE XFMR 1:70 20A SMD |
1,790 |
|
Ficha técnica |
- | Tray | Active | 50kHz ~ 1MHz | Invasive | 20 A | 980 µH | - | 1:70 | - | 0.75mOhm Primary, 4.75Ohm Secondary | - | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
|

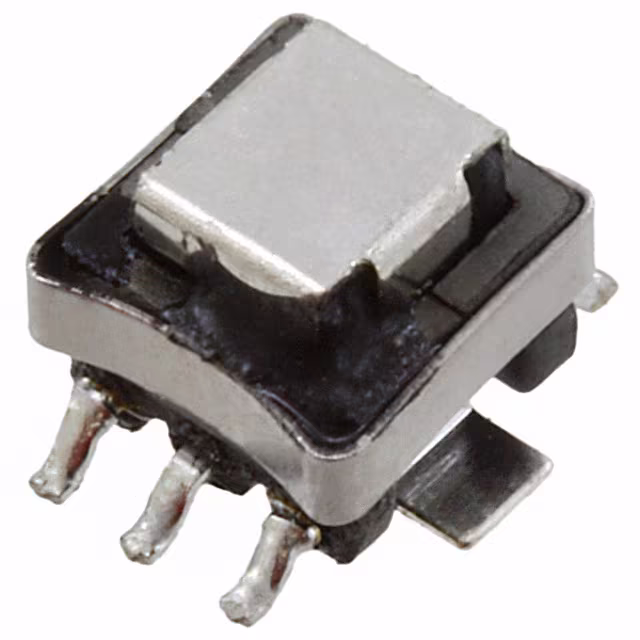

749251060CURR SENSE XFMR 1:60 10A SMD |
748 |
|
Ficha técnica |
WE-CST | Tape & Reel (TR) | Active | - | Invasive | - | 720 µH | 30VµS | 1:60 | - | 6mOhm Primary, 1.75Ohm Secondary | - | Surface Mount | 0.303" L x 0.272" W (7.70mm x 6.90mm) | 0.210" (5.33mm) | Gull Wing |
|

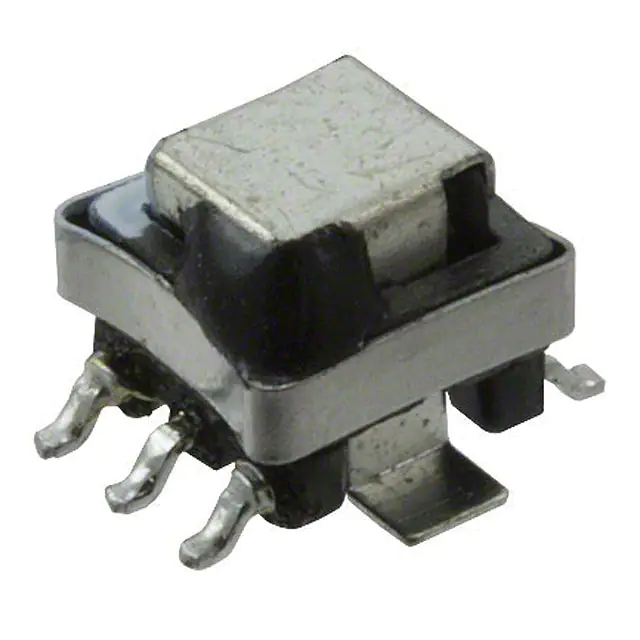

749251030CURR SENSE XFMR 1:30 10A SMD |
733 |
|
Ficha técnica |
WE-CST | Tape & Reel (TR) | Active | - | Invasive | - | 180 µH | 15VµS | 1:30 | - | 6mOhm Primary, 480mOhm Secondary | - | Surface Mount | 0.303" L x 0.272" W (7.70mm x 6.90mm) | 0.210" (5.33mm) | Gull Wing |
|
749251040CURR SENSE XFMR 1:40 10A SMD |
727 |
|
Ficha técnica |
WE-CST | Tape & Reel (TR) | Active | - | Invasive | - | 320 µH | 20VµS | 1:40 | - | 6mOhm Primary, 900mOhm Secondary | - | Surface Mount | 0.303" L x 0.272" W (7.70mm x 6.90mm) | 0.210" (5.33mm) | Gull Wing |
|
PA0368.125NLTCURR SENSE XFMR 1:125 SMD |
2,115 |
|
Ficha técnica |
PA0368NL | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 10.4 mH | - | 1:125 | - | 4mOhm Primary, 1.9Ohm Secondary | - | Surface Mount | 0.325" L x 0.325" W (8.25mm x 8.25mm) | 0.134" (3.40mm) | - |
|
B82801B0184A030CURR SENSE XFMR 1:30 SMD |
700 |
|
Ficha técnica |
B82801B | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 180 µH | - | 1:30 | - | 0.8mOhm Primary, 870mOhm Secondary | - | Surface Mount | 0.280" L x 0.320" W (7.11mm x 8.13mm) | 0.200" (5.08mm) | Gull Wing |
|
PMS9505.070NLTCURR SENSE XFMR 1:70 30A |
299 |
|
Ficha técnica |
PMS9505 | Tape & Reel (TR) | Active | 20kHz | Invasive | 30 A | 3 mH | - | 1:70 | - | 500µOhm Primary, 2.1Ohm Secondary (Max) | AEC-Q200 | Surface Mount | 0.504" L x 0.480" W (12.80mm x 12.20mm) | 0.567" (14.40mm) | Gull Wing |
|
|
PMS9505.125NLTCURR SENSE XFMR 1:125 30A |
268 |
|
Ficha técnica |
PMS9505 | Tape & Reel (TR) | Active | 20kHz | Invasive | 30 A | 11 mH | - | 1:125 | - | 500µOhm Primary, 4Ohm Secondary (Max) | AEC-Q200 | Surface Mount | 0.504" L x 0.480" W (12.80mm x 12.20mm) | 0.567" (14.40mm) | Gull Wing |
|
|
PMS9505.180NLTCURR SENSE XFMR 1:180 30A |
268 |
|
Ficha técnica |
PMS9505 | Tape & Reel (TR) | Active | 20kHz | Invasive | 30 A | 25 mH | - | 1:180 | - | 500µOhm Primary, 9Ohm Secondary (Max) | AEC-Q200 | Surface Mount | 0.504" L x 0.480" W (12.80mm x 12.20mm) | 0.567" (14.40mm) | Gull Wing |
|
|
B82801B0724A060CURR SENSE XFMR 1:60 SMD |
693 |
|
Ficha técnica |
B82801B | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 720 µH | - | 1:60 | - | 0.8mOhm Primary, 1.98Ohm Secondary | - | Surface Mount | 0.280" L x 0.320" W (7.11mm x 8.13mm) | 0.200" (5.08mm) | Gull Wing |
|
ECST1V0805-1050-RCURR SENSE XFMR 50:1 10A SMD |
341 |
|
Ficha técnica |
ECST | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 10 A | 500 µH | - | 50:1 | - | 700mOhm Primary, 1.85Ohm Secondary Max | - | Surface Mount | 0.330" L x 0.315" W (8.38mm x 8.00mm) | 0.217" (5.50mm) | Gull Wing |
|
|
ECST1V0805-1100-RCURR SENSE XFMR 100:1 10A SM |
322 |
|
Ficha técnica |
ECST | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 10 A | 2 mH | - | 100:1 | - | 700mOhm Primary, 5.5Ohm Secondary Max | - | Surface Mount | 0.330" L x 0.315" W (8.38mm x 8.00mm) | 0.217" (5.50mm) | Gull Wing |
|
|
PMS9505.050NLTCURR SENSE XFMR 1:50 30A |
274 |
|
Ficha técnica |
PMS9505 | Tape & Reel (TR) | Active | 20kHz | Invasive | 30 A | 1.7 mH | - | 1:50 | - | 500µOhm Primary, 1.5Ohm Secondary (Max) | AEC-Q200 | Surface Mount | 0.504" L x 0.480" W (12.80mm x 12.20mm) | 0.567" (14.40mm) | Gull Wing |
|
|
PH9505.125NLTCURR SENSE XFMR 1:125 30A SMD |
140 |
|
Ficha técnica |
PH9505.XXXNL | Tape & Reel (TR) | Active | 20kHz | Invasive | 30 A | 11 mH | - | 1:125 | - | 0.5mOhm Primary, 4Ohm Secondary Max | - | Surface Mount | 0.504" L x 0.480" W (12.80mm x 12.20mm) | 0.567" (14.40mm) | Gull Wing |
|
P8206NLTCURR SENSE XFMR 1:60 SMD |
2,408 |
|
Ficha técnica |
P820X | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 720 µH | - | 1:60 | - | 6mOhm Primary, 2.25Ohm Secondary | - | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
|
|
SCS-60730CURR SENSE XFMR 60:1 10A SMD |
995 |
|
Ficha técnica |
SCS | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 10 A | 730 µH | - | 60:1 | - | 700mOhm Primary, 2.3Ohm Secondary Max | - | Surface Mount | - | 0.217" (5.50mm) | Gull Wing |
|
|
SCS-40320CURR SENSE XFMR 40:1 10A SMD |
991 |
|
Ficha técnica |
SCS | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 10 A | 320 µH | - | 40:1 | - | 700mOhm Primary, 1.14Ohm Secondary Max | - | Surface Mount | - | 0.217" (5.50mm) | Gull Wing |
|
|
SCS-30180CURR SENSE XFMR 30:1 10A SMD |
967 |
|
Ficha técnica |
SCS | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 10 A | 180 µH | - | 30:1 | - | 700mOhm Primary, 870mOhm Secondary Max | - | Surface Mount | - | 0.217" (5.50mm) | Gull Wing |
|
|
SCS-50500CURR SENSE XFMR 50:1 10A SMD |
952 |
|
Ficha técnica |
SCS | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 10 A | 500 µH | - | 50:1 | - | 700mOhm Primary, 1.85Ohm Secondary Max | - | Surface Mount | - | 0.217" (5.50mm) | Gull Wing |
