Transformadores de detecção de corrente
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Faixa de frequência | Tipo | Classificação de Corrente (Amps) | Indutância | ET (Volt-Tempo) | Relação de espiras - Primário:Secundário | Relação de corrente | Resistência CC (DCR) | Classificações | Tipo de montagem | Tamanho/dimensão | Altura - Assentado (Máx.) | Estilo de Terminação |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82801B0803A020CURR SENSE XFMR 1:20 SMD |
225 |
|
Ficha técnica |
B82801B | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 80 µH | - | 1:20 | - | 0.8mOhm Primary, 400mOhm Secondary | - | Surface Mount | 0.280" L x 0.320" W (7.11mm x 8.13mm) | 0.200" (5.08mm) | Gull Wing |
|
CST25-0200CURR SENSE XFMR 1:120 125MA TH |
158 |
|
Ficha técnica |
CST | Bulk | Active | 50kHz ~ 500kHz | Invasive | 25 A | 76 mH | 700VµS | 1:200 | - | 4.5Ohm | - | Through Hole | 0.669" L x 0.591" W (17.00mm x 15.00mm) | 0.472" (12.00mm) | PC Pin |
|
PMS9505.100NLTCURR SENSE XFMR 1:100 30A |
159 |
|
Ficha técnica |
PMS9505 | Tape & Reel (TR) | Active | 20kHz | Invasive | 30 A | 7 mH | - | 1:100 | - | 500µOhm Primary, 3.1Ohm Secondary (Max) | AEC-Q200 | Surface Mount | 0.504" L x 0.480" W (12.80mm x 12.20mm) | 0.567" (14.40mm) | Gull Wing |
|
|
SCS-2080CURR SENSE XFMR 20:1 10A SMD |
983 |
|
Ficha técnica |
SCS | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 10 A | 80 µH | - | 20:1 | - | 700mOhm Primary, 400mOhm Secondary Max | - | Surface Mount | - | 0.217" (5.50mm) | Gull Wing |
|
|
PH9500.100NLTCURR SENSE XFMR 1:100 10A SMD |
2,477 |
|
Ficha técnica |
PH9500.XXXNL | Tape & Reel (TR) | Active | - | Invasive | 10 A | 10 mH | - | 1:100 | - | 3mOhm Primary, 2.1Ohm Secondary Max | - | Surface Mount | - | 0.346" (8.80mm) | Gull Wing |
|
CSE185LCURR SENSE XFMR 1:50 3A T/H |
269 |
|
Ficha técnica |
- | Bulk | Active | 50Hz ~ 400Hz | Invasive | 3 A | - | - | 1:50 | - | 19.5mOhm Primary, 23Ohm Secondary | - | Through Hole | 0.846" L x 0.945" W (21.50mm x 24.00mm) | 0.709" (18.00mm) | PC Pin |
|
B82801A1135A125CURR SENSE XFMR SMD |
1,440 |
|
Ficha técnica |
B82801A | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 1.28 mH | - | - | - | - | - | Surface Mount | 0.185" L x 0.138" W (4.70mm x 3.50mm) | 0.138" (3.50mm) | J Lead |
|
B82801C0145A050CURR SENSE XFMR 1:50 SMD |
379 |
|
Ficha técnica |
B82801C | Tape & Reel (TR) | Active | 50kHz ~ 500kHz | Invasive | - | 1.4 mH | - | 1:50 | - | 0.28mOhm Primary, 400mOhm Secondary | - | Surface Mount | 0.560" L x 0.530" W (14.22mm x 13.46mm) | 0.394" (10.00mm) | Gull Wing |
|

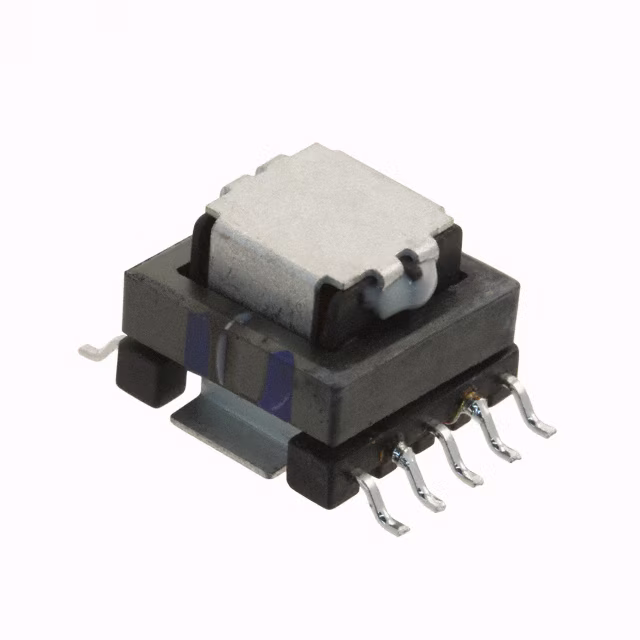

B82801C1265A150CURR SENSE XFMR 1:150 SMD |
119 |
|
Ficha técnica |
B82801C | Tape & Reel (TR) | Active | 50kHz ~ 500kHz | Invasive | - | 12.6 mH | - | 1:150 | - | 0.28mOhm Primary, 2.2Ohm Secondary | - | Surface Mount | 0.560" L x 0.530" W (14.22mm x 13.46mm) | 0.394" (10.00mm) | Gull Wing |
|
PE-68210NLCURR SENSE XFMR 1:1:50 SMD |
804 |
|
Ficha técnica |
PE-68XXXNL | Tube | Active | 50kHz ~ 500kHz | Invasive | - | 3.8 mH | - | 1:1:50 | - | 1.15mOhm Primary, 380mOhm Secondary | - | Surface Mount | 0.495" L x 0.490" W (12.57mm x 12.45mm) | 0.280" (7.11mm) | - |
|
|
PE-68383NLTCURR SENSE XFMR 1:1:200 SMD |
646 |
|
Ficha técnica |
PE-68XXXNL | Tape & Reel (TR) | Active | 50kHz ~ 500kHz | Invasive | - | 59.2 mH | - | 1:1:200 | - | 1.15mOhm Primary, 3.9Ohm Secondary | - | Surface Mount | 0.495" L x 0.490" W (12.57mm x 12.45mm) | 0.280" (7.11mm) | - |
|

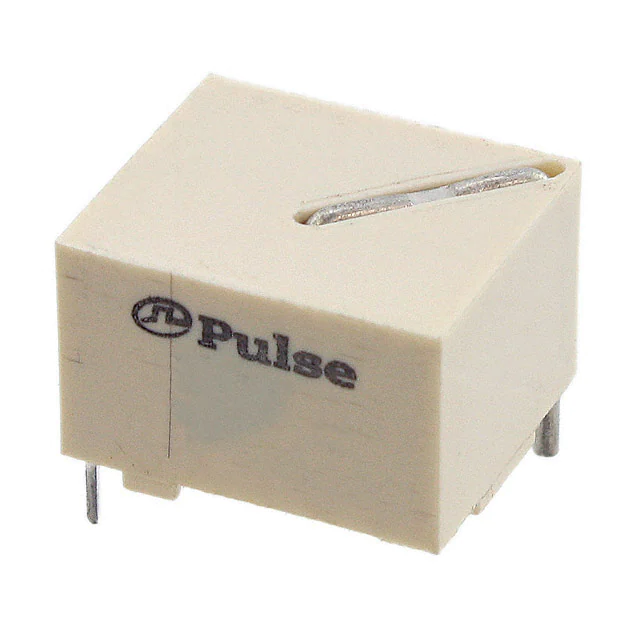

FIS155NLCURR SENSE XFMR 1:500 25A T/H |
929 |
|
Ficha técnica |
FIS 1X5 | Tube | Active | 500kHz Max | Invasive | - | 470 mH | 1750VµS | 1:500 | - | 16Ohm Max | - | Through Hole | 0.693" L x 0.591" W (17.60mm x 15.00mm) | 0.492" (12.50mm) | PC Pin |
|
PE-51717NLCURR SENSE XFMR 20A T/H |
1,658 |
|
Ficha técnica |
- | Tray | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 20 A | 5 mH | - | - | 50CT:1 | - | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|
MR/C-01BCURR SENSE XFMR TH |
725 |
|
Ficha técnica |
MR | Bulk | Active | 60Hz | Non-Invasive (Solid Core) | 15 A | - | - | - | - | 30Ohm | - | Through Hole | 0.748" L x 0.689" W (19.00mm x 17.50mm) | 0.311" (7.90mm) | PC Pin |
|
PE-63588NLCURR SENSE XFMR 20A T/H |
437 |
|
Ficha técnica |
THT | Tray | Active | 20kHz ~ 200kHz | Invasive | 20 A | 80 mH | - | - | 200:1 | 200Ohm Primary, 4.5Ohm Secondary | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|

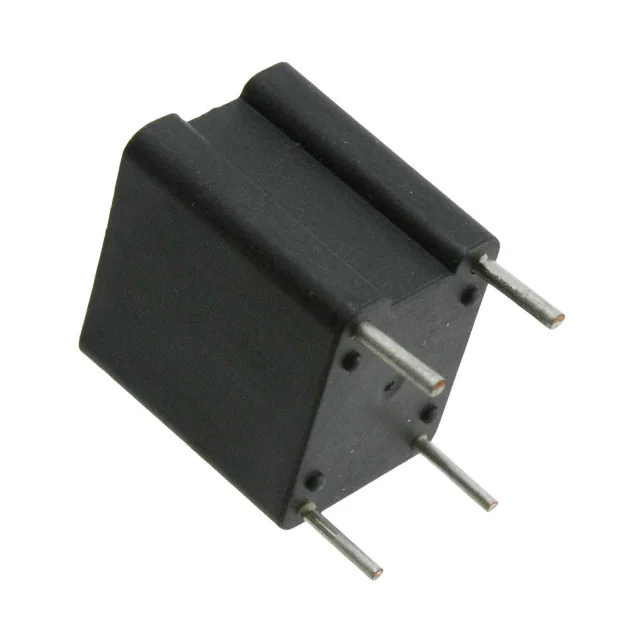

PE-67050NLCURR SENSE XFMR 35A T/H |
729 |
|
Ficha técnica |
- | Tray | Active | 10kHz ~ 200kHz | Invasive | 35 A | 5 mH | - | - | 50:1 | 15Ohm Primary, 700mOhm Secondary | - | Through Hole | 0.565" L x 0.750" W (14.35mm x 19.05mm) | 0.750" (19.05mm) | PC Pin |
|
B78417A2185A003CURR SENSE XFMR 1:100 SMD |
1,459 |
|
Ficha técnica |
B78417 | Tape & Reel (TR) | Active | 50kHz ~ 250kHz | Invasive | - | 7 mH | - | 1:100 | - | 1.9mOhm Primary, 5Ohm Secondary | - | Surface Mount | 0.417" L x 0.480" W (10.60mm x 12.20mm) | 0.433" (11.00mm) | Gull Wing |
|
7492540750CURR SENSE XFMR 1:750 40A SMD |
1,184 |
|
Ficha técnica |
MID-CST | Tape & Reel (TR) | Active | 1MHz | Invasive | 40 A | 300 mH | 1860Vµs | 1:750 | - | 0.28mOhm Primary, 50.1Ohm Secondary | AEC-Q200 | Surface Mount | 0.570" L x 0.524" W (14.48mm x 13.30mm) | 0.413" (10.50mm) | Gull Wing |
|
|
7492540050CURR SENSE XFMR 1:50 40A SMD |
1,004 |
|
Ficha técnica |
MID-CST | Tape & Reel (TR) | Active | 1MHz | Invasive | 40 A | 1.4 mH | 124VµS | 1:50 | - | 0.28mOhm Primary, 202mOhm Secondary | AEC-Q200 | Surface Mount | 0.570" L x 0.524" W (14.48mm x 13.30mm) | 0.413" (10.50mm) | Gull Wing |
|
|
7492540040CURR SENSE XFMR 1:40 40A SMD |
972 |
|
Ficha técnica |
MID-CST | Tape & Reel (TR) | Active | 1MHz | Invasive | 40 A | 896 µH | 99Vµs | 1:40 | - | 0.28mOhm Primary, 130mOhm Secondary | AEC-Q200 | Surface Mount | 0.570" L x 0.524" W (14.48mm x 13.30mm) | 0.413" (10.50mm) | Gull Wing |
