Interruptores DIP
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Circuito | Número de posições | Classificação de Corrente (Amps) | Classificação de Tensão | Tipo de Atuador | Nível do Atuador | Material de Contato | Acabamento de Contato | Altura Acima da Placa | Tipo de montagem | Estilo de Terminação | Passo | Lavável | Recursos | Temperatura operacional |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4-435640-0SWITCH ROCKER DIP SPST 0.06A 5V |
0 |
|
Ficha técnica |
7100 | Tube | Obsolete | SPST | 9 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -55°C ~ 105°C |
|

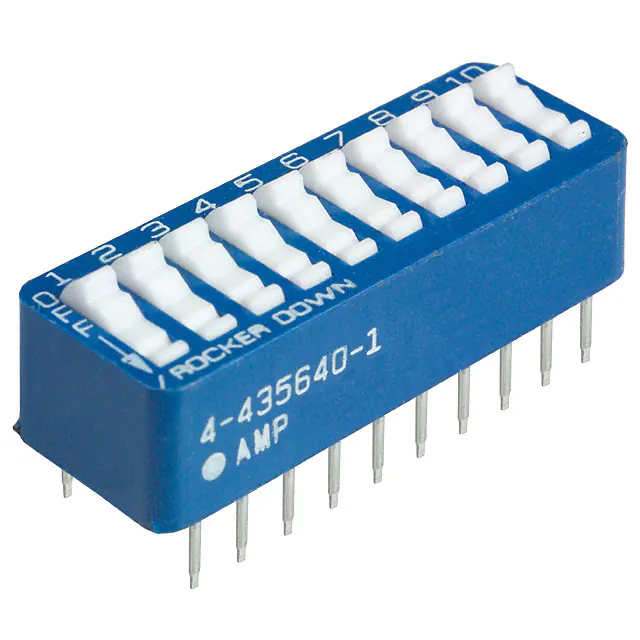

4-435640-1SWITCH ROCKER DIP SPST 0.06A 5V |
0 |
|
Ficha técnica |
7100 | Tube | Obsolete | SPST | 10 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -55°C ~ 105°C |
|
435668-4SWITCH ROCKER DIP SPST 0.06A 5V |
0 |
|
Ficha técnica |
7100 | Tube | Obsolete | SPST | 5 | 60mA | 5VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
3-435668-5SWITCH ROCKER DIP SPST |
0 |
|
Ficha técnica |
7100 | Tube | Obsolete | SPST | 5 | - | - | Rocker | Flush, Recessed | - | - | - | Through Hole | - | - | Yes | - | - |
|

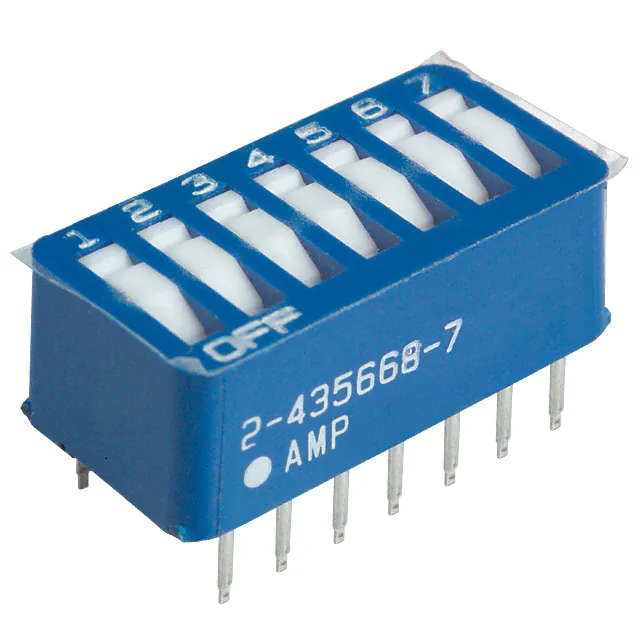

2-435668-7SWITCH ROCKER DIP SPST 0.06A 5V |
0 |
|
Ficha técnica |
7100 | Tube | Obsolete | SPST | 7 | 60mA | 5VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|
1-435802-8SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Ficha técnica |
7000 | Tube | Obsolete | SPST | 7 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|
1-435802-9SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Ficha técnica |
7000 | Tube | Obsolete | SPST | 9 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|
76SB02SSWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
Ficha técnica |
76 | Bag | Obsolete | SPST | 2 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
76SB03SSWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
Ficha técnica |
76 | Bag | Obsolete | SPST | 3 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
76SB04SSWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
Ficha técnica |
76 | Bag | Obsolete | SPST | 4 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

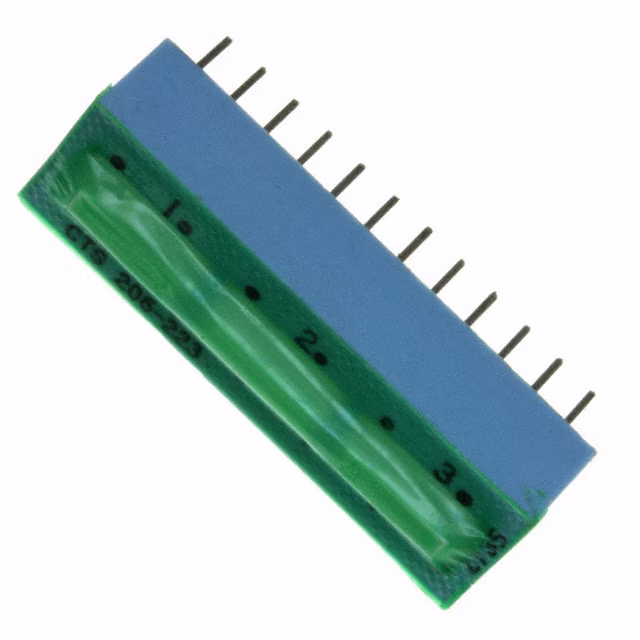

206-223STSWITCH SLIDE DIP DPDT 0.05A 24V |
0 |
|
Ficha técnica |
206 | Tube | Obsolete | DPDT | 3 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
76SB05SSWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
Ficha técnica |
76 | Bag | Obsolete | SPST | 5 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
76SB06SSWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
Ficha técnica |
76 | Bag | Obsolete | SPST | 6 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
76SB08SSWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
Ficha técnica |
76 | Bag | Obsolete | SPST | 8 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
76SB09SSWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
Ficha técnica |
76 | Bag | Obsolete | SPST | 9 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
76SB10SSWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
Ficha técnica |
76 | Bag | Obsolete | SPST | 10 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
76SB12SSWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
Ficha técnica |
76 | Bag | Obsolete | SPST | 12 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
76SB02SWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
Ficha técnica |
76 | Bag | Obsolete | SPST | 2 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
76SB03SWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
Ficha técnica |
76 | Bag | Obsolete | SPST | 3 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
76SB04SWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
Ficha técnica |
76 | Bag | Obsolete | SPST | 4 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
