Interruptores DIP
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Circuito | Número de posições | Classificação de Corrente (Amps) | Classificação de Tensão | Tipo de Atuador | Nível do Atuador | Material de Contato | Acabamento de Contato | Altura Acima da Placa | Tipo de montagem | Estilo de Terminação | Passo | Lavável | Recursos | Temperatura operacional |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
78B08SWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
Ficha técnica |
78 | Bag | Obsolete | SPST | 8 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
78B09SWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
Ficha técnica |
78 | Bag | Obsolete | SPST | 9 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
78B10SWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
Ficha técnica |
78 | Bag | Obsolete | SPST | 10 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
78B12SWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
Ficha técnica |
78 | Bag | Obsolete | SPST | 12 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
78RB02SSWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
Ficha técnica |
78 | Bag | Obsolete | SPST | 2 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

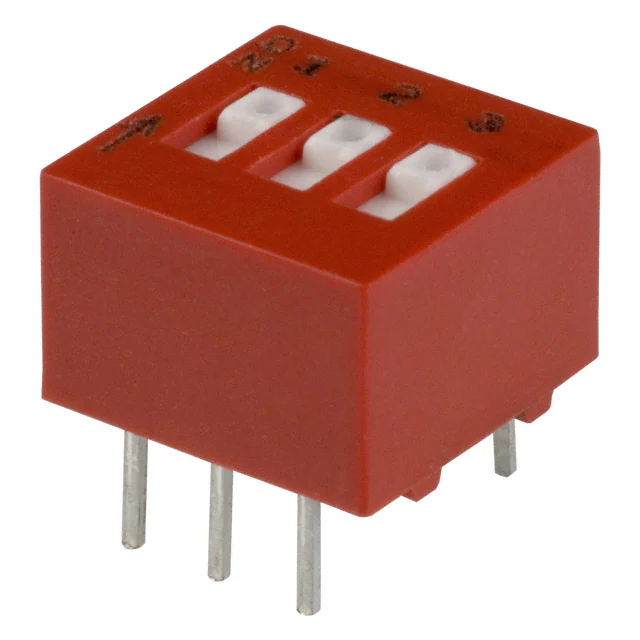

78RB03SSWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
Ficha técnica |
78 | Bag | Obsolete | SPST | 3 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

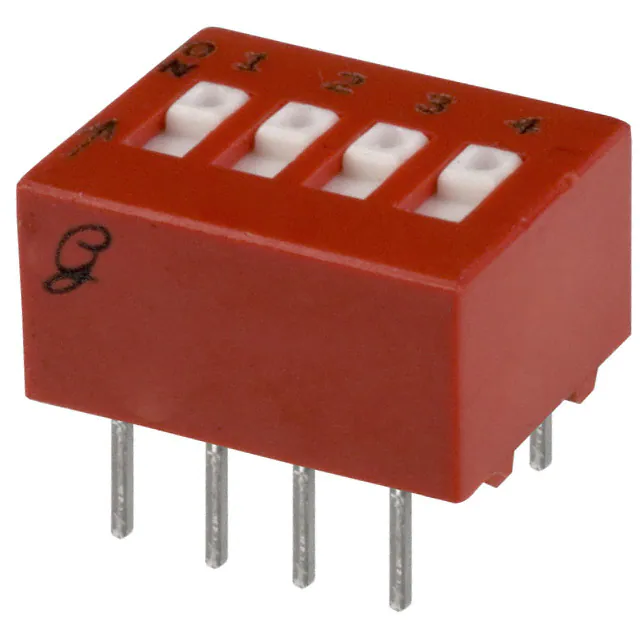

78RB04SSWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
Ficha técnica |
78 | Bag | Obsolete | SPST | 4 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

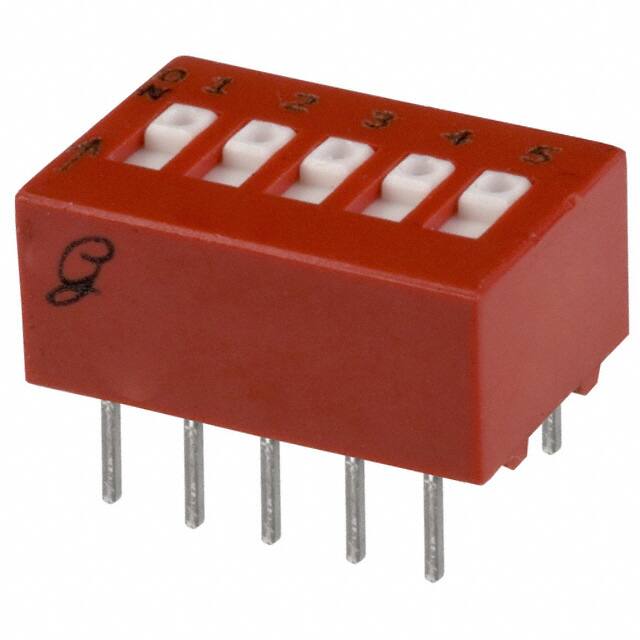

78RB05SSWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
Ficha técnica |
78 | Bag | Obsolete | SPST | 5 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
78RB06SSWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
Ficha técnica |
78 | Bag | Obsolete | SPST | 6 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

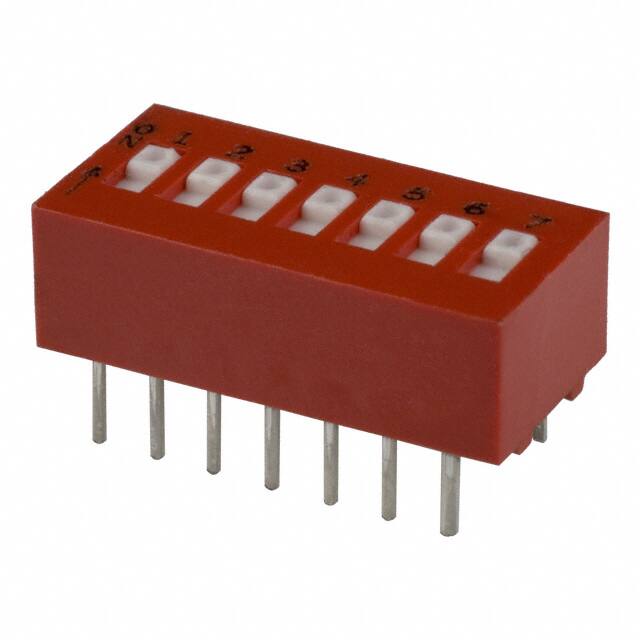

78RB07SSWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
Ficha técnica |
78 | Bag | Obsolete | SPST | 7 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
78RB08SSWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
Ficha técnica |
78 | Bag | Obsolete | SPST | 8 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
78RB09SSWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
Ficha técnica |
78 | Tube | Obsolete | SPST | 9 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
78RB10SSWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
Ficha técnica |
78 | Bag | Obsolete | SPST | 10 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
78RB02SWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
Ficha técnica |
78 | Bag | Obsolete | SPST | 2 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
78RB03SWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
Ficha técnica |
78 | Bag | Obsolete | SPST | 3 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
78RB04SWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
Ficha técnica |
78 | Bag | Obsolete | SPST | 4 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
78RB05SWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
Ficha técnica |
78 | Bag | Obsolete | SPST | 5 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
78RB06SWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
Ficha técnica |
78 | Bag | Obsolete | SPST | 6 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
78RB07SWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
Ficha técnica |
78 | Bag | Obsolete | SPST | 7 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
78RB08SWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
Ficha técnica |
78 | Bag | Obsolete | SPST | 8 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
