Núcleos de ferrite
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de núcleo | Pacote do dispositivo do fornecedor | Material | Diâmetro | Fator de Indutância (Al) | Tolerância | Lacuna | Permeabilidade Efetiva (µe) | Permeabilidade Inicial (µi) | Fator do Núcleo (ΣI/A) mm⁻¹ | Comprimento Efetivo (le) mm | Área Efetiva (Ae) mm² | Seção Transversal Mínima do Núcleo (Amin) mm² | Volume Magnético Efetivo (Ve) mm³ | Acabamento | Altura | Comprimento | Largura |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PLT32/20/3.2/R-3C95FERRITE CORE PLT 3C95 |
0 |
|
Ficha técnica |
- | Bulk | Active | PLT | PLT 32 x 20 x 3.2 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.125" (3.18mm) | 1.250" (31.75mm) | 0.800" (20.32mm) |
|
EQ25/LP-3C95FERRITE CORE EQ 3C95 |
9 |
|
Ficha técnica |
- | Bulk | Active | EQ | EQ 25 x LP | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.220" (5.60mm) | 0.984" (25.00mm) | 0.709" (18.00mm) |
|
B66361G0000X197FERRITE CORE ETD N97 |
0 |
|
Ficha técnica |
ETD34/17/11 | Bulk | Active | ETD | ETD 34/17/11 | N97 | - | - | -20%, +30% | Ungapped | 1710.0 | - | 0.81 | 78.6 | 97.1 | 91.6 | 7630.0 | Uncoated | 0.689" (17.50mm) | 1.339" (34.00mm) | 0.437" (11.10mm) |
|
5943001201FERRITE CORE TOROID 43 |
0 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | 43 | 1.142" (29.00mm) | - | ±20% | Ungapped | - | 800 | - | 73.0 | 68.0 | - | 5000.0 | Uncoated | 0.545" (13.84mm) | - | - |
|
B65531D0250A048FERRITE CORE P 250NH N48 2PCS |
0 |
|
Ficha técnica |
P11/7 | Box | Active | P (Pot Core) | P 11 x 7 | N48 | 0.445" (11.30mm) | 250 nH | ±3% | Gapped | 199.0 | - | 1.0 | 15.9 | 15.9 | - | 253.0 | Uncoated | 0.130" (3.30mm) | - | - |
|
B66363G0500X187FERRITE CORE ETD N87 1PC |
0 |
|
Ficha técnica |
ETD39/20/13 | Box | Active | ETD | ETD 39 x 20 x 13 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.787" (20.00mm) | 1.531" (38.90mm) | 0.504" (12.80mm) |
|

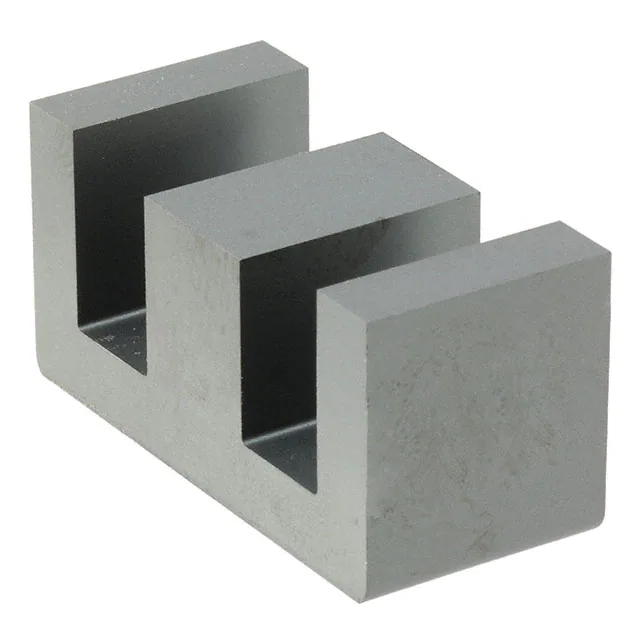

B66329G1500X127FERRITE CORE E N27 1PC |
0 |
|
Ficha técnica |
E42/21/20 | Box | Active | E | E 42 x 21 x 20 | N27 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.835" (21.20mm) | 1.654" (42.00mm) | 0.787" (20.00mm) |
|
E38/8/25-3C95FERRITE CORE E 3C95 |
0 |
|
Ficha técnica |
- | Bulk | Active | E | E 38 x 8 x 25 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.325" (8.26mm) | 1.500" (38.10mm) | 1.000" (25.40mm) |
|
C055120A2FERRITE CORE TOROID 72NH MPP |
0 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | MPP | 0.653" (16.59mm) | 72 nH | ±8% | Ungapped | - | 125 | - | 41.2 | 19.2 | - | 791.0 | Coated | 0.250" (6.35mm) | - | - |
|

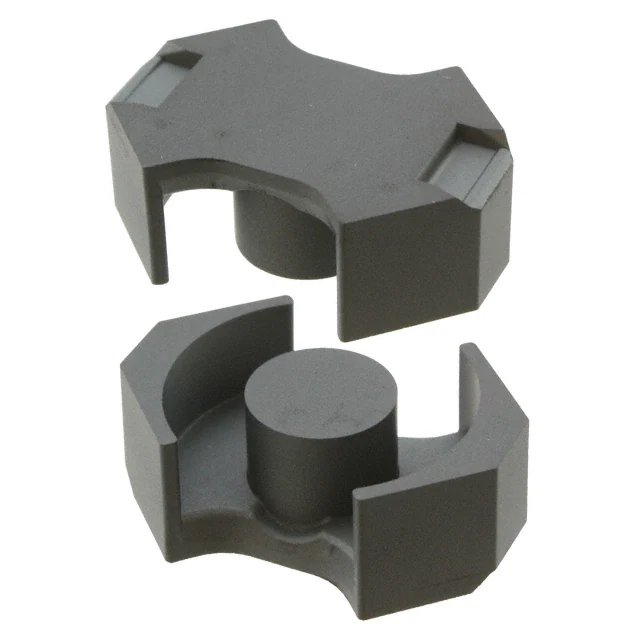

B65811J0000R049FERRITE CORE RM 2.2UH N49 2PCS |
0 |
|
Ficha técnica |
RM8 | Box | Active | RM | RM 8 | N49 | - | 2.2 µH | -20%, +30% | Ungapped | 1040.0 | 1500 | 0.59 | 38.0 | 64.0 | 55.0 | 2430.0 | Uncoated | 0.324" (8.25mm) | 0.913" (23.20mm) | 0.433" (11.00mm) |
|
B64290L0616X830FERRITE CORE TOROID 9.16UH N30 |
0 |
|
Ficha técnica |
TX25.3/14.8/20 | Box | Active | Toroid | - | N30 | 1.047" (26.60mm) | 9.16 µH | ±25% | Ungapped | - | 4300 | 0.59 | 60.07 | 102.5 | - | 6157.0 | Epoxy | 0.839" (21.30mm) | - | - |
|
B65651D0000R048FERRITE CORE P 2.8UH N48 2PCS |
0 |
|
Ficha técnica |
P18/11 | Box | Active | P (Pot Core) | P 18 x 11 | N48 | 0.724" (18.40mm) | 2.8 µH | -20%, +30% | Ungapped | 1340.0 | - | 0.6 | 25.9 | 43.0 | - | 1114.0 | Uncoated | 0.209" (5.30mm) | - | - |
|
B66365G0200X187FERRITE CORE ETD N87 1PC |
0 |
|
Ficha técnica |
ETD44/22/15 | Box | Active | ETD | ETD 44 x 22 x 15 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.886" (22.50mm) | 1.724" (43.80mm) | 0.598" (15.20mm) |
|
PQ32/20-3C95FERRITE CORE PQ 3C95 2PC SET |
0 |
|
Ficha técnica |
- | Bulk | Active | PQ | PQ 32 x 20 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.811" (20.60mm) | 1.299" (33.00mm) | 0.866" (22.00mm) |
|
B66367G2000X187FERRITE CORE ETD N87 1PC |
0 |
|
Ficha técnica |
ETD49/25/16 | Box | Active | ETD | ETD 49 x 25 x 16 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.980" (24.90mm) | 1.909" (48.50mm) | 0.657" (16.70mm) |
|
B65877A0000R097FERRITE CORE PQ 4.65UH N97 2PCS |
18 |
|
Ficha técnica |
PQ26/25 | Box | Active | PQ | PQ 26 x 25 | N97 | - | 4.65 µH | -20%, +30% | Ungapped | 1620.0 | 2300 | 0.44 | 53.6 | 122.0 | 108.7 | 6530.0 | Uncoated | 0.487" (12.38mm) | 1.043" (26.50mm) | 0.748" (19.00mm) |
|
B66344G0000X187FERRITE CORE E N87 1PC |
8 |
|
Ficha técnica |
E55/28/25 | Box | Active | E | E 55 x 28 x 25 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 1.094" (27.80mm) | 2.165" (55.00mm) | 0.984" (25.00mm) |
|
PQ40/40-3F36FERRITE CORE PQ 3F36 2PC SET |
0 |
|
Ficha técnica |
- | Bulk | Active | PQ | PQ 40 x 40 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.567" (39.80mm) | 1.634" (41.50mm) | 1.102" (28.00mm) |
|
|
PQ40/30-3C95FERRITE CORE PQ 3C95 2PC SET |
22 |
|
Ficha técnica |
- | Bulk | Active | PQ | PQ 40 x 30 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.181" (30.00mm) | 1.634" (41.50mm) | 1.102" (28.00mm) |
|
ETD59/31/22-3C97FERRITE CORE ETD 3C97 |
0 |
|
Ficha técnica |
- | Bulk | Active | ETD | ETD 59 x 31 x 22 | 3C97 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.220" (31.00mm) | 2.354" (59.80mm) | 0.852" (21.65mm) |
