Núcleos de ferrite
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de núcleo | Pacote do dispositivo do fornecedor | Material | Diâmetro | Fator de Indutância (Al) | Tolerância | Lacuna | Permeabilidade Efetiva (µe) | Permeabilidade Inicial (µi) | Fator do Núcleo (ΣI/A) mm⁻¹ | Comprimento Efetivo (le) mm | Área Efetiva (Ae) mm² | Seção Transversal Mínima do Núcleo (Amin) mm² | Volume Magnético Efetivo (Ve) mm³ | Acabamento | Altura | Comprimento | Largura |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMC040032015HNANOCRYSTAL CORE TOROID 47.2UH |
0 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | Nanocrystalline | 1.575" (40.00mm) | 47.2 µH | ±30% | Ungapped | - | 80000 | - | 113.0 | 50.0 | - | - | Polyester | 0.591" (15.00mm) | - | - |
|
B65883A0000R049FERRITE CORE PQ 3.2UH N49 2PCS |
0 |
|
Ficha técnica |
PQ40/40 | Box | Active | PQ | PQ 40 x 40 | N49 | - | 3.2 µH | -20%, +30% | Ungapped | 2145.0 | 1500 | 0.49 | 92.5 | 188.3 | 159.9 | 17430.0 | Uncoated | 0.783" (19.90mm) | 1.594" (40.50mm) | 1.102" (28.00mm) |
|

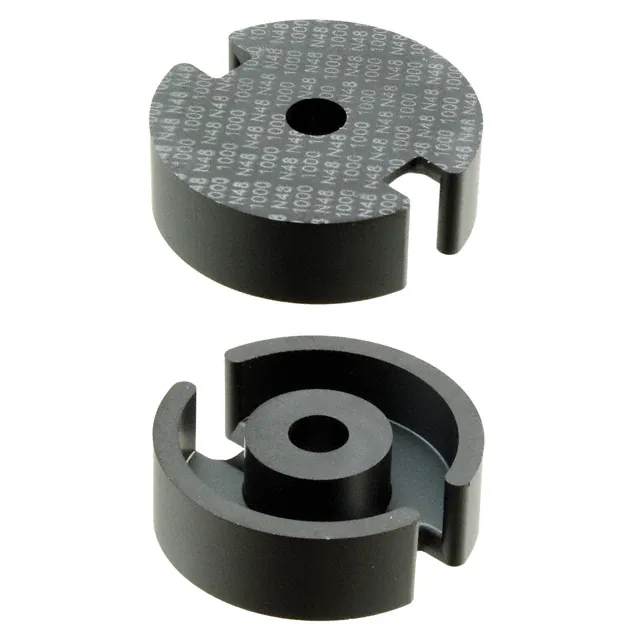

B65701T1000A048FERRITE CORE P 1UH N48 2PCS |
0 |
|
Ficha técnica |
P30/19 | Box | Active | P (Pot Core) | P 30 x 19 | N48 | 1.200" (30.50mm) | 1 µH | ±3% | Gapped | 263.0 | - | 0.33 | 45.0 | 136.0 | - | 6120.0 | Uncoated | 0.374" (9.50mm) | - | - |
|
B66297K0000X187FERRITE CORE I N87 |
1 |
|
Ficha técnica |
I102/7/38 | Bulk | Active | I | I 102 x 20 x 38 | N87 | - | - | ±25% | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.275" (7.00mm) | 4.016" (102.00mm) | 1.476" (37.50mm) |
|
P36/22-3F46FERRITE CORE P 3F46 2PC SET |
4 |
|
Ficha técnica |
- | Bulk | Active | P (Pot Core) | P 36 x 22 | 3F46 | 1.425" (36.20mm) | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.854" (21.70mm) | - | - |
|
5961003821FERRITE CORE TOROID 170NH 61 |
0 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | 61 | 2.472" (62.80mm) | 170 nH | ±25% | Ungapped | - | 125 | 0.91627 | 145.0 | 158.0 | - | 22800.0 | Plastic | 0.539" (13.70mm) | - | - |
|
|
B66297GX197FERRITE CORE |
0 |
|
Ficha técnica |
B66297G | Bulk | Active | E | ELP 102 x 20 x 38 | N97 | - | 8.5 µH | ±25% | Ungapped | 1855.0 | - | 0.274 | 147.6 | 538.0 | 524.5 | 79410.0 | - | 0.799" (20.30mm) | 4.016" (102.00mm) | 1.476" (37.50mm) |
|
B65981Q0250K095FERRITE CORE PQ 250NH N95 |
0 |
|
Ficha técnica |
PQ50/50 | Bulk | Active | PQ | PQ 50 x 50 | N95 | - | 250 nH | ±10% | Distributed Gapped | - | 3000 | 0.342 | 113.0 | 332.0 | 314.0 | 37630.0 | Uncoated | 0.984" (25.00mm) | 1.969" (50.00mm) | 1.260" (32.00mm) |
|
I93/28/30-3C94FERRITE CORE I 3C94 |
0 |
|
Ficha técnica |
- | Bulk | Active | I | I 93 x 28 x 30 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.083" (27.50mm) | 3.661" (93.00mm) | 1.181" (30.00mm) |
|
U93/76/16-3C94FERRITE CORE U 3C94 |
0 |
|
Ficha técnica |
- | Bulk | Active | U | U 93 x 76 x 16 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 2.992" (76.00mm) | 3.661" (93.00mm) | 0.630" (16.00mm) |
|
U100/57/25-3C90FERRITE CORE U |
0 |
|
Ficha técnica |
- | Bulk | Active | U | U 100 x 57 x 25 | - | - | - | - | - | - | - | - | - | - | - | - | Uncoated | - | - | 0.984" (25.00mm) |
|
|
B65982Q0400K095FERRITE CORE PQ 400NH N95 |
2 |
|
Ficha técnica |
PQ65/60 | Bulk | Active | PQ | PQ 65 x 60 | N95 | - | 400 nH | ±10% | Distributed Gapped | - | 3000 | 0.228 | 137.0 | 171.0 | 531.0 | 81950.0 | Uncoated | 1.181" (30.00mm) | 2.559" (65.00mm) | 1.772" (45.00mm) |
|
|
0079737A7FERRITE CORE TOROID 204NH KOOLMU |
0 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | Kool Mu MAX | 2.961" (75.21mm) | 204 nH | ±8% | Ungapped | - | 60 | - | 184.0 | 497.0 | - | 91400.0 | Coated | 1.414" (35.92mm) | - | - |
|
PC95PQ65/44-ZFERRITE CORE PQ 15.5UH PCS95 2PC |
1 |
|
Ficha técnica |
Large PQ | Tray | Active | PQ | PQ 65 x 44 | PC95 | - | 15.5 µH | ±25% | Ungapped | - | - | 0.17 | 103.0 | 604.0 | - | 62460.0 | Uncoated | 1.713" (43.50mm) | 2.559" (65.00mm) | 1.772" (45.00mm) |
|
|
PC95PQ65/54-ZFERRITE CORE PQ 13.5UH PCS95 2PC |
0 |
|
Ficha técnica |
Large PQ | Tray | Active | PQ | PQ 65 x 54 | PC95 | - | 13.5 µH | ±25% | Ungapped | - | - | 0.21 | 123.0 | 597.0 | - | 73552.0 | Uncoated | 2.106" (53.50mm) | 2.559" (65.00mm) | 1.772" (45.00mm) |
|
|
0078337A7FERRITE CORE TOROID 68NH XFLUX |
4 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | XFlux | 5.219" (132.56mm) | 68 nH | ±8% | Ungapped | - | 26 | - | 324.0 | 678.0 | - | 220000.0 | Coated | 1.000" (25.40mm) | - | - |
|
|
0058740A2FERRITE CORE TOROID 425NH HI FLX |
1 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | High Flux | 2.961" (75.21mm) | 425 nH | ±8% | Ungapped | - | 125 | - | 184.0 | 497.0 | - | 91400.0 | Coated | 1.414" (35.92mm) | - | - |
|
3078990841FERRITE CORE TUBE 78 |
16 |
|
Ficha técnica |
- | Bulk | Active | Rod | - | 78 | - | - | - | Ungapped | 48.0 | 2300 | - | - | 1.77 | - | - | Uncoated | - | - | - |
|
4077296011FERRITE CORE ROD 77 |
0 |
|
Ficha técnica |
- | Bulk | Active | ROD | - | 77 | 0.250" (6.35mm) | - | - | Ungapped | - | 2000 | - | - | - | - | - | Uncoated | - | 1.250" (31.75mm) | - |
|
B66358G0500X127FERRITE CORE ETD N27 1PC |
0 |
|
Ficha técnica |
ETD29/16/10 | Box | Active | ETD | ETD 29 x 16 x 10 | N27 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.630" (16.00mm) | 1.205" (30.60mm) | 0.386" (9.80mm) |
