Núcleos de ferrite
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de núcleo | Pacote do dispositivo do fornecedor | Material | Diâmetro | Fator de Indutância (Al) | Tolerância | Lacuna | Permeabilidade Efetiva (µe) | Permeabilidade Inicial (µi) | Fator do Núcleo (ΣI/A) mm⁻¹ | Comprimento Efetivo (le) mm | Área Efetiva (Ae) mm² | Seção Transversal Mínima do Núcleo (Amin) mm² | Volume Magnético Efetivo (Ve) mm³ | Acabamento | Altura | Comprimento | Largura |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B65807J0000R035FERRITE CORE RM 6.2UH T35 2PCS |
2,318 |
|
Ficha técnica |
RM6 | Box | Active | RM | RM 6 | T35 | - | 6.2 µH | -20%, +30% | Ungapped | 3860.0 | 6000 | 0.78 | 28.6 | 36.6 | 31.0 | 1050.0 | Uncoated | 0.246" (6.25mm) | 0.701" (17.90mm) | 0.323" (8.20mm) |
|
5976022121FERRITE CORE TOROID 12.8UH 76 |
939 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | 76 | 1.185" (30.10mm) | 12.8 µH | ±30% | Ungapped | - | 10000 | 0.978 | 73.2 | 74.9 | - | 5480.0 | Plastic | 0.630" (16.00mm) | - | - |
|
FR44310ECE-CORE - FLAT BACKS |
341 |
|
Ficha técnica |
- | Bulk | Active | Planar E/I | - | R | - | 8.266 µH | - | Ungapped | - | 2300 | - | 61.1 | 229.0 | 229.0 | 18900.0 | Uncoated | 0.374" (9.50mm) | 1.701" (43.20mm) | 1.098" (27.90mm) |
|
PLT38/25/2.7-3C95FERRITE CORE PLT 3C95 |
880 |
|
Ficha técnica |
- | Bulk | Active | PLT | PLT 38 x 25 x 2.7 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.106" (2.70mm) | 1.500" (38.10mm) | 1.000" (25.40mm) |
|
B65805N0160A048FERRITE CORE RM 160NH N48 2PCS |
2,321 |
|
Ficha técnica |
RM5 | Box | Active | RM | RM 5 | N48 | - | 160 nH | ±3% | Gapped | 127.0 | - | 1.0 | 20.8 | 20.8 | - | 433.0 | Uncoated | 0.207" (5.25mm) | 0.575" (14.60mm) | 0.268" (6.80mm) |
|

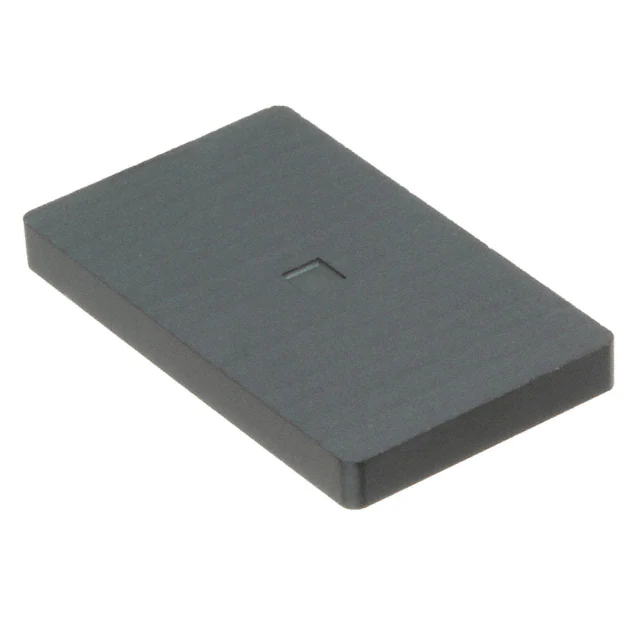

B66484K0000X149FERRITE CORE I N49 1PC |
126 |
|
Ficha técnica |
I25/3/15 | Box | Active | I | I 25 x 3 x 15 | N49 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.098" (2.50mm) | 0.984" (25.00mm) | 0.583" (14.80mm) |
|

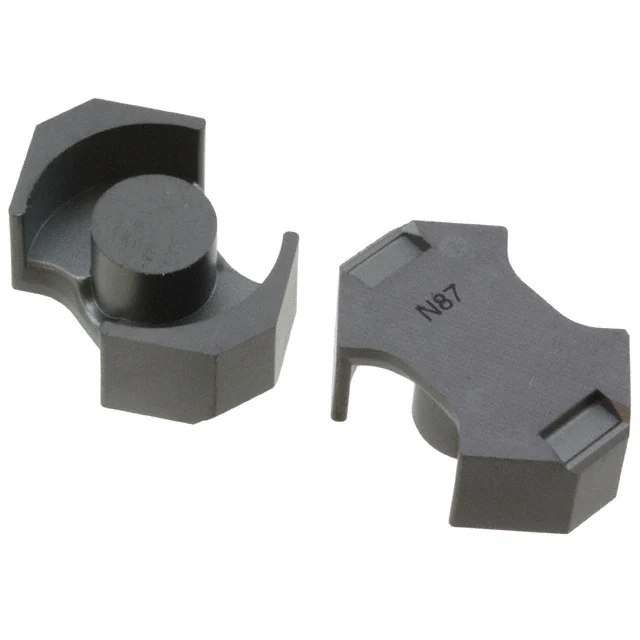

B65811J0000R087FERRITE CORE RM 3.3UH N87 2PCS |
488 |
|
Ficha técnica |
RM8 | Box | Active | RM | RM 8 | N87 | - | 3.3 µH | -20%, +30% | Ungapped | 1560.0 | 2200 | 0.59 | 38.0 | 64.0 | 55.0 | 2430.0 | Uncoated | 0.324" (8.25mm) | 0.913" (23.20mm) | 0.433" (11.00mm) |
|
|
2861014302FERRITE CORE 2 HOLE 300NH 61 |
1,013 |
|
Ficha técnica |
- | Box | Active | Multi-Hole (2) | - | 61 | - | 300 nH | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.500" (12.70mm) | 0.787" (20.00mm) | 0.386" (9.80mm) |
|
|
0077071A7FERRITE CORE TOROID 61NH KOOL MU |
717 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | Kool Mu | 1.291" (32.80mm) | 61 nH | ±8% | Ungapped | - | 60 | - | 81.4 | 65.6 | - | 5340.0 | Coated | 0.420" (10.67mm) | - | - |
|
|
0077553A7FERRITE CORE TOROID 76NH KOOL MU |
584 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | Kool Mu | 1.325" (33.66mm) | 76 nH | ±8% | Ungapped | - | 75 | - | 81.4 | 65.6 | - | 5340.0 | Coated | 0.450" (11.45mm) | - | - |
|
|
B65807J0000R030FERRITE CORE RM 4.3UH N30 2PCS |
801 |
|
Ficha técnica |
RM6 | Box | Active | RM | RM 6 | N30 | - | 4.3 µH | -20%, +30% | Ungapped | 2670.0 | 4300 | 0.78 | 28.6 | 36.6 | 31.0 | 1050.0 | Uncoated | 0.246" (6.25mm) | 0.701" (17.90mm) | 0.323" (8.20mm) |
|
|
0077548A7FERRITE CORE TOROID 127NH KOOLMU |
578 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | Kool Mu | 1.325" (33.66mm) | 127 nH | ±8% | Ungapped | - | 125 | - | 81.4 | 65.6 | - | 5340.0 | Coated | 0.450" (11.45mm) | - | - |
|
ER32/6/25-3C92FERRITE CORE ER 3C92 |
810 |
|
Ficha técnica |
- | Bulk | Active | ER | ER 32 x 6 x 25 | 3C92 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.236" (6.00mm) | 1.264" (32.10mm) | 1.000" (25.40mm) |
|
|
0076894A7FERRITE CORE TOROID 75NH KOOL MU |
423 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | Kool Mu HF | 1.090" (27.69mm) | 75 nH | ±8% | Ungapped | - | 60 | - | 63.5 | 65.4 | - | 4150.0 | Coated | 0.470" (11.94mm) | - | - |
|
|
266180180261 ROUND SUPPRESSION CORE |
1,751 |
|
Ficha técnica |
- | Tray | Active | Toroid | - | 61 | 0.854" (21.70mm) | - | - | Ungapped | - | - | - | 54.2 | 26.1 | - | 1415.0 | Uncoated | 0.240" (6.10mm) | - | - |
|
|
C058120A2FERRITE CORE TOROID 72NH HIGH FL |
2,005 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | High Flux | 0.680" (17.27mm) | 72 nH | ±8% | Ungapped | - | 125 | - | 41.2 | 19.2 | - | 791.0 | Coated | 0.280" (7.11mm) | - | - |
|
B65811J0400A087FERRITE CORE RM 400NH N87 2PCS |
639 |
|
Ficha técnica |
RM8 | Box | Active | RM | RM 8 | N87 | - | 400 nH | ±3% | Gapped | 189.0 | 2200 | 0.59 | 38.0 | 64.0 | 55.0 | 2430.0 | Uncoated | 0.324" (8.25mm) | 0.913" (23.20mm) | 0.433" (11.00mm) |
|
E42/21/20-3C94FERRITE CORE E 3C94 |
344 |
|
Ficha técnica |
- | Bulk | Active | E | E 42 x 21 x 20 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.827" (21.00mm) | 1.693" (43.00mm) | 0.787" (20.00mm) |
|
B66363G0000X197FERRITE CORE ETD N97 1PC |
352 |
|
Ficha técnica |
ETD39/20/13 | Box | Active | ETD | ETD 39 x 20 x 13 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.787" (20.00mm) | 1.531" (38.90mm) | 0.504" (12.80mm) |
|
B65541T0160G048FERRITE CORE P 160NH N48 2PCS |
1,231 |
|
Ficha técnica |
P14/8 | Box | Active | P (Pot Core) | P 14 x 8 | N48 | 0.563" (14.30mm) | 160 nH | ±3% | Gapped | 102.0 | - | 0.8 | 20.0 | 25.0 | 20.0 | 500.0 | Uncoated | 0.167" (4.25mm) | - | - |
