Núcleos de ferrite
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de núcleo | Pacote do dispositivo do fornecedor | Material | Diâmetro | Fator de Indutância (Al) | Tolerância | Lacuna | Permeabilidade Efetiva (µe) | Permeabilidade Inicial (µi) | Fator do Núcleo (ΣI/A) mm⁻¹ | Comprimento Efetivo (le) mm | Área Efetiva (Ae) mm² | Seção Transversal Mínima do Núcleo (Amin) mm² | Volume Magnético Efetivo (Ve) mm³ | Acabamento | Altura | Comprimento | Largura |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ETD44/22/15-3C97FERRITE CORE ETD 3C97 |
1,056 |
|
Ficha técnica |
- | Bulk | Active | ETD | ETD 44 x 22 x 15 | 3C97 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.878" (22.30mm) | 1.772" (45.00mm) | 0.598" (15.20mm) |
|
|
ETD49/25/16-3C94FERRITE CORE ETD 3C94 |
619 |
|
Ficha técnica |
- | Bulk | Active | ETD | ETD 49 x 25 x 16 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.972" (24.70mm) | 1.961" (49.80mm) | 0.657" (16.70mm) |
|
EQ38/8/25-3C95FERRITE CORE EQ 3C95 |
486 |
|
Ficha técnica |
- | Bulk | Active | EQ | EQ 38 x 8 x 25 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.315" (8.00mm) | 1.500" (38.10mm) | 1.000" (25.40mm) |
|
0059380A2FERRITE CORE TOROID 89NH EDGE |
1,611 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | Edge | 0.680" (17.27mm) | 89 nH | ±8% | Ungapped | - | 125 | - | 41.4 | 23.2 | - | 960.0 | Coated | 0.250" (6.35mm) | - | - |
|
PLT38/25/3.8-3F36FERRITE CORE PLT 3F36 |
1,100 |
|
Ficha técnica |
- | Bulk | Active | PLT | PLT 38 x 25 x 3.8 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.150" (3.81mm) | 1.500" (38.10mm) | 1.000" (25.40mm) |
|
|
CMC020012008HNANOCRYSTAL CORE TOROID 61.5UH |
214 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | Nanocrystalline | 0.787" (20.00mm) | 61.5 µH | ±30% | Ungapped | - | 80000 | - | 50.2 | 26.9 | - | - | Polyester | 0.315" (8.00mm) | - | - |
|

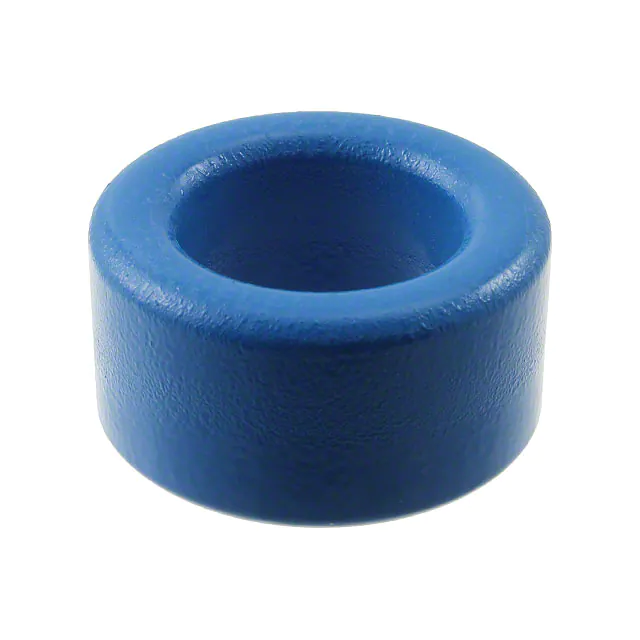

B64290L0647X087FERRITE CORE TOROID 2.88UH N87 |
1,295 |
|
Ficha técnica |
TX29/19/15 | Box | Active | Toroid | - | N87 | 1.220" (31.00mm) | 2.88 µH | ±25% | Ungapped | - | 2200 | 0.96 | 73.78 | 76.98 | - | 5680.0 | Epoxy | 0.634" (16.10mm) | - | - |
|

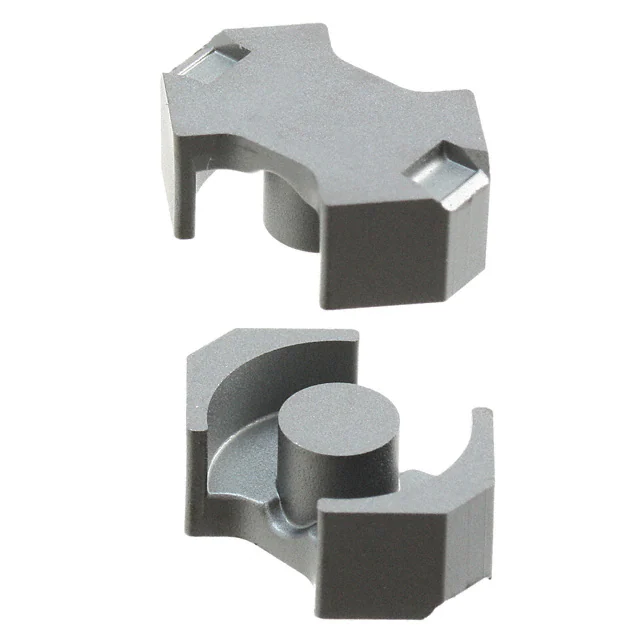

B65805J0000R049FERRITE CORE RM 1.3UH N49 2PCS |
1,039 |
|
Ficha técnica |
RM5 | Box | Active | RM | RM 5 | N49 | - | 1.3 µH | -20%, +30% | Ungapped | 960.0 | 1500 | 0.93 | 22.1 | 23.8 | 18.0 | 526.0 | Uncoated | 0.207" (5.25mm) | 0.575" (14.60mm) | 0.268" (6.80mm) |
|

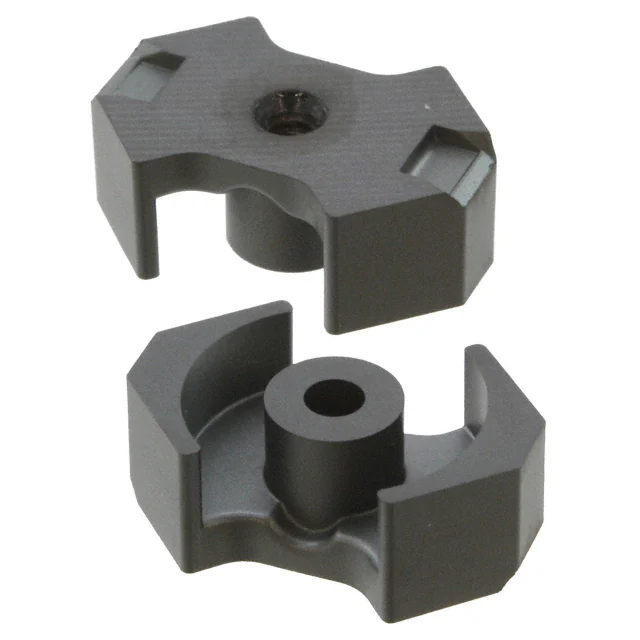

B65805N0315A048FERRITE CORE RM 315NH N48 2PCS |
1,698 |
|
Ficha técnica |
RM5 | Box | Active | RM | RM 5 | N48 | - | 315 nH | ±3% | Gapped | 251.0 | - | 1.0 | 20.8 | 20.8 | - | 433.0 | Uncoated | 0.207" (5.25mm) | 0.575" (14.60mm) | 0.268" (6.80mm) |
|
3061990911FERRITE CORE ROD 61 |
1,442 |
|
Ficha técnica |
- | Bulk | Active | ROD | - | 61 | 0.315" (8.00mm) | - | - | Ungapped | 18.0 | 125 | - | - | 50.3 | - | - | Uncoated | - | 1.772" (45.00mm) | - |
|
B66287G0000X149FERRITE CORE ELP N49 1PC |
1,287 |
|
Ficha técnica |
ELP32/6/20 | Box | Active | ELP | ELP 32 x 6 x 20 | N49 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.250" (6.35mm) | 1.250" (31.75mm) | 0.801" (20.35mm) |
|
B65807J0000Y038FERRITE CORE RM 8.6UH T38 2PCS |
3,385 |
|
Ficha técnica |
RM6 | Box | Active | RM | RM 6 | T38 | - | 8.6 µH | -30%, +40% | Ungapped | 5350.0 | 2300 | 0.78 | 28.6 | 36.6 | 31.0 | 1050.0 | Uncoated | 0.246" (6.25mm) | 0.701" (17.90mm) | 0.323" (8.20mm) |
|
B65811J0000R097FERRITE CORE RM 3.3UH N97 2PCS |
830 |
|
Ficha técnica |
RM8 | Box | Active | RM | RM 8 | N97 | - | 3.3 µH | -20%, +30% | Ungapped | 1560.0 | 2300 | 0.59 | 38.0 | 64.0 | 55.0 | 2430.0 | Uncoated | 0.324" (8.25mm) | 0.913" (23.20mm) | 0.433" (11.00mm) |
|
B65803N0160A048FERRITE CORE RM 160NH N48 2PCS |
1,805 |
|
Ficha técnica |
RM4 | Box | Active | RM | RM 4 | N48 | - | 160 nH | ±3% | Gapped | 243.0 | - | 1.9 | 21.0 | 11.0 | - | 231.0 | Uncoated | 0.207" (5.25mm) | 0.433" (11.00mm) | 0.181" (4.60mm) |
|
T60006L2020W409FERRITE CORE TOROID 57UH |
14,712 |
|
Ficha técnica |
- | Box | Active | Toroid | - | - | 0.890" (22.60mm) | 57 µH | - | Ungapped | - | - | - | 5110.0 | 240.0 | - | - | Coated | 0.402" (10.20mm) | - | - |
|
B65875A0000R087FERRITE CORE PQ 2.65UH N87 2PCS |
558 |
|
Ficha técnica |
PQ20/20 | Box | Active | PQ | PQ 20 x 20 | N87 | - | 2.65 µH | -20%, +30% | Ungapped | 1515.0 | 2200 | 0.718 | 45.2 | 62.9 | 54.4 | 2843.0 | Uncoated | 0.398" (10.10mm) | 0.807" (20.50mm) | 0.551" (14.00mm) |
|
B65541W0000Y038FERRITE CORE P 9.8UH T38 2PCS |
1,612 |
|
Ficha técnica |
P14/8 | Box | Active | P (Pot Core) | P 14 x 8 | T38 | 0.563" (14.30mm) | 9.8 µH | -30%, +40% | Ungapped | 5710.0 | 10000 | 0.73 | 21.0 | 28.7 | 23.6 | 603.0 | Uncoated | 0.167" (4.25mm) | - | - |
|
B66287K0000X187FERRITE CORE I N87 |
3,536 |
|
Ficha técnica |
I32/3/20 | Tray | Active | I | I 32 x 3 x 20 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.124" (3.15mm) | 1.250" (31.75mm) | 0.801" (20.35mm) |
|

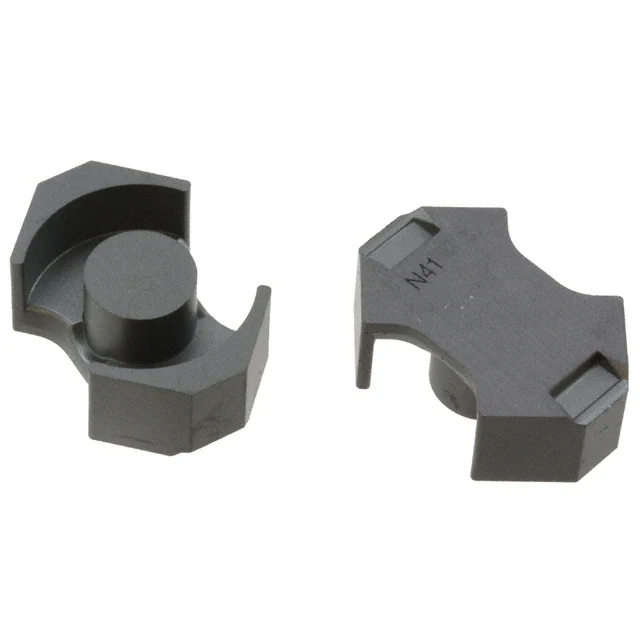

B65811J0000R041FERRITE CORE RM 4.1UH N41 2PCS |
846 |
|
Ficha técnica |
RM8 | Box | Active | RM | RM 8 | N41 | - | 4.1 µH | -20%, +30% | Ungapped | 1940.0 | 2800 | 0.59 | 38.0 | 64.0 | 55.0 | 2430.0 | Uncoated | 0.324" (8.25mm) | 0.913" (23.20mm) | 0.433" (11.00mm) |
|
B65541T0315A048FERRITE CORE P 315NH N48 2PCS |
1,096 |
|
Ficha técnica |
P14/8 | Box | Active | P (Pot Core) | P 14 x 8 | N48 | 0.563" (14.30mm) | 315 nH | ±3% | Gapped | 201.0 | - | 0.8 | 20.0 | 25.0 | 20.0 | 500.0 | Uncoated | 0.167" (4.25mm) | - | - |
