Núcleos de ferrite
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de núcleo | Pacote do dispositivo do fornecedor | Material | Diâmetro | Fator de Indutância (Al) | Tolerância | Lacuna | Permeabilidade Efetiva (µe) | Permeabilidade Inicial (µi) | Fator do Núcleo (ΣI/A) mm⁻¹ | Comprimento Efetivo (le) mm | Área Efetiva (Ae) mm² | Seção Transversal Mínima do Núcleo (Amin) mm² | Volume Magnético Efetivo (Ve) mm³ | Acabamento | Altura | Comprimento | Largura |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

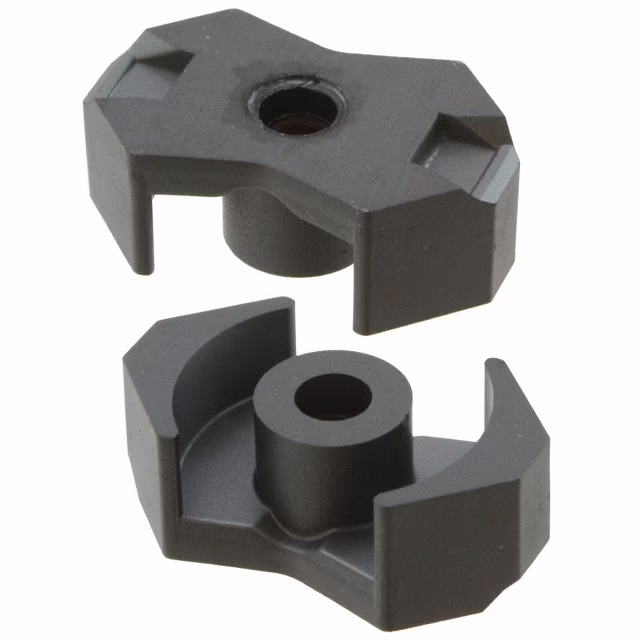

B65807N0250A048FERRITE CORE RM 250NH N48 2PCS |
3,278 |
|
Ficha técnica |
RM6 | Box | Active | RM | RM 6 | N48 | - | 250 nH | ±3% | Gapped | 171.0 | - | 0.86 | 26.9 | 31.3 | - | 840.0 | Uncoated | 0.246" (6.25mm) | 0.701" (17.90mm) | 0.323" (8.20mm) |
|

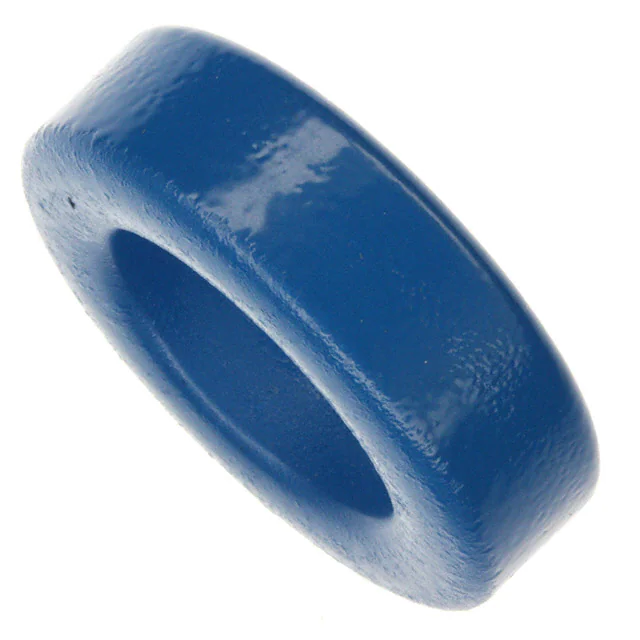

B64290L0058X830FERRITE CORE TOROID 4.36UH N30 |
1,665 |
|
Ficha técnica |
TX34/20.5/10 | Tray | Active | Toroid | - | N30 | 1.397" (35.50mm) | 4.36 µH | ±25% | Ungapped | - | 4300 | 1.24 | 82.06 | 66.08 | - | 5423.0 | Epoxy | 0.437" (11.10mm) | - | - |
|
PQ26/25-3C95FERRITE CORE PQ 3C95 2PC SET |
123 |
|
Ficha técnica |
- | Bulk | Active | PQ | PQ 26 x 25 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.972" (24.70mm) | 1.075" (27.30mm) | 0.748" (19.00mm) |
|
0077324A7FERRITE CORE TOROID 117NH KOOLMU |
2,085 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | Kool Mu | 1.445" (36.70mm) | 117 nH | ±8% | Ungapped | - | 125 | - | 89.8 | 67.8 | - | 6090.0 | Coated | 0.447" (11.35mm) | - | - |
|

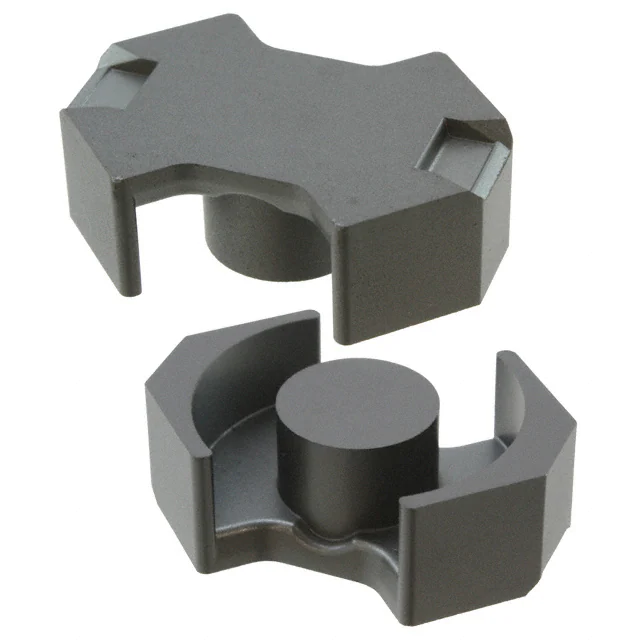

B65813J0000R087FERRITE CORE RM 4.2UH N87 2PCS |
1,045 |
|
Ficha técnica |
RM10 | Box | Active | RM | RM 10 | N87 | - | 4.2 µH | -20%, +30% | Ungapped | 1500.0 | 2200 | 0.45 | 44.0 | 98.0 | 90.0 | 4310.0 | Uncoated | 0.368" (9.35mm) | 1.122" (28.50mm) | 0.531" (13.50mm) |
|
|
ZW43113TCFERRITE CORE TOROID 12.4UH W |
738 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | W | 1.265" (32.14mm) | 12.4 µH | ±30% | Ungapped | - | 10000 | - | 75.4 | 75.0 | - | 5661.0 | Epoxy | 0.542" (13.77mm) | - | - |
|
T60006L2025W523FERRITE CORE TOROID 28.4UH |
9,358 |
|
Ficha técnica |
- | Box | Active | Toroid | - | - | 1.087" (27.60mm) | 28.4 µH | - | Ungapped | - | - | - | 70.7 | 20.0 | - | - | Uncoated | 0.504" (12.80mm) | - | - |
|
RM10/I-3C95FERRITE CORE RM 3C95 2PC SET |
751 |
|
Ficha técnica |
- | Bulk | Active | RM | RM 10 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.729" (18.60mm) | 1.122" (28.50mm) | 0.531" (13.50mm) |
|
B65511A0100A048FERRITE CORE P 100NH N48 2PCS |
2,741 |
|
Ficha técnica |
P7/4 | Box | Active | P (Pot Core) | P 7 x 4 | N48 | 0.289" (7.35mm) | 100 nH | ±3% | Gapped | 114.0 | - | 1.43 | 10.0 | 7.0 | - | 70.0 | Uncoated | 0.083" (2.10mm) | - | - |
|
|
ZW43615TCFERRITE CORE TOROID 13.4UH W |
872 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | W | 1.462" (37.14mm) | 13.4 µH | ±30% | Ungapped | - | 10000 | - | 89.6 | 95.9 | - | 8596.0 | Epoxy | 0.620" (15.75mm) | - | - |
|
|
00K4022E060FERRITE CORE E 194NH KOOL MU |
871 |
|
Ficha técnica |
- | Bulk | Active | E | - | Kool Mu | - | 194 nH | ±8% | Ungapped | - | 60 | - | 98.4 | 237.0 | - | 23300.0 | Uncoated | 0.830" (21.08mm) | 1.687" (42.85mm) | 0.787" (20.00mm) |
|
B65811D0250A048FERRITE CORE RM 250NH N48 2PCS |
771 |
|
Ficha técnica |
RM8 | Box | Active | RM | RM 8 | N48 | - | 250 nH | ±3% | Gapped | 134.0 | - | 0.68 | 35.1 | 52.0 | - | 1825.0 | Uncoated | 0.324" (8.25mm) | 0.913" (23.20mm) | 0.433" (11.00mm) |
|
B66383G0000X187FERRITE CORE E N87 1PC |
637 |
|
Ficha técnica |
E47/20/16 | Box | Active | E | E 47 x 20 x 16 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.772" (19.60mm) | 1.846" (46.90mm) | 0.614" (15.60mm) |
|
|
T60006L2025W380FERRITE CORE TOROID 67UH |
9,958 |
|
Ficha técnica |
- | Box | Active | Toroid | - | - | 1.098" (27.90mm) | 67 µH | - | Ungapped | - | - | - | 64.4 | 36.0 | - | - | Uncoated | 0.492" (12.50mm) | - | - |
|
|
T60006L2025W451FERRITE CORE TOROID 17.55UH |
9,866 |
|
Ficha técnica |
- | Box | Active | Toroid | - | - | 1.098" (27.90mm) | 17.55 µH | - | Ungapped | - | - | - | 64.4 | 36.0 | - | - | Uncoated | 0.492" (12.50mm) | - | - |
|
|
C055206A2FERRITE CORE TOROID 68NH MPP |
882 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | MPP | 0.830" (21.08mm) | 68 nH | ±8% | Ungapped | - | 125 | - | 50.9 | 22.1 | - | 1120.0 | Coated | 0.280" (7.11mm) | - | - |
|
PC44PQ40/40Z-12FERRITE CORE PQ PCS44 2PC SET |
2,045 |
|
Ficha técnica |
- | Tray | Active | PQ | PQ 40 x 40 | PC44 | - | - | ±25% | Ungapped | - | - | 0.508 | 102.0 | 201.0 | - | 20500.0 | Uncoated | 1.565" (39.75mm) | 1.594" (40.50mm) | 1.102" (28.00mm) |
|
T60004L2030W911FERRITE CORE TOROID 56UH |
2,759 |
|
Ficha técnica |
- | Box | Active | Toroid | - | - | 1.272" (32.30mm) | 56 µH | - | Ungapped | - | - | - | 78.5 | 40.0 | - | - | Epoxy | 0.484" (12.30mm) | - | - |
|
B66335G0000X187FERRITE CORE E N87 1PC |
274 |
|
Ficha técnica |
E55/28/21 | Box | Active | E | E 55 x 28 x 21 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 1.094" (27.80mm) | 2.165" (55.00mm) | 0.827" (21.00mm) |
|
|
B65651T0250A048FERRITE CORE P 250NH N48 2PCS |
1,242 |
|
Ficha técnica |
P18/11 | Box | Active | P (Pot Core) | P 18 x 11 | N48 | 0.724" (18.40mm) | 250 nH | ±3% | Gapped | 120.0 | - | 0.6 | 25.9 | 43.0 | - | 1114.0 | Uncoated | 0.209" (5.30mm) | - | - |
