Núcleos de ferrite
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de núcleo | Pacote do dispositivo do fornecedor | Material | Diâmetro | Fator de Indutância (Al) | Tolerância | Lacuna | Permeabilidade Efetiva (µe) | Permeabilidade Inicial (µi) | Fator do Núcleo (ΣI/A) mm⁻¹ | Comprimento Efetivo (le) mm | Área Efetiva (Ae) mm² | Seção Transversal Mínima do Núcleo (Amin) mm² | Volume Magnético Efetivo (Ve) mm³ | Acabamento | Altura | Comprimento | Largura |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UR64/40/20-3C90FERRITE CORE UR 3C90 |
876 |
|
Ficha técnica |
- | Bulk | Active | UR | UR 64 x 40 x 20 | 3C90 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.594" (40.50mm) | 2.520" (64.00mm) | 0.945" (24.00mm) |
|

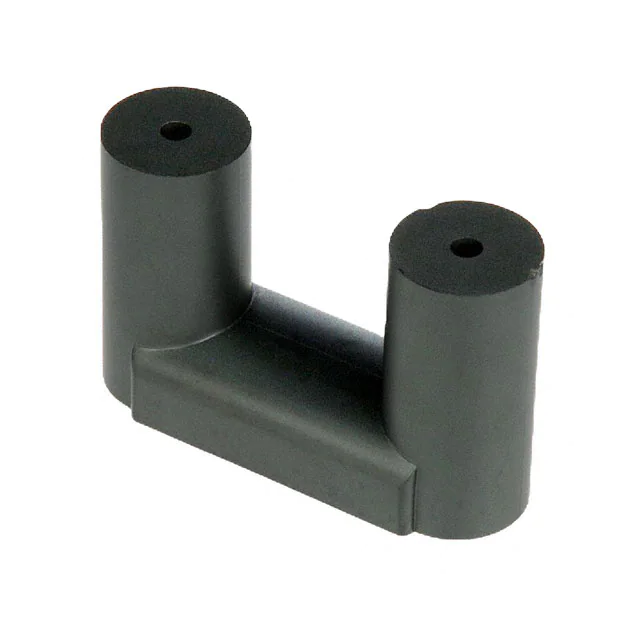

UR64/40/20-3F3FERRITE CORE |
2,023 |
|
Ficha técnica |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.575" (40.00mm) | 2.520" (64.00mm) | 0.787" (20.00mm) |
|

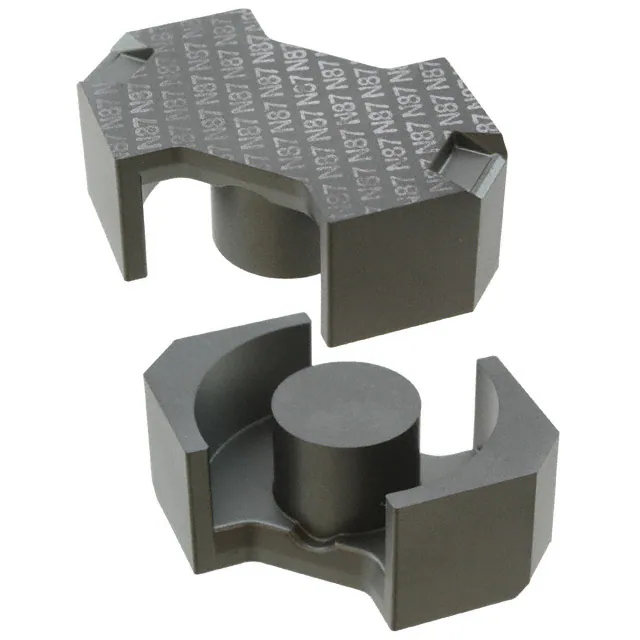

B65887E0000R087FERRITE CORE RM 6UH N87 2PCS |
717 |
|
Ficha técnica |
RM14 | Box | Active | RM | RM 14 | N87 | - | 6 µH | -20%, +30% | Ungapped | 1670.0 | 2200 | 0.35 | 70.0 | 200.0 | 170.0 | 14000.0 | Uncoated | 0.594" (15.10mm) | 1.661" (42.20mm) | 0.748" (19.00mm) |
|
5943003801FERRITE CORE TOROID 43 |
2,247 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | 43 | 2.400" (60.96mm) | - | ±20% | Ungapped | - | 800 | - | 145.0 | 158.0 | - | 22800.0 | Uncoated | 0.500" (12.70mm) | - | - |
|
ZW43825TCFERRITE CORE TOROID 33.4UH W |
198 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | W | 1.500" (38.10mm) | 33.4 µH | ±30% | Ungapped | - | 10000 | - | 82.9 | 232.0 | - | 19190.0 | Epoxy | 1.045" (26.55mm) | - | - |
|
|
ZW44925TCFERRITE CORE TOROID 14.87UH W |
342 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | W | 1.992" (50.60mm) | 14.87 µH | ±30% | Ungapped | - | 10000 | - | 123.2 | 160.0 | - | 19717.0 | Epoxy | 0.788" (20.02mm) | - | - |
|
TX36/23/15-4C65FERRITE CORE TOROID 4C65 |
1,899 |
|
Ficha técnica |
- | Bulk | Active | Toroid | TX 36 x 23 x 15 | 4C65 | 1.463" (37.15mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.630" (16.00mm) | - | - |
|
P36/22-3C91FERRITE CORE P 3C91 2PC SET |
144 |
|
Ficha técnica |
- | Bulk | Active | P (Pot Core) | P 36 x 22 | 3C91 | 1.425" (36.20mm) | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.854" (21.70mm) | - | - |
|

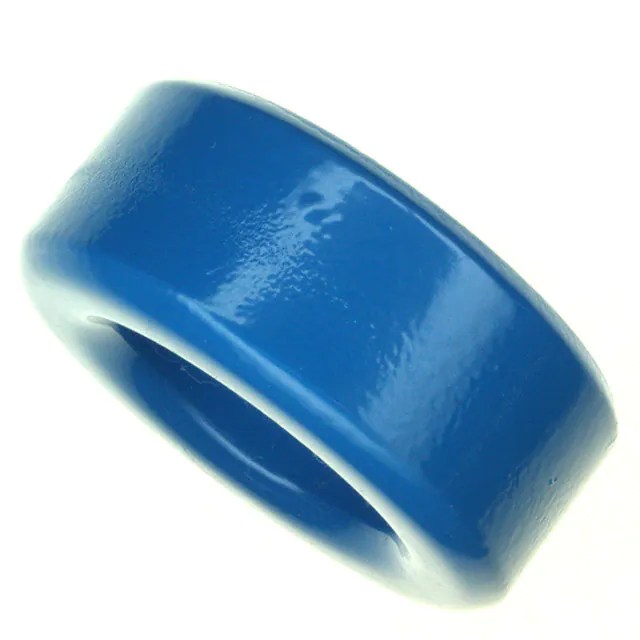

B64290L0082X087FERRITE CORE TOROID 4.46UH N87 |
1,116 |
|
Ficha técnica |
TX50/30/20 | Tray | Active | Toroid | - | N87 | 2.040" (51.80mm) | 4.46 µH | ±25% | Ungapped | - | 2200 | 0.62 | 120.4 | 195.7 | - | 23560.0 | Epoxy | 0.839" (21.30mm) | - | - |
|

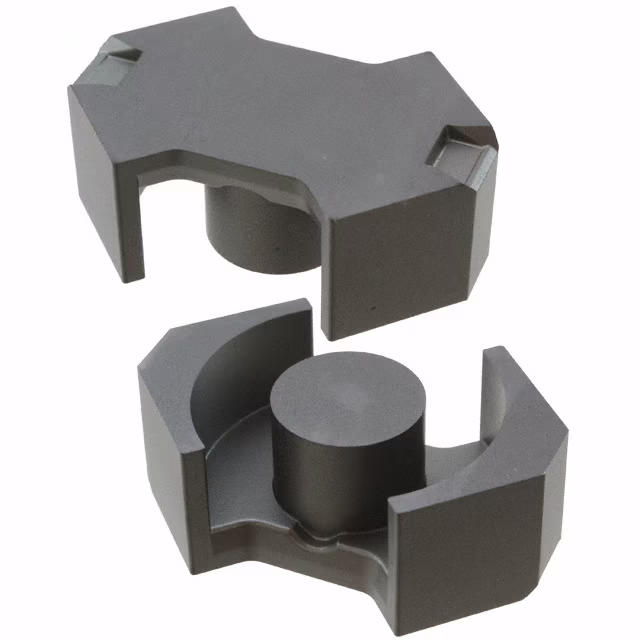

B65887E0400A041FERRITE CORE RM 400NH N41 2PCS |
196 |
|
Ficha técnica |
RM14 | Box | Active | RM | RM 14 | N41 | - | 400 nH | ±3% | Gapped | 111.0 | 2800 | 0.35 | 70.0 | 200.0 | 170.0 | 14000.0 | Uncoated | 0.594" (15.10mm) | 1.661" (42.20mm) | 0.748" (19.00mm) |
|
|
C055930A2FERRITE CORE TOROID 157NH |
234 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | - | 1.090" (27.69mm) | 157 nH | ±8% | Ungapped | - | 125 | - | 63.5 | 65.4 | - | 4150.0 | Coated | 0.470" (11.94mm) | - | - |
|

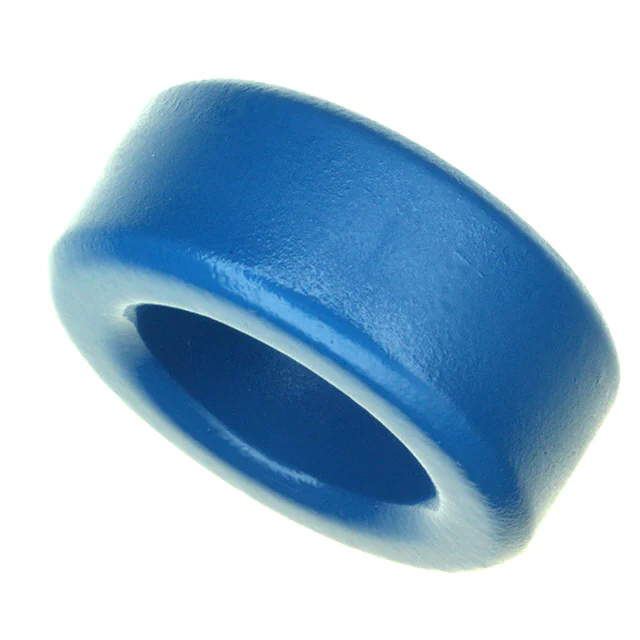

B64290L0082X830FERRITE CORE TOROID 8.7UH N30 |
1,582 |
|
Ficha técnica |
TX50/30/20 | Tray | Active | Toroid | - | N30 | 2.040" (51.80mm) | 8.7 µH | ±25% | Ungapped | - | 4300 | 0.62 | 120.4 | 195.7 | - | 23560.0 | Epoxy | 0.839" (21.30mm) | - | - |
|
|
C058324A2FERRITE CORE TOROID 117NH HI FLX |
701 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | High Flux | 1.445" (36.70mm) | 117 nH | ±8% | Ungapped | - | 125 | - | 89.8 | 67.8 | - | 6090.0 | Coated | 0.447" (11.35mm) | - | - |
|

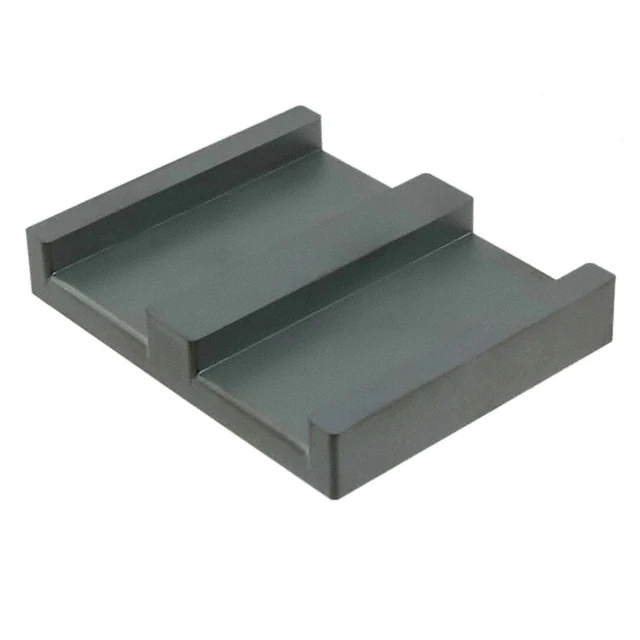

B66295G0000X187FERRITE CORE ELP N87 1PC |
839 |
|
Ficha técnica |
ELP64/10/50 | Box | Active | ELP | ELP 64 x 10 x50 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.402" (10.20mm) | 2.520" (64.00mm) | 2.000" (50.80mm) |
|
T60006L2040W453FERRITE CORE TOROID 25UH |
2,228 |
|
Ficha técnica |
- | Box | Active | Toroid | - | - | 1.697" (43.10mm) | 25 µH | - | Ungapped | - | - | - | 102.0 | 85.5 | - | - | Uncoated | 0.728" (18.50mm) | - | - |
|
|
T60006L2040W424FERRITE CORE TOROID 109UH |
126 |
|
Ficha técnica |
- | Box | Active | Toroid | - | - | 1.697" (43.10mm) | 109 µH | - | Ungapped | - | - | - | 102.0 | 85.5 | - | - | Uncoated | 0.728" (18.50mm) | - | - |
|
|
T60006L2045V102FERRITE CORE TOROID 87.6UH |
4,140 |
|
Ficha técnica |
- | Box | Active | Toroid | - | - | 1.906" (48.40mm) | 87.6 µH | - | Ungapped | - | - | - | 118.0 | 85.5 | - | - | Uncoated | 0.717" (18.20mm) | - | - |
|
|
T60006L2050W516FERRITE CORE TOROID 45UH |
2,113 |
|
Ficha técnica |
- | Box | Active | Toroid | - | - | 2.106" (53.50mm) | 45 µH | - | Ungapped | - | - | - | 141.0 | 76.0 | - | - | Uncoated | 0.921" (23.40mm) | - | - |
|
|
C058083A2FERRITE CORE TOROID 81NH HIGH FL |
135 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | High Flux | 1.605" (40.77mm) | 81 nH | ±8% | Ungapped | - | 60 | - | 98.4 | 107.0 | - | 10600.0 | Coated | 0.605" (15.37mm) | - | - |
|

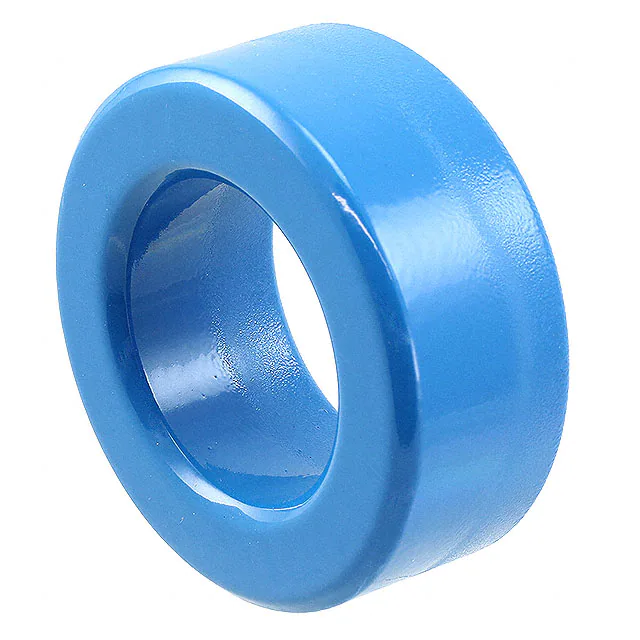

B64290L0699X830FERRITE CORE TOROID 10.8UH N30 |
231 |
|
Ficha técnica |
TX63/38/25 | Box | Active | Toroid | - | N30 | 2.571" (65.30mm) | 10.8 µH | ±25% | Ungapped | - | 4300 | 0.5 | 152.1 | 305.9 | - | 46530.0 | Epoxy | 1.047" (26.60mm) | - | - |
