Núcleos de ferrite
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de núcleo | Pacote do dispositivo do fornecedor | Material | Diâmetro | Fator de Indutância (Al) | Tolerância | Lacuna | Permeabilidade Efetiva (µe) | Permeabilidade Inicial (µi) | Fator do Núcleo (ΣI/A) mm⁻¹ | Comprimento Efetivo (le) mm | Área Efetiva (Ae) mm² | Seção Transversal Mínima do Núcleo (Amin) mm² | Volume Magnético Efetivo (Ve) mm³ | Acabamento | Altura | Comprimento | Largura |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5961000111FERRITE CORE TOROID 25NH 61 |
11,399 |
|
Ficha técnica |
- | Bag | Active | Toroid | - | 61 | 0.236" (6.00mm) | 25 nH | ±25% | Ungapped | - | 125 | 6.37 | 13.0 | 2.0 | - | 27.0 | Parylene | 0.067" (1.70mm) | - | - |
|
B64290L0038X087FERRITE CORE TOROID 900NH N87 |
1,015 |
|
Ficha técnica |
TX10/6/4 | Bulk | Active | Toroid | - | N87 | 0.425" (10.80mm) | 900 nH | ±25% | Ungapped | - | 2200 | 3.07 | 24.07 | 7.83 | - | 188.0 | Epoxy | 0.187" (4.75mm) | - | - |
|
E13/7/4-3C94FERRITE CORE E 3C94 |
5,969 |
|
Ficha técnica |
- | Bulk | Active | E | E 13 x 7 x 4 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.256" (6.50mm) | 0.496" (12.60mm) | 0.146" (3.70mm) |
|
|
YW40301TCTOROID-PARYLENE COATED |
92,302 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | W | 0.149" (3.79mm) | 1.65 µH | ±30% | Ungapped | - | 10000 | - | 7.65 | 1.03 | - | 7.87 | Parylene | 0.060" (1.52mm) | - | - |
|
B64290L0038X830FERRITE CORE TOROID 1.76UH N30 |
6,762 |
|
Ficha técnica |
TX10/6/4 | Bulk | Active | Toroid | - | N30 | 0.425" (10.80mm) | 1.76 µH | ±25% | Ungapped | - | 4300 | 3.07 | 24.07 | 7.83 | - | 188.0 | Epoxy | 0.187" (4.75mm) | - | - |
|
|
E16/8/5-3C94FERRITE CORE E 3C94 |
9,439 |
|
Ficha técnica |
- | Bulk | Active | E | E 16 x 8 x 5 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.323" (8.20mm) | 0.630" (16.00mm) | 0.185" (4.70mm) |
|
3067990851FERRITE CORE ROD 67 |
4,541 |
|
Ficha técnica |
- | Box | Active | ROD | - | 67 | 0.079" (2.00mm) | - | - | Ungapped | 18.0 | 40 | - | - | 3.14 | - | - | Uncoated | - | 0.591" (15.00mm) | - |
|
3061990851FERRITE CORE ROD 61 |
1,395 |
|
Ficha técnica |
- | Box | Active | ROD | - | 61 | 0.079" (2.00mm) | - | - | Ungapped | 25.0 | 125 | - | - | 3.14 | - | - | Uncoated | - | 0.591" (15.00mm) | - |
|
B64290P0036X038FERRITE CORE TOROID 1.63UH T38 |
34,948 |
|
Ficha técnica |
TC4.0/2.4/1.6 | Box | Active | Toroid | - | T38 | 0.158" (4.02mm) | 1.63 µH | ±30% | Ungapped | - | 10000 | 7.7 | 9.63 | 1.25 | - | 12.0 | Parylene | 0.064" (1.62mm) | - | - |
|
B64290L0044X049FERRITE CORE TOROID 660NH N49 |
9,511 |
|
Ficha técnica |
TX12.5/7.5/5 | Box | Active | Toroid | - | N49 | 0.535" (13.60mm) | 660 nH | ±25% | Ungapped | - | 1300 | 2.46 | 30.09 | 12.23 | - | 368.0 | Epoxy | 0.234" (5.95mm) | - | - |
|
|
B64290L0763X087FERRITE CORE TOROID N87 |
20,000 |
|
Ficha técnica |
TX10/6/3 | Box | Active | Toroid | - | N87 | - | - | - | Gapped | - | 2200 | - | - | - | - | - | Epoxy | - | - | - |
|
|
YW40503TCTOROID-PARYLENE COATED |
6,115 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | W | 0.166" (4.22mm) | 2.95 µH | ±30% | Ungapped | - | 10000 | - | 9.21 | 2.1 | - | 19.3 | Parylene | 0.113" (2.87mm) | - | - |
|
B66305G0000X127FERRITE CORE E N27 1PC |
16,917 |
|
Ficha técnica |
E13/7/4 | Box | Active | E | E 13 x 7 x 4 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.256" (6.50mm) | 0.496" (12.60mm) | 0.146" (3.70mm) |
|
5943000221FERRITE CORE TOROID 350NH 43 |
11,834 |
|
Ficha técnica |
- | Box | Active | Toroid | - | 43 | 0.402" (10.20mm) | 350 nH | -25%, +20% | Ungapped | - | 800 | 2.8549 | 20.7 | 7.25 | - | 150.0 | Plastic | 0.150" (3.81mm) | - | - |
|

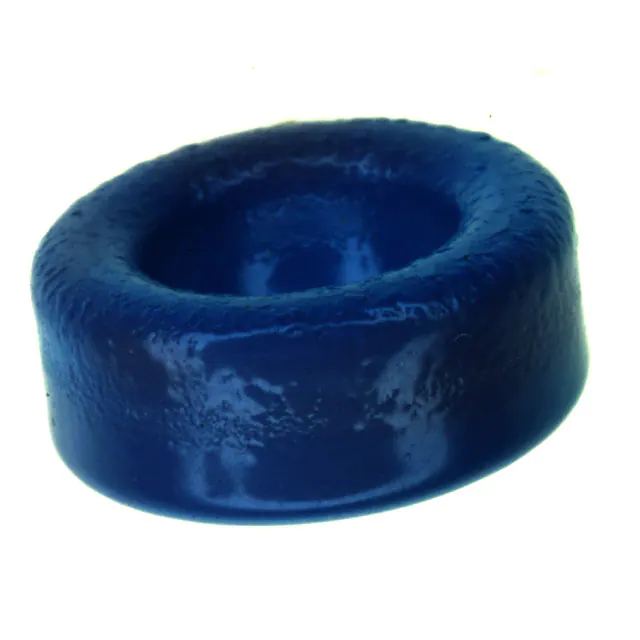

B64290L0044X830FERRITE CORE TOROID 2.2UH N30 |
3,215 |
|
Ficha técnica |
TX12.5/7.5/5 | Bulk | Active | Toroid | - | N30 | 0.535" (13.60mm) | 2.2 µH | ±25% | Ungapped | - | 4300 | 2.46 | 30.09 | 12.23 | - | 368.0 | Epoxy | 0.234" (5.95mm) | - | - |
|

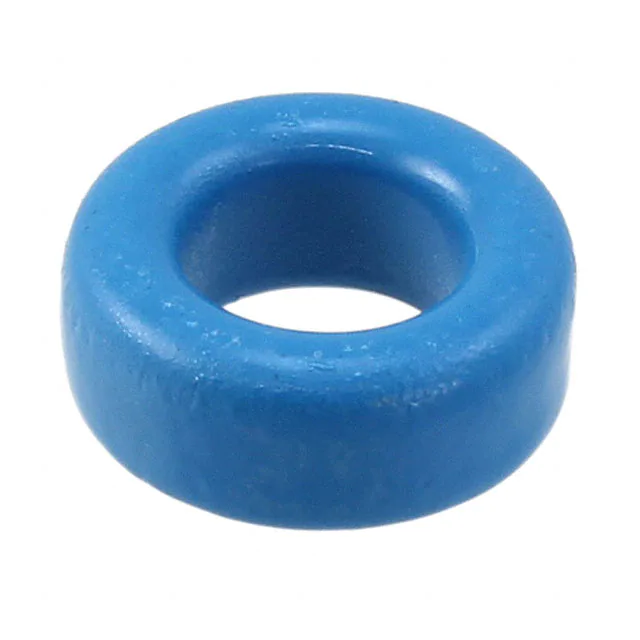

B64290L0044X087FERRITE CORE TOROID 1.12UH N87 |
4,647 |
|
Ficha técnica |
TX12.5/7.5/5 | Box | Active | Toroid | - | N87 | 0.535" (13.60mm) | 1.12 µH | ±25% | Ungapped | - | 2200 | 2.46 | 30.09 | 12.23 | - | 368.0 | Epoxy | 0.234" (5.95mm) | - | - |
|
B64290A0038X038FERRITE CORE TOROID 4.09UH T38 |
4,575 |
|
Ficha técnica |
T10/6/4 | Box | Active | Toroid | R 10 x 6 x 4 | T38 | 0.394" (10.00mm) | 4.09 µH | ±30% | Ungapped | - | 10000 | 3.07 | 24.07 | 7.83 | - | 188.0 | Uncoated | 0.157" (4.00mm) | - | - |
|
5976000201FERRITE CORE TOROID 76 |
2,251 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | 76 | 0.375" (9.53mm) | - | ±30% | Ungapped | - | 10000 | - | 20.7 | 7.2 | - | 150.0 | Uncoated | 0.125" (3.18mm) | - | - |
|
B66307G0000X127FERRITE CORE E N27 1PC |
6,547 |
|
Ficha técnica |
E16/8/5 | Box | Active | E | E 16 x 8 x 5 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.323" (8.20mm) | 0.630" (16.00mm) | 0.185" (4.70mm) |
|
B64290L0644X830FERRITE CORE TOROID 2.03UH N30 |
3,874 |
|
Ficha técnica |
TX13.3/8.3/5 | Box | Active | Toroid | - | N30 | 0.567" (14.40mm) | 2.03 µH | ±25% | Ungapped | - | 4300 | 2.67 | 32.7 | 12.27 | - | 401.0 | Epoxy | 0.234" (5.95mm) | - | - |
