LCD, caractere OLED e numérico
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Número de caracteres | Formato de exibição | Formato do caractere | Tipo de Exibição | Modo de exibição | Tamanho do caractere | Contorno C x L x A | Área de visualização | Luz de fundo | Voltagem - Alimentação | Tamanho do ponto | Interface | Tipo de Controlador | Temperatura operacional | Cor do texto | Cor do fundo |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AMC1601AR-B-Y6WFDYLCD COB CHAR 16X1 Y/G TRANSF |
92 |
|
- |
- | Box | Active | 16.0 | 16 x 1 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 6.56mm H x 3.07mm W | 80.00mm x 36.00mm x 14.00mm | 64.50mm L x 13.80mm W | LED - Yellow/Green | 4.5V ~ 5.5V | 0.55mm W x 0.75mm H | Parallel, 8-Bit | S6A0069 | -20°C ~ 70°C | Dark Blue | Yellow/Green |
|
AMC1602IR-B-Y6WFDYLCD COB CHAR 16X2 Y/G TRANSF |
91 |
|
Ficha técnica |
- | Box | Active | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.55mm H x 2.95mm W | 85.00mm x 30.00mm x 14.00mm | 64.50mm L x 15.50mm W | LED - Yellow/Green | 4.5V ~ 5.5V | 0.55mm W x 0.65mm H | Parallel, 8-Bit | S6A0069 | -20°C ~ 70°C | Dark Blue | Yellow/Green |
|
NHD-0108FZ-RN-YBWLCD MOD 8 DIG 8 X 1 REFLECTIVE |
53 |
|
Ficha técnica |
- | Box | Active | 8.0 | 8 x 1 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 10.80mm H x 6.50mm W | 84.00mm x 44.00mm x 9.00mm | 64.50mm L x 16.40mm W | Without Backlight | 5V | 1.30mm W x 1.30mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue | Green |
|
AMC0802BR-B-B6WTDW-I2CLCD COB CHAR 8X2 BLUE TRANSM I2C |
49 |
|
Ficha técnica |
- | Box | Active | 16.0 | 8 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 5.56mm H x 2.96mm W | 58.00mm x 32.00mm x 14.00mm | 38.00mm L x 16.00mm W | LED - White | 4.5V ~ 5.5V | 0.56mm W x 0.66mm H | I2C | AC780S | -20°C ~ 70°C | White | Blue |
|
AMC1602GR-B-B6WTDWLCD COB CHAR 16X2 BLUE TRANSM |
79 |
|
- |
- | Box | Active | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 5.55mm H x 2.95mm W | 84.00mm x 44.00mm x 14.00mm | 64.50mm L x 15.50mm W | LED - White | 4.5V ~ 5.5V | 0.55mm W x 0.65mm H | Parallel, 8-Bit | S6A0069 | -20°C ~ 70°C | White | Blue |
|
AMC1602AR-B-Y6WFDY-SPILCD COB CHAR 16X2 Y/G TRANSF SPI |
96 |
|
Ficha técnica |
- | Box | Active | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.55mm H x 2.95mm W | 80.00mm x 36.00mm x 14.00mm | 64.50mm L x 15.50mm W | LED - Yellow/Green | 4.5V ~ 5.5V | 0.55mm W x 0.65mm H | SPI | AC780S | -20°C ~ 70°C | Dark Blue | Yellow/Green |
|
AMC1602AR-B-B6WTDW-SPICOB CHAR 16X2 BLUE TRANSM SPI |
38 |
|
Ficha técnica |
- | Box | Active | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 5.55mm H x 2.95mm W | 80.00mm x 36.00mm x 14.00mm | 64.50mm L x 15.50mm W | LED - White | 4.5V ~ 5.5V | 0.55mm W x 0.65mm H | SPI | AC780S | -20°C ~ 70°C | White | Blue |
|

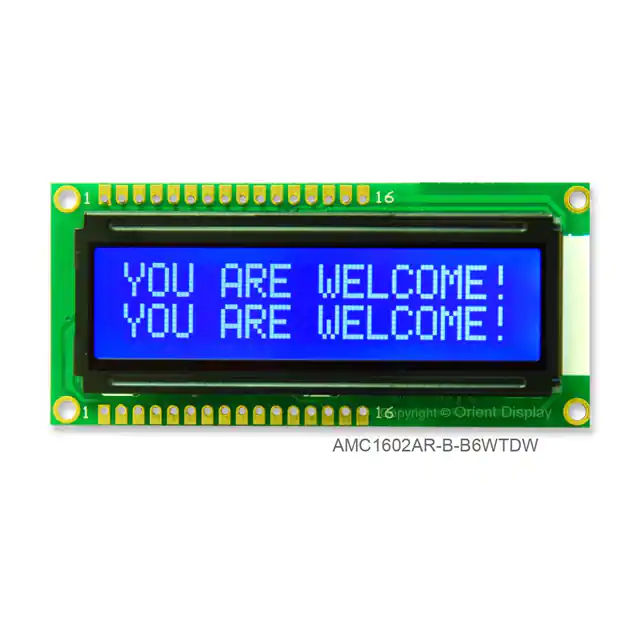

AMC1602AR-B-B6WTDW16X2 CHARACTER STN NEGATIVE BLUE |
46 |
|
- |
- | Box | Active | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 2.95mm H x 5.55mm W | 80.00mm x 36.00mm x 14.00mm | 64.50mm L x 15.50mm W | LED - White | 5V | 0.55mm W x 0.65mm H | Parallel | S6A0069 | -20°C ~ 70°C | White | Blue |
|
AMC0802CR-B-Y6WFDYLCD COB CHAR 8X2 Y/G TRANSF |
18 |
|
Ficha técnica |
- | Box | Active | 16.0 | 8 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 11.44mm H x 6.07mm W | 79.00mm x 44.00mm x 14.00mm | 63.00mm L x 25.00mm W | LED - Yellow/Green | 4.5V ~ 5.5V | 1.15mm W x 1.36mm H | Parallel, 8-Bit | S6A0069 | -20°C ~ 70°C | Dark Blue | Yellow/Green |
|

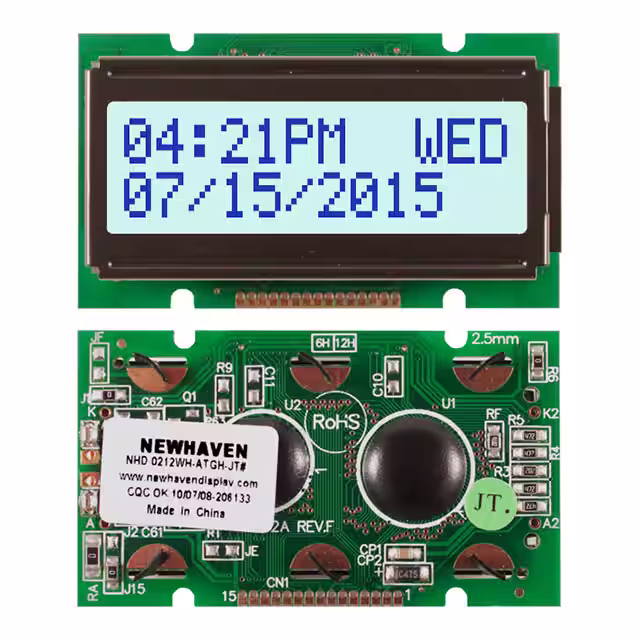

NHD-0212WH-ATGH-JT#LCD MOD 24DIG 12X2 TRANSFLCT WHT |
52 |
|
Ficha técnica |
- | Box | Active | 24.0 | 12 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.50mm H x 2.65mm W | 55.70mm x 32.00mm x 14.50mm | 46.00mm L x 14.50mm W | LED - White | 4.5V ~ 5.5V | 0.45mm W x 0.60mm H | Parallel | ST7066 | -20°C ~ 70°C | Blue | White |
|
NHD-0116AZ-RN-GBWLCD MOD 16 DIG 16 X 1 REFLECTIVE |
98 |
|
Ficha técnica |
- | Box | Active | 16.0 | 16 x 1 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 6.56mm H x 3.07mm W | 80.00mm x 36.00mm x 10.00mm | 64.00mm L x 13.80mm W | Without Backlight | 4.7V ~ 5.5V | 0.55mm W x 0.75mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue | Gray |
|
AMC1602FR-B-B6WTDW16X2 CHARACTER STN BLUE |
70 |
|
Ficha técnica |
- | Box | Active | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 4.90mm H x 2.56mm W | 69.00mm x 27.00mm x 8.00mm | 51.00mm L x 14.80mm W | LED - White | 4.5V ~ 5.5V | 0.48mm W x 0.56mm H | Parallel | S6A0069 | -20°C ~ 70°C | White | Blue |
|
|
NHD-C0220BA-FSW-FTW-3V320X2 CHIP-ON-GLASS CHARACTER LCD |
85 |
|
Ficha técnica |
- | Bulk | Active | 40.0 | 20 x 2 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transflective | - | 74.50mm x 25.00mm x 5.20mm | 61.00mm L x 15.00mm W | LED - White | 3V ~ 3.5V | 0.45mm W x 0.65mm H | Parallel, 8-Bit | ST7036 | -20°C ~ 70°C | - | - |
|
OD-103TLCD GLASS MOD 1DIG TN+ TRANSF |
22 |
|
- |
- | Box | Active | 1.0 | 1 x 1 | 7-Segment | TN - Twisted Nematic | Transflective | 101.60mm H x 58.70mm W | 122.56mm x 81.28mm x 2.80mm | 76.20mm L x 109.22mm W | - | 5V | - | - | - | -20°C ~ 70°C | Black | Gray |
|
|
LCD02REPLACEMENT ALPHANUMERIC LCD MOD |
44 |
|
- |
- | Bulk | Active | 32.0 | 16 x 2 | - | STN - Super-Twisted Nematic | - | - | 59.00mm x 29.50mm x 4.80mm | 64.00mm L x 15.00mm W | Without Backlight | - | - | - | - | - | - | - |
|

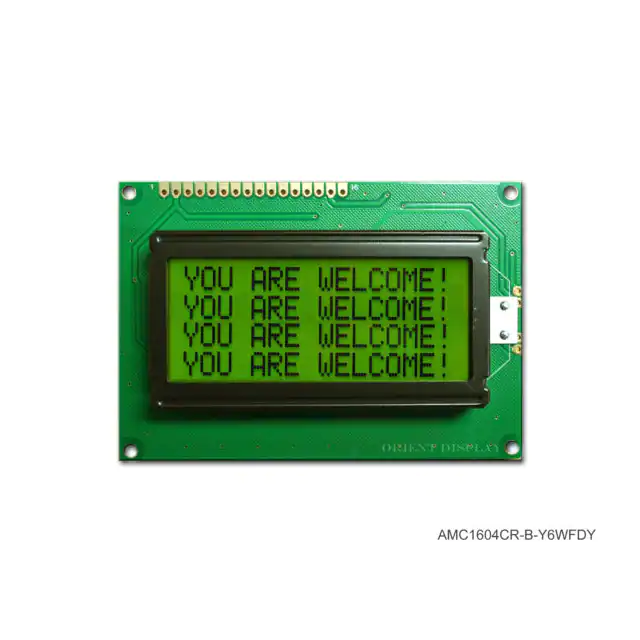

AMC1604CR-B-Y6WFDYLCD COB CHAR 16X4 Y/G TRANSF |
32 |
|
- |
- | Box | Active | 64.0 | 16 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 4.76mm H x 2.96mm W | 87.00mm x 60.00mm x 14.50mm | 61.80mm L x 25.20mm W | LED - Yellow/Green | 4.5V ~ 5.5V | 0.56mm W x 0.56mm H | Parallel, 8-Bit | AIP31066L-001 | -20°C ~ 70°C | Dark Blue | Yellow/Green |
|
AMC2402AR-B-Y6WFDY24X2 CHARACTER STN YELLOW GREEN |
82 |
|
Ficha técnica |
- | Box | Active | 48.0 | 24 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.55mm H x 3.20mm W | 118.00mm x 36.00mm x 14.00mm | 93.50mm L x 16.00mm W | LED - Yellow/Green | 4.5V ~ 5.5V | 0.60mm W x 0.65mm H | Parallel | S6A0069 | -20°C ~ 70°C | Black | Yellow/Green |
|
AMC2004AR-B-Y6WFDY-I2CLCD COB CHAR 20X4 Y/G TRANSF I2C |
57 |
|
Ficha técnica |
- | Box | Active | 80.0 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 4.75mm H x 2.95mm W | 98.00mm x 60.00mm x 13.50mm | 76.00mm L x 25.20mm W | LED - Yellow/Green | 4.5V ~ 5.5V | 0.55mm W x 0.55mm H | I2C | AC780S | -20°C ~ 70°C | Dark Blue | Yellow/Green |
|

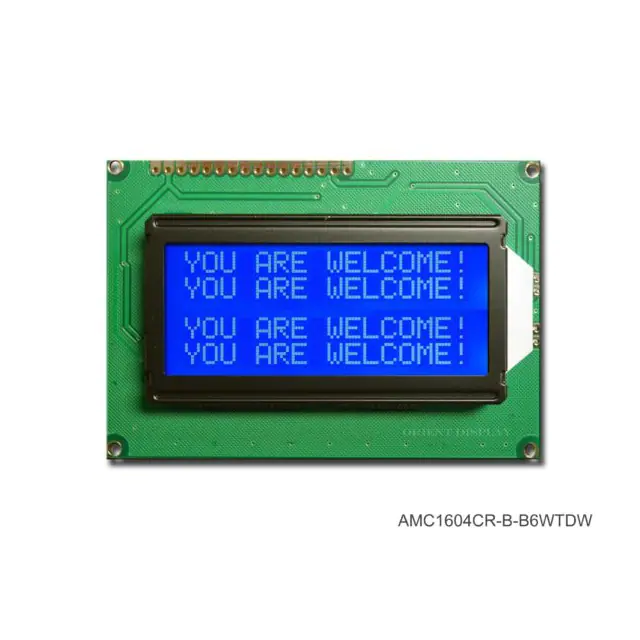

AMC1604CR-B-B6WTDWLCD COB CHAR 16X4 BLUE TRANSM |
32 |
|
- |
- | Box | Active | 64.0 | 16 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 4.76mm H x 2.96mm W | 87.00mm x 60.00mm x 14.50mm | 61.80mm L x 25.20mm W | LED - White | 4.5V ~ 5.5V | 0.56mm W x 0.56mm H | Parallel, 8-Bit | S6A0069 | -20°C ~ 70°C | White | Blue |
|
AMC2002CR-B-Y6WFDY-I2CLCD COB CHAR 20X2 Y/G TRANSF I2C |
50 |
|
Ficha técnica |
- | Box | Active | 40.0 | 20 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.55mm H x 3.20mm W | 116.00mm x 37.00mm x 13.50mm | 83.00mm L x 18.60mm W | LED - Yellow/Green | 4.5V ~ 5.5V | 0.60mm W x 0.65mm H | I2C | AC780S | -20°C ~ 70°C | Dark Blue | Yellow/Green |
