LCD, caractere OLED e numérico
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Número de caracteres | Formato de exibição | Formato do caractere | Tipo de Exibição | Modo de exibição | Tamanho do caractere | Contorno C x L x A | Área de visualização | Luz de fundo | Voltagem - Alimentação | Tamanho do ponto | Interface | Tipo de Controlador | Temperatura operacional | Cor do texto | Cor do fundo |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AMC2002CR-B-Y6WFDY-SPILCD COB CHAR 20X2 Y/G TRANSF SPI |
21 |
|
Ficha técnica |
- | Box | Active | 40.0 | 20 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.55mm H x 3.20mm W | 116.00mm x 37.00mm x 13.50mm | 83.00mm L x 18.60mm W | LED - Yellow/Green | 4.5V ~ 5.5V | 0.60mm W x 0.65mm H | SPI | AC780S | -20°C ~ 70°C | Dark Blue | Yellow/Green |
|
AMC2002CR-B-B6WTDWLCD COB CHAR 20X2 BLUE TRANSM |
65 |
|
- |
- | Box | Active | 40.0 | 20 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 5.55mm H x 3.20mm W | 116.00mm x 37.00mm x 14.50mm | 83.00mm L x 18.60mm W | LED - White | 4.5V ~ 5.5V | 0.60mm W x 0.65mm H | Parallel, 8-Bit | S6A0069 | -20°C ~ 70°C | White | Blue |
|
AMC2002CR-B-G6WFDWLCD COB CHAR 20X2 GRAY TRANSF |
13 |
|
Ficha técnica |
- | Box | Active | 40.0 | 20 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.55mm H x 3.20mm W | 116.00mm x 37.00mm x 14.50mm | 83.00mm L x 18.60mm W | LED - White | 4.5V ~ 5.5V | 0.60mm W x 0.65mm H | Parallel, 8-Bit | S6A0069 | -20°C ~ 70°C | Blue | Gray |
|
AMC2002CR-B-B6WTDW-SPICOB CHAR 20X2 BLUE TRANSM SPI |
50 |
|
Ficha técnica |
- | Box | Active | 40.0 | 20 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 5.55mm H x 3.20mm W | 116.00mm x 37.00mm x 13.50mm | 83.00mm L x 18.60mm W | LED - White | 4.5V ~ 5.5V | 0.60mm W x 0.65mm H | SPI | AC780S | -20°C ~ 70°C | White | Blue |
|
AMC2002CR-B-B6WTDW-I2CCOB CHAR 20X2 BLUE TRANSM I2C |
19 |
|
Ficha técnica |
- | Box | Active | 40.0 | 20 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 5.55mm H x 3.20mm W | 116.00mm x 37.00mm x 13.50mm | 83.00mm L x 18.60mm W | LED - White | 4.5V ~ 5.5V | 0.60mm W x 0.65mm H | I2C | AC780S | -20°C ~ 70°C | White | Blue |
|

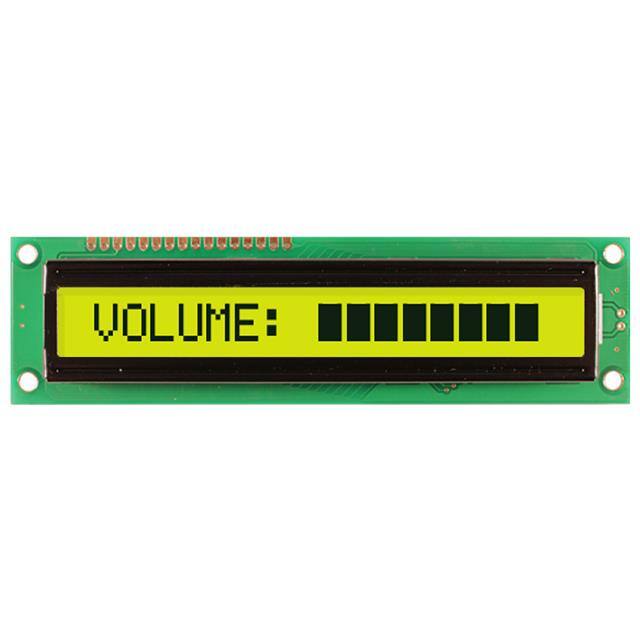

NHD-0116DZ-FL-YBWLCD MOD 16DIG 16X1 TRANS YLW/GRN |
44 |
|
Ficha técnica |
- | Box | Active | 16.0 | 16 x 1 | 5 x 7 Dots w/Cursor | STN - Super-Twisted Nematic | Transflective | 9.66mm H x 4.84mm W | 122.00mm x 33.00mm x 14.00mm | 99.00mm L x 13.00mm W | LED - Yellow/Green | 4.7V ~ 5.5V | 0.92mm W x 1.10mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Gray | Green |
|
AMC2004AR-B-Y6WFDY20X4 CHARACTER LCD STN YG |
44 |
|
Ficha técnica |
- | Box | Active | 80.0 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 4.75mm H x 2.95mm W | 98.00mm x 60.00mm x 15.00mm | 76.00mm L x 25.20mm W | LED - Yellow/Green | 4.5V ~ 5.5V | 0.55mm W x 0.55mm H | Parallel | ST7066Uv22 | -20°C ~ 70°C | Dark | Yellow/Green |
|
AMC2004HR-B-Y6WFDYLCD COB CHAR 20X4 Y/G TRANSF |
20 |
|
- |
- | Box | Active | 80.0 | 20 x 4 | 5 x 7 Dots | STN - Super-Twisted Nematic | Transflective | 3.15mm H x 1.85mm W | 65.00mm x 28.40mm x 9.00mm | 46.00mm L x 18.40mm W | LED - Yellow/Green | 4.5V ~ 5.5V | 0.33mm W x 0.35mm H | Parallel, 8-Bit | S6A0069 | -20°C ~ 70°C | Dark Blue | Yellow/Green |
|
AMC2004AR-B-B6WTDWLCD COB CHAR 20X4 BLUE TRANSM |
15 |
|
- |
- | Box | Active | 80.0 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 4.75mm H x 2.95mm W | 98.00mm x 60.00mm x 15.00mm | 76.00mm L x 25.20mm W | LED - White | 4.5V ~ 5.5V | 0.55mm W x 0.55mm H | Parallel, 8-Bit | S6A0069 | -20°C ~ 70°C | White | Blue |
|

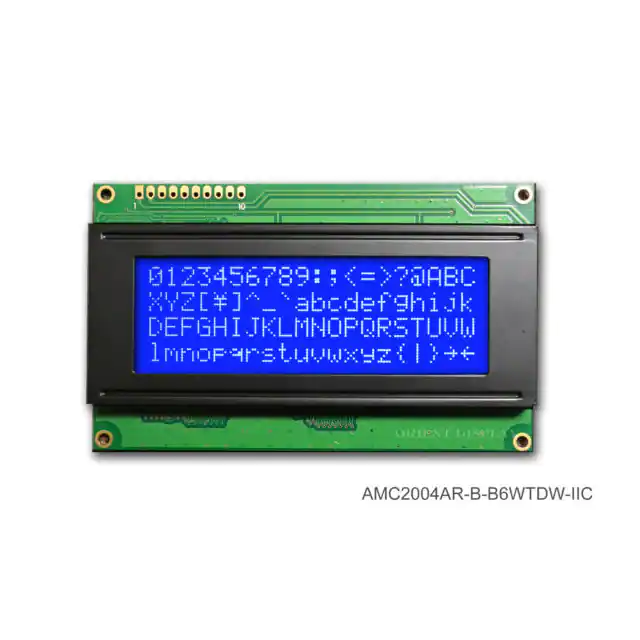

AMC2004AR-B-B6WTDW-I2CCOB CHAR 20X4 BLUE TRANSM I2C |
54 |
|
Ficha técnica |
- | Box | Active | 80.0 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 4.75mm H x 2.95mm W | 98.00mm x 60.00mm x 15.00mm | 76.00mm L x 25.20mm W | LED - White | 4.5V ~ 5.5V | 0.55mm W x 0.55mm H | I2C | AC780S | -20°C ~ 70°C | White | Blue |
|
AMC2004AR-B-B6WTDW-SPICOB CHAR 20X4 BLUE TRANSM SPI |
18 |
|
Ficha técnica |
- | Box | Active | 80.0 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 4.75mm H x 2.95mm W | 98.00mm x 60.00mm x 13.50mm | 76.00mm L x 25.20mm W | LED - White | 4.5V ~ 5.5V | 0.55mm W x 0.55mm H | SPI | AC780S | -20°C ~ 70°C | White | Blue |
|
AMC2004AR-B-Y6WFDY-SPILCD COB CHAR 20X4 Y/G TRANSF SPI |
93 |
|
Ficha técnica |
- | Box | Active | 80.0 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 4.75mm H x 2.95mm W | 98.00mm x 60.00mm x 13.50mm | 76.00mm L x 25.20mm W | LED - Yellow/Green | 4.5V ~ 5.5V | 0.55mm W x 0.55mm H | SPI | AC780S | -20°C ~ 70°C | Dark Blue | Yellow/Green |
|
AMC2004AR-B-W6WFDWLCD COB CHAR 20X4 FSTN+ TRANSF |
21 |
|
Ficha técnica |
- | Box | Active | 80.0 | 20 x 4 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transflective | 4.75mm H x 2.95mm W | 98.00mm x 60.00mm x 15.00mm | 76.00mm L x 25.20mm W | LED - White | 4.5V ~ 5.5V | 0.55mm W x 0.55mm H | Parallel, 8-Bit | S6A0069 | -20°C ~ 70°C | Blue | Gray |
|
AMC2004BR-B-Y6WFDY20X4 CHARACTER STN YELLOW GREEN |
22 |
|
Ficha técnica |
- | Box | Active | 80.0 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic, TN - Twisted Nematic | Transflective | 9.22mm H x 4.84mm W | 146.00mm x 62.50mm x 13.00mm | 123.50mm L x 43.00mm W | LED - Yellow/Green | 5V | 0.92mm W x 1.10mm H | Parallel | S6A0069 | -20°C ~ 70°C | Black | Yellow/Green |
|
AMC2004BR-B-B6WTDWLCD COB CHAR 20X4 BLUE TRANSM |
12 |
|
Ficha técnica |
- | Box | Active | 80.0 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 9.22mm H x 4.84mm W | 146.00mm x 62.50mm x 13.00mm | 123.50mm L x 43.00mm W | LED - White | 4.5V ~ 5.5V | 0.92mm W x 1.10mm H | Parallel, 8-Bit | S6A0069 | -20°C ~ 70°C | White | Blue |
|
EA DIP205B-4NLWLCD MOD 80DIG 20X4 TRANSMISV WHT |
38 |
|
- |
- | Bulk | Active | 80.0 | 20 x 4 | 5 x 8 Dots w/Cursor | LCD - Color | - | - | 75.00mm x 26.80mm x 13.80mm | 61.00mm L x 19.00mm W | LED - Yellow/Green, LED - Black/White, LED - Blue/White | 3.3V | 0.43mm W x 0.44mm H | 4/8-Bit, Parallel, Serial, SPI | SSD1803 | -20°C ~ 70°C | White | Blue |
|
|
EA DIP205B-6NLWLCD MOD 80DIG 20X4 TRANSMISV WHT |
3 |
|
- |
- | Bulk | Active | 80.0 | 20 x 4 | 5 x 12 Dots w/Cursor | FSTN - Film Super-Twisted Nematic | - | - | 75.00mm x 45.80mm x 13.80mm | 61.00mm L x 38.00mm W | LED - White | 3.3V | 0.45mm W x 0.78mm H | 8-Bit, Parallel, Serial, SPI | RW1073 | -20°C ~ 70°C | White | Blue |
|
|
IMXEBOOKDC5EPD DISPLAY PARALLEL INTERFACE |
8 |
|
Ficha técnica |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
C82BXBSGLY2WT18X2 STN GRAY CHARACTER LCD |
54 |
|
Ficha técnica |
- | Box | Active | 16.0 | 8 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.56mm H x 2.96mm W | 58.00mm x 32.00mm x 13.50mm | 38.00mm L x 16.00mm W | LED - Yellow | 5V | 0.56mm W x 0.66mm H | Parallel | ST7066 | -20°C ~ 70°C | Black | Gray |
|
AMC0802BR-B-G6WFDWLCD COB CHAR 8X2 GRAY TRANSF |
92 |
|
Ficha técnica |
- | Box | Active | 16.0 | 8 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.56mm H x 2.96mm W | 58.00mm x 32.00mm x 14.00mm | 38.00mm L x 16.00mm W | LED - White | 4.5V ~ 5.5V | 0.56mm W x 0.66mm H | Parallel, 8-Bit | S6A0069 | -20°C ~ 70°C | Blue | Gray |
