LCD, caractere OLED e numérico
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Número de caracteres | Formato de exibição | Formato do caractere | Tipo de Exibição | Modo de exibição | Tamanho do caractere | Contorno C x L x A | Área de visualização | Luz de fundo | Voltagem - Alimentação | Tamanho do ponto | Interface | Tipo de Controlador | Temperatura operacional | Cor do texto | Cor do fundo |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCD-S101D40TRLCD MOD 1 DIG 1 X 1 REFLECTIVE |
0 |
|
Ficha técnica |
- | Tray | Active | 1.0 | 1 x 1 | 7-Segment | TN - Twisted Nematic | Reflective | 101.60mm H x 71.12mm W | 81.28mm x 122.56mm x 2.80mm | 76.20mm L x 109.22mm W | Without Backlight | 5V | - | - | - | 0°C ~ 50°C | - | - |
|
COGS-16265S-DP-RC-LV-GLCD MOD 32 DIG 16 X 2 REFLECTIVE |
0 |
|
Ficha técnica |
- | - | Obsolete | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 5.15mm H x 2.95mm W | 65.00mm x 27.70mm x 2.80mm | 61.00mm L x 15.70mm W | Without Backlight | 4.75V ~ 5.25V | 0.55mm W x 0.60mm H | Parallel | - | -10°C ~ 60°C | - | - |
|
|
COGS-16265S-DP-FC-LV-GLCD MOD 32DIG 16X2 TRANSFLECTIVE |
0 |
|
Ficha técnica |
- | - | Obsolete | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.15mm H x 2.95mm W | 65.00mm x 27.70mm x 2.80mm | 61.00mm L x 15.70mm W | Without Backlight | 4.75V ~ 5.25V | 0.55mm W x 0.60mm H | Parallel | - | -10°C ~ 60°C | - | - |
|

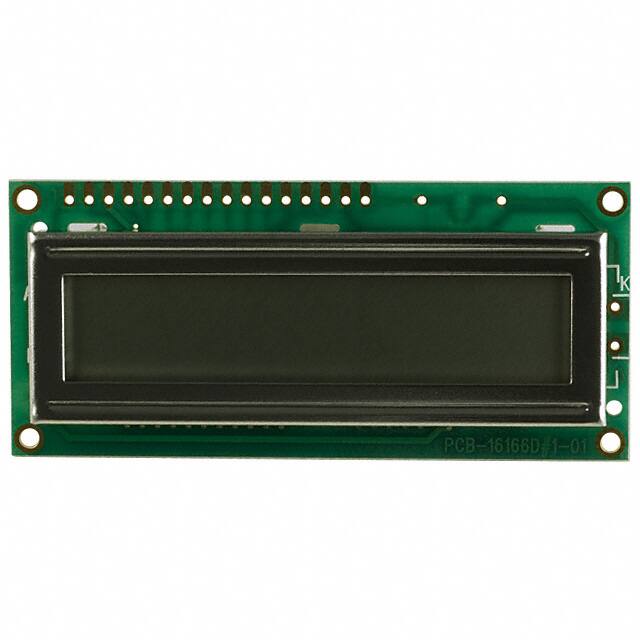

MDL-16166-SS-LVLCD MOD 16 DIG 16 X 1 REFLECTIVE |
0 |
|
Ficha técnica |
MDL(S)-16166 | - | Obsolete | 16.0 | 16 x 1 | 5 x 8 Dots | TN - Twisted Nematic | Reflective | 6.30mm H x 3.15mm W | 80.00mm x 36.00mm x 6.80mm | 64.50mm L x 13.80mm W | Without Backlight | 5V | 0.55mm W x 0.70mm H | Parallel | - | -5°C ~ 50°C | - | - |
|
|
MDL-16265-SS-LVLCD MOD 32 DIG 16 X 2 REFLECTIVE |
0 |
|
Ficha técnica |
MDL(S)-16265 | - | Obsolete | 32.0 | 16 x 2 | 5 x 8 Dots | TN - Twisted Nematic | Reflective | 5.55mm H x 2.95mm W | 84.00mm x 44.00mm x 6.60mm | 61.00mm L x 15.80mm W | Without Backlight | 5V | 0.55mm W x 0.65mm H | Parallel | - | -5°C ~ 50°C | - | - |
|

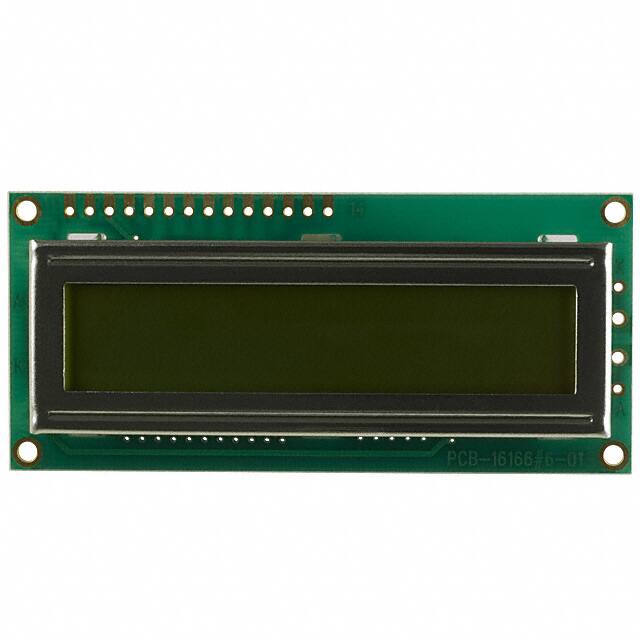

MDLS-16166-SS-LV-GLCD MOD 16 DIG 16 X 1 REFLECTIVE |
0 |
|
Ficha técnica |
MDL(S)-16166 | - | Obsolete | 16.0 | 16 x 1 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 6.30mm H x 3.15mm W | 80.00mm x 36.00mm x 6.80mm | 64.50mm L x 13.80mm W | Without Backlight | 5V | 0.55mm W x 0.70mm H | Parallel | - | -5°C ~ 50°C | - | - |
|

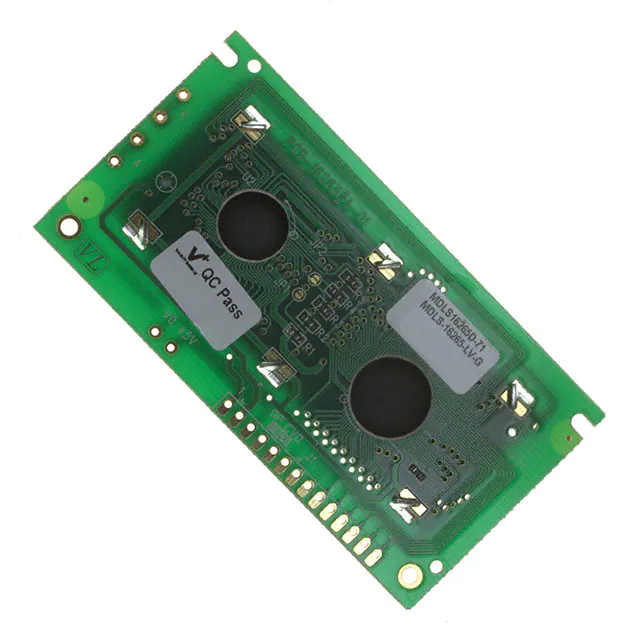

MDLS-16265-SS-LV-GLCD MOD 32 DIG 16 X 2 REFLECTIVE |
0 |
|
Ficha técnica |
MDL(S)-16265 | - | Obsolete | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 5.55mm H x 2.95mm W | 84.00mm x 44.00mm x 6.60mm | 61.00mm L x 15.80mm W | Without Backlight | 5V | 0.55mm W x 0.65mm H | Parallel | - | -5°C ~ 50°C | - | - |
|
MDLS-16465-SS-LV-GLCD MOD 64 DIG 16 X 4 REFLECTIVE |
0 |
|
Ficha técnica |
MDL(S)-16465 | - | Obsolete | 64.0 | 16 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 4.75mm H x 2.95mm W | 87.00mm x 60.00mm x 6.60mm | 61.80mm L x 25.20mm W | Without Backlight | 5V | 0.55mm W x 0.55mm H | Parallel | - | -5°C ~ 50°C | - | Green |
|

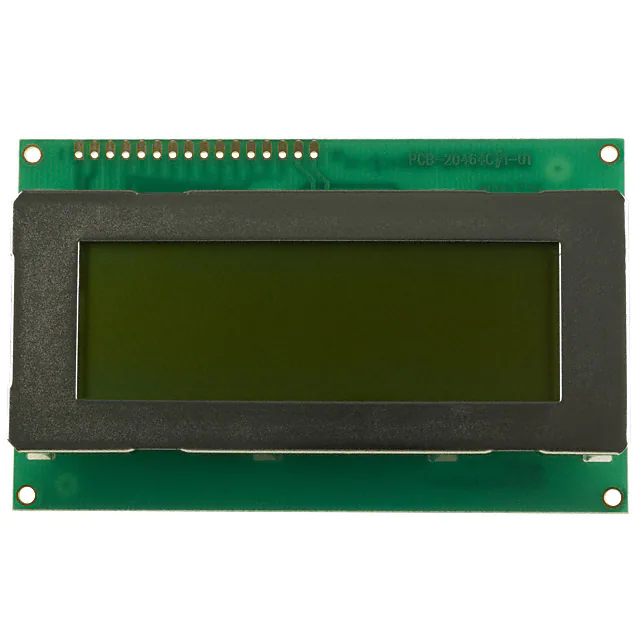

MDLS-20464-SS-LV-GLCD MOD 80 DIG 20 X 4 REFLECTIVE |
0 |
|
Ficha técnica |
MDL(S)-20464 | - | Obsolete | 80.0 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 4.70mm H x 2.90mm W | 98.00mm x 60.00mm x 7.10mm | 76.00mm L x 25.20mm W | Without Backlight | 5V | 0.50mm W x 0.50mm H | Parallel | - | -5°C ~ 50°C | - | Green |
|
MDLS-24265-SS-LV-GLCD MOD 48 DIG 24 X 2 REFLECTIVE |
0 |
|
Ficha técnica |
MDL(S)-24265 | - | Obsolete | 48.0 | 24 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 5.15mm H x 3.15mm W | 118.00mm x 36.00mm x 6.60mm | 93.50mm L x 15.80mm W | Without Backlight | 5V | 0.60mm W x 0.60mm H | Parallel | - | -5°C ~ 50°C | - | Green |
|
MDLS-40266-SS-LV-GLCD MOD 80 DIG 40 X 2 REFLECTIVE |
0 |
|
Ficha técnica |
MDL(S)-40266 | - | Obsolete | 80.0 | 40 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 5.50mm H x 3.15mm W | 182.00mm x 33.50mm x 6.60mm | 154.00mm L x 15.80mm W | Without Backlight | 5V | 0.55mm W x 0.60mm H | Parallel | - | -5°C ~ 50°C | - | Green |
|
MDLS-40466-SS-G-HVLCD MOD 160DIG 40 X 4 REFLECTIVE |
0 |
|
Ficha técnica |
MDL(S)-40466 | - | Obsolete | 160.0 | 40 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 5.50mm H x 3.15mm W | 196.00mm x 56.00mm x 6.60mm | 154.40mm L x 27.60mm W | Without Backlight | 5V | 0.55mm W x 0.60mm H | Parallel | - | -10°C ~ 60°C | - | Green |
|

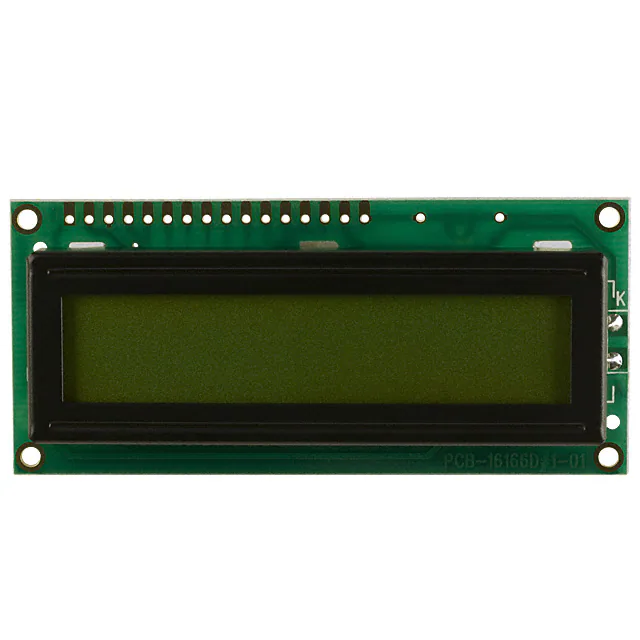

MDLS-16166-SS-LV-G-LED-04-GLCD MOD 16DIG 16X1 TRANSFLCT GRN |
0 |
|
Ficha técnica |
MDL(S)-16166 | - | Obsolete | 16.0 | 16 x 1 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 6.30mm H x 3.15mm W | 80.00mm x 36.00mm x 9.80mm | 64.50mm L x 13.80mm W | LED - Green | 5V | 0.55mm W x 0.70mm H | Parallel | - | -5°C ~ 50°C | - | Green |
|
|
MDLS-16265-SS-LV-G-LED-04-G-14LCD MOD 32DIG 16X2 TRANSFLCT GRN |
0 |
|
Ficha técnica |
MDL(S)-16265 | - | Obsolete | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.55mm H x 2.95mm W | 84.00mm x 44.00mm x 9.80mm | 61.00mm L x 15.80mm W | LED - Green | 5V | 0.55mm W x 0.65mm H | Parallel | - | -5°C ~ 50°C | - | - |
|
|
MDLS-16265SS-LV-G-LED4GLCD MOD 32DIG 16X2 TRANSFLCT GRN |
0 |
|
Ficha técnica |
MDL(S)-16265 | - | Obsolete | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.55mm H x 2.95mm W | 84.00mm x 44.00mm x 9.80mm | 61.00mm L x 15.80mm W | LED - Green | 5V | 0.55mm W x 0.65mm H | Parallel | - | -5°C ~ 50°C | - | - |
|
MDLS-16465-SS-LV-G-LED-04-GLCD MOD 64DIG 16X4 TRANSFLCT GRN |
0 |
|
Ficha técnica |
MDL(S)-16465 | - | Obsolete | 64.0 | 16 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 4.75mm H x 2.95mm W | 87.00mm x 60.00mm x 9.40mm | 61.80mm L x 25.20mm W | LED - Green | 5V | 0.55mm W x 0.55mm H | Parallel | - | -5°C ~ 50°C | - | Green |
|

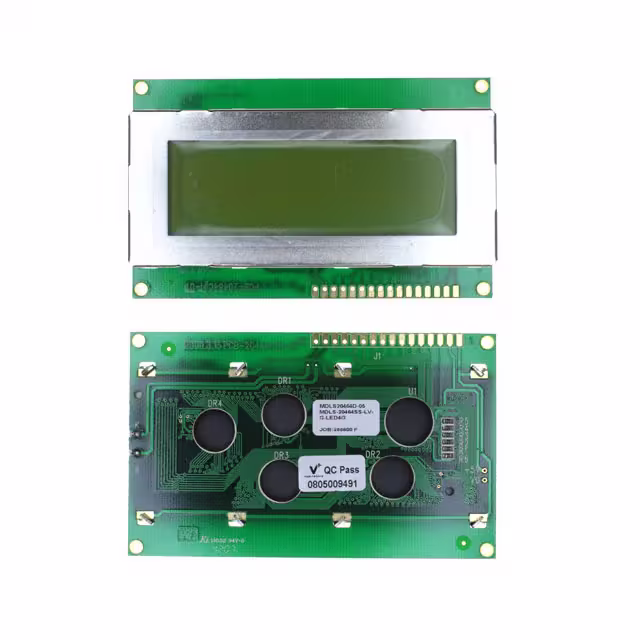

MDLS-20464-SS-LV-G-LED-04-GLCD MOD 80DIG 20X4 TRANSFLCT GRN |
0 |
|
Ficha técnica |
MDL(S)-20464 | - | Obsolete | 80.0 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 4.70mm H x 2.90mm W | 98.00mm x 60.00mm x 9.40mm | 76.00mm L x 25.20mm W | LED - Green | 5V | 0.50mm W x 0.50mm H | Parallel | - | -5°C ~ 50°C | - | Green |
|
MDLS-24265-SS-LV-G-LED-04-GLCD MOD 48DIG 24X2 TRANSFLCT GRN |
0 |
|
Ficha técnica |
MDL(S)-24265 | - | Obsolete | 48.0 | 24 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.15mm H x 3.15mm W | 118.00mm x 36.00mm x 10.00mm | 93.50mm L x 15.80mm W | LED - Green | 5V | 0.60mm W x 0.60mm H | Parallel | - | -5°C ~ 50°C | - | Green |
|
MDLS-40266-SS-LV-G-LED-04-GLCD MOD 80DIG 40X2 TRANSFLCT GRN |
0 |
|
Ficha técnica |
MDL(S)-40266 | - | Obsolete | 80.0 | 40 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.15mm H x 3.15mm W | 182.00mm x 33.50mm x 11.00mm | 154.00mm L x 15.80mm W | LED - Green | 5V | 0.55mm W x 0.60mm H | Parallel | - | -5°C ~ 50°C | - | Green |
|
MDLS-40466-SS-G-HV-LED-04-GLCD MOD 160DIG 40X4 TRANSFLCT GR |
0 |
|
Ficha técnica |
MDL(S)-40466 | - | Obsolete | 160.0 | 40 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.50mm H x 3.15mm W | 196.00mm x 56.00mm x 11.30mm | 154.40mm L x 27.60mm W | LED - Green | 5V | 0.55mm W x 0.60mm H | Parallel | - | -10°C ~ 60°C | - | Green |
