LCD, caractere OLED e numérico
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Número de caracteres | Formato de exibição | Formato do caractere | Tipo de Exibição | Modo de exibição | Tamanho do caractere | Contorno C x L x A | Área de visualização | Luz de fundo | Voltagem - Alimentação | Tamanho do ponto | Interface | Tipo de Controlador | Temperatura operacional | Cor do texto | Cor do fundo |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCM-S01604DTRLCD MOD 64 DIG 16 X 4 REFLECTIVE |
0 |
|
Ficha técnica |
- | Box | Active | 64.0 | 16 x 4 | 5 x 8 Dots | TN - Twisted Nematic | Reflective | 4.75mm H x 2.95mm W | 87.00mm x 60.00mm x 8.90mm | 62.00mm L x 25.60mm W | Without Backlight | 5V | 0.55mm W x 0.55mm H | Parallel | - | 0°C ~ 50°C | - | - |
|
|
LCM-S02002DTFLCD MOD 40DIG 20X2 TRANS YLW/GRN |
0 |
|
Ficha técnica |
- | Bulk | Active | 40.0 | 20 x 2 | 5 x 8 Dots | TN - Twisted Nematic | Transflective | 5.55mm H x 3.20mm W | 116.00mm x 28.50mm x 12.70mm | 85.00mm L x 18.60mm W | LED - Yellow/Green | 5V | 0.60mm W x 0.65mm H | Parallel | - | 0°C ~ 50°C | - | - |
|
|
LCM-S02004DTFLCD MOD 80DIG 20X4 TRANS YLW/GRN |
0 |
|
Ficha técnica |
- | Bulk | Active | 80.0 | 20 x 4 | 5 x 8 Dots | TN - Twisted Nematic | Transflective | 4.75mm H x 2.95mm W | 98.00mm x 60.00mm x 12.70mm | 77.00mm L x 26.30mm W | LED - Yellow/Green | 5V | 0.55mm W x 0.55mm H | Parallel | - | 0°C ~ 50°C | - | - |
|
|
LCM-S02004DTRLCD MOD 80 DIG 20 X 4 REFLECTIVE |
0 |
|
Ficha técnica |
- | Box | Active | 80.0 | 20 x 4 | 5 x 8 Dots | TN - Twisted Nematic | Reflective | 4.75mm H x 2.95mm W | 98.00mm x 60.00mm x 8.80mm | 77.00mm L x 26.30mm W | Without Backlight | 5V | 0.55mm W x 0.55mm H | Parallel | - | 0°C ~ 50°C | - | - |
|
|
LCM-S02402DSMLCD MOD 48DIG 24 X 2 TRANSMISSIV |
0 |
|
Ficha técnica |
- | Bulk | Active | 48.0 | 24 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 5.55mm H x 3.20mm W | 118.00mm x 36.00mm x 8.80mm | 93.50mm L x 16.00mm W | Without Backlight | 5V | 0.60mm W x 0.65mm H | Parallel | - | 0°C ~ 50°C | - | - |
|
|
LCM-S02402DTFLCD MOD 48DIG 24X2 TRANS YLW/GRN |
0 |
|
Ficha técnica |
- | Bulk | Active | 48.0 | 24 x 2 | 5 x 8 Dots | TN - Twisted Nematic | Transflective | 5.55mm H x 3.20mm W | 118.00mm x 36.00mm x 12.70mm | 93.50mm L x 16.00mm W | LED - Yellow/Green | 5V | 0.60mm W x 0.65mm H | Parallel | - | 0°C ~ 50°C | - | - |
|

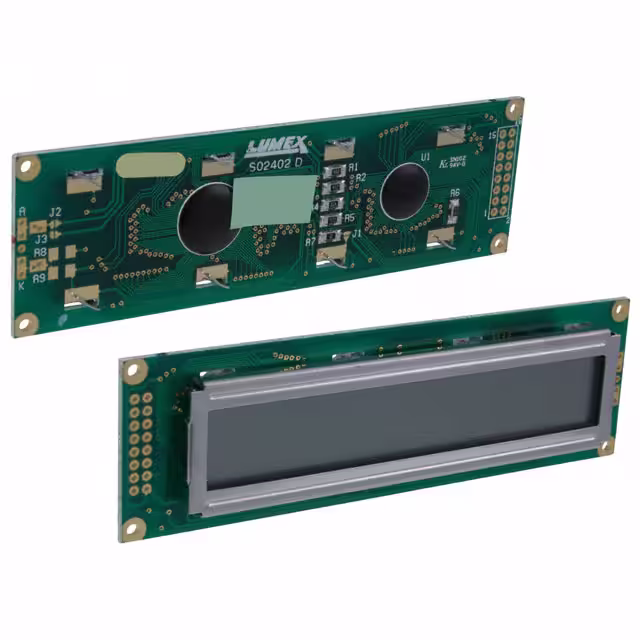

LCM-S02402DTRLCD MOD 48 DIG 24 X 2 REFLECTIVE |
0 |
|
Ficha técnica |
- | Box | Active | 48.0 | 24 x 2 | 5 x 8 Dots | TN - Twisted Nematic | Reflective | 5.55mm H x 3.20mm W | 118.00mm x 36.00mm x 8.80mm | 93.50mm L x 16.00mm W | Without Backlight | 5V | 0.60mm W x 0.65mm H | Parallel | - | 0°C ~ 50°C | - | - |
|
|
MDL-16166-SS-LV-SLCD MOD 16 DIG 16 X 1 REFLECTIVE |
0 |
|
Ficha técnica |
MDL(S)-16166 | - | Obsolete | 16.0 | 16 x 1 | 5 x 8 Dots | TN - Twisted Nematic | Reflective | 6.30mm H x 3.15mm W | 80.00mm x 36.00mm x 6.80mm | 64.50mm L x 13.80mm W | Without Backlight | 5V | 0.55mm W x 0.70mm H | Parallel | - | -5°C ~ 50°C | - | - |
|
|
MDL-16265-SS-LV-SLCD MOD 32 DIG 16 X 2 REFLECTIVE |
0 |
|
Ficha técnica |
MDL(S)-16265 | - | Obsolete | 32.0 | 16 x 2 | 5 x 8 Dots | TN - Twisted Nematic | Reflective | 5.55mm H x 2.95mm W | 84.00mm x 44.00mm x 6.60mm | 61.00mm L x 15.80mm W | Without Backlight | 5V | 0.55mm W x 0.65mm H | Parallel | - | -5°C ~ 50°C | - | - |
|

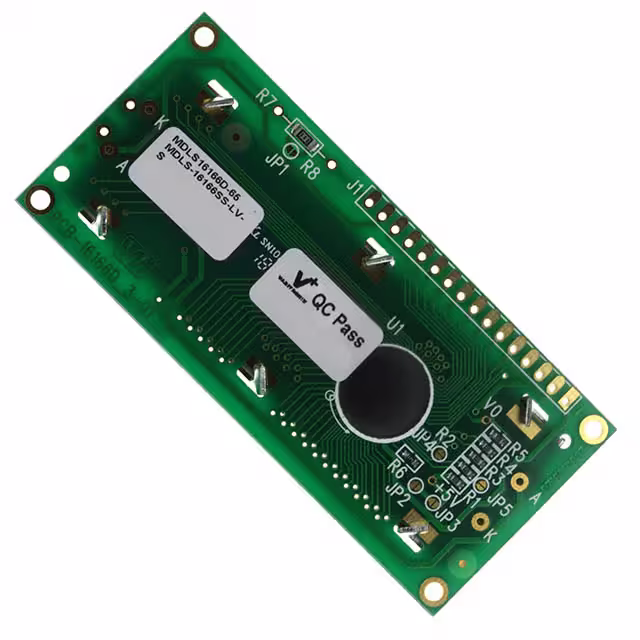

MDLS-16166-SS-LV-SLCD MOD 16 DIG 16 X 1 REFLECTIVE |
0 |
|
Ficha técnica |
MDL(S)-16166 | - | Obsolete | 16.0 | 16 x 1 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 6.30mm H x 3.15mm W | 80.00mm x 36.00mm x 6.80mm | 64.50mm L x 13.80mm W | Without Backlight | 5V | 0.55mm W x 0.70mm H | Parallel | - | -5°C ~ 50°C | - | - |
|
|
MDLS-16265-SS-LV-SLCD MOD 32 DIG 16 X 2 REFLECTIVE |
0 |
|
Ficha técnica |
MDL(S)-16265 | - | Obsolete | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 5.55mm H x 2.95mm W | 80.00mm x 36.00mm x 13.00mm | 61.00mm L x 15.80mm W | Without Backlight | 5V | 0.55mm W x 0.65mm H | Parallel | - | -5°C ~ 50°C | - | - |
|
|
MDLS-16166-SS-LV-S-LED-04-GLCD MOD 16DIG 16X1 TRANSFLCT GRN |
0 |
|
Ficha técnica |
MDL(S)-16166 | - | Obsolete | 16.0 | 16 x 1 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 6.30mm H x 3.15mm W | 80.00mm x 36.00mm x 9.80mm | 64.50mm L x 13.80mm W | LED - Green | 4.75V ~ 5.25V | 0.55mm W x 0.70mm H | Parallel | - | -5°C ~ 50°C | - | - |
|
|
MDLS-16265-SS-LV-S-LED-04-G-14LCD MOD 32DIG 16X2 TRANSFLCT GRN |
0 |
|
Ficha técnica |
MDL(S)-16265 | - | Obsolete | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.55mm H x 2.95mm W | 80.00mm x 36.00mm x 9.80mm | 61.00mm L x 15.80mm W | LED - Green | 4.75V ~ 5.25V | 0.55mm W x 0.65mm H | Parallel | - | -5°C ~ 50°C | - | Green |
|
|
MDLS-16265-SS-LV-S-LED-04-G-16LCD MOD 32DIG 16X2 TRANSFLCT GRN |
0 |
|
Ficha técnica |
MDL(S)-16265 | - | Obsolete | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.55mm H x 2.95mm W | 80.00mm x 36.00mm x 9.80mm | 61.00mm L x 15.80mm W | LED - Green | 4.75V ~ 5.25V | 0.55mm W x 0.65mm H | Parallel | - | -5°C ~ 50°C | - | Green |
|
|
MDLS-16465-SS-LV-S-LED-04-GLCD MOD 64DIG 16X4 TRANSFLCT GRN |
0 |
|
Ficha técnica |
MDL(S)-16465 | - | Obsolete | 64.0 | 16 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 4.75mm H x 2.95mm W | 87.00mm x 60.00mm x 9.40mm | 61.80mm L x 25.20mm W | LED - Green | 5V | 0.55mm W x 0.55mm H | Parallel | - | -5°C ~ 50°C | - | Green |
|
|
MDLS-20464-SS-LV-S-LED-04-GLCD MOD 80DIG 20X4 TRANSFLCT GRN |
0 |
|
Ficha técnica |
MDL(S)-20464 | - | Obsolete | 80.0 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 4.70mm H x 2.90mm W | 98.00mm x 60.00mm x 9.40mm | 76.00mm L x 25.20mm W | LED - Green | 5V | 0.50mm W x 0.50mm H | Parallel | - | -5°C ~ 50°C | - | Green |
|
|
MDLS-40466-SS-HV-S-LED-04-GLCD MOD 160DIG 40X4 TRANSFLCT GR |
0 |
|
Ficha técnica |
MDL(S)-40466 | - | Obsolete | 160.0 | 40 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.50mm H x 3.15mm W | 196.00mm x 56.00mm x 11.30mm | 154.40mm L x 27.60mm W | LED - Green | 5V | 0.55mm W x 0.60mm H | Parallel | - | -10°C ~ 60°C | - | Green |
|
|
COGS-12264-12C-FC-G-LVLCD MOD 24DIG 12X2 TRANSFLECTIVE |
0 |
|
Ficha técnica |
- | Bulk | Obsolete | 24.0 | 12 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 3.55mm H x 2.20mm W | - | 33.00mm L x 14.50mm W | Without Backlight | 5V | 0.50mm W x 0.50mm H | I2C | - | -5°C ~ 50°C | - | - |
|
|
C-51505NFQJ-LW-ADLCD MOD 40DIG 20X2 TRANSMISV WHT |
0 |
|
Ficha técnica |
C-51505 | - | Obsolete | 40.0 | 20 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 5.55mm H x 3.20mm W | 116.00mm x 37.00mm x 15.60mm | 83.00mm L x 18.60mm W | LED - White | 4.5V ~ 5.5V | 0.60mm W x 0.65mm H | Parallel | - | -20°C ~ 70°C | White | Black |
|
|
C-51505NFQJ-LB-AELCD MOD 40DIG 20X2 TRANSMIS BLUE |
0 |
|
Ficha técnica |
C-51505 | - | Obsolete | 40.0 | 20 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 5.55mm H x 3.20mm W | 116.00mm x 37.00mm x 15.60mm | 83.00mm L x 18.60mm W | LED - Blue | 4.5V ~ 5.5V | 0.60mm W x 0.65mm H | Parallel | - | -20°C ~ 70°C | White | Blue |
