LCD, caractere OLED e numérico
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Número de caracteres | Formato de exibição | Formato do caractere | Tipo de Exibição | Modo de exibição | Tamanho do caractere | Contorno C x L x A | Área de visualização | Luz de fundo | Voltagem - Alimentação | Tamanho do ponto | Interface | Tipo de Controlador | Temperatura operacional | Cor do texto | Cor do fundo |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

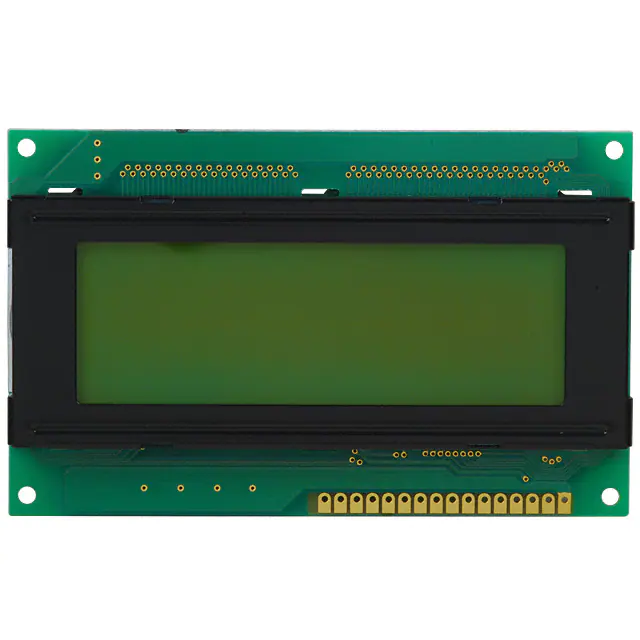

DMC-20481NY-LY-BAE-BKNLCD MOD 80DIG 20X4 TRANSMISV YLW |
0 |
|
- |
DMC-20481 | Bulk | Obsolete | 80.0 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 4.75mm H x 2.95mm W | 98.50mm x 61.00mm x 15.60mm | 76.00mm L x 25.20mm W | LED - Yellow | 4.5V ~ 5.5V | 0.55mm W x 0.55mm H | - | - | 0°C ~ 50°C | - | Green |
|
LCD0821-VPTLCD MOD 16DIG 8X2 REFLCT YLW/GRN |
0 |
|
Ficha técnica |
LCD0821 | Bulk | Obsolete | 16.0 | 8 x 2 | - | TN - Twisted Nematic | Reflective | 5.56mm H x 2.96mm W | 58.00mm x 32.00mm x 25.00mm | 38.00mm L x 16.00mm W | LED - Yellow/Green | 9V ~ 35V | 0.06mm W x 0.17mm H | I2C, RS-232, TTL | - | - | - | - |
|
|
COG-16265N-DP-FC-G-12LCD MOD 32DIG 16X2 TRANSFLECTIVE |
0 |
|
Ficha técnica |
- | Tray | Obsolete | 32.0 | 16 x 2 | 5 x 8 Dots | - | Transflective | 5.15mm H x 2.95mm W | 65.00mm x 27.70mm x 2.64mm | 61.00mm L x 15.70mm W | - | - | 0.55mm W x 0.60mm H | Parallel | - | - | - | - |
|
|
COG-16265-DP-I2C-TC-SILVERLCD MOD 32DIG 16 X 2 TRANSMISSIV |
0 |
|
Ficha técnica |
- | Tray | Obsolete | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 5.15mm H x 2.95mm W | 67.00mm x 27.80mm x 2.80mm | 61.00mm L x 15.80mm W | - | 2.85V ~ 3.15V | 0.55mm W x 0.65mm H | I2C | - | -10°C ~ 50°C | - | - |
|
|
COG-16265-DP-I2C-FH-W-SILVERLCD MOD 32DIG 16 X 2 TRANSMISSIV |
0 |
|
Ficha técnica |
- | Tray | Obsolete | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 5.15mm H x 2.95mm W | 67.00mm x 27.80mm x 2.80mm | 61.00mm L x 15.80mm W | - | 2.85V ~ 3.15V | 0.55mm W x 0.65mm H | I2C | - | -10°C ~ 50°C | - | - |
|
|
COG-12864-FC-S-LEDWLCD COG 128X64 SILV W/BKLT WIDE |
0 |
|
- |
- | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
COGS-12264N-DP-RC-FSTNLCD MOD 32 DIG 12 X 2 REFLECTIVE |
0 |
|
Ficha técnica |
- | Tray | Obsolete | 32.0 | 12 x 2 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Reflective | 3.55mm H x 2.20mm W | 38.00mm x 25.50mm x 2.00mm | 33.00mm L x 14.50mm W | - | - | 0.40mm W x 0.40mm H | - | - | - | - | - |
|
|
COGS-12325-DP-FC-GREENLCD MOD 36DIG 12X3 TRANSFLCT GRN |
0 |
|
Ficha técnica |
- | Tray | Obsolete | 36.0 | 12 x 3 | 5 x 7 Dots w/Cursor | STN - Super-Twisted Nematic | Transflective | 4.68mm H x 2.27mm W | 46.00mm x 33.00mm x 2.70mm | 37.40mm L x 17.00mm W | LED - Green | 5.7V ~ 6V | 0.39mm W x 0.60mm H | Parallel | - | -5°C ~ 50°C | - | - |
|
|
MDLS-16263-C-LV-G-LED04GLCD MOD 32DIG 16X2 TRANSFLCT GRN |
0 |
|
Ficha técnica |
MDL(S)-16263 | Box | Obsolete | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 3.15mm H x 1.85mm W | 53.00mm x 20.00mm x 8.00mm | 36.00mm L x 10.00mm W | LED - Green | 3V | 0.33mm W x 0.35mm H | Parallel | - | -10°C ~ 60°C | - | - |
|

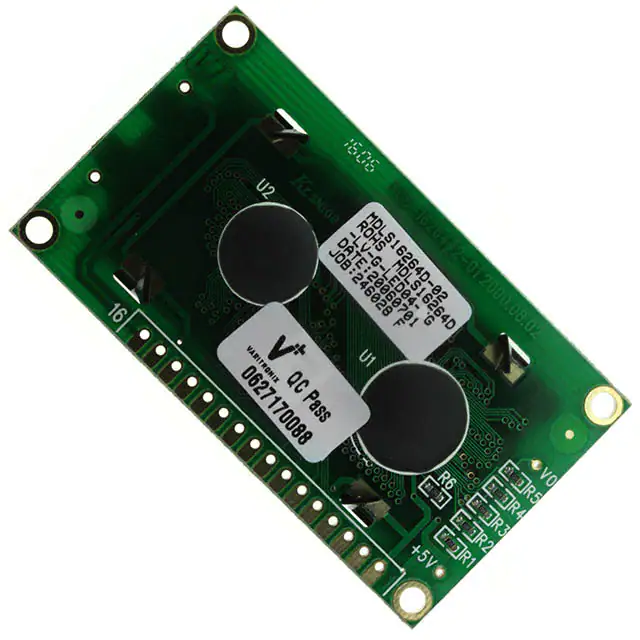

MDLS-16264-SS-LV-G-LED04GLCD MOD 32DIG 16X2 TRANSFLCT GRN |
0 |
|
Ficha técnica |
MDL(S)-16264 | Box | Obsolete | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 4.07mm H x 2.54mm W | 65.50mm x 36.70mm x 9.40mm | 48.60mm L x 12.00mm W | LED - Green | 5V | 0.46mm W x 0.43mm H | Parallel | - | -5°C ~ 50°C | - | - |
|

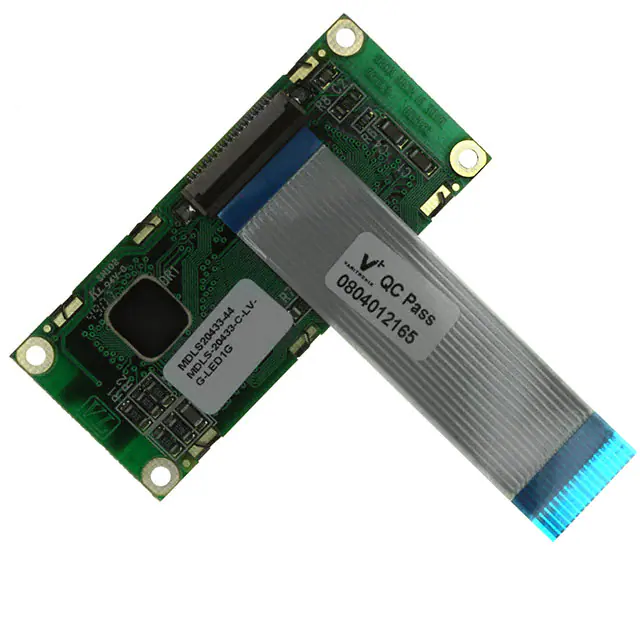

MDLS-20433-C-LV-G-LED01GLCD MOD 80DIG 20X4 TRANSFLCT GRN |
0 |
|
Ficha técnica |
MDL(S)-20433 | Box | Obsolete | 80.0 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 3.15mm H x 1.85mm W | 65.00mm x 28.40mm x 8.00mm | 46.00mm L x 18.40mm W | LED - Green | 4.8V ~ 6V | 0.33mm W x 0.35mm H | Parallel | - | -5°C ~ 50°C | - | - |
|
|
MDLS-20464-LV-SLCD MOD 80 DIG 20 X 4 REFLECTIVE |
0 |
|
Ficha técnica |
MDL(S)-20464 | Box | Obsolete | 80.0 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 4.70mm H x 2.90mm W | 98.00mm x 60.00mm x 7.10mm | 76.00mm L x 25.20mm W | Without Backlight | 5V | 0.50mm W x 0.50mm H | Parallel | - | -5°C ~ 50°C | - | - |
|

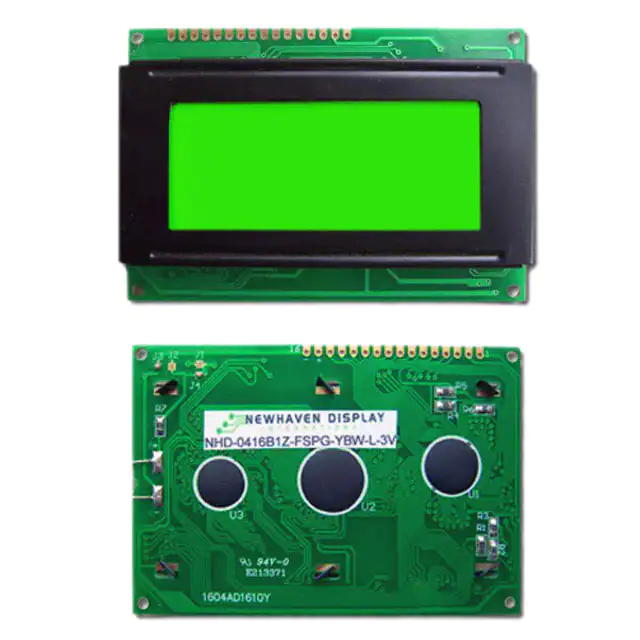

NHD-0416B1Z-FSPG-YBW-L-3VLCD MOD 64DIG 16X4 TRANSFLCT GRN |
0 |
|
Ficha técnica |
- | Box | Obsolete | 64.0 | 16 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 4.75mm H x 2.95mm W | 87.00mm x 60.00mm x 14.00mm | 61.80mm L x 25.20mm W | LED - Green | 3.2V ~ 3.4V | 0.55mm W x 0.55mm H | Parallel | - | -20°C ~ 70°C | - | Green |
|
NHD-0420H1Z-FSW-GBW-3V3LCD MOD 80DIG 20X4 TRANSFLCT WHT |
0 |
|
Ficha técnica |
- | Box | Obsolete | 80.0 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.15mm H x 2.35mm W | 79.00mm x 36.00mm x 13.00mm | 60.00mm L x 28.00mm W | LED - White | 3V ~ 3.5V | 0.43mm W x 0.60mm H | Parallel | - | -20°C ~ 70°C | Gray | White |
|
NHD-C0220AZ-FSW-FTWLCD MOD 40DIG 20X2 TRANSFLCT WHT |
0 |
|
Ficha técnica |
- | Box | Obsolete | 40.0 | 20 x 2 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transflective | 5.55mm H x 2.45mm W | 70.30mm x 25.00mm x 6.10mm | 61.00mm L x 15.10mm W | LED - White | 4.5V ~ 5.5V | 0.45mm W x 0.65mm H | Parallel | NT-7605 | -20°C ~ 70°C | Black | White |
|
NHD-0216SZ-NSW-BBW-3V3LCD MOD 32DIG 16X2 TRANSMISV WHT |
0 |
|
Ficha técnica |
- | Box | Obsolete | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 9.55mm H x 5.20mm W | 122.00mm x 44.00mm x 13.50mm | 99.00mm L x 24.00mm W | LED - White | 2.7V ~ 3.3V | 1.00mm W x 1.15mm H | Parallel | - | -20°C ~ 70°C | White | Blue |
|
NHD-0420DZ-FL-YBW-3V3LCD MOD 80DIG 20X4 TRANS YLW/GRN |
0 |
|
Ficha técnica |
- | Box | Obsolete | 80.0 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 4.75mm H x 2.95mm W | 98.00mm x 60.00mm x 14.00mm | 76.00mm L x 25.20mm W | LED - Yellow/Green | 3V ~ 3.5V | 0.55mm W x 0.55mm H | Parallel | - | -20°C ~ 70°C | Gray | Green |
|
|
LK202-25-USB-FWLCD MOD 40DIG 20X2 TRANSMISV WHT |
0 |
|
Ficha técnica |
- | Bulk | Obsolete | 40.0 | 20 x 2 | 5 x 8 Dots | FFSTN - Double Film Super-Twisted Nematic | Transmissive | 5.55mm H x 3.20mm W | 116.00mm x 37.00mm x 27.70mm | 83.00mm L x 18.60mm W | LED - White | 4.75V ~ 5.25V | 0.60mm W x 0.65mm H | USB | - | 0°C ~ 50°C | White | Black |
|
NHD-0108BZ-RN-YBW-3VLCD MOD 8 DIG 8 X 1 REFLECTIVE |
0 |
|
Ficha técnica |
- | Bulk | Obsolete | 8.0 | 8 x 1 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 7.10mm H x 3.40mm W | 53.00mm x 24.20mm x 11.00mm | 35.00mm L x 12.60mm W | Without Backlight | 2.7V ~ 3.3V | 0.60mm W x 0.80mm H | Parallel | - | -20°C ~ 70°C | Gray | Green |
|

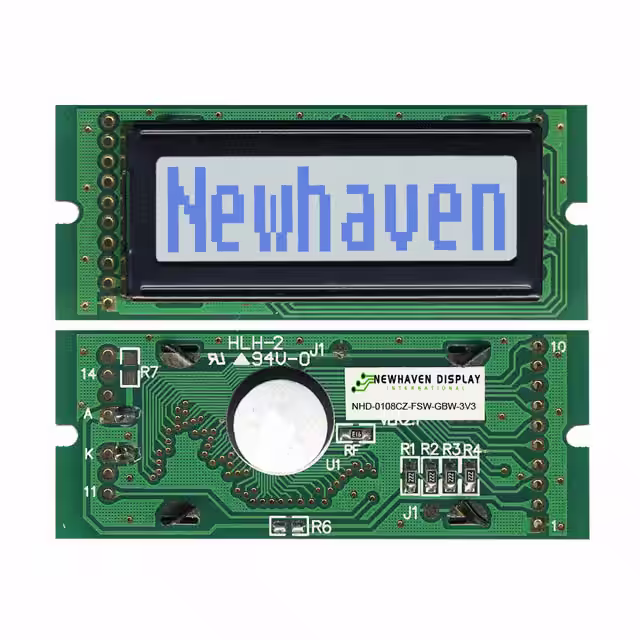

NHD-0108CZ-FSW-GBW-3V3LCD MOD 8DIG 8X1 TRANSFLECTV WHT |
0 |
|
Ficha técnica |
- | Bulk | Obsolete | 8.0 | 8 x 1 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 7.71mm H x 4.20mm W | 69.00mm x 27.00mm x 13.00mm | 45.20mm L x 13.80mm W | LED - White | 3.3V | 0.80mm W x 0.92mm H | Parallel | - | -20°C ~ 70°C | Blue | Gray |
