LED COBs, motores, módulos, tiras
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo | Cor | CCT (K) | Comprimento de onda | Configuração | Fluxo luminoso @ corrente/temperatura | Corrente - Teste | Temperatura - Teste | Voltagem - Direto (Vf) (Típico) | Lúmens/Watt @ corrente - Teste | Corrente - Máx. | CRI (Índice de renderização de cores) | Ângulo de visão | Recursos | Tamanho/dimensão | Altura | Superfície emissora de luz (LES) | Tipo de lente |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRC-35G10K0-D-73-SELED COB VERO SE 29 WHT RND 3500K |
85 |
|
Ficha técnica |
Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 10818lm (Typ) | 2.1A | 25°C | 37.6V | 137 lm/W | 4.2A | 90 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia | Flat |
|
|
BXRC-50C10K1-B-74-SELED COB VERO SE 29 WHT RND 5000K |
77 |
|
Ficha técnica |
Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 17035lm (Typ) | 1.8A | 25°C | 52V | 182 lm/W | 3.6A | 70 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia | Flat |
|
|
BXRC-30E10K0-B-73-SELED COB VERO WHT RND 3000K |
74 |
|
Ficha técnica |
Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 14882lm (Typ) | 1.8A | 25°C | 52V | 159 lm/W | 3.6A | 80 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia | Flat |
|
|
BXRC-30G10K0-D-73-SELED COB VERO WHT RND 3000K |
69 |
|
Ficha técnica |
Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 10502lm (Typ) | 2.1A | 25°C | 37.6V | 133 lm/W | 4.2A | 90 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia | Flat |
|
|
BXRC-27E10K0-B-73-SELED COB VERO SE 29 WHT RND 2700K |
13 |
|
Ficha técnica |
Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 14321lm (Typ) | 1.8A | 25°C | 52V | 153 lm/W | 3.6A | 80 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia | Flat |
|
4245LED MOD RGB LINEAR STRIP |
23 |
|
Ficha técnica |
- | Bulk | Active | LED Module | Red, Green, Blue (RGB) | - | - | Linear Light Strip, Flexible | - | - | - | 12V | - | - | - | - | - | 1000.00mm L | - | - | Flat |
|
BXRC-27E10K0-D-73LED COB VERO 29 WM WHT RND 2700K |
94 |
|
Ficha técnica |
Gen 7 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 10906lm (Typ) | 2.1A | 25°C | 37.6V | 153 lm/W | 4.2A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
|
BXRC-30E10K0-B-73LED COB VERO 29 WM WH RND 3000K |
93 |
|
Ficha técnica |
Gen 7 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 14943lm (Typ) | 1.8A | 25°C | 52V | 160 lm/W | 3.6A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
|
BXRC-50C10K1-C-74-SELED COB VERO SE 29 WHT RND 5000K |
48 |
|
Ficha técnica |
Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 21599lm (Typ) | 1.71A | 25°C | 69.4V | 182 lm/W | 3.42A | 70 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia | Flat |
|
|
BXRC-50C10K1-C-74LED COB VERO 29 WHT RND 5000K |
95 |
|
Ficha técnica |
Gen 7 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 21635lm (Typ) | 1.71A | 25°C | 69.4V | 182 lm/W | 3.42A | 70 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
|
BXRC-65C10K1-C-74LED COB VERO 29 WHT RND 6500K |
77 |
|
Ficha técnica |
Gen 7 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Round | 21269lm (Typ) | 1.71A | 25°C | 69.4V | 179 lm/W | 3.42A | 70 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
CXM-32-40-80-54-AC40-F5-3LED COB CXM-32 GEN4 WHT SQ 4000K |
92 |
|
Ficha técnica |
CXM-32 Gen4 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 20505lm (Typ) | 2.4A | 85°C | 50.8V | 168 lm/W | 5A | 80 | 120° | - | 38.00mm L x 38.00mm W | 1.37mm | 32.80mm Dia | Flat |
|
4917LED MOD RGB LINEAR STRIP |
11 |
|
Ficha técnica |
- | Bulk | Active | LED Module | Red, Green, Blue (RGB) | - | - | Linear Light Strip, Flexible | - | - | - | 5V | - | - | - | - | IP65 | 10000.00mm L | - | - | Domed |
|
CMA3090-0000-000Q0H0A40GLED COB XLAMP NEUT WHT SQU 4000K |
89 |
|
Ficha técnica |
XLamp® CMA3090 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 12372lm (Typ) | 1.8A | 85°C | 45V | 153 lm/W | 3.6A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|

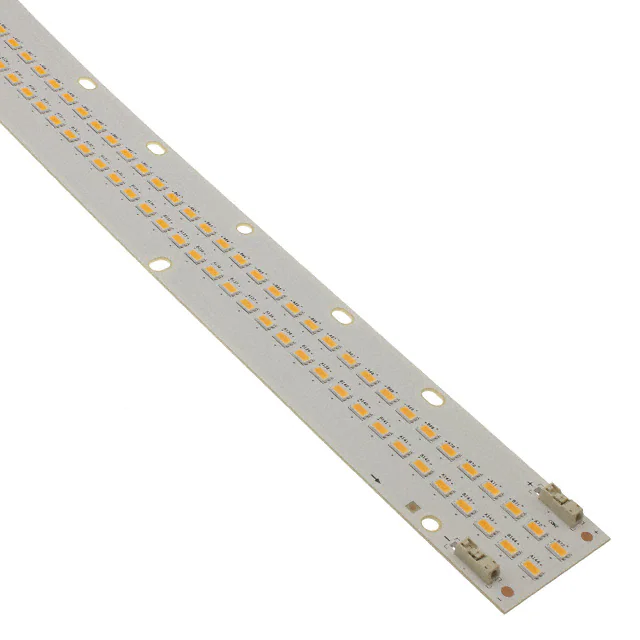

SI-B8VZ91B20WWLED MOD F-SER GEN3 LNR 3000K |
55 |
|
Ficha técnica |
F-Series Gen3 | Bulk | Active | LED Module | White, Warm | 3000K | - | Linear Light Strip | 17340lm (Typ) | 2.24A | 65°C | 46V | 168 lm/W | - | 80 | - | With Connector | 1120.00mm L x 39.80mm W | 5.20mm | - | Flat |
|
4865LED COB RGB LINEAR STRIP |
22 |
|
- |
- | Bulk | Active | Chip On Board (COB) | Red, Green, Blue (RGB) | - | - | Linear Light Strip, Flexible | - | - | - | 3V ~ 5V | - | 20A | - | - | - | - | - | - | Flat |
|
ZWF-438-24CWLED MOD ALUMILINE LNR STRP 1.5' |
10 |
|
Ficha técnica |
ALUMILINE® ZWF | Tube | Active | LED Module | White, Cool | 6000K | - | Linear Light Strip, Plug and Play | 358lm | 173mA | 25°C | - | - | - | - | - | IP67 | 438.00mm L x 12.70mm W | - | - | Flat |
|
|
NELM-85/12/20-40-90-DLED MOD NEU WHITE ROUND 4000K |
15 |
|
Ficha técnica |
- | Bulk | Active | LED Module | White, Neutral | 4000K | - | Round, Plug and Play | 865lm (Typ), 1292lm (Typ), 2031lm (Typ) | - | 55°C | 33.4V, 34.4V, 36.2V | - | 200mA, 320mA, 560mA | 90 | 102° | - | 88.20mm Dia | 60.30mm | 61.30mm Dia | Domed |
|
|
NELM-30/40/00-30-90-DLED MOD WARM WHITE ROUND 3000K |
20 |
|
Ficha técnica |
- | Bulk | Active | LED Module | White, Warm | 3000K | - | Round, Plug and Play | 3012lm (Typ), 4008lm (Typ) | - | 55°C | 33.7V, 34.6V | - | 750mA, 1.1A | 90 | 102° | - | 88.20mm Dia | 60.30mm | 61.30mm Dia | Domed |
|
|
NELM-30/40/00-30-90-FLED MOD WARM WHITE ROUND 3000K |
39 |
|
Ficha técnica |
- | Bulk | Active | LED Module | White, Warm | 3000K | - | Round, Plug and Play | 3012lm (Typ), 4008lm (Typ) | - | 55°C | 33.7V, 34.6V | - | 750mA, 1.1A | 90 | 86° | - | 88.20mm Dia | 30.00mm | 61.30mm Dia | Flat |
