LED COBs, motores, módulos, tiras
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo | Cor | CCT (K) | Comprimento de onda | Configuração | Fluxo luminoso @ corrente/temperatura | Corrente - Teste | Temperatura - Teste | Voltagem - Direto (Vf) (Típico) | Lúmens/Watt @ corrente - Teste | Corrente - Máx. | CRI (Índice de renderização de cores) | Ângulo de visão | Recursos | Tamanho/dimensão | Altura | Superfície emissora de luz (LES) | Tipo de lente |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXA1304-0000-000C00B20E7LED COB XLAMP WARM WHT SQ 3000K |
90 |
|
Ficha técnica |
XLamp® CXA1304 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K | - | Square | 395lm (380lm ~ 410lm) | 400mA | 85°C | 9V | 110 lm/W | 1A | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|

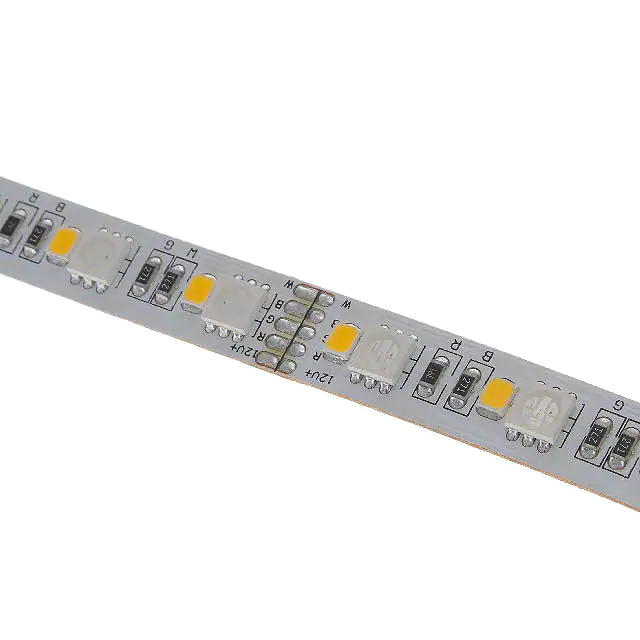

AB-FA01208-19700-8A1LED MOD AB-FA RGBW LNR STRIP |
684 |
|
Ficha técnica |
AB-FA | Tape & Reel (TR) | Active | LED Module | Red, Green, Blue, White (RGBW) | - | - | Linear Light Strip, Flexible | - | 660mA | 25°C | 12V | - | - | 80 | 120° | IP20 | 5000.00mm L x 8.00mm W (50.00mm L per Segment) | 1.60mm | - | Flat |
|
|
CXA1304-0000-000F00B430FLED COB XLAMP WARM WHT SQU 3000K |
99 |
|
Ficha técnica |
XLamp® CXA1304 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 425lm (410lm ~ 440lm) | 200mA | 85°C | 18V | 118 lm/W | 500mA | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|
|
CXA1304-0000-000F00B227FLED COB XLAMP WARM WHT SQU 2700K |
53 |
|
Ficha técnica |
XLamp® CXA1304 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 395lm (380lm ~ 410lm) | 200mA | 85°C | 18V | 110 lm/W | 500mA | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|
|
CXA1304-0000-000C00B430FLED COB XLAMP WARM WHT SQU 3000K |
32 |
|
Ficha técnica |
XLamp® CXA1304 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 425lm (410lm ~ 440lm) | 400mA | 85°C | 9V | 118 lm/W | 1A | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|
|
CXA1304-0000-000N00B430FLED COB XLAMP WARM WHT SQU 3000K |
27 |
|
Ficha técnica |
XLamp® CXA1304 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 425lm (410lm ~ 440lm) | 100mA | 85°C | 37V | 115 lm/W | 250mA | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|
|
CXA1304-0000-000C0Y9430GLED COB XLAMP WARM WHT SQ 3000K |
66 |
|
Ficha técnica |
XLamp® CXA1304 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 310lm (290lm ~ 330lm) | 400mA | 85°C | 9V | 86 lm/W | 1A | 93 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|
CXA1507-0000-000F00G230HLED COB XLAMP WARM WHT SQU 3000K |
60 |
|
Ficha técnica |
XLamp® CXA1507 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 810lm (780lm ~ 840lm) | 400mA | 85°C | 18V | 113 lm/W | 750mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
BXRH-30H0300-B-83LED COB V3 WARM WHT SQU 3000K |
60 |
|
Ficha técnica |
Gen 8 V3 HD LED Array | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 291lm (Typ) | 160mA | 25°C | 17.6V | 103 lm/W | 360mA | 97 (Typ) | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 3.80mm Dia | Flat |
|
CXB1304-0000-000C0HC230GLED COB XLAMP WARM WHT SQ 3000K |
93 |
|
Ficha técnica |
XLamp® CXB1304 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 458lm (440lm ~ 475lm) | 400mA | 85°C | 9V | 127 lm/W | 1A | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|
|
CXA1507-0000-000N00G227GLED COB XLAMP WARM WHT SQU 2700K |
51 |
|
Ficha técnica |
XLamp® CXA1507 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 810lm (780lm ~ 840lm) | 200mA | 85°C | 36V | 113 lm/W | 375mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1507-0000-000F0HG240FLED COB XLAMP NEUT WHT SQU 4000K |
26 |
|
Ficha técnica |
XLamp® CXA1507 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 810lm (780lm ~ 840lm) | 400mA | 85°C | 18V | 113 lm/W | 750mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXB1304-0000-000C0UA427GLED COB XLAMP WARM WHT SQU 2700K |
80 |
|
Ficha técnica |
XLamp® CXB1304 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 368lm (355lm ~ 380lm) | 400mA | 85°C | 9V | 102 lm/W | 1A | 90 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|
|
CXB1304-0000-000C0UB230GLED COB XLAMP WARM WHT SQ 3000K |
42 |
|
Ficha técnica |
XLamp® CXB1304 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 395lm (380lm ~ 410lm) | 400mA | 85°C | 9V | 110 lm/W | 1A | 90 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|
|
CMB1304-R160-000F0U0A30GLED COB XLAMP WARM WHT SQ 3000K |
60 |
|
Ficha técnica |
XLamp® CMB1304 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 464lm | 200mA | 85°C | 16.7V | 139 lm/W | 1.2A | 90 | 115° | - | 13.35mm L x 13.35mm W | 1.75mm | 6.00mm Dia | Flat |
|
|
A007-CE20GRNR3LED MOD INDUS STAR GRN STARBRD |
36 |
|
Ficha técnica |
Indus Star™ | Tray | Active | LED Module | Green | - | 525nm | Starboard | - | - | 25°C | - | - | - | - | - | - | 20.20mm Dia | 3.75mm | - | Domed |
|
BXRC-27E1000-D-73-SELED COB VERO SE 10 WHT RND 2700K |
56 |
|
Ficha técnica |
Vero® SE 10 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 1179lm (Typ) | 350mA | 85°C | 25.3V | 133 lm/W | 700mA | 80 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia | Flat |
|
BXRH-50S0601-A-74LED COB V4HD THRIVE WHT SQ 5000K |
81 |
|
Ficha técnica |
V4 HD Thrive™ Array | Tube | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 675lm (Typ) | 175mA | 25°C | 36.4V | 106 lm/W | 240mA | 98 (Typ) | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 4.50mm Dia | Flat |
|
CXB1507-0000-000F0UF430GLED COB XLAMP WARM WHT SQ 3000K |
95 |
|
Ficha técnica |
XLamp® CXB1507 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 755lm (730lm ~ 780lm) | 400mA | 85°C | 18V | 105 lm/W | 750mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
CMA1303-0000-000C0H0A40GLED COB XLAMP NEUT WHT SQU 4000K |
94 |
|
Ficha técnica |
XLamp® CMA1303 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 823lm (Typ) | 700mA | 85°C | 9.35V | 126 lm/W | 1.4A | 80 | 116° | - | 13.35mm L x 13.35mm W | 1.70mm | 4.50mm Dia | Flat |
