| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo | Cor | CCT (K) | Comprimento de onda | Configuração | Fluxo luminoso @ corrente/temperatura | Corrente - Teste | Temperatura - Teste | Voltagem - Direto (Vf) (Típico) | Lúmens/Watt @ corrente - Teste | Corrente - Máx. | CRI (Índice de renderização de cores) | Ângulo de visão | Recursos | Tamanho/dimensão | Altura | Superfície emissora de luz (LES) | Tipo de lente |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GW5DMC30M04LED COB MEGA ZENIGATA SQ 3000K |
0 |
|
- |
Mega Zenigata | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Square | 2370lm (Typ) | 700mA | 25°C | 37V | 92 lm/W | 1.05A | 80 | - | - | 20.00mm L x 24.00mm W | 1.80mm | - | Flat |
|
|
GW5DGA30M04LED COB MEGA ZENIGATA SQ 3000K |
0 |
|
- |
Mega Zenigata | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Square | 1170lm (Typ) | 400mA | 25°C | 37V | 79 lm/W | 700mA | 90 | - | - | 20.00mm L x 24.00mm W | 1.80mm | - | Flat |
|
|
GW5DGC30M04LED COB MEGA ZENIGATA SQ 3000K |
0 |
|
- |
Mega Zenigata | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Square | 1950lm (Typ) | 700mA | 25°C | 37V | 75 lm/W | 1.05A | 90 | - | - | 20.00mm L x 24.00mm W | 1.80mm | - | Flat |
|
|
GW5DGC50M04LED COB MEGA ZENIGATA SQ 5000K |
0 |
|
- |
Mega Zenigata | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K | - | Square | 2080lm (Typ) | 700mA | 25°C | 37V | 80 lm/W | 1.05A | 90 (Typ) | - | - | 20.00mm L x 24.00mm W | 1.80mm | - | Flat |
|
|
GW5DLA40M04LED COB MEGA ZENIGATA SQ 4000K |
0 |
|
- |
Mega Zenigata | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 1520lm (Typ) | 400mA | 25°C | 37V | 103 lm/W | 700mA | 80 | - | - | 20.00mm L x 24.00mm W | 1.80mm | - | Flat |
|
CBT-90-B-C11-KM300LED MOD CBT-90 BLUE RECT |
0 |
|
Ficha técnica |
CBT-90 | Tray | Discontinued | LED Module | Blue | - | 460nm | Rectangle | - | 13.5A | - | 3.4V | - | 18A | - | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W | Flat |
|
CST-90-W65S-C12-GM101LED MOD CST-90 CL WH RECT 6500K |
0 |
|
Ficha técnica |
CST-90 | Tray | Obsolete | LED Module | White, Cool | 6500K | - | Rectangle | - | 3.15A | 40°C | 3.25V | - | 13.5A | 70 (Typ) | 95° | With Connector | 28.00mm L x 42.00mm W | 5.61mm | 3.00mm L x 3.00mm W | Domed |
|
CBT-40-G-C21-JE200LED MOD CBT-40 GREEN RECT |
0 |
|
Ficha técnica |
CBT-40 | Tray | Obsolete | LED Module | Green | - | 528nm (510nm ~ 545nm) | Rectangle | 650lm (Typ) | 5.9A | 40°C | 4.5V | 24 lm/W | 12A | - | - | With Connector | 26.50mm L x 16.00mm W | 6.30mm | 1.87mm L x 2.09mm W | Flat |
|

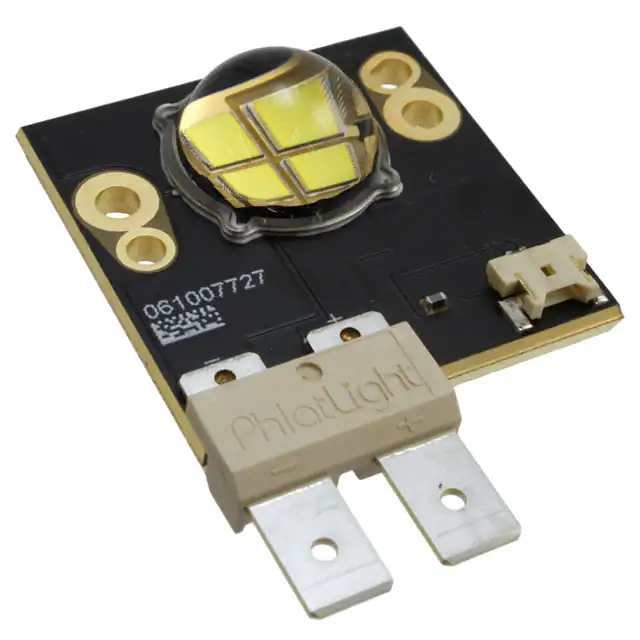

CSM-360-W30M-D22-GT700LED MOD CSM-360 WHT RECT 3000K |
0 |
|
Ficha técnica |
CSM-360 | Tray | Obsolete | LED Module | White, Warm | 3000K | - | Rectangle | 2300lm (2100lm ~ 2500lm) | 3.15A | 40°C | 13.14V | 56 lm/W | 6.3A | 83 (Typ) | 115° | With Connector | 36.00mm L x 51.00mm W | 5.61mm | 16.00mm Dia | Domed |
|
CBT-120-G-C11-JK200LED MOD CBT-120 GREEN SQUARE |
0 |
|
Ficha técnica |
CBT-120 | Tray | Obsolete | LED Module | Green | - | 528nm (510nm ~ 545nm) | Square | - | 18A | - | 4.3V | - | 36A | - | - | With Connector | 28.00mm L x 42.00mm W | 5.61mm | 2.60mm L x 4.63mm W | Flat |
|
CBT-40-B-C21-KF300LED MOD CBT-40 BLUE RECT |
0 |
|
Ficha técnica |
CBT-40 | Tray | Obsolete | LED Module | Blue | - | 463nm (450nm ~ 475nm) | Rectangle | 110lm (Typ) | 5.9A | 40°C | 4.2V | 4 lm/W | 12A | - | - | With Connector | 26.50mm L x 16.00mm W | 6.30mm | 1.87mm L x 2.09mm W | Flat |
|
|
CBT-120-G-C11-JM200LED MOD CBT-120 GREEN SQUARE |
0 |
|
Ficha técnica |
CBT-120 | Tray | Obsolete | LED Module | Green | - | 528nm (510nm ~ 545nm) | Square | - | 18A | - | 4.3V | - | 36A | - | - | With Connector | 28.00mm L x 42.00mm W | 5.61mm | 2.60mm L x 4.63mm W | Flat |
|
SST-50-W65S-F21-GJ101LED COB SST-50 COOL WH SQ 6500K |
0 |
|
Ficha técnica |
SST-50 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 6500K | - | Square | - | 1.75A | - | 3.2V | - | 5A | 70 | 100° | - | 7.30mm L x 9.00mm W | 4.30mm | 5.60mm Dia | Domed |
|
CBT-120-B-C11-KM300LED MOD CBT-120 BLUE SQUARE |
0 |
|
Ficha técnica |
CBT-120 | Tray | Obsolete | LED Module | Blue | - | 463nm (450nm ~ 475nm) | Square | - | 18A | - | 4.1V | - | 36A | - | - | With Connector | 28.00mm L x 42.00mm W | 5.61mm | 2.60mm L x 4.63mm W | Flat |
|
SSR-90-B-R11-KF300LED MOD SSR-90 BLUE STARBOARD |
0 |
|
Ficha técnica |
SSR-90 | Tray | Obsolete | LED Module | Blue | - | 465nm | Starboard | - | 3.15A | - | 3.4V | - | 27A | - | 100° | - | 19.90mm L x 19.90mm W | 7.10mm | 8.00mm Dia | Domed |
|
|
CBT-120-B-C11-KN300LED MOD CBT-120 BLUE SQUARE |
0 |
|
Ficha técnica |
CBT-120 | Tray | Obsolete | LED Module | Blue | - | 463nm (450nm ~ 475nm) | Square | - | 18A | - | 4.1V | - | 36A | - | - | With Connector | 42.00mm L x 28.00mm W | 5.61mm | 2.60mm W x 4.63mm L | - |
|
|
SSR-90-B-R11-KF301LED MOD SSR-90 BLUE STARBOARD |
0 |
|
Ficha técnica |
SSR-90 | Tray | Obsolete | LED Module | Blue | - | 465nm | Starboard | - | 3.15A | - | 3.4V | - | 27A | - | 100° | - | 19.90mm L x 19.90mm W | 7.10mm | 8.00mm Dia | Domed |
|

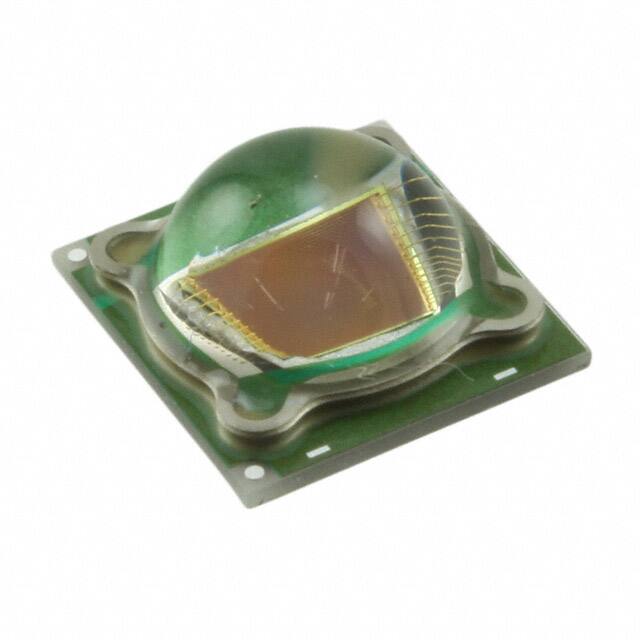

SST-90-R-F11-HK100LED COB SST-90 RED SQUARE |
0 |
|
Ficha técnica |
SST-90 | Tray | Obsolete | Chip On Board (COB) | Red | - | 624nm | Square | 400lm (Typ) | 3.2A | 25°C | 2V | 63 lm/W | 27A | 70 | 100° | - | 11.00mm L x 10.00mm W | 5.40mm | 8.00mm Dia | Domed |
|
CBT-90-G-C11-JK200LED MOD CBT-90 GREEN RECT |
0 |
|
Ficha técnica |
CBT-90 | Tray | Obsolete | LED Module | Green | - | 524nm | Rectangle | - | 13.5A | - | 4.2V | - | 18A | - | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W | Flat |
|
|
SST-50-W65S-F21-J2101LED COB SST-50 COOL WH SQ 6500K |
0 |
|
Ficha técnica |
SST-50 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 6500K | - | Square | 463lm (450lm ~ 475lm) | 1.75A | 25°C | 3.2V | 83 lm/W | 5A | 70 | 100° | - | 7.30mm L x 9.00mm W | 4.30mm | 5.60mm Dia | Domed |
