| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo | Cor | CCT (K) | Comprimento de onda | Configuração | Fluxo luminoso @ corrente/temperatura | Corrente - Teste | Temperatura - Teste | Voltagem - Direto (Vf) (Típico) | Lúmens/Watt @ corrente - Teste | Corrente - Máx. | CRI (Índice de renderização de cores) | Ângulo de visão | Recursos | Tamanho/dimensão | Altura | Superfície emissora de luz (LES) | Tipo de lente |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT-54-G-C21-MPELED MOD PT-54 GREEN |
0 |
|
- |
PT-54 | Tray | Obsolete | LED Module | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PT-121-G-C11-MPELED MOD PT-121 GREEN |
0 |
|
- |
PT-121 | Tray | Obsolete | LED Module | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PT-121-B-C11-EPCLED MOD PT-121 BLUE |
0 |
|
- |
PT-121 | Tray | Obsolete | LED Module | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PT-39-G-C21-MPCLED MOD PT-39 GREEN RECT |
0 |
|
Ficha técnica |
PT-39 | Tray | Obsolete | LED Module | Green | - | 525nm | Rectangle | 1240lm (1030lm ~ 1450lm) | 9.8A | 25°C | 4.9V | 26 lm/W | 9.8A | - | - | With Connector | 26.50mm L x 16.00mm W | 6.30mm | 1.87mm L x 2.09mm W | Flat |
|
PT-120-R-C11-MPCLED MOD PT-120 RED RECT |
0 |
|
Ficha técnica |
PT-120 | Tray | Obsolete | LED Module | Red | - | 624nm | Rectangle | 1010lm (Typ) | 18A | 40°C | 2.3V | 24 lm/W | 36A | - | - | With Connector | 28.00mm L x 42.00mm W | 5.61mm | 2.60mm L x 4.63mm W | Flat |
|
|
PT-120-R-C11-MPDLED MOD PT-120 RED RECT |
0 |
|
Ficha técnica |
PT-120 | Tray | Obsolete | LED Module | Red | - | 624nm | Rectangle | 1010lm (Typ) | 18A | 40°C | 2.3V | 24 lm/W | 36A | - | - | With Connector | 28.00mm L x 42.00mm W | 5.61mm | 2.60mm L x 4.63mm W | Flat |
|
PT-54-R-C21-MPDLED MOD PT-54 RED |
0 |
|
- |
PT-54 | Tray | Obsolete | LED Module | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CBT-90-W65S-C11-MA102LED MOD CBT-90 CL WH RECT 6500K |
0 |
|
Ficha técnica |
CBT-90 | Tray | Obsolete | LED Module | White, Cool | 6500K | - | Rectangle | - | 9A | 40°C | 3.3V | - | 18A | 72 (Typ) | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W | Flat |
|
PT-39-R-C21-MPCLED MOD PT-39 RED RECT |
0 |
|
Ficha técnica |
PT-39 | Tray | Obsolete | LED Module | Red | - | 623nm | Rectangle | 583lm (475lm ~ 690lm) | 9.8A | 25°C | 2.6V | 23 lm/W | 9.8A | - | - | With Connector | 26.50mm L x 16.00mm W | 6.30mm | 1.87mm L x 2.09mm W | Flat |
|
|
PT-39-R-C21-MPDLED MOD PT-39 RED RECT |
0 |
|
Ficha técnica |
PT-39 | Tray | Obsolete | LED Module | Red | - | 623nm | Rectangle | 665lm (530lm ~ 800lm) | 9.8A | 25°C | 2.6V | 26 lm/W | 9.8A | - | - | With Connector | 26.50mm L x 16.00mm W | 6.30mm | 1.87mm L x 2.09mm W | Flat |
|
|
PT-121-B-C11-EPDLED MOD PT-121 BLUE |
0 |
|
- |
PT-121 | Tray | Obsolete | LED Module | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PT-39-G-C21-MPELED MOD PT-39 GREEN RECT |
0 |
|
Ficha técnica |
PT-39 | Tray | Obsolete | LED Module | Green | - | 525nm | Rectangle | 1430lm (1200lm ~ 1660lm) | 9.8A | 25°C | 4.9V | 30 lm/W | 9.8A | - | - | With Connector | 26.50mm L x 16.00mm W | 6.30mm | 1.87mm L x 2.09mm W | Flat |
|
SST-90-W65S-F11-N3101LED COB SST-90 COOL WH SQ 6500K |
0 |
|
Ficha técnica |
SST-90 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 6500K | - | Square | 975lm (950lm ~ 1000lm) | 3.15A | 25°C | 3.25V | 95 lm/W | 9A | 70 | 100° | - | 11.00mm L x 10.00mm W | 5.40mm | 8.00mm Dia | Domed |
|
SSR-90-W65S-R11-N3101LED MOD SSR-90 WH STARBRD 6500K |
0 |
|
Ficha técnica |
SSR-90 | Tray | Obsolete | LED Module | White, Cool | 6500K | - | Starboard | 975lm (950lm ~ 1000lm) | 3.15A | 25°C | 3.25V | 95 lm/W | 9A | 70 | 100° | - | 19.90mm L x 19.90mm W | 7.10mm | 8.00mm Dia | Domed |
|
PT-120-B-C11-EPELED MOD PT-120 BLUE |
0 |
|
- |
PT-120 | Tray | Obsolete | LED Module | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

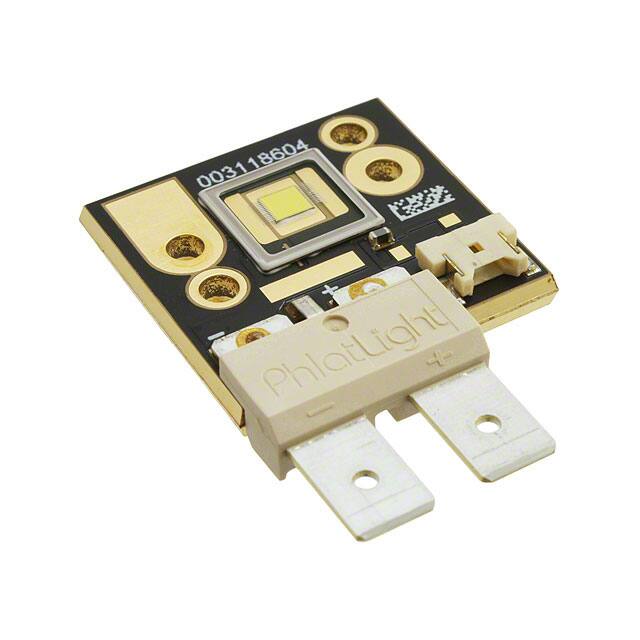

CBT-90-W65S-C11-MA100LED MOD CBT-90 CL WH RECT 6500K |
0 |
|
Ficha técnica |
CBT-90 | Tray | Obsolete | LED Module | White, Cool | 6500K | - | Rectangle | - | 9A | 70°C | 3.3V | - | 18A | 70 (Typ) | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W | Flat |
|

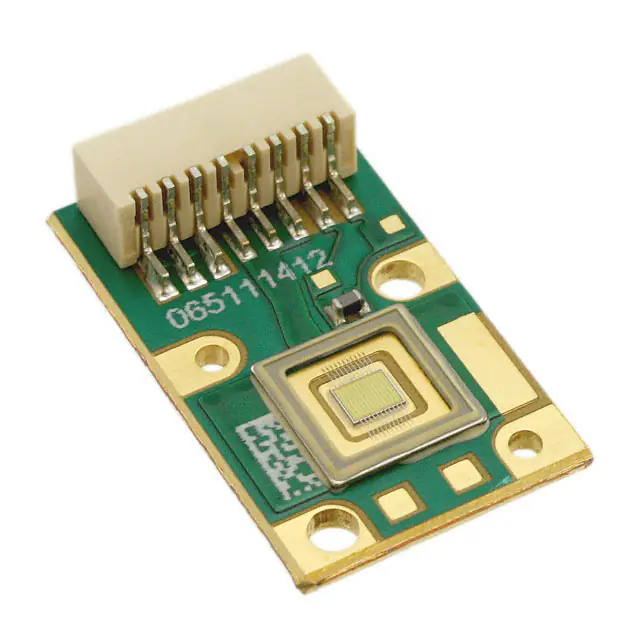

PT-54-G-C21-MPFLED MOD PT-54 GREEN |
0 |
|
- |
PT-54 | Tray | Obsolete | LED Module | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PT-54-B-C21-EPALED MOD PT-54 BLUE |
0 |
|
- |
PT-54 | Tray | Obsolete | LED Module | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

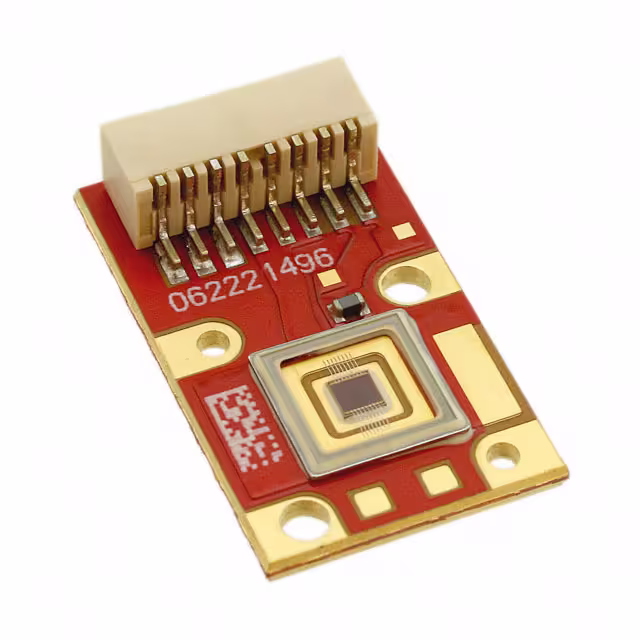

PT-39-R-C21-MPBLED MOD PT-39 RED |
0 |
|
- |
PT-39 | Tray | Obsolete | LED Module | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CBM-360-W65S-D32-UB102LED MOD CBM-360 CL WHT SQ 6500K |
0 |
|
Ficha técnica |
CBM-360 | Tray | Obsolete | LED Module | White, Cool | 6500K | - | Square | - | 6.3A | - | - | - | 6.3A | - | - | With Connector | - | - | - | Flat |
