Medidores
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo | Tipo de medição | Faixa de medição | Tipo de Exibição | Número de caracteres por linha | Caracteres de exibição - Altura | Tipo de saída | Voltagem - Alimentação | Dimensões do Recorte do Painel | Tipo de montagem | Estilo de Terminação | Proteção de entrada | Recursos |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACA5-20PC-5-AC1-RL-CAMMETER 0-199.9A LED PANEL MOUNT |
0 |
|
Ficha técnica |
ACA5-20PC | Box | Obsolete | Ammeter | Current | 0 ~ 199.9A | LED - Red Characters | 3.5 | 0.370" (9.40mm) | - | 85 ~ 264VAC | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | Built In Current Transformer (Secondary) |
|
DK799PROCESS METER 0-10VDC LCD PNL MT |
0 |
|
Ficha técnica |
DK790V EPIC | Bulk | Active | Process Meter | Process | 0 ~ 10VDC | LCD - Black Characters | 4.5 | 0.449" (11.40mm) | - | 12VDC, 24VDC | Rectangular - 61.00mm x 25.40mm | Panel Mount | Screw Terminal | - | - |
|
CRM1000-25-RAMMETER 0-25A LED PANEL MOUNT |
0 |
|
Ficha técnica |
CRM1000 | Bulk | Active | Ammeter | Current | 0 ~ 25A | LED - Tri-Color Bar Graph | - | - | - | Loop Power | - | Panel Mount - Surface | - | - | - |
|
|
CRM1000-50-RAMMETER 0-50A LED PANEL MOUNT |
0 |
|
Ficha técnica |
CRM1000 | Bulk | Active | Ammeter | Current | 0 ~ 50A | LED - Tri-Color Bar Graph | - | - | - | Loop Power | - | Panel Mount - Surface | - | - | - |
|
DLA20-ACA-B-1AMMETER 0-1.999A LED PANEL MOUNT |
0 |
|
Ficha técnica |
DLA20-ACA | Bulk | Active | Ammeter | Current | 0 ~ 1.999A | LED - Blue Characters | 3.5 | 0.370" (9.40mm) | - | 85 ~ 264VAC | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | - |
|
|
DLA20-ACA-B-3AMMETER 0-50A LED PANEL MOUNT |
0 |
|
Ficha técnica |
DLA20-ACA | Bulk | Active | Ammeter | Current | 0 ~ 50A | LED - Blue Characters | 3.5 | 0.370" (9.40mm) | - | 85 ~ 264VAC | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | - |
|
DK809ACPROCESS METER 0-10VDC LCD PNL MT |
0 |
|
Ficha técnica |
DK809AC | Box | Active | Process Meter | Process | 0 ~ 10VDC | LCD - Black Characters | 3.5 | 1.000" (24.90mm) | - | 24VAC, 24VDC | Rectangular - 91.44mm x 45.72mm | Panel Mount | Screw Terminal | - | - |
|
|
DK809ACAPROCESS METER 0-10VDC LCD PNL MT |
0 |
|
Ficha técnica |
DK809AC | Box | Active | Process Meter | Process | 0 ~ 10VDC | LCD - Amber Characters, Backlight | 3.5 | 1.000" (24.90mm) | - | 24VAC, 24VDC | Rectangular - 91.44mm x 45.72mm | Panel Mount | Screw Terminal | - | - |
|
|
DK809ACRPROCESS METER 0-10VDC LCD PNL MT |
0 |
|
Ficha técnica |
DK809AC | Box | Active | Process Meter | Process | 0 ~ 10VDC | LCD - Red Characters, Backlight | 3.5 | 1.000" (24.90mm) | - | 24VAC, 24VDC | Rectangular - 91.44mm x 45.72mm | Panel Mount | Screw Terminal | - | - |
|
MV507-110V-CUVOLT METER 116DIN LCD VOLT 1PHAS |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
DMS-20PC-4/20B-CPROCESS METER 4-20MA LED PNL MT |
0 |
|
Ficha técnica |
DMS-20PC-4/20 | Box | Obsolete | Process Meter | Process | 4 ~ 20mA | LED - Red Characters | 3.5 | 0.370" (9.40mm) | - | Loop Power | Rectangular - 33.93mm x 21.29mm | Panel Mount | Screw Terminal | - | - |
|

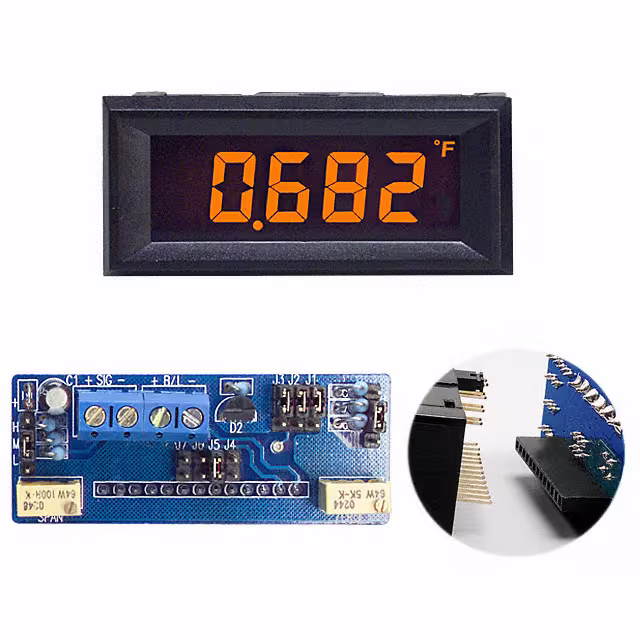

DK791PROCESS METER 4-20MA LCD PNL MT |
0 |
|
Ficha técnica |
DK790 EPIC Loop | Bulk | Active | Process Meter | Process | 4 ~ 20mA | LCD - Amber Characters, Backlight | 4.5 | 0.449" (11.40mm) | - | Loop Power, 24VDC (Backlight) | Rectangular - 61.00mm x 25.40mm | Panel Mount | Screw Terminal | - | - |
|

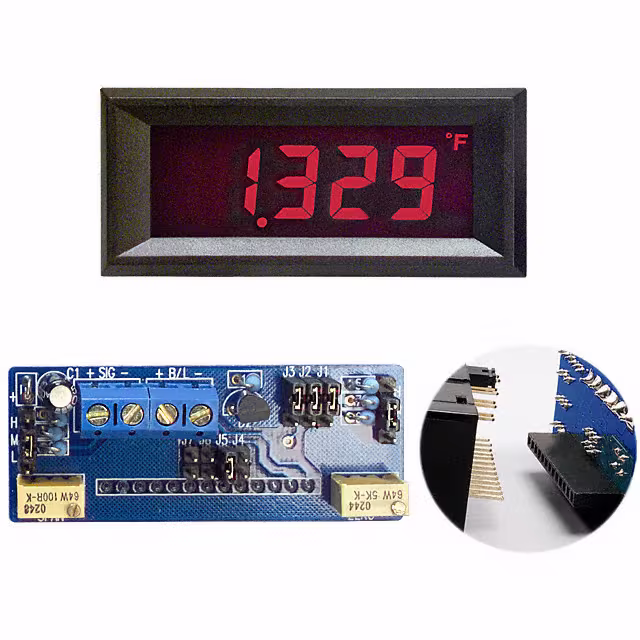

DK794PROCESS METER 4-20MA LCD PNL MT |
0 |
|
Ficha técnica |
DK790 EPIC Loop | Box | Active | Process Meter | Process | 4 ~ 20mA | LCD - Red Characters, Backlight | 4.5 | 0.449" (11.40mm) | - | Loop Power, 24VDC (Backlight) | Rectangular - 61.00mm x 25.40mm | Panel Mount | Screw Terminal | - | - |
|
DK791PPROCESS METER 4-20MA LCD PNL MT |
0 |
|
Ficha técnica |
DK790 EPIC Loop | Box | Active | Process Meter | Process | 4 ~ 20mA | LCD - Amber Characters, Backlight | 4.5 | 0.449" (11.40mm) | - | Loop Power, 24VDC (Backlight) | Rectangular - 61.00mm x 25.40mm | Panel Mount | Screw Terminal | - | - |
|
DK793PPROCESS METER 4-20MA LCD PNL MT |
0 |
|
Ficha técnica |
DK790 EPIC Loop | Box | Active | Process Meter | Process | 4 ~ 20mA | LCD - Green Characters, Backlight | 4.5 | 0.449" (11.40mm) | - | Loop Power, 24VDC (Backlight) | Rectangular - 61.00mm x 25.40mm | Panel Mount | Screw Terminal | - | - |
|
|
DK794PPROCESS METER 4-20MA LCD PNL MT |
0 |
|
Ficha técnica |
DK790 EPIC Loop | Box | Active | Process Meter | Process | 4 ~ 20mA | LCD - Red Characters, Backlight | 4.5 | 0.449" (11.40mm) | - | Loop Power, 24VDC (Backlight) | Rectangular - 61.00mm x 25.40mm | Panel Mount | Screw Terminal | - | - |
|
DK795PPROCESS METER 4-20MA LCD PNL MT |
0 |
|
Ficha técnica |
DK790 EPIC Loop | Box | Active | Process Meter | Process | 4 ~ 20mA | LCD - Black Characters, Green Backlight | 4.5 | 0.449" (11.40mm) | - | Loop Power, 24VDC (Backlight) | Rectangular - 61.00mm x 25.40mm | Panel Mount | Screw Terminal | - | - |
|
MF16-110V-CUFREQUENCY METER 18DIN LED HZ 1PH |
0 |
|
Ficha técnica |
MF16 | Bulk | Active | Frequency Meter | Frequency | 45 ~ 56Hz | LED - Red Characters | 4 | - | - | 110VAC | Rectangular - 92.00mm x 46.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|
DK192-XECPROCESS METER 4-20MA LCD PNL MT |
0 |
|
Ficha técnica |
DK190-XEC | Box | Active | Process Meter | Process | 4 ~ 20mA | LCD - Amber Characters, Backlight | 3.5 | 0.449" (11.40mm) | - | Loop Power, 24VDC (Backlight) | Rectangular - 71.77mm x 32.02mm | Panel Mount | Screw Terminal | - | - |
|
|
DK193-XECPROCESS METER 4-20MA LCD PNL MT |
0 |
|
Ficha técnica |
DK190-XEC | Box | Active | Process Meter | Process | 4 ~ 20mA | LCD - Green Characters, Backlight | 3.5 | 0.449" (11.40mm) | - | Loop Power, 24VDC (Backlight) | Rectangular - 71.77mm x 32.02mm | Panel Mount | Screw Terminal | - | - |
