Medidores
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo | Tipo de medição | Faixa de medição | Tipo de Exibição | Número de caracteres por linha | Caracteres de exibição - Altura | Tipo de saída | Voltagem - Alimentação | Dimensões do Recorte do Painel | Tipo de montagem | Estilo de Terminação | Proteção de entrada | Recursos |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CRM2000-50-RAMMETER 0-50A LED PANEL MOUNT |
0 |
|
Ficha técnica |
CRM2000 | Bulk | Active | Ammeter | Current | 0 ~ 50A | LED - Tri-Color Bar Graph | - | - | - | Loop Power | - | Panel Mount - Surface | - | - | - |
|
M4Y-DA-3DC AMP 19.99mA FULL 100-240VAC |
1 |
|
Ficha técnica |
M4Y/M4W/M5W/M4M | Box | Active | Ammeter | Current | 19.99mA | LED - Red Characters | 3.5 | 0.551" (14.00mm) | - | 110 ~ 220VAC | Rectangular - 67.00mm x 31.00mm | Panel Mount | Screw Terminal | - | - |
|
DCM20-1-DC5-B-CTHREE-FUNCTION METER, DC VOLTS, |
1 |
|
Ficha técnica |
DCM20 | Box | Obsolete | Energy Monitor | Current, Voltage, Wattage | Multiple | LED - Blue Characters | 4 | 0.360" (9.14mm) | - | 9 ~ 72VDC | Rectangular - 37.47mm x 22.23mm | Panel Mount - Surface | Screw Terminal | - | - |
|
DK790-XECPROCESS METER 4-20MA LCD PNL MT |
0 |
|
Ficha técnica |
DK790-XEC | Box | Active | Process Meter | Process | 4 ~ 20mA | LCD - Black Characters | 4.5 | 0.449" (11.40mm) | - | Loop Power | Rectangular - 71.77mm x 32.02mm | Panel Mount | Screw Terminal | - | - |
|
|
DK799-XECPROCESS METER 0-10VDC LCD PNL MT |
0 |
|
Ficha técnica |
DK790V-XEC | Box | Active | Process Meter | Process | 0 ~ 10VDC | LCD - Black Characters | 4.5 | 0.449" (11.40mm) | - | 12VDC, 24VDC | Rectangular - 71.77mm x 32.02mm | Panel Mount | Screw Terminal | - | - |
|
ACA-20PC-4-AC1-RL-L-CAMMETER 0-100A LED PANEL MOUNT |
0 |
|
Ficha técnica |
ACA-20PC | Box | Obsolete | Ammeter | Current | 0 ~ 100A | LED - Red Characters | 3.5 | 0.370" (9.40mm) | - | 85 ~ 264VAC | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | Built In Current Transformer (Primary) |
|
DK752VOLTMETER 2VDC LCD PANEL MOUNT |
0 |
|
Ficha técnica |
DK740-770 EPIC | Bulk | Active | Voltmeter | Voltage | ±2VDC | LCD - Amber Characters, Backlight | 4.5 | 0.449" (11.40mm) | - | 5VDC | Rectangular - 61.00mm x 25.40mm | Panel Mount | PC Pin | - | - |
|
DMS-40PC-1-RH-CVOLTMETER 2VDC LED PANEL MOUNT |
1 |
|
Ficha técnica |
DMS-40PC-4/20S | Box | Obsolete | Voltmeter | Voltage | ±2VDC | LED - Red Characters | 4.5 | 0.520" (13.20mm) | - | 5VDC | Rectangular - 53.80mm x 22.30mm | Panel Mount | PC Pin | - | - |
|

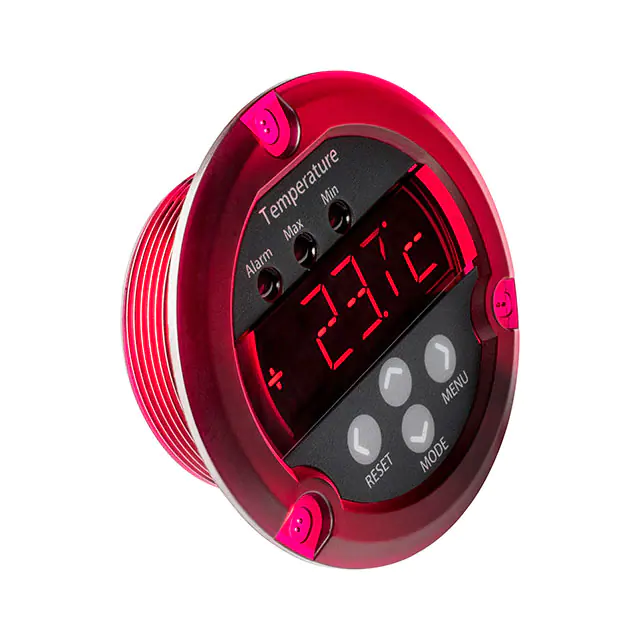

DMR30-TC1-1-DC4-R-CTHERMOCOUPLE TEMPERATURE METER, |
0 |
|
Ficha técnica |
DMR30-TC1 | Bulk | Obsolete | Temperature Meter | Thermocouple | -200°C ~ 1900°C | LED - Red Characters | 4 | 0.450" (11.43mm) | Relay (2), Solid State | 9 ~ 32VDC | Circular - 57.15mm Dia | Panel Mount | Screw Terminal | - | Excitation Supply |
|
|
CRM3000-50-RDISPLAY WITH TRANSFORMER |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MA12-240VAMPERE METER 18DIN LED AMPERE 1P |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DK800-XECPROCESS METER 0-10VDC LCD PNL MT |
0 |
|
Ficha técnica |
DK790V-XEC | Box | Active | Process Meter | Process | 0 ~ 10VDC | LCD - Black Characters, Green Backlight | 4.5 | 0.449" (11.40mm) | - | 12VDC, 24VDC | Rectangular - 71.77mm x 32.02mm | Panel Mount | Screw Terminal | - | - |
|
DK791-XECPROCESS METER 4-20MA LCD PNL MT |
0 |
|
Ficha técnica |
DK790-XEC | Box | Active | Process Meter | Process | 4 ~ 20mA | LCD - Amber Characters, Backlight | 4.5 | 0.449" (11.40mm) | - | Loop Power, 24VDC (Backlight) | Rectangular - 71.77mm x 32.02mm | Panel Mount | Screw Terminal | - | - |
|
|
DK793-XECPROCESS METER 4-20MA LCD PNL MT |
0 |
|
Ficha técnica |
DK790-XEC | Box | Active | Process Meter | Process | 4 ~ 20mA | LCD - Green Characters, Backlight | 4.5 | 0.449" (11.40mm) | - | Loop Power, 24VDC (Backlight) | Rectangular - 71.77mm x 32.02mm | Panel Mount | Screw Terminal | - | - |
|
|
DK794-XECPROCESS METER 4-20MA LCD PNL MT |
0 |
|
Ficha técnica |
DK790-XEC | Box | Active | Process Meter | Process | 4 ~ 20mA | LCD - Red Characters, Backlight | 4.5 | 0.449" (11.40mm) | - | Loop Power, 24VDC (Backlight) | Rectangular - 71.77mm x 32.02mm | Panel Mount | Screw Terminal | - | - |
|
|
DK795-XECPROCESS METER 4-20MA LCD PNL MT |
0 |
|
Ficha técnica |
DK790-XEC | Box | Active | Process Meter | Process | 4 ~ 20mA | LCD - Black Characters, Green Backlight | 4.5 | 0.449" (11.40mm) | - | Loop Power, 24VDC (Backlight) | Rectangular - 71.77mm x 32.02mm | Panel Mount | Screw Terminal | - | - |
|
|
DK796-XECPROCESS METER 0-10VDC LCD PNL MT |
0 |
|
Ficha técnica |
DK790V-XEC | Box | Active | Process Meter | Process | 0 ~ 10VDC | LCD - Amber Characters, Backlight | 4.5 | 0.449" (11.40mm) | - | 12VDC, 24VDC | Rectangular - 71.77mm x 32.02mm | Panel Mount | Screw Terminal | - | - |
|
|
DK797-XECPROCESS METER 0-10VDC LCD PNL MT |
0 |
|
Ficha técnica |
DK790V-XEC | Box | Active | Process Meter | Process | 0 ~ 10VDC | LCD - Green Characters, Backlight | 4.5 | 0.449" (11.40mm) | - | 12VDC, 24VDC | Rectangular - 71.77mm x 32.02mm | Panel Mount | Screw Terminal | - | - |
|
|
DK798-XECPROCESS METER 0-10VDC LCD PNL MT |
0 |
|
Ficha técnica |
DK790V-XEC | Box | Active | Process Meter | Process | 0 ~ 10VDC | LCD - Red Characters, Backlight | 4.5 | 0.449" (11.40mm) | - | 12VDC, 24VDC | Rectangular - 71.77mm x 32.02mm | Panel Mount | Screw Terminal | - | - |
|
|
ACM3P-4-AC1-R-28-CAMMETER 0-100A LED PANEL MOUNT |
0 |
|
Ficha técnica |
ACM3P | Box | Active | Ammeter | Current (3-Phase) | 0 ~ 100A | LED - Red Characters | 4 | 0.360" (9.14mm) | - | 85 ~ 264VAC | Rectangular - 36.22mm x 22.10mm | Panel Mount - Surface | Screw Terminal | - | Built In Current Transformer (Primary) |
