Drivers Full Half-Bridge (Ponte H)
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Pacote/Caixa | Embalagem | Status do produto | Configuração de Saída | Aplicações | Interface | Tipo de carga | Tecnologia | Rds On (típico) | Corrente - Saída / Canal | Corrente - Saída de pico | Voltagem - Alimentação | Tensão - Carga | Temperatura operacional | Grau | Qualificação | Recursos | Proteção contra Falhas | Tipo de montagem | Pacote do dispositivo do fornecedor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCV7723DQBR2GIC HALF BRIDGE DRVR 500MA 24SSOP |
6,643 |
|
Ficha técnica |
- | 24-LSSOP (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (3) | DC Motors, General Purpose | Logic, PWM, SPI | Capacitive and Resistive | NMOS | 800mOhm LS, 800mOhm HS | 500mA | 1.1A | 3.15V ~ 5.25V | 5.5V ~ 32V | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Charge Pump | Over Current, Over Temperature, Over Voltage, UVLO | Surface Mount | 24-SSOP-EP |
|
ISL55110IVZ-T7AIC HALF BRIDGE DRVR 100MA 8TSSOP |
844 |
|
Ficha técnica |
- | 8-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Half Bridge (2) | Digital Imaging | Logic | Capacitive and Resistive | Power MOSFET | 3Ohm | 100mA | 3.5A | 2.7V ~ 5.5V | 5V ~ 13.2V | -40°C ~ 150°C (TJ) | - | - | - | - | Surface Mount | 8-TSSOP |
|
BTN9990LVAUMA1IC HALF BRIDGE DRIVER HSOF-7 |
3,945 |
|
Ficha técnica |
MOTIX™ | 7-PowerSFN | Tape & Reel (TR) | Active | Half Bridge (3) | DC Motors, General Purpose | Logic, PWM | Inductive | MOSFET (Metal Oxide) | 5.3Ohm LS, 5.3Ohm HS | - | - | 8V ~ 18V | 8V ~ 18V | - | - | - | Charge Pump | Over Current, Over Temperature, Short Circuit, UVLO | Surface Mount | PG-HSOF-7-1 |
|

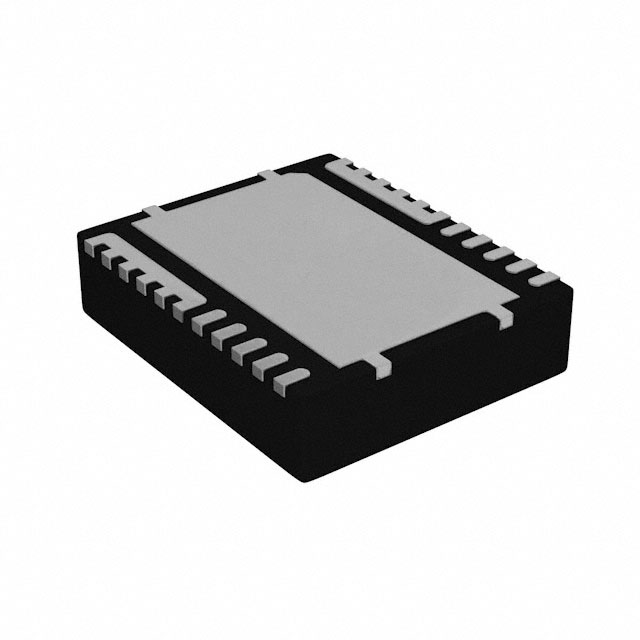

CSD95372BQ5MTIC HALF BRIDGE DRIVER 60A 12LSON |
1,431 |
|
Ficha técnica |
NexFET™ | 12-PowerLFDFN | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 60A | 90A | 4.5V ~ 5.5V | 4.5V ~ 16V | -55°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Current Limiting, Over Temperature, Shoot-Through, Short Circuit, UVLO | Surface Mount | 12-LSON-CLIP (5x6) |
|
DRV8912QPWPRQ1AUTO MULTI-CHANNEL HALF BRIDGER |
14,251 |
|
Ficha técnica |
- | 24-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Half Bridge (12) | DC Motors, General Purpose | Logic, PWM, SPI | Inductive, Capacitive, Resistive | MOSFET (Metal Oxide) | 750mOhm LS, 750mOhm HS | 6A | - | 3V ~ 5.5V | 4.5V ~ 32V | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Charge Pump, Slew Rate Controlled | Over Current, Over Voltage, UVLO | Surface Mount | 24-HTSSOP |
|
|
MP86965GLVT-ZIC HALF BRIDGE DRIVER 60A 31TLGA |
4,878 |
|
Ficha técnica |
- | 31-LGA | Tape & Reel (TR) | Active | Half Bridge | DC-DC Converters | PWM | Inductive | Power MOSFET | - | 60A | - | - | 4.5V ~ 16V | - | - | - | - | Current Limiting, Over Temperature | Surface Mount | 31-TLGA (4x5) |
|

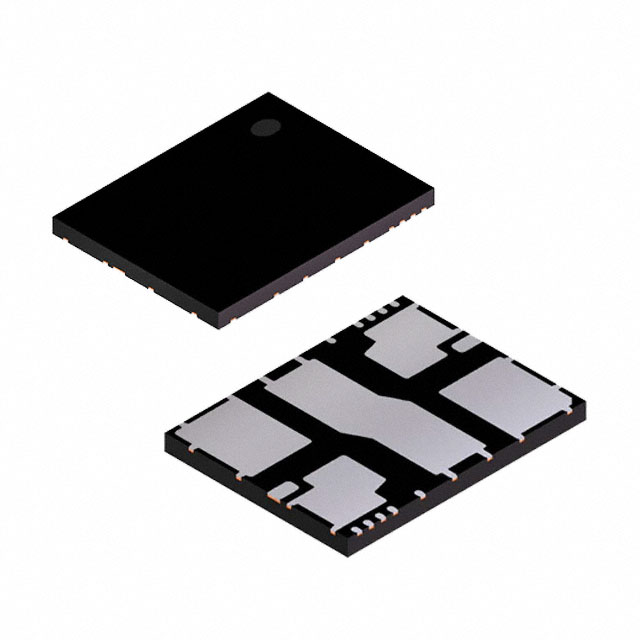

PWD13F60IC HALF BRIDGE DRVR 8A 28VFQFPN |
211 |
|
Ficha técnica |
- | 28-PowerVQFN | Tray | Active | Half Bridge (2) | Industrial | Logic | Inductive | Power MOSFET | 320mOhm | 8A | 32A | 15V | - | -40°C ~ 125°C (TJ) | - | - | - | UVLO | Surface Mount | 28-VFQFPN (10x13) |
|
HIP4082IPZIC HALF/FULL BRIDGE DRIVER 16DIP |
897 |
|
Ficha técnica |
- | 16-DIP (0.300", 7.62mm) | Tube | Active | Half Bridge, Full Bridge | DC Motors, General Purpose | Logic, PWM | Capacitive and Resistive | N-Channel MOSFET | - | - | 1.4A | 8.5V ~ 15V | 5V ~ 15V | -55°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | - | Through Hole | 16-PDIP |
|
BD6225FP-E2IC HALF BRIDGE DRVR 500MA 25HSOP |
1,933 |
|
Ficha técnica |
- | 25-SOP (0.213", 5.40mm Width) + 2 Heat Tabs | Tape & Reel (TR) | Active | Half Bridge (4) | DC Motors, General Purpose | Logic | Inductive | Power MOSFET | 1.5Ohm | 500mA | - | 6V ~ 15V | 6V ~ 15V | -40°C ~ 85°C (TA) | - | - | - | Current Limiting, Over Temperature, Over Voltage, UVLO | Surface Mount | 25-HSOP |
|
|
DRV8952DDWR50-V SINGLE/DUAL H-BRIDGE OR QUA |
1,901 |
|
Ficha técnica |
- | 44-PowerTSSOP (0.244", 6.20mm Width) | Tape & Reel (TR) | Active | Half Bridge (4) | DC Motors, Solenoids | PWM | Inductive, Resistive | NMOS | 58mOhm LS, 54mOhm HS | 5A | 7.6A | 4.5V ~ 55V | 4.5V ~ 55V | -40°C ~ 125°C (TA) | - | - | Auto Restart, Charge Pump, Status Flag | Current Limiting, ESD, Over Temperature, UVLO | Surface Mount | 44-HTSSOP |
|
CSD95472Q5MCIC SYNC BUCK 60A 12VSON |
2,251 |
|
Ficha técnica |
NexFET™ | 12-PowerTFDFN | Tape & Reel (TR) | Active | - | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 60A | 90A | 4.5V ~ 5.5V | 4.5V ~ 16V | -55°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation, Status Flag | Current Limiting, Over Temperature | Surface Mount | 12-VSON (5x6) |
|
|
MP86956GMJ-ZIC HALF BRIDGE DRIVER 70A 41LGA |
1,815 |
|
Ficha técnica |
Intelli-Phase™ | 41-PowerVFLGA | Tape & Reel (TR) | Active | Half Bridge | Buck Converters | PWM | Inductive | NMOS | - | 70A | 125A | 3V ~ 3.6V | 3V ~ 16V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation, Status Flag | Current Limiting, Over Temperature, Short Circuit, UVLO | Surface Mount | 41-LGA (5x6) |
|
L6207D013TRIC HALF BRIDGE DRIVER 2.8A 24SO |
885 |
|
Ficha técnica |
- | 24-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Half Bridge (4) | DC Motors, Stepper Motors, Voltage Regulators | Logic | Inductive | DMOS | 300mOhm | 2.8A | 5.6A | 8V ~ 52V | 8V ~ 52V | -25°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Current Limiting, Over Temperature, UVLO | Surface Mount | 24-SO |
|
|
HIP4086ABZIC HALF BRIDGE DRIVER 24SOIC |
12,709 |
|
Ficha técnica |
- | 24-SOIC (0.295", 7.50mm Width) | Tube | Active | Half Bridge | DC Motors, General Purpose | Logic, PWM | Capacitive and Resistive | N-Channel MOSFET | - | - | 500mA | 7V ~ 15V | 7V ~ 15V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | - | Surface Mount | 24-SOIC |
|
|
BD6226FP-E2IC HALF BRIDGE DRIVER 1A 25HSOP |
464 |
|
Ficha técnica |
- | 25-SOP (0.213", 5.40mm Width) + 2 Heat Tabs | Tape & Reel (TR) | Active | Half Bridge (4) | DC Motors, General Purpose | Logic | Inductive | Power MOSFET | 1.5Ohm | 1A | - | 6V ~ 15V | 6V ~ 15V | -40°C ~ 85°C (TA) | - | - | - | Current Limiting, Over Temperature, Over Voltage, UVLO | Surface Mount | 25-HSOP |
|
|
DRV8962DDWR65-V SINGLE/DUAL H-BRIDGE OR QUA |
1,769 |
|
Ficha técnica |
- | 44-PowerTSSOP (0.244", 6.20mm Width) | Tape & Reel (TR) | Active | Half Bridge (4) | DC Motors, Solenoids | PWM | Inductive, Resistive | NMOS | 53mOhm LS, 53mOhm HS | 5A | 8A | 4.5V ~ 65V | 4.5V ~ 65V | -40°C ~ 125°C (TA) | - | - | Auto Restart, Charge Pump, Status Flag | Current Limiting, ESD, Over Temperature, UVLO | Surface Mount | 44-HTSSOP |
|
L99UDL01TRIC HALF BRIDGE DRIVER 64TQFP |
1,367 |
|
Ficha técnica |
- | 64-TQFP Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (6) | General Purpose | Logic, PWM, SPI | Capacitive and Resistive | MOSFET (Metal Oxide) | 90mOhm LS + HS | - | - | 6V ~ 18V | 6V ~ 18V | -40°C ~ 175°C (TJ) | Automotive | AEC-Q100 | Charge Pump, Status Flag | Over Current, Over Temperature | Surface Mount | 64-TQFP (10x10) |
|
HIP4081AIPZIC HALF/FULL BRIDGE DRIVER 20DIP |
1,103 |
|
Ficha técnica |
- | 20-DIP (0.300", 7.62mm) | Tube | Active | Half Bridge, Full Bridge | DC Motors, General Purpose | Logic, PWM | Capacitive and Resistive | N-Channel MOSFET | - | - | 2.6A | 9.5V ~ 15V | 8V ~ 15V | -40°C ~ 85°C (TA) | - | - | Bootstrap Circuit | - | Through Hole | 20-PDIP |
|
|
DRV8145PQPWPRQ1AUTOMOTIVE 40-V 46-A HALF BRIDGE |
1,419 |
|
Ficha técnica |
- | 28-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Half Bridge | DC Motors, Solenoids | PWM, SPI | Capacitive and Resistive | Bi-CMOS | - | 46A | - | 4.5V ~ 35V | 4.5V ~ 35V | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Slew Rate Controlled, Status Flag | Current Limiting, Open Load Detect, Over Temperature, Shoot Through, Short Circuit | Surface Mount | 28-HTSSOP |
|
|
HIP4080AIPZIC FULL BRIDGE DRIVER 20DIP |
579 |
|
Ficha técnica |
- | 20-DIP (0.300", 7.62mm) | Tube | Active | Full Bridge | DC Motors, General Purpose | Logic, PWM | Capacitive and Resistive | N-Channel MOSFET | - | - | 2.6A | 9.5V ~ 15V | 8V ~ 15V | -40°C ~ 85°C (TA) | - | - | Bootstrap Circuit | - | Through Hole | 20-PDIP |
