Drivers Full Half-Bridge (Ponte H)
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Pacote/Caixa | Embalagem | Status do produto | Configuração de Saída | Aplicações | Interface | Tipo de carga | Tecnologia | Rds On (típico) | Corrente - Saída / Canal | Corrente - Saída de pico | Voltagem - Alimentação | Tensão - Carga | Temperatura operacional | Grau | Qualificação | Recursos | Proteção contra Falhas | Tipo de montagem | Pacote do dispositivo do fornecedor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MASTERGAN1TRIC HALF BRIDGE DRIVER 10A 31QFN |
1,642 |
|
Ficha técnica |
- | 31-VQFN Exposed Pad | Tape & Reel (TR) | Active | Half Bridge | General Purpose | - | Capacitive, Inductive | DMOS | 150mOhm | 10A | 17A | 4.75V ~ 9.5V | 600V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Over Temperature, UVLO | Surface Mount | 31-QFN (9x9) |
|
L6207PDIC HALF BRIDG DRV 2.8A 36POWERSO |
337 |
|
Ficha técnica |
- | 36-PowerBSSOP (0.433", 11.00mm Width) | Tube | Active | Half Bridge (4) | DC Motors, Stepper Motors, Voltage Regulators | Logic | Inductive | DMOS | 300mOhm | 2.8A | 5.6A | 8V ~ 52V | 8V ~ 52V | -25°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Current Limiting, Over Temperature, UVLO | Surface Mount | PowerSO-36 Slug Up |
|
LT3572EUF#TRPBFIC HALF BRIDGE DRVR 900MA 20QFN |
7,032 |
|
Ficha técnica |
- | 20-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (4) | Piezo Devices | PWM | Inductive, Capacitive | Bipolar | - | 900mA | - | 2.7V ~ 10V | 5V ~ 40V | -40°C ~ 125°C (TJ) | - | - | Slew Rate Controlled | - | Surface Mount | 20-QFN (4x4) |
|
MAX22256AATB+IC HALF BRIDGE DRIVER 1A 10TDFN |
204 |
|
Ficha técnica |
- | 10-WFDFN Exposed Pad | Tray | Active | Half Bridge | General Purpose | Logic | Inductive, Capacitive, Resistive | - | 260mOhm LS, 520mOhm HS | 1A | 1A | 5V ~ 36V | 5V ~ 36V | -40°C ~ 150°C (TJ) | - | - | - | Over Current, Over Temperature, UVLO | Surface Mount | 10-TDFN (3x3) |
|
UC3770ANIC HALF BRIDGE DRIVER 2A 16DIP |
206 |
|
Ficha técnica |
- | 16-DIP (0.300", 7.62mm) | Tube | Active | Half Bridge (2) | General Purpose, Stepper Motors | Logic | Inductive | Bipolar | - | 2A | - | 4.75V ~ 5.3V | 10V ~ 45V | 0°C ~ 150°C (TJ) | - | - | - | Over Temperature | Through Hole | 16-PDIP |
|
|
MAX22216ATJY+TQUAD SERIAL PROGRAMMABLE 2A HALF |
1,267 |
|
Ficha técnica |
- | 32-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (4) | DC Motors, General Purpose | SPI | Inductive | - | 170mOhm LS + HS | - | - | 4.5V ~ 36V | 4.5V ~ 36V | -40°C ~ 125°C (TA) | - | - | - | Over Current, Over Temperature, UVLO | Surface Mount, Wettable Flank | 32-WETQFN (5x5) |
|
|
MAX22216ATJY+QUAD SERIAL PROGRAMMABLE 2A HALF |
162 |
|
Ficha técnica |
- | 32-WFQFN Exposed Pad | Tray | Active | Half Bridge (4) | DC Motors, General Purpose | SPI | Inductive | - | 170mOhm LS + HS | - | - | 4.5V ~ 36V | 4.5V ~ 36V | -40°C ~ 125°C (TA) | - | - | - | Over Current, Over Temperature, UVLO | Surface Mount, Wettable Flank | 32-WETQFN (5x5) |
|
|
LMG2610RRGR650-V 170/248-M GAN HALF-BRIDGE |
1,855 |
|
Ficha técnica |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LTC7051AV-1#PBFIC HALF BRIDGE DRIVER 42QFN |
82 |
|
Ficha técnica |
- | 42-TFQFN Exposed Pad | Tray | Active | Half Bridge | DC-DC Converters | Logic, PWM | Inductive, Capacitive, Resistive | NMOS | - | - | 140A | 4.5V ~ 5.5V | 16V (Max) | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Current Limiting, Over Temperature, Over Voltage, UVLO | Surface Mount | 42-QFN (5x8) |
|
|
AOZ5507QI25V/30A DRMOS FCCM CONTROL QFN3. |
10,728 |
|
Ficha técnica |
- | 22-PowerVFQFN Module | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive, Capacitive | DrMOS | - | 30A | 80A | 4.5V ~ 5.5V | 4.5V ~ 25V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation | Shoot-Through, UVLO | Surface Mount | 22-QFN (4.5x3.5) |
|
|
NJU7386RB1-TE1IC HALF BRIDGE DRIVER 8TVSP |
1,897 |
|
Ficha técnica |
- | 8-VSSOP, 8-MSOP (0.110", 2.80mm Width) | Tape & Reel (TR) | Active | - | DC Motors, Piezo Devices, Solenoids | Logic | - | - | - | - | - | 1.8V ~ 5.5V | 1.8V ~ 5.5V | -40°C ~ 150°C (TJ) | - | - | - | Over Current, UVLO | Surface Mount | 8-TVSP |
|

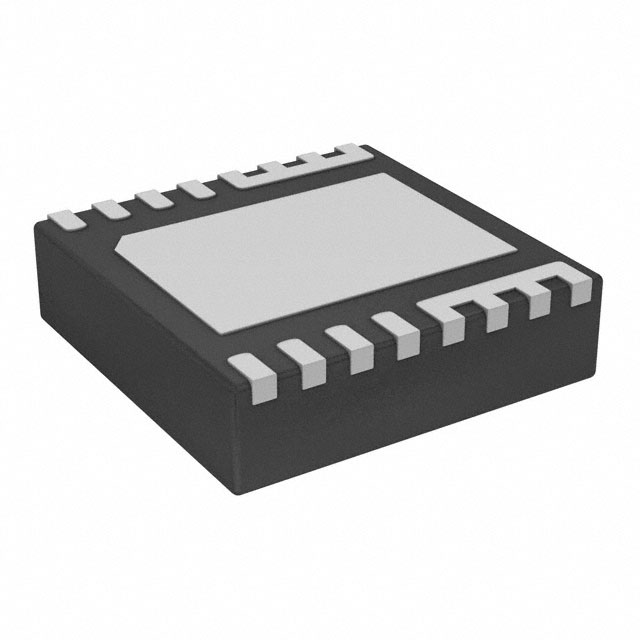

CSD95379Q3MIC HALF BRIDGE DRIVER 20A 10VSON |
4,731 |
|
Ficha técnica |
NexFET™ | 10-PowerVFDFN | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 20A | 45A | 4.5V ~ 5.5V | 4.5V ~ 16V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation | Shoot-Through, UVLO | Surface Mount | 10-VSON (3.3x3.3) |
|

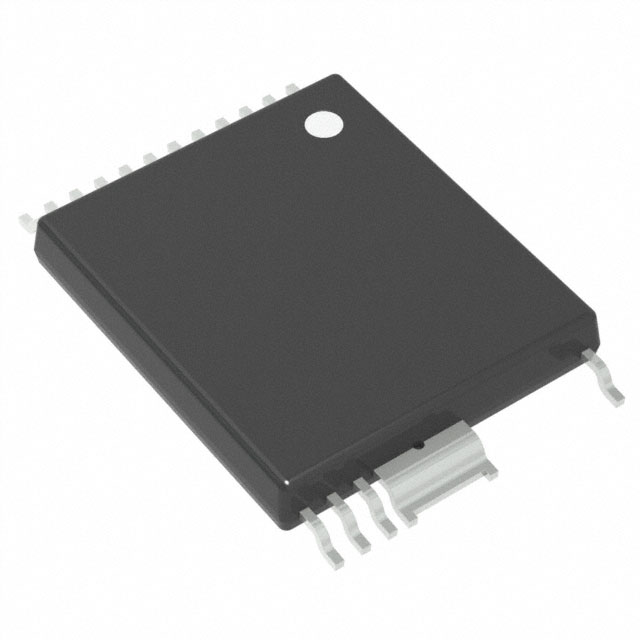

BRD1263C-TLIC HALF BRIDGE DRVR 3A INSOP24C |
1,962 |
|
Ficha técnica |
BridgeSwitch | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads | Tape & Reel (TR) | Active | Half Bridge | DC Motors, General Purpose | Analog, Logic, PWM | Capacitive and Resistive | Power MOSFET | 1.53Ohm LS, 1.53Ohm HS | 3A | - | - | 600V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Current Limiting, Over Temperature, Over Voltage | Surface Mount | InSOP-24C |
|
AP1013CENIC HALF BRIDGE DRIVER 1.3A 16QFN |
13,163 |
|
Ficha técnica |
- | 16-UFQFN Exposed Pad | Tape & Reel (TR) | Not For New Designs | Half Bridge (2) | General Purpose | Logic | Inductive | Power MOSFET | - | 1.3A | 5A | 2.7V ~ 5.5V | 2V ~ 18V | -30°C ~ 150°C (TJ) | - | - | - | Over Temperature, UVLO | Surface Mount | 16-QFN (3x3) |
|
|
AP1013DENIC HALF BRIDGE DRIVER 1.3A 16QFN |
9,779 |
|
Ficha técnica |
- | 16-UFQFN Exposed Pad | Tape & Reel (TR) | Not For New Designs | Half Bridge (2) | General Purpose | Logic | Inductive | Power MOSFET | - | 1.3A | 5A | 2.7V ~ 5.5V | 2V ~ 18V | -30°C ~ 150°C (TJ) | - | - | - | Over Temperature, UVLO | Surface Mount | 16-QFN (3x3) |
|
BQ500101DPCRIC HALF BRIDGE DRIVER 10A 8VSON |
1,478 |
|
Ficha técnica |
NexFET™ | 8-PowerVFDFN | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 10A | 15A | 4.5V ~ 5.5V | 24V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through | Surface Mount | 8-VSON (3.5x4.5) |
|
TLE94004EPXUMA1IC HALF BRIDGE DRVR 2A TSDSO-14 |
7,317 |
|
Ficha técnica |
- | 14-TSSOP (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (4) | DC Motors, General Purpose | Direct | Inductive | DMOS | 825mOhm LS, 825mOhm HS | 2A | - | 3V ~ 5.5V | 5.5V ~ 20V | -40°C ~ 150°C (TJ) | - | - | - | Current Limiting, Over Temperature, Short Circuit, UVLO | Surface Mount | PG-TSDSO-14 |
|
|
TLE94104EPXUMA1IC HALF BRIDGE DRVR 2A TSDSO-14 |
2,990 |
|
Ficha técnica |
- | 14-TSSOP (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (4) | DC Motors, General Purpose | SPI | Inductive | Power MOSFET | 825mOhm LS, 825mOhm HS | 2A | - | 3V ~ 5.5V | 5.5V ~ 20V | -40°C ~ 150°C (TJ) | - | - | - | Current Limiting, Over Temperature, Short Circuit, UVLO | Surface Mount | PG-TSDSO-14 |
|
CSD95375Q4MIC HALF BRIDGE DRIVER 25A 8VSON |
4,845 |
|
Ficha técnica |
NexFET™ | 8-PowerVFDFN | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 25A | 60A | 4.5V ~ 5.5V | 4.5V ~ 16V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through, UVLO | Surface Mount | 8-VSON (3.5x4.5) |
|
AOZ5516QI_2IC POWER DRMOS 25V 55A 31QFN |
14,763 |
|
Ficha técnica |
- | 31-PowerVFQFN Module | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive, Capacitive | DrMOS | - | 55A | 120A | 4.5V ~ 5.5V | 4.5V ~ 25V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | 31-QFN (5x5) |
