Relés de potência, acima de 2 amperes
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de montagem | Tensão da bobina | Forma de contato | Classificação de contato (corrente) | Tensão de comutação | Carga - Comutação Máxima | Corrente da bobina | Tipo de bobina | Recursos | Estilo de Terminação | Classificação de Vedação | Isolamento da Bobina | Tensão de operação obrigatória | Tensão de liberação obrigatória | Tempo de operação | Tempo de liberação | Temperatura operacional | Material de Contato | Agência de Aprovação | Tipo de Relé | Grau | Qualificação |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T92S11A22-120RELAY GEN PURPOSE DPDT 30A 120V |
145 |
|
Ficha técnica |
T92 | Bulk | Active | Chassis Mount | 120VAC | DPDT (2 Form C) | 30 A | 600VAC - Max | 18000VA | 33.3 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 96 VAC | 12 VAC | 15 ms | 15 ms | -55°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|
|
T92P11A22-277RELAY GEN PURPOSE DPDT 30A 277V |
423 |
|
Ficha técnica |
T92 | Bulk | Active | Chassis Mount | 277VAC | DPDT (2 Form C) | 30 A | 600VAC - Max | 18000VA | 14.4 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 221.6 VAC | 27.7 VAC | 15 ms | 15 ms | -55°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|
|
T92P11A22-240RELAY GEN PURPOSE DPDT 30A 240V |
229 |
|
Ficha técnica |
T92 | Bulk | Active | Chassis Mount | 240VAC | DPDT (2 Form C) | 30 A | 600VAC - Max | 18000VA | 16.7 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 192 VAC | 24 VAC | 15 ms | 15 ms | -55°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|

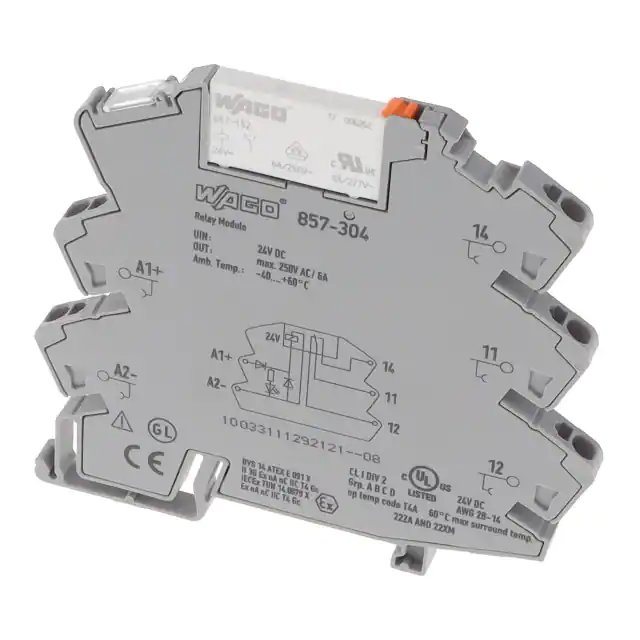

857-304RELAY GEN PURPOSE SPDT 6A 24V |
260 |
|
Ficha técnica |
857 | Bulk | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 6 A | 250VAC - Max | 1500VA | 10 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | 4.8 VDC | 3.6 VDC | 8 ms | 8 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | EAC, UL | General Purpose | - | - |
|
T92P7D52-24RELAY GEN PURPOSE DPST 30A 24V |
1,098 |
|
Ficha técnica |
T92 | Bulk | Active | Chassis Mount | 24VDC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 70.8 mA | Non Latching | - | Screw Terminal | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|

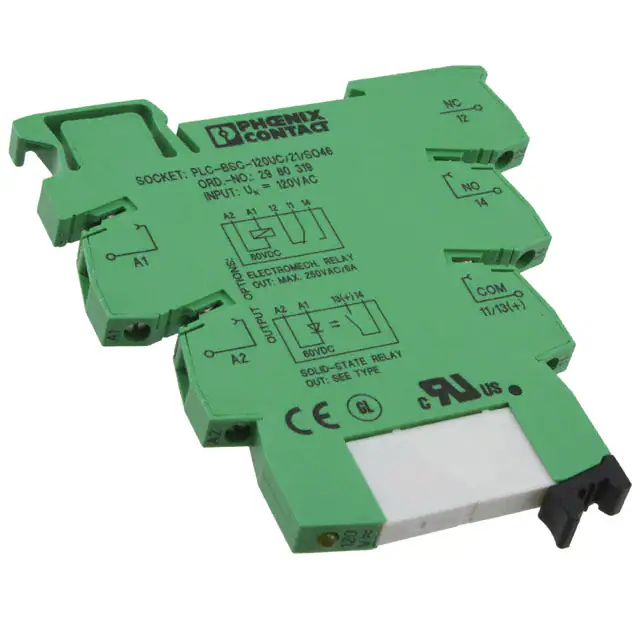

5603593RELAY GEN PURPOSE SPDT 6A 120V |
166 |
|
Ficha técnica |
PLC-RSC | Bulk | Active | DIN Rail | 120VAC/DC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 3.5 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 6 ms | 15 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | CE, UKCA | General Purpose | - | - |
|
G7EB-1A DC12RELAY GEN PURPOSE SPST 100A 12V |
514 |
|
Ficha técnica |
G7EB | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 100 A | 800VAC, 60VDC - Max | 48000VA, 6000W | 235.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 0.6 VDC | 30 ms | 10 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, TUV, UL | General Purpose | - | - |
|

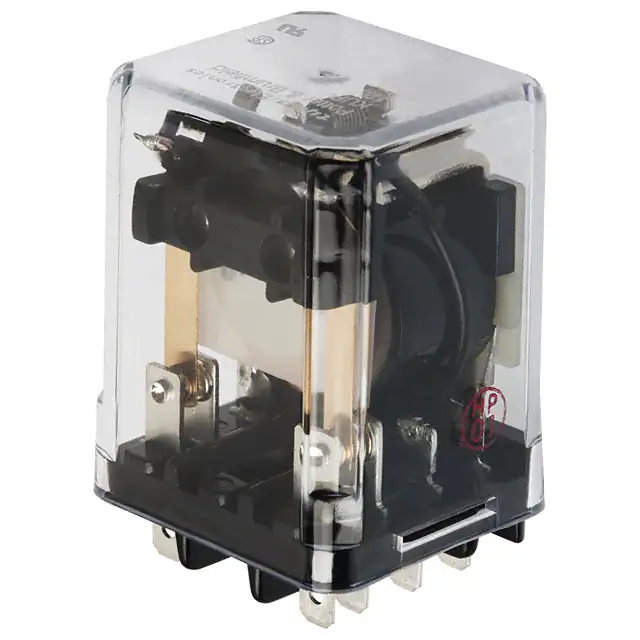

KUP-14A35-120RELAY GEN PURPOSE 3PDT 10A 120V |
302 |
|
Ficha técnica |
KUP | Bulk | Active | Socketable | 120VAC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 24 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 102 VAC | - | 15 ms | 10 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|

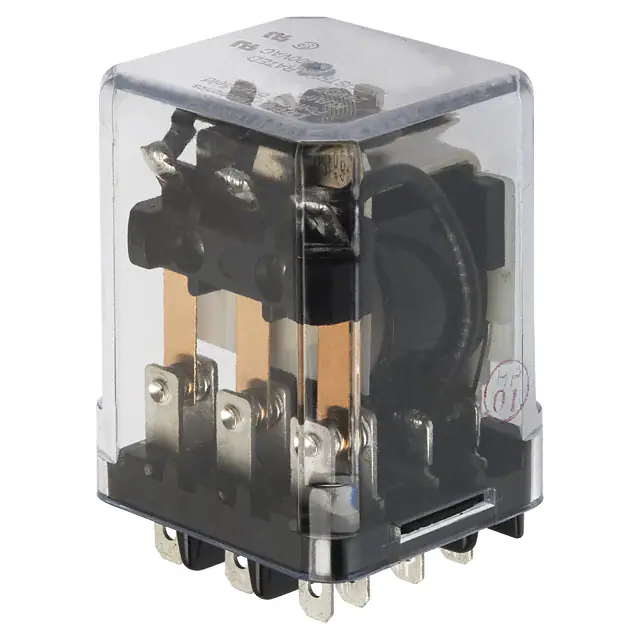

KUMP-14D18-24RELAY GEN PURPOSE 3PDT 15A 24V |
165 |
|
Ficha técnica |
KUMP | Tray | Active | Socketable | 24VDC | 3PDT (3 Form C) | 15 A | 277VAC - Max | 4155VA | 51 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 18 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|

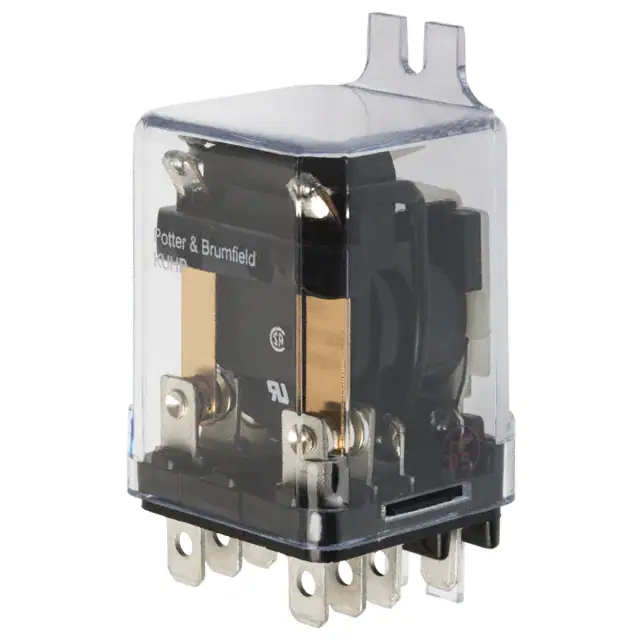

KUHP-11D51-12RELAY GEN PURPOSE DPDT 20A 12V |
635 |
|
Ficha técnica |
KUHP | Bulk | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 20 A | 240VAC - Max | 4800VA | 100 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 9 VDC | - | 20 ms | 20 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
G7L-2A-BUBJ-CB DC12RELAY GEN PURPOSE DPST 25A 12V |
381 |
|
Ficha técnica |
G7L | Bulk | Active | Chassis Mount | 12VDC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 158 mA | Non Latching | Test Button | Screw Terminal | - | Class B | 9 VDC | 1.8 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
|
KUHP-11A51-120RELAY GEN PURPOSE DPDT 20A 120V |
3,502 |
|
Ficha técnica |
KUHP | Bulk | Active | Chassis Mount | 120VAC | DPDT (2 Form C) | 20 A | 240VAC - Max | 4800VA | 24 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 102 VAC | - | 20 ms | 20 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|

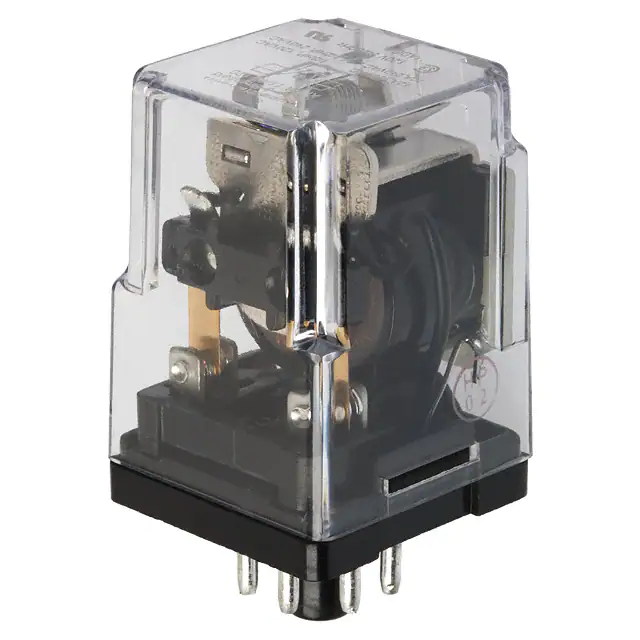

KRPA-11AN-120RELAY GEN PURPOSE DPDT 10A 120V |
238 |
|
Ficha técnica |
KRPA | Tray | Active | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 17.5 mA | Non Latching | Lighted Indicator | Plug In, 8 Pin (Octal) | - | Class B | 102 VAC | - | - | - | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|

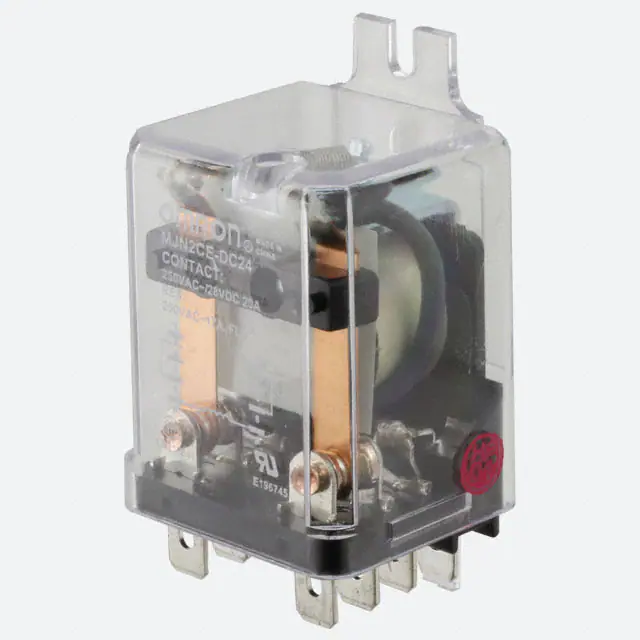

MJN2CE-DC24RELAY GEN PURPOSE DPDT 20A 24V |
148 |
|
Ficha técnica |
MJN | Bulk | Active | Chassis Mount | 24VDC | DPDT (2 Form C) | 20 A | 600VAC, 28VDC - Max | 12000VA, 560W | 50 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 18 VDC | - | 20 ms | 10 ms | -45°C ~ 70°C | Silver Alloy | CSA, UR | General Purpose | - | - |
|
|
KRPA-11AG-120RELAY GEN PURPOSE DPDT 10A 120V |
881 |
|
Ficha técnica |
KRPA | Tray | Active | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 17.5 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 102 VAC | - | - | - | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
G7EB-1A DC24RELAY GEN PURPOSE SPST 100A 24V |
336 |
|
Ficha técnica |
G7EB | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 100 A | 800VAC, 60VDC - Max | 48000VA, 6000W | 116.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | 1.2 VDC | 30 ms | 10 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, TUV, UL | General Purpose | - | - |
|
|
T92P7D52-12RELAY GEN PURPOSE DPST 30A 12V |
482 |
|
Ficha técnica |
T92 | Bulk | Active | Chassis Mount | 12VDC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 140 mA | Non Latching | - | Screw Terminal | - | Class F | 9 VDC | 1.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|

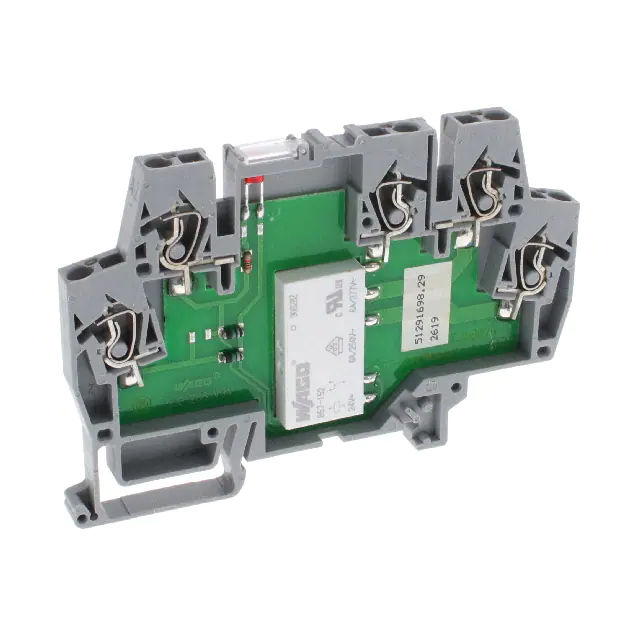

859-304RELAY GEN PURPOSE SPDT 5A 24V |
195 |
|
Ficha técnica |
859 | Bulk | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 5 A | 250VAC - Max | 1250VA | 10 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | 20.4 VDC | - | 15 ms | 25 ms | -40°C ~ 50°C | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
|

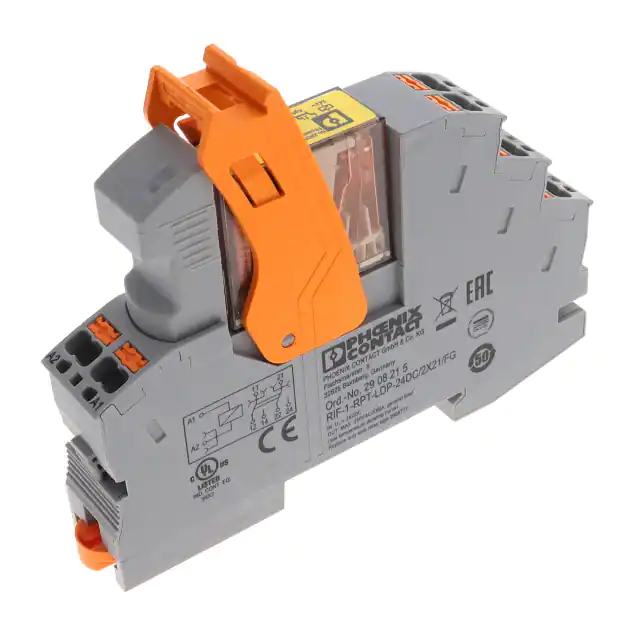

2908215RELAY GEN PURPOSE DPDT 6A 24V |
262 |
|
Ficha técnica |
RIF | Bulk | Active | DIN Rail | 24VDC | DPDT (2 Form C) | 6 A | 250VAC, 250VDC - Max | - | 30 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 10 ms | 10 ms | -20°C ~ 50°C | Silver Nickel (AgNi) | CE, UKCA, UL | General Purpose | - | - |
|
|
KUEP-11D15-24RELAY GEN PURPOSE DPDT 10A 24V |
144 |
|
Ficha técnica |
KUEP | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 150VDC - Max | 1500VA | 75 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 18 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
