Relés de potência, acima de 2 amperes
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de montagem | Tensão da bobina | Forma de contato | Classificação de contato (corrente) | Tensão de comutação | Carga - Comutação Máxima | Corrente da bobina | Tipo de bobina | Recursos | Estilo de Terminação | Classificação de Vedação | Isolamento da Bobina | Tensão de operação obrigatória | Tensão de liberação obrigatória | Tempo de operação | Tempo de liberação | Temperatura operacional | Material de Contato | Agência de Aprovação | Tipo de Relé | Grau | Qualificação |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
K41C334RELAY GEN PURPOSE SPDT 30A 26.5V |
44 |
|
Ficha técnica |
K41, KILOVAC | Bulk | Active | Panel Mount | 26.5VDC | SPDT (1 Form C) | 30 A | 5000VDC - Nom | - | 91.4 mA | Non Latching | - | Wire Leads | - | - | 16 VDC | 1 VDC | 10 ms | 10 ms | -55°C ~ 125°C | - | - | General Purpose | - | - |
|

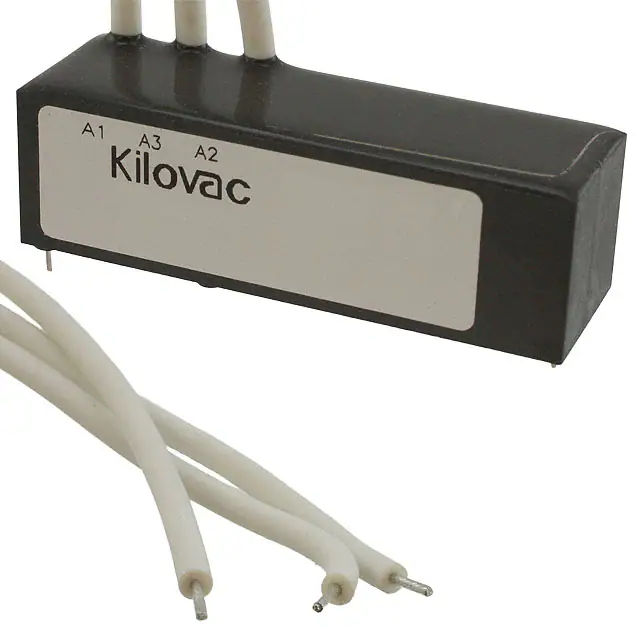

K81C245RELAY GEN PURPOSE SPDT 5A 12V |
39 |
|
Ficha técnica |
K81C, KILOVAC | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 5 A | 10000VDC - Max | - | 171.4 mA | Non Latching | - | PC Pin, Wire Leads | - | - | 8 VDC | 0.5 VDC | 10 ms | 10 ms | -55°C ~ 85°C | - | - | General Purpose | - | - |
|

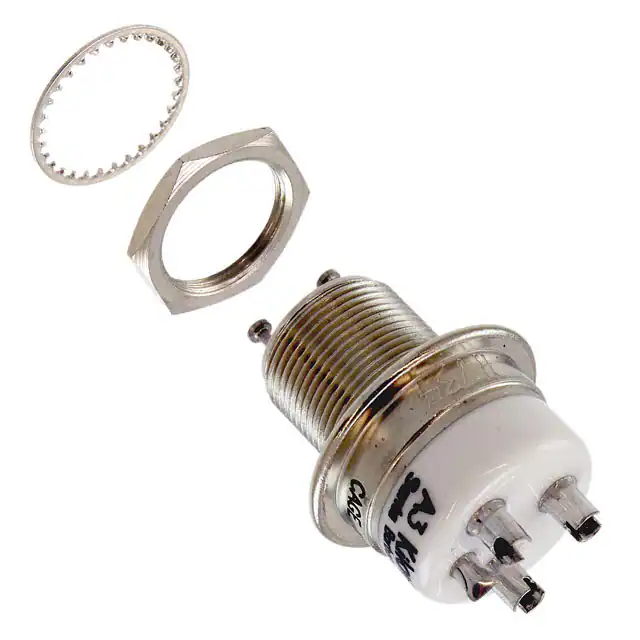

HC-3RELAY GEN PURPOSE SPDT 18A 26.5V |
0 |
|
Ficha técnica |
HC, KILOVAC | Bulk | Active | Panel Mount | 26.5VDC | SPDT (1 Form C) | 18 A | 3500VDC - Max | - | 79.1 mA | Non Latching | - | Solder Turret | - | - | 16 VDC | 1 VDC | 6 ms | 6 ms | -55°C ~ 125°C | Tungsten (W) | - | General Purpose | - | - |
|

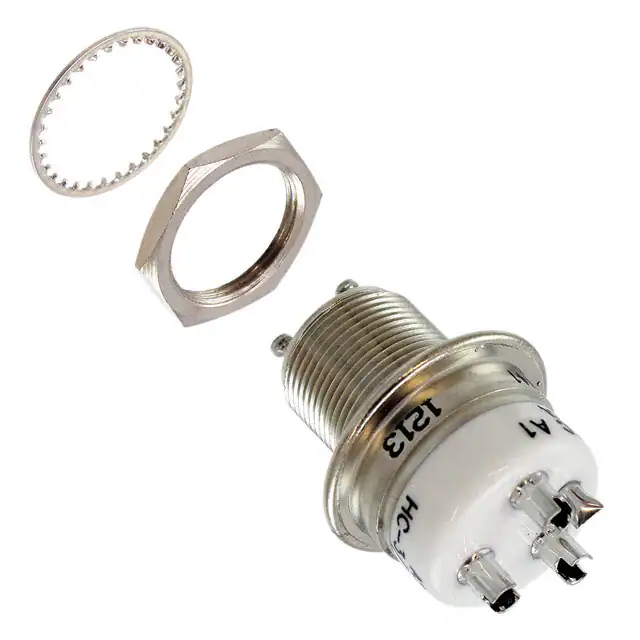

HC-3/12VDCRELAY GEN PURPOSE SPDT 18A 12V |
128 |
|
Ficha técnica |
HC, KILOVAC | Bulk | Active | Panel Mount | 12VDC | SPDT (1 Form C) | 18 A | 3500VDC - Max | - | 150 mA | Non Latching | - | Solder Turret | - | - | 8 VDC | 0.5 VDC | 6 ms | 6 ms | -55°C ~ 125°C | Tungsten (W) | - | General Purpose | - | - |
|
J1071AS5VDC.36RELAY GEN PURPOSE SPST N.O. 15A |
1,861 |
|
Ficha técnica |
J107 | Box | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 15 A | 125VAC, 30VDC - Max | 1875VA, 450W | 72.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 10 ms | 10 ms | -40°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
J1071AS12VDC.36RELAY GEN PURPOSE SPST N.O. 15A |
6,247 |
|
Ficha técnica |
J107 | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 15 A | 125VAC, 30VDC - Max | 1875VA, 450W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 10 ms | 10 ms | -40°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
J1071AS3VDC.36RELAY GEN PURPOSE SPST N.O. 15A |
1,081 |
|
Ficha técnica |
J107 | Box | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 15 A | 125VAC, 30VDC - Max | 1875VA, 450W | 120 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 2.25 VDC | 0.3 VDC | 10 ms | 10 ms | -40°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
J1071CS3VDC.36RELAY GEN PURPOSE SPDT 15A 30VDC |
1,213 |
|
Ficha técnica |
J107 | Box | Active | Through Hole | 3VDC | SPDT (1 Form C) | 15 A | 125VAC, 30VDC - Max | 1875VA, 450W | 120 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 2.25 VDC | 0.3 VDC | 10 ms | 10 ms | -40°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
J1071AS24VDC.36RELAY GEN PURPOSE SPST N.O. 15A |
1,094 |
|
Ficha técnica |
J107 | Box | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 15 A | 125VAC, 30VDC - Max | 1875VA, 450W | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 10 ms | 10 ms | -40°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
AHQSH105LM100GRELAY GEN PURPOSE SPST 12A 5V |
9,501 |
|
Ficha técnica |
AHQ | Box | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 12 A | 277VAC, 24VDC - Max | 3324VA, 288W | 71.4 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.0 VDC | 0.25 VDC | 10 ms | 5 ms | -40°C ~ 105°C | Silver Alloy | - | General Purpose | - | - |
|
J1021CS312VDC.45RELAY GEN PURPOSE SPDT 3A 12V |
19,503 |
|
Ficha técnica |
J102 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
J1021CS312VDC.36RELAY GEN PURPOSE SPDT 3A 12V |
9,562 |
|
Ficha técnica |
J102 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
|
AWHSH112DM00GRELAY GEN PURPOSE SPST 15A 12V |
11,253 |
|
Ficha técnica |
AWH | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 15 A | 240VAC, 110VDC - Max | 3600VA, 1650W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 0.6 VDC | 10 ms | 5 ms | -30°C ~ 85°C | Silver Alloy | UL | General Purpose | - | - |
|
|
J1071CS6VDC.36RELAY GEN PURPOSE SPDT 15A 30VDC |
1,849 |
|
Ficha técnica |
J107 | Box | Active | Through Hole | 6VDC | SPDT (1 Form C) | 15 A | 125VAC, 30VDC - Max | 1875VA, 450W | 60 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 4.5 VDC | 0.6 VDC | 10 ms | 10 ms | -40°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
J1071CS18VDC.36RELAY GEN PURPOSE SPDT 15A 30VDC |
1,833 |
|
Ficha técnica |
J107 | Box | Active | Through Hole | 18VDC | SPDT (1 Form C) | 15 A | 125VAC, 30VDC - Max | 1875VA, 450W | 20 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 13.5 VDC | 1.8 VDC | 10 ms | 10 ms | -40°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
J1071CS24VDC.36RELAY GEN PURPOSE SPDT 15A 30VDC |
1,225 |
|
Ficha técnica |
J107 | Box | Active | Through Hole | 24VDC | SPDT (1 Form C) | 15 A | 125VAC, 30VDC - Max | 1875VA, 450W | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 10 ms | 10 ms | -40°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
J102K1CS35VDC.20RELAY GEN PURPOSE SPDT 3A 5V |
14,422 |
|
Ficha técnica |
J102 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
|
AZ943-1CH-24DEFRELAY GEN PURPOSE SPDT 10A 24V |
15,194 |
|
Ficha técnica |
AZ943 | Tray | Active | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300W | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 110°C | Silver Tin Oxide (AgSnO) | CUR, TUV, UL, VDE | General Purpose | - | - |
|
|
AZ7709-1AE-5DERELAY GENERAL PURPOSE SPST 5A 5V |
4,742 |
|
Ficha técnica |
AZ7709 | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 90.9 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.25 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CUR, TUV, UL | General Purpose | - | - |
|
AZ7709-1AE-12DERELAY GEN PURPOSE SPST 5A 12V |
3,614 |
|
Ficha técnica |
AZ7709 | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 0.6 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CUR, TUV, UL | General Purpose | - | - |
