Relés de potência, acima de 2 amperes
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de montagem | Tensão da bobina | Forma de contato | Classificação de contato (corrente) | Tensão de comutação | Carga - Comutação Máxima | Corrente da bobina | Tipo de bobina | Recursos | Estilo de Terminação | Classificação de Vedação | Isolamento da Bobina | Tensão de operação obrigatória | Tensão de liberação obrigatória | Tempo de operação | Tempo de liberação | Temperatura operacional | Material de Contato | Agência de Aprovação | Tipo de Relé | Grau | Qualificação |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T9GV1L14-5RELAY GEN PURPOSE SPST 30A 5V |
8,450 |
|
Ficha técnica |
T9G | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 30 A | 480VAC - Max | 14400VA | 180 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 3.75 VDC | 0.5 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
AZ733-2CE-24DERELAY GEN PURPOSE DPDT 12A 24V |
1,089 |
|
Ficha técnica |
AZ733 | Tray | Active | Through Hole | 24VDC | DPDT (2 Form C) | 12 A | 400VAC, 250VDC - Max | 3324VA, 360W | 21.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CUR, TUV, UL | General Purpose | - | - |
|
ALZ52F24RELAY GEN PURPOSE SPST 16A 24V |
908 |
|
Ficha técnica |
ALZ | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 440VAC - Max | 7040VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
J115F11C12VDCS6.9RELAY GEN PURPOSE SPDT 40A 12V |
220 |
|
Ficha técnica |
J115F1 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 9600VA, 1120W | 75 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
G2RL-1A-E DC5RELAY GEN PURPOSE SPST 16A 5V |
2,198 |
|
Ficha técnica |
G2RL | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 440VAC, 300VDC - Max | 7040VA, 4800W | 80 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.5 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
ALF1T24RELAY GEN PURPOSE SPST 20A 24V |
10,792 |
|
Ficha técnica |
ALF | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 5000VA | 37.5 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | - | - | 16.8 VDC | 2.4 VDC | 20 ms | 15 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
RZ03-1A3-D005RELAY GEN PURPOSE SPST 16A 5V |
9,031 |
|
Ficha técnica |
RZ, SCHRACK | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 84 mA | Non Latching | - | PC Pin | - | Class F | 3.5 VDC | 0.5 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|

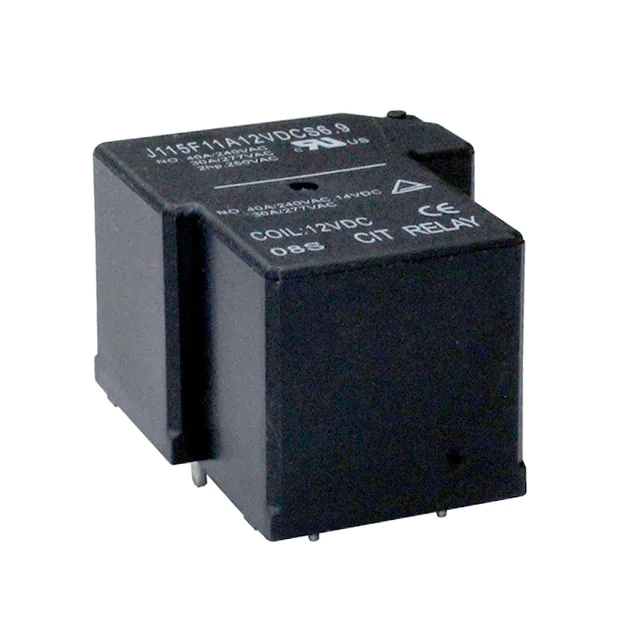

J115F11A12VDCS6.9RELAY GEN PURPOSE SPST 40A 12V |
6,872 |
|
Ficha técnica |
J115F1 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 9600VA, 1120W | 75 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
|
T9GS1L14-15RELAY GEN PURPOSE SPST 30A 15V |
4,713 |
|
Ficha técnica |
T9G | Bulk | Active | Through Hole | 15VDC | SPST-NO (1 Form A) | 30 A | 480VAC - Max | 14400VA | 60 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 11.25 VDC | 1.5 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
PC375-2C-12S4-XRELAY GEN PURPOSE DPDT 16A 12V |
1,894 |
|
Ficha técnica |
PC375 | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 8 A | 380VAC, 110VDC - Max | 6080VA, 1760W | 34.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 1.2 VDC | 15 ms | 8 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
PR21-12V-400-2CRELAY GEN PURPOSE DPDT 8A 12V |
268 |
|
Ficha técnica |
PR21 | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 8 A | 440VAC, 120VDC - Max | 3520VA, 960W | 33.3 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | cURus | General Purpose | - | - |
|

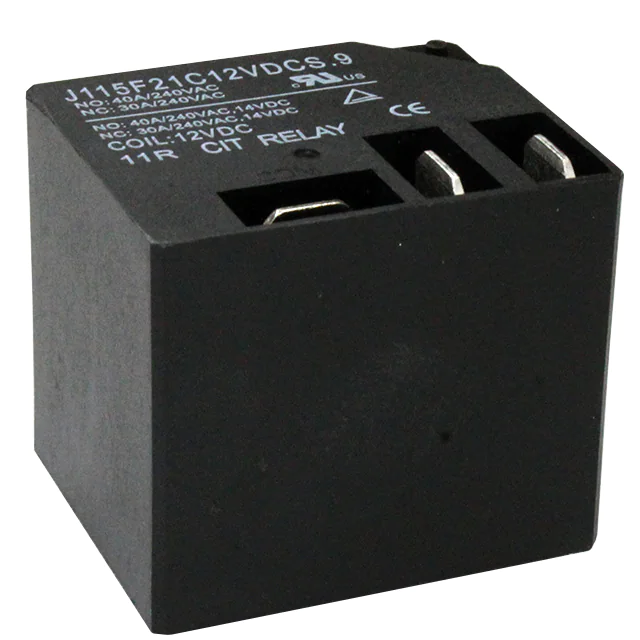

J115F21C12VDCS.9RELAY GEN PURPOSE SPDT 40A 12V |
11,534 |
|
Ficha técnica |
J115F2 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 11080VA, 4400W | 75 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
G5LE-1A-E DC24RELAY GEN PURPOSE SPST 16A 24V |
1,286 |
|
Ficha técnica |
G5LE-E | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 250VAC - Max | 4000VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | CSA, UR, VDE | General Purpose | - | - |
|
|
G5LE-1A-E DC5RELAY GEN PURPOSE SPST 16A 5V |
3,328 |
|
Ficha técnica |
G5LE-E | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 250VAC - Max | 4000VA | 79.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.75 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | CSA, UR, VDE | General Purpose | - | - |
|
|
RZ03-1C4-D012RELAY GEN PURPOSE SPDT 16A 12V |
5,931 |
|
Ficha técnica |
RZ, SCHRACK | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 33.3 mA | Non Latching | - | PC Pin | - | Class F | 8.4 VDC | 1.2 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, cURus, VDE | General Purpose | - | - |
|
|
RZ03-1C4-D024RELAY GEN PURPOSE SPDT 16A 24V |
4,849 |
|
Ficha técnica |
RZ, SCHRACK | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 16.7 mA | Non Latching | - | PC Pin | - | Class F | 16.8 VDC | 2.4 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, cURus, VDE | General Purpose | - | - |
|
JW1FSN-B-DC5VRELAY GEN PURPOSE SPDT 10A 5V |
1,538 |
|
Ficha técnica |
JW | Bulk | Active | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 106 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 3.5 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | CQC, CSA, UR, VDE | General Purpose | - | - |
|
|
G5LE-1-E-36 DC12RELAY GEN PURPOSE SPDT 16A 12V |
484 |
|
Ficha técnica |
G5LE-E | Tray | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 250VAC - Max | 4000VA | 30 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | CSA, UR, VDE | General Purpose | - | - |
|
ALQ1F12RELAY GEN PURPOSE SPDT 10A 12V |
1,298 |
|
Ficha técnica |
ALQ | Box | Active | Through Hole | 12VDC | SPDT (1 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 33.3 mA | Non Latching | - | PC Pin | - | Class F | 9 VDC | 0.6 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, cURuus, VDE | General Purpose | - | - |
|
|
JW1FSN-B-DC24VRELAY GEN PURPOSE SPDT 10A 24V |
1,149 |
|
Ficha técnica |
JW | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 22 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | CQC, CSA, UR, VDE | General Purpose | - | - |
